IslandPath Analysis: Aquifex aeolicus VF5

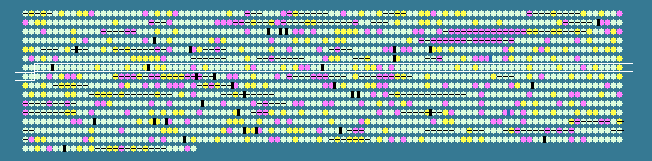

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
603	 44.29	0	597975..600338	-	787	15606211	nuoL2	aq_866	-	NADH dehydrogenase I chain L
604	 40.20	0	600393..600596	-	67	15606212	rpsU	aq_867a	-	ribosomal protein S21
605	 44.12	0	600882..601706	-	274	15606213	nadC	aq_869	-	quinolinate phosphoribosyl transferase
606	 44.69	0	601852..603198	+	448	15606214	trmE	aq_871	-	tRNA modification GTPase TrmE
607	 46.68	0	603214..604524	+	436	15606215	rho	aq_873	-	transcription termination factor Rho
608	 44.44	0	604575..604781	+	68	15607141	rpmE	aq_873a	-	ribosomal protein L31
609	 44.44	0	604785..605873	+	362	15606216	prfA	aq_876	-	peptide chain release factor RF-1
610	 43.22	0	606111..606899	-	262	15606217	minD2	aq_877	-	septum site-determining protein MinD
611	 41.42	0	606878..607483	-	201	15606218	minC	aq_878	-	septum site-determining protein MinC
612	 45.94	0	607507..608085	+	192	15606219	-	aq_880	-	hypothetical protein
613	 48.81	+1	608082..609968	-	628	15606220	-	aq_881	-	1-deoxy-D-xylulose-5-phosphate synthase
614	 45.66	0	610406..613846	-	1146	15606221	topG2	aq_886	-	reverse gyrase
615	 46.53	0	613977..614423	+	148	15606222	-	aq_888	-	hypothetical protein
616	 46.77	0	614467..615270	+	267	15606223	-	aq_890	-	hypothetical protein
617	 44.41	0	615250..616188	-	312	15606224	ppx	aq_891	-	exopolyphosphatase
618	 48.83	+1	616148..617128	+	326	15606225	fabD	aq_892	-	malonyl-CoA:Acyl carrier protein transacylase
619	 45.19	0	617125..617976	+	283	15606226	-	aq_893	-	hypothetical protein
620	 45.97	0	617965..618969	-	334	15606227	queA	aq_894	-	queuosine biosynthesis protein
621	 49.29	+1	618982..619896	-	304	15606228	ispB	aq_895	-	octoprenyl-diphosphate synthase
622	 45.99	0	620083..620556	+	157	15606229	nifU	aq_896	-	NifU protein
623	 48.28	+1	620558..621313	+	251	15606230	-	aq_898	-	hypothetical protein
624	 47.15	+1	621274..621606	+	110	15606231	-	aq_899	-	hypothetical protein
625	 44.35	0	621726..622097	+	123	15606232	-	aq_900	-	hypothetical protein
626	 42.22	0	622364..623173	+	269	15606233	aroE	aq_901	-	shikimate 5-dehydrogenase
627	 40.13	0	623166..623621	+	151	15606234	-	aq_903	-	hypothetical protein
628	 44.31	0	623622..624131	+	169	15606235	-	aq_904	-	hypothetical protein
629	 37.87	-1	624284..625825	-	513	15606236	hksP3	aq_905	-	histidine kinase sensor protein
630	 45.05	0	625818..626483	-	221	15606237	phoU	aq_906	-	transcriptional regulator (PhoU-like)
631	 51.04	+2	626498..627073	+	191	15606238	gmhA	aq_908	-	phosphoheptose isomerase
632	 43.76	0	627058..627882	+	274	15606239	-	aq_909	-	hypothetical protein
633	 44.35	0	627868..628575	-	235	15606240	dnaC	aq_910	-	DNA replication protein DnaC
634	 46.59	0	628608..629369	-	253	15606241	ebs	aq_911	-	erythrocyte band 7-like protein
635	 41.90	0	629378..630031	-	217	15606242	-	aq_913	-	hypothetical protein
636	 44.54	0	630065..630421	+	118	15606243	-	aq_914	-	hypothetical protein
637	 45.23	0	630432..631238	+	268	15606244	-	aq_915	-	hypothetical protein
638	 47.37	+1	631526..632323	+	265	15606245	dapB	aq_916	-	dihydrodipicolinate reductase
639	 38.88	-1	632293..633519	-	408	15606246	-	aq_917	-	hypothetical protein
640	 44.16	0	633516..633977	-	153	15606247	-	aq_918	-	hypothetical protein
641	 40.21	0	633962..634441	+	159	15606248	-	aq_919	-	hypothetical protein
642	 46.74	0	634438..634728	-	96	15606249	fdx1	aq_919a	-	ferredoxin
643	 45.45	0	634779..636164	-	461	15606250	ftsY	aq_920	-	cell division protein FtsY
644	 47.37	+1	636198..637814	-	538	15606251	-	aq_922	-	hypothetical protein
645	 43.84	0	637841..639592	+	583	15606252	argS	aq_923	-	arginyl-tRNA synthetase
646	 47.92	+1	639612..640379	+	255	15606253	rnpH	aq_924	-	RNase PH
647	 36.89	-1	640337..641095	+	252	15606254	-	aq_926	-	hypothetical protein
648	 39.42	-1	641141..641731	+	196	15606255	-	aq_928	-	hypothetical protein
649	 44.82	0	641743..642969	+	408	15606256	napA2	aq_929	-	Na(+)/H(+) antiporter
650	 44.62	0	643202..643591	+	129	15606257	-	aq_931	-	hypothetical protein
651	 42.69	0	643713..644321	-	202	15606258	dnaQ	aq_932	-	DNA polymerase III epsilon subunit
652	 43.16	0	644296..644529	-	77	15607138	purS	aq_932a	-	phosphoribosylformylglycinamidine (FGAM) synthase, PurS component
653	 45.28	0	644552..645313	-	253	15606259	-	aq_933	-	hypothetical protein
654	 41.77	0	645310..645783	-	157	15606260	-	aq_935	-	hypothetical protein
655	 46.72	0	645833..647737	+	634	15606261	ftsH	aq_936	-	cell division protein FtsH
656	 49.04	+1	647737..649035	+	432	15606262	leuC	aq_940	-	3-isopropylmalate dehydratase large subunit
657	 42.90	0	650221..650544	+	107	15606263	-	aq_943	-	hypothetical protein
658	 48.56	+1	650617..651102	+	161	15606264	gcsH3	aq_944	-	glycine cleavage system protein H
659	 46.97	0	651393..652250	+	285	15606265	glyQ	aq_945	-	glycyl-tRNA synthetase subunit alpha
660	 37.54	-1	652228..652893	+	221	15606266	rnc	aq_946	-	RNase III
661	 40.75	0	652890..653819	+	309	15606267	hemH	aq_948	-	ferrochelatase
662	 33.33	-2	654176..654538	+	120	15606268	-	aq_950	-	hypothetical protein
663	 44.17	0	654542..655630	-	362	15606269	pheA	aq_951	-	chorismate mutase/prephenate dehydratase
664	 44.82	0	655685..656041	+	118	15606270	rplT	aq_952	-	50S ribosomal protein L20
665	 45.62	0	656041..657057	+	338	15606271	pheS	aq_953	-	phenylalanyl-tRNA synthetase alpha subunit
666	 44.88	0	657066..657836	+	256	15606272	lepB	aq_955	-	type-I signal peptidase
667	 44.16	0	657836..658306	+	156	15606273	-	aq_957	-	hypothetical protein
668	 45.75	0	658313..659230	+	305	15606274	pgsA2	aq_958	-	phosphotidylglycerophosphate synthase
669	 45.77	0	658796..660499	-	567	15606275	nadE	aq_959	-	NH(3)-dependent NAD+ synthetase
670	 45.37	0	660510..662204	-	564	15606276	mbhL2	aq_960	-	hydrogenase large subunit
671	 44.44	0	662201..663505	-	434	15606277	hdrD	aq_961	-	heterodisulfide reductase
672	 44.49	0	663518..664198	-	226	15606278	-	aq_963	-	hypothetical protein
673	 48.10	+1	664198..665247	-	349	15606279	mbhS2	aq_965	-	hydrogenase small subunit
674	 42.94	0	666041..666550	+	169	15606280	-	aq_966	-	hypothetical protein
675	 40.37	0	666538..668499	+	653	15606281	ostA	aq_967	-	organic solvent tolerance protein
676	 47.23	+1	668496..669164	-	222	15606282	cbbE2	aq_968	-	ribulose-5-phosphate 3-epimerase
677	 41.16	0	669174..669761	+	195	15606283	tmk	aq_969	-	thymidylate kinase
678	 46.32	0	669738..670877	-	379	15606284	argJ	aq_970	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
679	 46.01	0	670887..672164	-	425	15606285	-	aq_972	-	hypothetical protein
680	 44.02	0	672190..673695	+	501	15606286	secD	aq_973	-	protein export membrane protein SecD
681	 42.97	0	673738..674661	+	307	15606287	cphA2	aq_974	-	beta lactamase precursor
682	 44.64	0	674673..675671	+	332	15606288	bioB	aq_975	-	biotin synthetase
683	 43.98	0	675750..676754	+	334	15606289	-	aq_977	-	hypothetical protein
684	 40.18	0	676751..677188	+	145	15606290	-	aq_978	-	hypothetical protein
685	 47.26	+1	677185..677787	-	200	15606291	-	aq_979	-	hypothetical protein
686	 44.74	0	677905..680139	+	744	15606292	gyrA	aq_980	-	DNA gyrase A subunit
687	 42.09	0	680212..681090	+	292	15606293	-	aq_983	-	hypothetical protein
688	 44.72	0	681087..682298	-	403	15606294	-	aq_985	-	hypothetical protein
689	 40.87	0	682302..682805	-	167	15606295	-	aq_986	-	hypothetical protein
690	 47.59	+1	682778..683275	-	165	15606296	-	aq_987	-	hypothetical protein
691	 40.24	0	683288..683881	-	197	15606297	-	aq_988	-	hypothetical protein
692	 43.92	0	683881..684636	-	251	15606298	-	aq_990	-	hypothetical protein
693	 43.69	0	684685..685872	+	395	15606299	trpS	aq_992	-	tryptophanyl-tRNA synthetase
694	 37.31	-1	685872..686903	+	343	15606300	-	aq_993	-	hypothetical protein
695	 45.73	0	686941..687537	+	198	15606301	pncA	aq_994	-	pyrazinamidase/nicotinamidase
696	 48.18	+1	687606..689504	+	632	15606302	dnaK	aq_996	-	Hsp70 chaperone DnaK
697	 41.26	0	689521..691992	-	823	15606303	fadD	aq_999	-	long-chain-fatty-acid CoA ligase
698	 42.96	0	692496..693170	-	224	15606304	motB2	aq_1001	-	flagellar motor protein MotB-like
699	 46.75	0	693181..693888	-	235	15606305	motB1	aq_1002	-	flagellar motor protein MotB
700	 47.32	+1	693892..694656	-	254	15606306	motA	aq_1003	-	flagellar motor protein MotA
701	 43.49	0	694699..695013	+	104	15606307	cutA	aq_1005	-	periplasmic divalent cation tolerance protein
702	 41.37	0	695010..697946	+	978	15606308	-	aq_1006	-	hypothetical protein
43.45	MEAN

3.70	STD DEV
