IslandPath Analysis: Aquifex aeolicus VF5

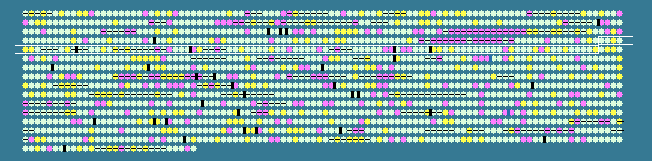

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
397	 44.33	0	369760..370959	-	399	15606005	-	aq_545	-	hypothetical protein
398	 45.11	0	371023..371922	+	299	15606006	dapE	aq_547	-	succinyl-diaminopimelate desuccinylase
399	 47.27	+1	372081..372647	-	188	15606007	-	aq_548	-	hypothetical protein
400	 45.79	0	372746..373339	-	197	15606008	trpG	aq_549	-	anthranilate synthase component II
401	 47.70	+1	373336..375117	-	593	15606009	nuoD1	aq_551	-	NADH dehydrogenase I chain D
402	 47.27	+1	375161..376495	-	444	15606010	sms	aq_552	-	DNA repair protein RadA
403	 43.43	0	376504..377196	-	230	15606011	frdB1	aq_553	-	fumarate reductase iron-sulfur subunit
404	 44.63	0	377232..377948	-	238	15606012	-	aq_554	-	hypothetical protein
405	 40.17	0	377884..378687	+	267	15606013	-	aq_555	-	hypothetical protein
406	 42.03	0	378689..380425	+	578	15606014	pbpA2	aq_556	-	penicillin binding protein 2
407	 46.30	0	380398..381060	-	220	15606015	bioD	aq_557	-	dethiobiotin synthetase
408	 47.99	+1	381057..381704	-	215	15606016	thiE2	aq_558	-	thiamine phosphate synthase
409	 41.59	0	381742..383304	-	520	15606017	recN	aq_561	-	recombination protein RecN
410	 43.40	0	383468..385324	+	618	15606018	-	aq_563	-	hypothetical protein
411	 44.73	0	385335..386282	+	315	15606019	rfaE	aq_565	-	ADP-heptose synthase
412	 41.88	0	386285..386986	+	233	15606020	birA	aq_566	-	biotin [acetyl-CoA-carboxylase] ligase
413	 46.02	0	386954..387418	-	154	15606021	rimI	aq_567	-	ribosomal-protein-alanine acetyltransferase
414	 47.60	+1	387432..388265	+	277	15606022	deoD	aq_568	-	purine nucleoside phosphorylase
415	 43.96	0	388545..389645	-	366	15606023	-	aq_572	-	hypothetical protein
416	 49.10	+1	389655..390935	-	426	15606024	nuoF	aq_573	-	NADH dehydrogenase I chain F
417	 43.89	0	390910..391392	-	160	15606025	nuoE	aq_574	-	NADH dehydrogenase I chain E
418	 47.01	0	391412..392047	-	211	15606026	-	aq_575	-	hypothetical protein
419	 44.73	0	392044..392859	-	271	15606027	stpK	aq_576	-	Ser/thr protein kinase
420	 40.00	0	392890..393504	+	204	15606028	-	aq_577	-	hypothetical protein
421	 42.66	0	393496..394074	-	192	15606029	-	aq_578	-	hypothetical protein
422	 46.67	0	394092..394601	+	169	15606030	def	aq_579	-	polypeptide deformylase
423	 39.20	-1	394598..395125	+	175	15606031	-	aq_581	-	hypothetical protein
424	 43.43	0	395126..396610	-	494	15606032	trpE	aq_582	-	anthranilate synthase component I
425	 35.36	-2	397306..399423	+	705	15606033	-	aq_585	-	hypothetical protein
426	 45.17	0	399420..400712	-	430	15606034	neaC	aq_587	-	N-ethylammeline chlorohydrolase
427	 43.98	0	400746..402107	+	453	15606035	xanB	aq_589	-	mannose-6-phosphate isomerase/mannose-1-phosphate guanyl transferase
428	 43.11	0	402088..403089	+	333	15606036	-	aq_591	-	hypothetical protein
429	 39.73	-1	403186..404499	+	437	15606037	-	aq_592	-	hypothetical protein
430	 48.02	+1	404496..406211	-	571	15606038	frdA	aq_594	-	fumarate reductase flavoprotein subunit
431	 44.75	0	406507..407820	-	437	15606039	purB	aq_597	-	adenylosuccinate lyase
432	 44.53	0	407862..408254	-	130	15606040	-	aq_598	-	hypothetical protein
433	 37.01	-1	408354..409550	+	398	15606041	rpoN	aq_599	-	RNA polymerase sigma factor RpoN
434	 44.10	0	409567..410049	-	160	15606042	-	aq_600	-	hypothetical protein
435	 40.60	0	410406..410942	+	178	15606043	-	aq_601	-	hypothetical protein
436	 41.76	0	411154..411972	+	272	15606044	-	aq_603	-	hypothetical protein
437	 48.60	+1	412006..412791	+	261	15606045	lpxA	aq_604	-	UDP-N-acetylglucosamine acyltransferase
438	 45.30	0	412805..414199	+	464	15606046	glmU	aq_607	-	UDP-N-acetylglucosamine pyrophosphorylase
439	 46.67	0	414196..415425	-	409	15606047	thrC1	aq_608	-	threonine synthase
440	 45.91	0	415436..416548	-	370	15606048	-	aq_609	-	translation-associated GTPase
441	 42.74	0	417224..418105	-	293	15606049	deaD	aq_613	-	ATP-dependent RNA helicase DeaD
442	 47.62	+1	418639..419037	+	132	15606050	-	aq_615	-	hypothetical protein
443	 43.25	0	419071..419574	+	167	15606051	-	aq_616	-	hypothetical protein
444	 45.04	0	419585..420088	+	167	15606052	pfpI	aq_618	-	protease I
445	 39.67	-1	420088..420924	+	278	15606053	yfeA	aq_619	-	adhesion B precursor
446	 41.92	0	420915..421613	+	232	15606054	abcT2	aq_620	-	ABC transporter
447	 44.95	0	421671..422402	+	243	15606055	-	aq_621	-	hypothetical protein
448	 42.78	0	422376..423338	-	320	15606056	-	aq_622	-	hypothetical protein
449	 44.34	0	423373..425553	+	726	15606057	mrcA	aq_624	-	penicillin binding protein 1A
450	 37.61	-1	425550..426671	+	373	15606058	bioF	aq_626	-	8-amino-7-oxononanoate synthase
451	 43.47	0	426668..427594	-	308	15606059	-	aq_627	-	hypothetical protein
452	 42.59	0	427634..428011	-	125	15606060	-	aq_628	-	hypothetical protein
453	 37.11	-1	428466..431936	-	1156	15606061	xcpC	aq_629	-	chromosome assembly protein
454	 45.18	0	432190..433143	-	317	15606062	-	aq_632	-	hypothetical protein
455	 44.38	0	433166..435328	+	720	15606063	ligA	aq_633	-	DNA ligase (NAD dependent)
456	 40.09	0	435320..435748	-	142	15606064	-	aq_635	-	hypothetical protein
457	 40.13	0	436576..437487	-	303	15606065	lysR1	aq_638	-	LysR family transcriptional regulator
458	 42.35	0	438038..438991	+	317	15606066	thy	aq_640	-	thymidylate synthase complementing protein
459	 44.04	0	439003..440085	-	360	15606067	-	aq_642	-	RNA 3'-terminal-phosphate cyclase
460	 40.64	0	440091..440774	-	227	15606068	-	aq_644	-	hypothetical protein
461	 33.11	-2	440821..442143	+	440	15606069	-	aq_645	-	hypothetical protein
462	 30.57	-2	442506..443915	+	469	15606070	-	aq_647	-	hypothetical protein
463	 45.16	0	444064..445179	+	371	15606071	-	aq_648	-	hypothetical protein
464	 39.53	-1	445163..445759	-	198	15606072	-	aq_651	-	hypothetical protein
465	 36.76	-1	445756..446805	-	349	15606073	nlpD1	aq_652	-	lipoprotein
466	 43.87	0	447062..448048	-	328	15606074	fliG	aq_653	-	flagellar switch protein FliG
467	 43.72	0	448050..448742	-	230	15606075	frdB2	aq_655	-	fumarate reductase iron-sulfur subunit
468	 43.68	0	448782..450404	+	540	15606076	topA	aq_657	-	topoisomerase I
469	 48.87	+1	450916..451977	+	353	15606077	mbhS1	aq_660	-	hydrogenase small subunit
470	 49.05	+1	451992..453893	+	633	15606078	mbhL1	aq_662	-	hydrogenase large subunit
471	 43.38	0	453886..454572	+	228	15606079	hoxZ	aq_665	-	Ni/Fe hydrogenase B-type cytochrome subunit
472	 48.80	+1	454585..455127	+	180	15606080	hupE	aq_666	-	HupE hydrogenase related function
473	 43.97	0	455140..455628	+	162	15606081	hupD	aq_667	-	HupD hydrogenase related function
474	 40.12	0	455615..455953	+	112	15606082	-	aq_668	-	hypothetical protein
475	 41.16	0	455947..456342	+	131	15606083	-	aq_669	-	hypothetical protein
476	 46.15	0	456335..457114	+	259	15606084	hypB	aq_671	-	hydrogenase expression/formation protein B
477	 44.67	0	457083..459323	+	746	15606085	hypF	aq_672	-	transcriptional regulatory protein HypF
478	 45.61	0	459334..459732	+	132	15606086	atpC	aq_673	-	ATP synthase F1 epsilon subunit
479	 40.00	0	459716..460435	+	239	15606087	-	aq_674	-	hypothetical protein
480	 46.63	0	460432..461010	-	192	15606088	-	aq_676	-	hypothetical protein
481	 38.34	-1	461021..461599	-	192	15606089	-	aq_678	-	hypothetical protein
482	 47.88	+1	461663..463174	+	503	15606090	atpA	aq_679	-	F0F1 ATP synthase subunit alpha
483	 43.66	0	463190..464380	-	396	15606091	arsA1	aq_682	-	anion transporting ATPase
484	 45.47	0	464435..465184	+	249	15606092	-	aq_684	-	hypothetical protein
485	 44.60	0	465181..465615	+	144	15606093	arsC	aq_685	-	arsenate reductase
486	 48.04	+1	465627..468407	+	926	15606094	uvrA	aq_686	-	repair excision nuclease subunit A
487	 37.69	-1	468404..469414	-	336	15606095	-	aq_689	-	hypothetical protein
488	 47.83	+1	469427..470764	-	445	15606096	gidA2	aq_691	-	tRNA (uracil-5-)-methyltransferase Gid
489	 41.56	0	470797..471501	+	234	15606097	kpsU	aq_692	-	3-deoxy-manno-octulosonate cytidylyltransferase
490	 42.17	0	471539..472783	-	414	15606098	-	aq_693	-	hypothetical protein
491	 47.65	+1	472894..476142	-	1082	15606099	acrD1	aq_695	-	AcrB/AcrD/AcrF family cation efflux protein
492	 46.13	0	476147..477271	-	374	15606100	acrE	aq_698	-	acriflavin resistance protein AcrE
493	 44.37	0	477268..478581	-	437	15606101	-	aq_699	-	hypothetical protein
494	 44.44	0	478635..479876	-	413	15606102	-	aq_701	-	hypothetical protein
495	 43.80	0	479863..480273	-	136	15606103	merR	aq_702	-	MerR family transcriptional regulator
496	 47.75	+1	480279..481409	-	376	15606104	dnaJ2	aq_703	-	chaperone DnaJ
43.45	MEAN

3.70	STD DEV
