IslandPath Analysis: Aquifex aeolicus VF5

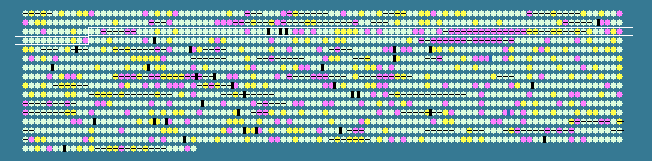

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
212	 44.38	0	184528..185025	-	165	15605820	-	aq_283	-	hypothetical protein
213	 44.67	0	185022..186344	-	440	15605821	-	aq_284	-	hypothetical protein
214	 39.20	-1	186373..186900	-	175	15605822	-	aq_286	-	hypothetical protein
215	 42.41	0	186900..187373	-	157	15605823	smpB	aq_287	-	SsrA-binding protein
216	 44.99	0	187381..188349	-	322	15605824	-	aq_288	-	hypothetical protein
217	 45.98	0	188378..189856	+	492	15605825	-	aq_291	-	hypothetical protein
218	 36.62	-1	189867..190262	+	131	15605826	-	aq_293	-	hypothetical protein
219	 39.78	0	190268..191383	+	371	15605827	-	aq_294	-	hypothetical protein
220	 42.69	0	191380..192630	+	416	15605828	-	aq_296	-	hypothetical protein
221	 46.22	0	192623..193297	+	224	15605829	abcT8	aq_297	-	ABC transporter
222	 46.48	0	193284..194561	-	425	15605830	serS	aq_298	-	seryl-tRNA synthetase
223	 47.22	+1	194591..196369	+	592	15605831	glmS	aq_301	-	glucosamine-fructose-6-phosphate aminotransferase
224	 46.67	0	196370..196714	-	114	15605832	-	aq_302	-	hypothetical protein
225	 42.01	0	196711..197817	-	368	15605833	-	aq_303	-	hypothetical protein
226	 47.06	0	197804..200674	-	956	15605834	ileS	aq_305	-	isoleucyl-tRNA synthetase
227	 44.30	0	200713..203292	+	859	15605835	mutS1	aq_308	-	DNA mismatch repair protein
228	 43.51	0	204008..204754	-	248	15605836	-	aq_311	-	hypothetical protein
229	 45.83	0	204741..205580	-	279	15605837	-	aq_313	-	hypothetical protein
230	 40.87	0	205589..206026	-	145	15605838	-	aq_314	-	hypothetical protein
231	 41.05	0	206135..207067	-	310	15605839	hksP2	aq_316	-	histidine kinase sensor protein
232	 42.94	0	207352..208038	+	228	15605840	phoB	aq_319	-	transcriptional regulator (PhoB-like)
233	 40.87	0	208049..208645	+	198	15605841	-	aq_321	-	hypothetical protein
234	 41.75	0	208642..209841	-	399	15605842	dnaA	aq_322	-	chromosome replication initiator protein DnaA
235	 45.00	0	209932..210942	-	336	15605843	-	aq_323	-	hypothetical protein
236	 44.57	0	211034..211816	+	260	15605844	-	aq_324	-	hypothetical protein
237	 44.18	0	211813..212577	-	254	15605845	murI	aq_325	-	glutamate racemase
238	 37.29	-1	212605..213666	+	353	15605846	kdtA	aq_326	-	3-deoxy-D-manno-2-octulosonic acid transferase
239	 46.56	0	213641..214411	-	256	15605847	-	aq_327	-	hypothetical protein
240	 44.38	0	214370..214885	+	171	15605848	-	aq_328	-	hypothetical protein
241	 42.63	0	214915..215796	+	293	15605849	-	aq_331	-	hypothetical protein
242	 44.64	0	215954..216970	+	338	15605850	dcuP	aq_334	-	uroporphyrinogen decarboxylase
243	 45.52	0	217169..217759	-	196	15605851	-	aq_336	-	hypothetical protein
244	 44.49	0	217910..218716	-	268	15605852	cysQ	aq_337	-	CysQ protein
245	 42.05	0	218720..219373	-	217	15605853	-	aq_338	-	hypothetical protein
246	 31.68	-2	219402..221159	+	585	15605854	-	aq_340	-	hypothetical protein
247	 38.21	-1	222065..222556	+	163	15605855	-	aq_341	-	hypothetical protein
248	 42.51	0	222567..223340	+	257	15605856	-	aq_342	-	hypothetical protein
249	 39.89	0	223332..224231	-	299	15605857	arsA2	aq_343	-	anion transporting ATPase
250	 42.23	0	224228..225160	-	310	15605858	rfaD	aq_344	-	ADP-L-glycero-D-manno-heptose-6-epimerase
251	 43.08	0	225588..227465	+	625	15605859	-	aq_345	-	hypothetical protein
252	 44.91	0	227462..228040	-	192	15605860	pth	aq_346	-	peptidyl-tRNA hydrolase
253	 48.25	+1	228045..228500	-	151	15605861	ctc	aq_348	-	general stress protein Ctc
254	 48.32	+1	228716..229936	+	406	15605862	ribA	aq_350	-	GTP cyclohydrolase II
255	 48.50	+1	229933..231837	-	634	15605863	leuS	aq_351	-	leucyl-tRNA synthetase alpha subunit
256	 47.43	+1	231841..232578	-	245	15605864	-	aq_355	-	hypothetical protein
257	 46.38	0	232592..234178	-	528	15605865	leuA1	aq_356	-	alpha-isopropylmalate/homocitrate synthase family transferase
258	 38.95	-1	234260..234526	+	88	15605866	flgM	aq_357a	-	anti sigma factor FlgM
259	 42.46	0	234590..236518	+	642	15605867	dinG	aq_358	-	ATP-dependent helicase DinG
260	 37.72	-1	236530..237600	+	356	15605868	-	aq_359	-	hypothetical protein
261	 45.56	0	237559..238302	-	247	15605869	timA	aq_360	-	triose phophate isomerase
262	 43.36	0	238638..239435	-	265	15605870	-	aq_362	-	hypothetical protein
263	 43.06	0	239435..239866	-	143	15605871	-	aq_363	-	hypothetical protein
264	 40.74	0	239863..240240	-	125	15605872	-	aq_364	-	hypothetical protein
265	 44.83	0	240237..241949	-	570	15605873	proS	aq_365	-	prolyl-tRNA synthetase
266	 38.50	-1	241994..244546	+	850	15605874	-	aq_367	-	hypothetical protein
267	 37.54	-1	245338..246288	-	316	15605875	-	aq_369	-	hypothetical protein
268	 41.01	0	246281..246814	-	177	15605876	-	aq_370	-	hypothetical protein
269	 41.60	0	246792..248981	-	729	15605877	-	aq_371	-	hypothetical protein
270	 35.59	-2	248932..250527	-	531	15605878	-	aq_372	-	hypothetical protein
271	 41.82	0	250518..251177	-	219	15605879	-	aq_373	-	hypothetical protein
272	 39.01	-1	251158..252231	-	357	15605880	-	aq_374	-	hypothetical protein
273	 35.99	-2	252309..253250	-	313	15605881	-	aq_376	-	hypothetical protein
274	 38.39	-1	253252..253587	-	111	15605882	-	aq_377	-	hypothetical protein
275	 29.74	-2	253592..254953	-	453	15605883	-	aq_378	-	hypothetical protein
276	 31.02	-2	254950..256071	-	373	15605884	-	aq_380	-	hypothetical protein
277	 34.00	-2	256087..256986	-	299	15605885	-	aq_381	-	hypothetical protein
278	 28.83	-2	257019..257906	-	295	15605886	-	aq_382	-	hypothetical protein
279	 33.60	-2	257872..258615	-	247	15605887	-	aq_383	-	hypothetical protein
280	 37.56	-1	258857..259258	-	133	15605888	-	aq_384	-	hypothetical protein
281	 36.82	-1	259248..260135	-	295	15605889	-	aq_385	-	hypothetical protein
282	 31.19	-2	260132..261109	-	325	15605890	-	aq_386	-	hypothetical protein
283	 30.87	-2	261090..262955	-	621	15605891	-	aq_387	-	hypothetical protein
284	 34.44	-2	263585..264490	+	301	15605892	-	aq_388	-	hypothetical protein
285	 47.54	+1	265099..265647	+	182	15605893	-	aq_389	-	hypothetical protein
286	 46.95	0	265667..266092	+	141	15605894	-	aq_390	-	hypothetical protein
287	 46.08	0	266219..266971	+	250	15605895	-	aq_391	-	hypothetical protein
288	 46.79	0	267030..267698	+	222	15605896	-	aq_392	-	hypothetical protein
289	 48.30	+1	267846..268373	+	175	15605897	-	aq_394	-	hypothetical protein
290	 47.59	+1	268431..269489	+	352	15605898	hdrA	aq_395	-	heterodisulfide reductase subunit A
291	 44.93	0	269486..270304	+	272	15605899	-	aq_397	-	hypothetical protein
292	 45.28	0	270319..271080	+	253	15605900	hdrC	aq_398	-	heterodisulfide reductase subunit C
293	 48.59	+1	271093..272088	+	331	15605901	hdrB	aq_400	-	heterodisulfide reductase subunit B
294	 46.81	0	272163..272570	+	135	15605902	-	aq_401	-	hypothetical protein
295	 50.34	+1	272598..273044	+	148	15605903	-	aq_402	-	glycine cleavage system protein H
296	 43.66	0	273087..274112	+	341	15605904	-	aq_403	-	hypothetical protein
297	 44.01	0	274129..275271	+	380	15605905	-	aq_404	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
298	 38.16	-1	275231..276100	-	289	15605906	-	aq_406	-	hypothetical protein
299	 49.02	+1	276097..276708	-	203	15605907	-	aq_407	-	hypothetical protein
300	 39.62	-1	276724..277248	-	174	15605908	-	aq_408	-	hypothetical protein
301	 42.12	0	277239..278114	-	291	15605909	pyrB	aq_409	-	aspartate carbamoyltransferase catalytic chain
302	 43.64	0	278111..279226	-	371	15605910	carA	aq_410	-	carbamoyl phosphate synthase small subunit
303	 44.20	0	279846..282320	+	824	15605911	pcnB1	aq_411	-	poly A polymerase
304	 45.05	0	282323..283039	+	238	15605912	abcT7	aq_413	-	ABC transporter
305	 44.02	0	283036..284355	+	439	15605913	-	aq_414	-	hypothetical protein
306	 43.90	0	284327..285490	+	387	15605914	napA1	aq_415	-	Na(+)/H(+) antiporter
307	 45.85	0	285507..286553	+	348	15605915	-	aq_416	-	hypothetical protein
308	 43.33	0	286550..287209	+	219	15605916	abcT6	aq_417	-	ABC transporter
309	 51.00	+2	287456..287857	-	133	15605917	gspG	aq_418	-	general secretion pathway protein G
310	 43.84	0	287857..288189	-	110	15605918	-	aq_419	-	hypothetical protein
311	 39.37	-1	288189..288536	-	115	15605919	-	aq_420	-	hypothetical protein
43.45	MEAN

3.70	STD DEV
