IslandPath Analysis: Aquifex aeolicus VF5

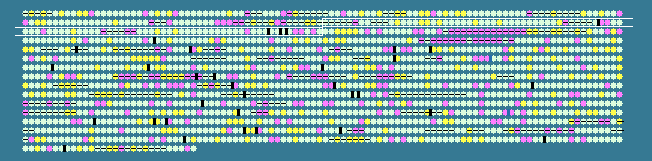

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.45   STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
151	 46.82	0	117938..118960	+	340	15605759	trpD1	aq_196	-	phosphoribosylanthranilate transferase
152	 40.48	0	118960..120162	+	400	15605760	-	aq_197	-	hypothetical protein
153	 46.90	0	120228..121451	+	407	15605761	-	aq_199	-	hypothetical protein
154	 46.57	0	121448..122074	+	208	15605762	-	aq_200	-	hypothetical protein
155	 43.35	0	122071..122679	+	202	15605763	-	aq_202	-	hypothetical protein
156	 39.93	0	122663..123844	+	393	15605764	atpG2	aq_203	-	ATP synthase F1 gamma subunit
157	 46.03	0	123819..124700	-	293	15605765	-	aq_204	-	hypothetical protein
158	 42.04	0	124821..127829	+	1002	15605766	nirB	aq_206	-	nitrite reductase (NAD(P)H) large subunit
159	 45.99	0	127845..128579	+	244	15605767	cobA	aq_207	-	uroporphyrin-III c-methyltransferase
160	 44.73	0	128584..129513	+	309	15605768	trpD2	aq_209	-	phosphoribosylanthranilate transferase
161	 43.10	0	129647..130066	+	139	15605769	fhp	aq_211	-	flavohemoprotein
162	 46.00	0	130079..130528	+	149	15605770	cynS	aq_212	-	cyanate hydratase
163	 47.57	+1	130544..131161	+	205	15605771	glnBi	aq_213	-	PII-like protein GlnBi
164	 46.15	0	131158..132585	+	475	15605772	nasA	aq_215	-	nitrate transporter
165	 44.53	0	132582..134582	+	666	15605773	narB	aq_217	-	nitrate reductase narB
166	 41.29	0	134585..136105	-	506	15605774	nifA	aq_218	-	NifA family transcriptional regulator
167	 49.67	+1	136122..136574	-	150	15605775	dut	aq_220	-	deoxyuridine 5'triphosphate nucleotidohydrolase
168	 48.15	+1	136567..138894	-	775	15605776	phpA	aq_221	-	polynucleotide phosphorylase/polyadenylase
169	 42.12	0	138897..139169	-	90	15605777	rpsO	aq_226a	-	ribosomal protein S15
170	 47.06	0	139228..141390	-	720	15605778	aldH2	aq_227	-	aldehyde dehydrogenase
171	 42.09	0	141804..143150	+	448	15605779	ntrC3	aq_230	-	NtrC family transcriptional regulator
172	 43.14	0	143094..144113	-	339	15605780	hksP4	aq_231	-	histidine kinase sensor protein
173	 46.76	0	144275..145585	+	436	15605781	dhsU	aq_232	-	flavocytochrome C sulfide dehydrogenase
174	 45.33	0	145595..146311	+	238	15605782	soxF	aq_234	-	Rieske-I iron sulfur protein
175	 45.30	0	146292..147545	+	417	15605783	fccB'	aq_235	-	sulfide dehydrogenase, flavoprotein subunit
176	 48.21	+1	147546..149078	-	510	15605784	guaA	aq_236	-	bifunctional GMP synthase/glutamine amidotransferase protein
177	 45.35	0	149124..149639	+	171	15605785	sodC2	aq_238	-	superoxide dismutase (Cu/Zn)
178	 45.23	0	149720..150274	+	184	15605786	folE	aq_239	-	GTP cyclohydrolase I
179	 46.62	0	150271..151173	-	300	15605787	-	aq_240	-	hypothetical protein
180	 47.45	+1	151206..153593	+	795	15605788	lon	aq_242	-	Lon protease
181	 42.88	0	153580..155067	-	495	15605789	-	aq_243	-	hypothetical protein
182	 45.11	0	155054..156148	-	364	15605790	leuB	aq_244	-	3-isopropylmalate dehydrogenase
183	 41.53	0	156794..157891	+	365	15605791	purK	aq_245	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
184	 43.33	0	157857..158696	-	279	15605792	-	aq_246	-	hypothetical protein
185	 46.83	0	158696..160132	-	478	15605793	gatA	aq_247	-	glutamyl-tRNA (Gln) amidotransferase subunit A
186	 45.89	0	160145..160582	-	145	15605794	-	aq_250	-	hypothetical protein
187	 43.17	0	160629..161309	-	226	15605795	-	aq_251	-	N-glycosylase/DNA lyase
188	 44.29	0	161325..161744	-	139	15605796	-	aq_252	-	hypothetical protein
189	 44.44	0	161732..162217	-	161	15605797	kdtB	aq_253	-	lipopolysaccharide core biosynthesis protein
190	 49.75	+1	162752..163159	+	135	15605798	-	aq_254	-	S-adenosylmethionine decarboxylase proenzyme
191	 35.19	-2	163193..163678	+	161	15605799	-	aq_255	-	hypothetical protein
192	 42.80	0	164100..165377	-	425	15605800	ygcA	aq_257	-	RNA methyltransferase
193	 43.59	0	165358..166371	-	337	15605801	nusA	aq_259	-	transcription elongation factor NusA
194	 42.14	0	166365..166841	-	158	15605802	-	aq_260	-	hypothetical protein
195	 43.68	0	167586..168155	-	189	15605803	-	aq_262	-	hypothetical protein
196	 44.44	0	168918..169889	+	323	15605804	hemC	aq_263	-	porphobilinogen deaminase
197	 36.24	-1	169886..170539	+	217	15605805	-	aq_264	-	hypothetical protein
198	 38.94	-1	170475..171491	-	338	15605806	-	aq_265	-	hypothetical protein
199	 41.86	0	171596..172732	+	378	15605807	-	aq_267	-	hypothetical protein
200	 42.25	0	172848..173318	+	156	15605808	-	aq_268	-	hypothetical protein
201	 43.76	0	173338..173826	-	162	15605809	-	aq_269	-	hypothetical protein
202	 46.15	0	173860..174678	+	272	15605810	lgt	aq_270	-	prolipoprotein diacylglyceryl transferase
203	 44.22	0	174675..175886	+	403	15605811	-	aq_271	-	hypothetical protein
204	 37.78	-1	175879..176328	-	149	15605812	-	aq_272	-	hypothetical protein
205	 46.48	0	176409..177572	+	387	15605813	aspC4	aq_273	-	aspartate aminotransferase
206	 46.00	0	177613..178299	+	228	15605814	-	aq_274	-	hypothetical protein
207	 45.53	0	178587..179963	-	458	15605815	-	aq_276	-	hypothetical protein
208	 44.40	0	179960..181378	-	472	15605816	-	aq_277	-	hypothetical protein
209	 47.71	+1	181375..183210	-	611	15605817	-	aq_278	-	hypothetical protein
210	 41.11	0	183235..183774	-	179	15605818	acrR3	aq_281	-	TetR/AcrR family transcriptional regulator
211	 42.21	0	183890..184531	+	213	15605819	mutY1	aq_282	-	endonuclease III
212	 44.38	0	184528..185025	-	165	15605820	-	aq_283	-	hypothetical protein
213	 44.67	0	185022..186344	-	440	15605821	-	aq_284	-	hypothetical protein
214	 39.20	-1	186373..186900	-	175	15605822	-	aq_286	-	hypothetical protein
215	 42.41	0	186900..187373	-	157	15605823	smpB	aq_287	-	SsrA-binding protein
216	 44.99	0	187381..188349	-	322	15605824	-	aq_288	-	hypothetical protein
217	 45.98	0	188378..189856	+	492	15605825	-	aq_291	-	hypothetical protein
218	 36.62	-1	189867..190262	+	131	15605826	-	aq_293	-	hypothetical protein
219	 39.78	0	190268..191383	+	371	15605827	-	aq_294	-	hypothetical protein
220	 42.69	0	191380..192630	+	416	15605828	-	aq_296	-	hypothetical protein
221	 46.22	0	192623..193297	+	224	15605829	abcT8	aq_297	-	ABC transporter
222	 46.48	0	193284..194561	-	425	15605830	serS	aq_298	-	seryl-tRNA synthetase
223	 47.22	+1	194591..196369	+	592	15605831	glmS	aq_301	-	glucosamine-fructose-6-phosphate aminotransferase
224	 46.67	0	196370..196714	-	114	15605832	-	aq_302	-	hypothetical protein
225	 42.01	0	196711..197817	-	368	15605833	-	aq_303	-	hypothetical protein
226	 47.06	0	197804..200674	-	956	15605834	ileS	aq_305	-	isoleucyl-tRNA synthetase
227	 44.30	0	200713..203292	+	859	15605835	mutS1	aq_308	-	DNA mismatch repair protein
228	 43.51	0	204008..204754	-	248	15605836	-	aq_311	-	hypothetical protein
229	 45.83	0	204741..205580	-	279	15605837	-	aq_313	-	hypothetical protein
230	 40.87	0	205589..206026	-	145	15605838	-	aq_314	-	hypothetical protein
231	 41.05	0	206135..207067	-	310	15605839	hksP2	aq_316	-	histidine kinase sensor protein
232	 42.94	0	207352..208038	+	228	15605840	phoB	aq_319	-	transcriptional regulator (PhoB-like)
233	 40.87	0	208049..208645	+	198	15605841	-	aq_321	-	hypothetical protein
234	 41.75	0	208642..209841	-	399	15605842	dnaA	aq_322	-	chromosome replication initiator protein DnaA
235	 45.00	0	209932..210942	-	336	15605843	-	aq_323	-	hypothetical protein
236	 44.57	0	211034..211816	+	260	15605844	-	aq_324	-	hypothetical protein
237	 44.18	0	211813..212577	-	254	15605845	murI	aq_325	-	glutamate racemase
238	 37.29	-1	212605..213666	+	353	15605846	kdtA	aq_326	-	3-deoxy-D-manno-2-octulosonic acid transferase
239	 46.56	0	213641..214411	-	256	15605847	-	aq_327	-	hypothetical protein
240	 44.38	0	214370..214885	+	171	15605848	-	aq_328	-	hypothetical protein
241	 42.63	0	214915..215796	+	293	15605849	-	aq_331	-	hypothetical protein
242	 44.64	0	215954..216970	+	338	15605850	dcuP	aq_334	-	uroporphyrinogen decarboxylase
243	 45.52	0	217169..217759	-	196	15605851	-	aq_336	-	hypothetical protein
244	 44.49	0	217910..218716	-	268	15605852	cysQ	aq_337	-	CysQ protein
245	 42.05	0	218720..219373	-	217	15605853	-	aq_338	-	hypothetical protein
246	 31.68	-2	219402..221159	+	585	15605854	-	aq_340	-	hypothetical protein
247	 38.21	-1	222065..222556	+	163	15605855	-	aq_341	-	hypothetical protein
248	 42.51	0	222567..223340	+	257	15605856	-	aq_342	-	hypothetical protein
249	 39.89	0	223332..224231	-	299	15605857	arsA2	aq_343	-	anion transporting ATPase
250	 42.23	0	224228..225160	-	310	15605858	rfaD	aq_344	-	ADP-L-glycero-D-manno-heptose-6-epimerase
43.45	MEAN

3.70	STD DEV
