IslandPath Analysis: Aquifex aeolicus VF5

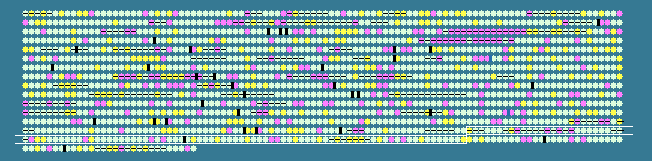

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1375	 47.42	+1	1395158..1395952	+	264	15606978	imp2	aq_1983	-	myo-inositol-1(or 4)-monophosphatase
1376	 40.95	0	1395949..1396539	+	196	15606979	-	aq_1985	-	hypothetical protein
1377	 41.18	0	1396523..1397248	-	241	15606980	-	aq_1986	-	hypothetical protein
1378	 43.78	0	1397248..1397649	-	133	15606981	-	aq_1987	-	hypothetical protein
1379	 45.85	0	1397654..1398268	-	204	15606982	tolQ	aq_1988	-	TolQ-like protein
1380	 43.95	0	1398272..1400833	-	853	15606983	-	aq_1989	-	hypothetical protein
1381	 42.72	0	1400808..1401446	-	212	15606984	pgmA	aq_1990	-	phosphoglycerate mutase
1382	 47.30	+1	1401455..1402363	-	302	15606985	htpX	aq_1991	-	heat shock protein X
1383	 38.27	-1	1402380..1403027	-	215	15606986	-	aq_1993	-	hypothetical protein
1384	 44.26	0	1403011..1403916	-	301	15606987	era1	aq_1994	-	GTP-binding protein Era
1385	 42.17	0	1403979..1404668	-	229	15606988	-	aq_1996	-	hypothetical protein
1386	 44.54	0	1404707..1405402	+	231	15606989	-	aq_1997	-	hypothetical protein
1387	 43.42	0	1405481..1407037	+	518	15606990	fliC	aq_1998	-	flagellin
1388	 30.87	-2	1407080..1407445	+	121	15606991	-	aq_2000	-	hypothetical protein
1389	 40.05	0	1407448..1408773	+	441	15606992	fliD	aq_2001	-	flagellar hook associated protein FliD
1390	 35.20	-2	1408770..1409144	+	124	15606993	fliS	aq_2002	-	flagellar protein FliS
1391	 45.02	0	1409442..1409903	-	153	15606994	-	aq_2004	-	hypothetical protein
1392	 39.56	-1	1409915..1410364	-	149	15606995	-	aq_2005	-	hypothetical protein
1393	 45.09	0	1410986..1411810	-	274	15606996	rpsB	aq_2007	-	30S ribosomal protein S2
1394	 45.30	0	1411902..1412879	-	325	15606997	-	aq_2009	-	hypothetical protein
1395	 45.65	0	1412896..1415712	-	938	15606998	-	aq_2011	-	hypothetical protein
1396	 46.62	0	1415787..1416200	+	137	15606999	-	aq_2013	-	hypothetical protein
1397	 43.68	0	1416211..1417263	+	350	15607000	flhB	aq_2014	-	flagellar biosynthetic protein FlhB
1398	 44.39	0	1417254..1418564	-	436	15607001	hemG	aq_2015	-	protoporphyrinogen oxidase
1399	 42.80	0	1419127..1420140	+	337	15607002	pstS	aq_2016	-	phosphate-binding periplasmic protein
1400	 43.51	0	1420127..1421089	+	320	15607003	pstC	aq_2018	-	phosphate transport system permease protein C
1401	 45.34	0	1421068..1421925	+	285	15607004	pstA	aq_2019	-	phosphate transport system permease PstA
1402	 39.14	-1	1421693..1422364	+	223	15607005	-	aq_2020	-	hypothetical protein
1403	 47.65	+1	1422407..1423621	+	404	15607006	tldD	aq_2021	-	TldD protein
1404	 47.79	+1	1424165..1425637	+	490	15607007	guaB	aq_2023	-	inosine monophosphate dehydrogenase
1405	 42.92	0	1425634..1426728	-	364	15607008	-	aq_2027	-	hypothetical protein
1406	 44.71	0	1426749..1427258	+	169	15607009	-	aq_2028	-	hypothetical protein
1407	 42.08	0	1427260..1428528	+	422	15607010	napA3	aq_2030	-	Na(+)/H(+) antiporter
1408	 45.52	0	1428661..1429062	-	133	15607011	-	aq_2031	-	hypothetical protein
1409	 45.04	0	1429084..1431501	+	805	15607012	infB	aq_2032	-	translation initiation factor IF-2
1410	 42.12	0	1431465..1432124	+	219	15607013	-	aq_2035	-	hypothetical protein
1411	 36.56	-1	1432121..1432771	+	216	15607014	-	aq_2036	-	hypothetical protein
1412	 48.78	+1	1432768..1434204	-	478	15607015	atpD	aq_2038	-	F0F1 ATP synthase subunit beta
1413	 45.55	0	1434218..1435093	-	291	15607016	atpG1	aq_2041	-	ATP synthase F1 gamma subunit
1414	 44.67	0	1435164..1435613	+	149	15607017	rplI	aq_2042	-	ribosomal protein L09
1415	 46.01	0	1435623..1436561	+	312	15607018	hemX2	aq_2043	-	cytochrome c biogenesis protein
1416	 42.83	0	1436551..1437729	-	392	15607019	-	aq_2044	-	hypothetical protein
1417	 42.01	0	1437734..1438966	-	410	15607020	folC	aq_2045	-	folylpolyglutamate synthetase
1418	 46.79	0	1438996..1441113	+	705	15607021	vacB	aq_2046	-	VacB/RNase II family 3'-5' exoribonuclease
1419	 43.56	0	1441129..1441695	+	188	15607022	-	aq_2049	-	hypothetical protein
1420	 44.08	0	1441695..1442420	+	241	15607023	flgG1	aq_2051	-	flagellar hook basal-body protein FlgG
1421	 43.09	0	1442417..1444795	-	792	15607024	recG	aq_2053	-	ATP-dependent DNA helicase RecG
1422	 35.57	-2	1444797..1448147	-	1116	15607025	-	aq_2054	-	hypothetical protein
1423	 46.70	0	1448156..1448791	-	211	15607026	-	aq_2056	-	hypothetical protein
1424	 39.61	-1	1448818..1450410	-	530	15607027	helX	aq_2057	-	DNA helicase
1425	 46.23	0	1450301..1450936	+	211	15607028	aas	aq_2058	-	2-acylglycerophosphoethanolamine acyltransferase
1426	 42.99	0	1450915..1451556	-	213	15607029	-	aq_2059	-	hypothetical protein
1427	 43.00	0	1451540..1452904	-	454	15607030	-	aq_2060	-	hypothetical protein
1428	 41.11	0	1453189..1453548	-	119	15607031	-	aq_2063	-	hypothetical protein
1429	 47.31	+1	1453545..1454975	-	476	15607032	gltD	aq_2064	-	glutamate synthase small subunit gltD
1430	 45.22	0	1455015..1455485	+	156	15607033	-	aq_2066	-	hypothetical protein
1431	 42.19	0	1455362..1455835	+	157	15607034	-	aq_2067	-	hypothetical protein
1432	 46.15	0	1455909..1456727	+	272	15607035	argB	aq_2068	-	acetylglutamate kinase
1433	 47.97	+1	1456740..1457771	+	343	15607036	obgE	aq_2069	-	GTPase ObgE
1434	 45.75	0	1457797..1458972	+	391	15607037	-	aq_2071	-	hypothetical protein
1435	 42.75	0	1458969..1460126	+	385	15607038	-	aq_2073	-	hypothetical protein
1436	 42.07	0	1460123..1461370	+	415	15607039	murD	aq_2075	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
1437	 40.33	0	1461357..1461971	-	204	15607040	trpF	aq_2076	-	phosphoribosyl anthranilate isomerase
1438	 47.21	+1	1461990..1463531	+	513	15607041	snf	aq_2077	-	SNF family Na(+)/neurotransmitter symporter
1439	 44.01	0	1463518..1464369	+	283	15607042	sppA	aq_2080	-	proteinase IV
1440	 43.87	0	1464647..1466260	+	537	15607043	-	aq_2082	-	hypothetical protein
1441	 44.23	0	1466246..1467310	-	354	15607044	hisC	aq_2084	-	histidinol-phosphate aminotransferase
1442	 39.48	-1	1467575..1468078	-	167	15607045	-	aq_2085	-	hypothetical protein
1443	 36.13	-1	1468059..1468415	-	118	15607046	-	aq_2086	-	hypothetical protein
1444	 40.40	0	1468412..1468963	-	183	15607047	-	aq_2087	-	hypothetical protein
1445	 42.01	0	1468992..1469498	+	168	15607048	-	aq_2088	-	hypothetical protein
1446	 48.00	+1	1469552..1471126	+	524	15607049	leuA2	aq_2090	-	2-isopropylmalate synthase
1447	 41.00	0	1471392..1472108	+	238	15607050	dsbC	aq_2093	-	thiol:disulfide interchange protein
1448	 44.90	0	1472329..1473573	-	414	15607051	aspC2	aq_2094	-	aminotransferase
1449	 43.80	0	1473566..1473928	-	120	15607052	dksA	aq_2095	-	dnaK suppressor protein
1450	 49.82	+1	1473947..1474504	-	185	15607053	floX	aq_2096	-	flavodoxin
1451	 45.71	0	1474521..1475360	-	279	15607054	-	aq_2098	-	hypothetical protein
1452	 46.83	0	1475353..1476834	-	493	15607055	pepA	aq_2099	-	leucine aminopeptidase
1453	 47.25	+1	1476861..1478534	+	557	15607056	carB2	aq_2101	-	carbamoyl-phosphate synthase large subunit
1454	 40.65	0	1478521..1479258	+	245	15607057	prmA	aq_2102	-	ribosomal protein L11 methyltransferase
1455	 48.66	+1	1479279..1479689	-	136	15607058	acs'	aq_2103	-	acetyl-coenzyme A synthetase c-terminal fragment
1456	 48.47	+1	1479634..1481166	-	510	15607059	acs	aq_2104	-	acetyl-coenzyme A synthetase
1457	 49.59	+1	1481860..1483323	+	487	15607060	ssf	aq_2106	-	SSF family Na(+)/solute symporter
1458	 41.29	0	1483320..1485179	+	619	15607061	-	aq_2107	-	hypothetical protein
1459	 41.86	0	1485176..1485808	+	210	15607062	-	aq_2108	-	hypothetical protein
1460	 48.24	+1	1485819..1486811	+	330	15607063	hemB	aq_2109	-	delta-aminolevulinic acid dehydratase
1461	 45.77	0	1486808..1487740	+	310	15607064	acuC2	aq_2110	-	acetoin utilization protein
1462	 39.90	0	1488032..1488808	+	258	15607065	-	aq_2113	-	hypothetical protein
1463	 45.88	0	1488786..1490156	-	456	15607066	eif	aq_2114	-	initiation factor eIF-2B alpha subunit
1464	 37.85	-1	1490168..1491274	-	368	15607067	rfaG	aq_2115	-	glucosyl transferase I
1465	 41.63	0	1491677..1492327	-	216	15607068	purC	aq_2117	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1466	 40.80	0	1492324..1492845	-	173	15607069	-	aq_2118	-	hypothetical protein
1467	 47.12	0	1492805..1493725	-	306	15607070	thiL	aq_2119	-	thiamine monophosphate kinase
1468	 45.00	0	1493722..1494990	-	422	15607071	hlyC	aq_2120	-	hemolysin homolog protein
1469	 44.88	0	1494959..1495876	-	305	15607072	abcT11	aq_2122	-	ABC transporter
1470	 44.64	0	1495878..1497248	-	456	15607073	hemN	aq_2124	-	coproporphyrinogen III oxidase
1471	 43.74	0	1497725..1499425	+	566	15607074	uvrC	aq_2126	-	repair excision nuclease subunit C
1472	 45.39	0	1499413..1499835	+	140	15607075	-	aq_2128	-	hypothetical protein
1473	 44.30	0	1500045..1500938	-	297	15607076	sbf	aq_2129	-	sodium bile acid symporter family Na(+) dependent transporter
1474	 48.68	+1	1501407..1502318	-	303	15607077	fmt	aq_2131	-	methionyl-tRNA formyltransferase
43.45	MEAN

3.70	STD DEV
