IslandPath Analysis: Aquifex aeolicus VF5

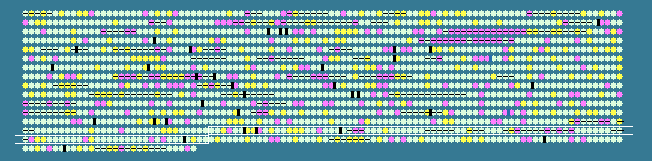

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1332	 44.62	0	1350037..1351338	+	433	15606936	era2	aq_1919	-	GTP binding protein Era
1333	 43.19	0	1351339..1352058	-	239	15606937	fliP	aq_1920	-	flagellar biosynthesis protein FliP
1334	 46.99	0	1352290..1353285	-	331	15606938	-	aq_1922	-	3-dehydroquinate synthase
1335	 37.82	-1	1353310..1354200	+	296	15606939	-	aq_1923	-	hypothetical protein
1336	 40.72	0	1354174..1354863	-	229	15606940	-	aq_1924	-	hypothetical protein
1337	 46.68	0	1354860..1356425	-	521	15606941	hyuB	aq_1925	-	N-methylhydantoinase B
1338	 50.00	+1	1356932..1358149	+	405	15606942	tufA2	aq_1928	-	elongation factor Tu
1339	 47.06	0	1358160..1358312	+	50	15606943	rpmG	aq_1930a	-	ribosomal protein L33
1340	 37.37	-1	1358431..1358628	+	65	15607136	secE	aq_1930b	-	preprotein translocase subunit SecE
1341	 44.04	0	1358625..1359371	+	248	15606944	nusG	aq_1931	-	transcription antitermination protein NusG
1342	 49.77	+1	1359386..1359823	+	145	15606945	rplK	aq_1933	-	ribosomal protein L11
1343	 45.95	0	1359828..1360556	+	242	15606946	rplA	aq_1935	-	50S ribosomal protein L1
1344	 45.50	0	1360571..1361170	+	199	15606947	rplJ	aq_1936	-	ribosomal protein L10
1345	 49.61	+1	1361173..1361559	+	128	15606948	rplL	aq_1937	-	ribosomal protein L7/L12
1346	 47.22	+1	1361772..1366178	+	1468	15606949	rpoB	aq_1939	-	RNA polymerase beta subunit
1347	 47.05	0	1366175..1370899	+	1574	15606950	rpoC	aq_1945	-	RNA polymerase beta prime subunit
1348	 43.02	0	1370896..1372578	-	560	15606951	aprV	aq_1950	-	serine protease
1349	 44.12	0	1372613..1373650	+	345	15606952	-	aq_1952	-	hypothetical protein
1350	 39.65	-1	1373638..1374096	-	152	15606953	-	aq_1953	-	hypothetical protein
1351	 42.37	0	1374064..1374528	+	154	15606954	rplS	aq_1954	-	50S ribosomal protein L19
1352	 44.50	0	1374521..1375111	+	196	15606955	rnhB	aq_1955	-	RNase HII
1353	 42.53	0	1375108..1375890	-	260	15606956	-	aq_1956	-	hypothetical protein
1354	 46.56	0	1376132..1377250	-	372	15606957	-	aq_1958	-	hypothetical protein
1355	 44.93	0	1377316..1377798	+	160	15606958	-	aq_1959	-	hypothetical protein
1356	 39.45	-1	1377795..1378562	+	255	15606959	thiD	aq_1960	-	HMP-P kinase
1357	 38.35	-1	1378549..1379325	-	258	15606960	fliR	aq_1961	-	flagellar biosynthetic protein FliR
1358	 42.22	0	1379313..1379582	-	89	15606961	fliQ	aq_1962	-	flagellar biosynthesis protein FliQ
1359	 43.98	0	1380178..1381698	-	506	15606962	purH	aq_1963	-	phosphoribosylaminoimidazolecarboxamide formyltransferase
1360	 43.33	0	1381711..1383000	-	429	15606963	-	aq_1964	-	hypothetical protein
1361	 47.41	+1	1383000..1383404	-	134	15606964	-	aq_1965	-	hypothetical protein
1362	 41.25	0	1383388..1383993	-	201	15606965	-	aq_1966	-	hypothetical protein
1363	 44.58	0	1384011..1385735	+	574	15606966	polA	aq_1967	-	DNA polymerase I (PolI)
1364	 44.34	0	1385746..1386363	+	205	15606967	hisIE	aq_1968	-	phosphoribosyl-ATP pyrophosphohydrolase
1365	 45.15	0	1386624..1387808	+	394	15606968	aspC1	aq_1969	-	aspartate aminotransferase
1366	 43.45	0	1387805..1389505	-	566	15606969	tapB	aq_1971	-	type IV pilus assembly protein TapB
1367	 44.24	0	1389498..1390295	-	265	15606970	panB	aq_1973	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1368	 42.90	0	1390299..1390643	-	114	15606971	-	aq_1974	-	hypothetical protein
1369	 43.48	0	1390681..1391232	+	183	15606972	-	aq_1975	-	hypothetical protein
1370	 42.86	0	1391225..1391896	+	223	15606973	masA	aq_1977	-	enolase-phosphatase E-1
1371	 44.26	0	1391893..1392258	+	121	15606974	-	aq_1978	-	hypothetical protein
1372	 45.14	0	1392255..1392881	+	208	15606975	fucA2	aq_1979	-	hypothetical protein
1373	 43.04	0	1393228..1394154	-	308	15606976	-	aq_1980	-	hypothetical protein
1374	 43.88	0	1394503..1395147	+	214	15606977	-	aq_1982	-	hypothetical protein
1375	 47.42	+1	1395158..1395952	+	264	15606978	imp2	aq_1983	-	myo-inositol-1(or 4)-monophosphatase
1376	 40.95	0	1395949..1396539	+	196	15606979	-	aq_1985	-	hypothetical protein
1377	 41.18	0	1396523..1397248	-	241	15606980	-	aq_1986	-	hypothetical protein
1378	 43.78	0	1397248..1397649	-	133	15606981	-	aq_1987	-	hypothetical protein
1379	 45.85	0	1397654..1398268	-	204	15606982	tolQ	aq_1988	-	TolQ-like protein
1380	 43.95	0	1398272..1400833	-	853	15606983	-	aq_1989	-	hypothetical protein
1381	 42.72	0	1400808..1401446	-	212	15606984	pgmA	aq_1990	-	phosphoglycerate mutase
1382	 47.30	+1	1401455..1402363	-	302	15606985	htpX	aq_1991	-	heat shock protein X
1383	 38.27	-1	1402380..1403027	-	215	15606986	-	aq_1993	-	hypothetical protein
1384	 44.26	0	1403011..1403916	-	301	15606987	era1	aq_1994	-	GTP-binding protein Era
1385	 42.17	0	1403979..1404668	-	229	15606988	-	aq_1996	-	hypothetical protein
1386	 44.54	0	1404707..1405402	+	231	15606989	-	aq_1997	-	hypothetical protein
1387	 43.42	0	1405481..1407037	+	518	15606990	fliC	aq_1998	-	flagellin
1388	 30.87	-2	1407080..1407445	+	121	15606991	-	aq_2000	-	hypothetical protein
1389	 40.05	0	1407448..1408773	+	441	15606992	fliD	aq_2001	-	flagellar hook associated protein FliD
1390	 35.20	-2	1408770..1409144	+	124	15606993	fliS	aq_2002	-	flagellar protein FliS
1391	 45.02	0	1409442..1409903	-	153	15606994	-	aq_2004	-	hypothetical protein
1392	 39.56	-1	1409915..1410364	-	149	15606995	-	aq_2005	-	hypothetical protein
1393	 45.09	0	1410986..1411810	-	274	15606996	rpsB	aq_2007	-	30S ribosomal protein S2
1394	 45.30	0	1411902..1412879	-	325	15606997	-	aq_2009	-	hypothetical protein
1395	 45.65	0	1412896..1415712	-	938	15606998	-	aq_2011	-	hypothetical protein
1396	 46.62	0	1415787..1416200	+	137	15606999	-	aq_2013	-	hypothetical protein
1397	 43.68	0	1416211..1417263	+	350	15607000	flhB	aq_2014	-	flagellar biosynthetic protein FlhB
1398	 44.39	0	1417254..1418564	-	436	15607001	hemG	aq_2015	-	protoporphyrinogen oxidase
1399	 42.80	0	1419127..1420140	+	337	15607002	pstS	aq_2016	-	phosphate-binding periplasmic protein
1400	 43.51	0	1420127..1421089	+	320	15607003	pstC	aq_2018	-	phosphate transport system permease protein C
1401	 45.34	0	1421068..1421925	+	285	15607004	pstA	aq_2019	-	phosphate transport system permease PstA
1402	 39.14	-1	1421693..1422364	+	223	15607005	-	aq_2020	-	hypothetical protein
1403	 47.65	+1	1422407..1423621	+	404	15607006	tldD	aq_2021	-	TldD protein
1404	 47.79	+1	1424165..1425637	+	490	15607007	guaB	aq_2023	-	inosine monophosphate dehydrogenase
1405	 42.92	0	1425634..1426728	-	364	15607008	-	aq_2027	-	hypothetical protein
1406	 44.71	0	1426749..1427258	+	169	15607009	-	aq_2028	-	hypothetical protein
1407	 42.08	0	1427260..1428528	+	422	15607010	napA3	aq_2030	-	Na(+)/H(+) antiporter
1408	 45.52	0	1428661..1429062	-	133	15607011	-	aq_2031	-	hypothetical protein
1409	 45.04	0	1429084..1431501	+	805	15607012	infB	aq_2032	-	translation initiation factor IF-2
1410	 42.12	0	1431465..1432124	+	219	15607013	-	aq_2035	-	hypothetical protein
1411	 36.56	-1	1432121..1432771	+	216	15607014	-	aq_2036	-	hypothetical protein
1412	 48.78	+1	1432768..1434204	-	478	15607015	atpD	aq_2038	-	F0F1 ATP synthase subunit beta
1413	 45.55	0	1434218..1435093	-	291	15607016	atpG1	aq_2041	-	ATP synthase F1 gamma subunit
1414	 44.67	0	1435164..1435613	+	149	15607017	rplI	aq_2042	-	ribosomal protein L09
1415	 46.01	0	1435623..1436561	+	312	15607018	hemX2	aq_2043	-	cytochrome c biogenesis protein
1416	 42.83	0	1436551..1437729	-	392	15607019	-	aq_2044	-	hypothetical protein
1417	 42.01	0	1437734..1438966	-	410	15607020	folC	aq_2045	-	folylpolyglutamate synthetase
1418	 46.79	0	1438996..1441113	+	705	15607021	vacB	aq_2046	-	VacB/RNase II family 3'-5' exoribonuclease
1419	 43.56	0	1441129..1441695	+	188	15607022	-	aq_2049	-	hypothetical protein
1420	 44.08	0	1441695..1442420	+	241	15607023	flgG1	aq_2051	-	flagellar hook basal-body protein FlgG
1421	 43.09	0	1442417..1444795	-	792	15607024	recG	aq_2053	-	ATP-dependent DNA helicase RecG
1422	 35.57	-2	1444797..1448147	-	1116	15607025	-	aq_2054	-	hypothetical protein
1423	 46.70	0	1448156..1448791	-	211	15607026	-	aq_2056	-	hypothetical protein
1424	 39.61	-1	1448818..1450410	-	530	15607027	helX	aq_2057	-	DNA helicase
1425	 46.23	0	1450301..1450936	+	211	15607028	aas	aq_2058	-	2-acylglycerophosphoethanolamine acyltransferase
1426	 42.99	0	1450915..1451556	-	213	15607029	-	aq_2059	-	hypothetical protein
1427	 43.00	0	1451540..1452904	-	454	15607030	-	aq_2060	-	hypothetical protein
1428	 41.11	0	1453189..1453548	-	119	15607031	-	aq_2063	-	hypothetical protein
1429	 47.31	+1	1453545..1454975	-	476	15607032	gltD	aq_2064	-	glutamate synthase small subunit gltD
1430	 45.22	0	1455015..1455485	+	156	15607033	-	aq_2066	-	hypothetical protein
1431	 42.19	0	1455362..1455835	+	157	15607034	-	aq_2067	-	hypothetical protein
43.45	MEAN

3.70	STD DEV
