IslandPath Analysis: Aquifex aeolicus VF5

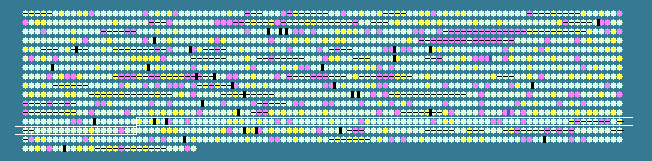

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1220	 48.82	+1	1238129..1238974	-	281	15606825	-	aq_1760	-	hypothetical protein
1221	 41.83	0	1239007..1241043	-	678	15606826	-	aq_1761	-	hypothetical protein
1222	 48.86	+1	1241651..1242745	+	364	15606827	-	aq_1763	-	hypothetical protein
1223	 47.78	+1	1243042..1245111	+	689	15606828	tktA	aq_1765	-	transketolase
1224	 43.57	0	1245177..1245518	+	113	15606829	rpsT	aq_1767	-	ribosomal protein S20
1225	 37.34	-1	1245528..1246301	+	257	15606830	-	aq_1768	-	hypothetical protein
1226	 45.27	0	1246568..1248016	-	482	15606831	dld1	aq_1769	-	D-lactate dehydrogenase
1227	 41.61	0	1248006..1248875	-	289	15606832	leuS'	aq_1770	-	leucyl-tRNA synthetase beta subunit
1228	 33.33	-2	1249334..1250086	+	250	15606833	hemD	aq_1771	-	uroporphyrinogen-III synthase
1229	 41.58	0	1250094..1250942	+	282	15606834	lpxC	aq_1772	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1230	 43.86	0	1250899..1251639	-	246	15606835	-	aq_1773	-	hypothetical protein
1231	 42.76	0	1251717..1252013	+	98	15606836	rpmA	aq_1773a	-	50S ribosomal protein L27
1232	 44.53	0	1252007..1254400	-	797	15606837	glnE	aq_1774	-	glutamate ammonia ligase adenylyl-transferase
1233	 45.43	0	1254811..1255521	-	236	15606838	-	aq_1776	-	hypothetical protein
1234	 44.13	0	1255532..1256059	-	175	15606839	infC	aq_1777	-	initiation factor IF-3
1235	 50.59	+1	1256565..1257410	-	281	15606840	fumB	aq_1780	-	fumarate hydratase
1236	 47.42	+1	1257388..1258395	-	335	15606841	mdh1	aq_1782	-	malate dehydrogenase
1237	 49.55	+1	1258392..1260371	-	659	15606842	aco	aq_1784	-	aconitate hydratase
1238	 42.51	0	1260424..1261197	-	257	15606843	trpC	aq_1787	-	indole-3-glycerol phosphate synthase
1239	 41.20	0	1261151..1262650	-	499	15606844	mviB	aq_1789	-	'virulence factor' homolog MviB
1240	 48.52	+1	1262655..1263800	-	381	15606845	-	aq_1790	-	hypothetical protein
1241	 42.19	0	1263813..1264196	-	127	15606846	-	aq_1791	-	hypothetical protein
1242	 43.51	0	1264237..1265730	-	497	15606847	ntrC2	aq_1792	-	NtrC family transcriptional regulator
1243	 36.42	-1	1265940..1266749	-	269	15606848	-	aq_1793	-	hypothetical protein
1244	 45.98	0	1266721..1267503	+	260	15606849	-	aq_1794	-	hypothetical protein
1245	 34.44	-2	1267500..1268042	+	180	15606850	-	aq_1795	-	hypothetical protein
1246	 40.83	0	1268039..1269118	+	359	15606851	-	aq_1796	-	hypothetical protein
1247	 42.75	0	1269101..1269493	-	130	15606852	-	aq_1797	-	hypothetical protein
1248	 42.92	0	1269541..1270521	-	326	15606853	cphA1	aq_1798	-	beta lactamase precursor
1249	 41.72	0	1270543..1271424	-	293	15606854	rhdA2	aq_1799	-	thiosulfate sulfurtransferase
1250	 40.69	0	1271426..1271860	-	144	15606855	-	aq_1800	-	hypothetical protein
1251	 42.13	0	1271857..1272345	-	162	15606856	-	aq_1802	-	hypothetical protein
1252	 48.45	+1	1272342..1274120	-	592	15606857	soxB	aq_1803	-	sulfur oxidation protein SoxB
1253	 45.73	0	1274166..1274786	-	206	15606858	-	aq_1806	-	hypothetical protein
1254	 45.77	0	1274799..1275602	-	267	15606859	-	aq_1807	-	hypothetical protein
1255	 42.64	0	1275616..1275948	-	110	15606860	-	aq_1809	-	hypothetical protein
1256	 46.10	0	1275970..1276431	-	153	15606861	-	aq_1810	-	hypothetical protein
1257	 35.29	-2	1276425..1276832	-	135	15606862	trxA2	aq_1811	-	thioredoxin
1258	 46.94	0	1277001..1278308	+	435	15606863	thrA	aq_1812	-	homoserine dehydrogenase
1259	 44.13	0	1278313..1279044	+	243	15606864	-	aq_1814	-	hypothetical protein
1260	 45.29	0	1279051..1279602	+	183	15606865	-	aq_1815	-	hypothetical protein
1261	 41.10	0	1279579..1280325	-	248	15606866	ksgA	aq_1816	-	dimethyladenosine transferase
1262	 43.78	0	1280345..1281196	+	283	15606867	purU	aq_1818	-	formyltetrahydrofolate deformylase
1263	 45.62	0	1281207..1282484	+	425	15606868	nfeD	aq_1820	-	nodulation competitiveness protein NfeD
1264	 40.08	0	1282506..1282994	+	162	15606869	-	aq_1822	-	hypothetical protein
1265	 44.84	0	1282996..1283421	+	141	15606870	mglA2	aq_1823	-	gliding motility protein MglA
1266	 40.45	0	1283539..1284606	+	355	15606871	-	aq_1824	-	hypothetical protein
1267	 41.33	0	1284587..1285486	+	299	15606872	-	aq_1825	-	hypothetical protein
1268	 43.46	0	1285739..1286755	+	338	15606873	alr	aq_1827	-	alanine racemase
1269	 38.53	-1	1286704..1287396	-	230	15606874	-	aq_1827a	-	hypothetical protein
1270	 43.66	0	1287540..1287965	-	141	15606875	-	aq_1829	-	hypothetical protein
1271	 50.10	+1	1288398..1288880	-	160	15606876	rpsG1	aq_1832	-	30S ribosomal protein S7
1272	 49.35	+1	1288884..1289270	-	128	15606877	rpsL	aq_1834	-	30S ribosomal protein S12
1273	 46.69	0	1289323..1291560	+	745	15606878	purL	aq_1836	-	phosphoribosylformylglycinamidine synthase II
1274	 42.46	0	1291521..1292024	+	167	15606879	lsp	aq_1837	-	lipoprotein signal peptidase
1275	 45.83	0	1291962..1292801	-	279	15606880	dapF	aq_1838	-	diaminopimelate epimerase
1276	 41.85	0	1292807..1293205	+	132	15606881	exbD	aq_1839	-	biopolymer transport ExbD
1277	 43.96	0	1293221..1293427	+	68	15607140	-	aq_1840a	-	copper chaperone
1278	 45.72	0	1293461..1294582	+	373	15606882	prfB	aq_1840	-	peptide chain release factor 2
1279	 38.83	-1	1294568..1295440	-	290	15606883	-	aq_1842	-	hypothetical protein
1280	 38.16	-1	1295462..1296496	-	344	15606884	-	aq_1843	-	hypothetical protein
1281	 42.96	0	1296612..1297172	-	186	15606885	-	aq_1844	-	hypothetical protein
1282	 42.71	0	1297169..1297861	-	230	15606886	-	aq_1845	-	hypothetical protein
1283	 44.63	0	1297865..1298218	-	117	15606887	-	aq_1847	-	hypothetical protein
1284	 37.27	-1	1298231..1298890	-	219	15606888	-	aq_1849	-	hypothetical protein
1285	 42.34	0	1298926..1299558	-	210	15606889	-	aq_1850	-	hypothetical protein
1286	 46.46	0	1299551..1300129	-	192	15606890	ilvH	aq_1851	-	acetolactate synthase
1287	 43.66	0	1300157..1302034	+	625	15606891	-	aq_1852	-	hypothetical protein
1288	 45.72	0	1302595..1303248	+	217	15606892	-	aq_1853	-	hypothetical protein
1289	 42.27	0	1303245..1303703	-	152	15606893	-	aq_1854	-	hypothetical protein
1290	 44.30	0	1303882..1305303	+	473	15606894	dnaX	aq_1855	-	DNA polymerase III gamma subunit
1291	 44.38	0	1305589..1307580	+	663	15606895	uvrB	aq_1856	-	excinuclease ABC subunit B
1292	 47.01	0	1307598..1307948	-	116	15606896	-	aq_1857	-	hypothetical protein
1293	 37.94	-1	1308165..1308794	+	209	15606897	-	aq_1858	-	flagellar hook assembly protein
1294	 40.65	0	1308798..1310246	+	482	15606898	flgE	aq_1859	-	flagellar hook protein FlgE
1295	 42.18	0	1310298..1310783	+	161	15606899	fliL	aq_1860	-	flagellar biosynthesis FliL
1296	 41.69	0	1310860..1311888	+	342	15606900	-	aq_1861	-	hypothetical protein
1297	 39.21	-1	1311923..1313080	-	385	15606901	-	aq_1862	-	hypothetical protein
1298	 39.25	-1	1313240..1314607	+	455	15606902	kch	aq_1863	-	potassium channel protein
1299	 45.26	0	1315363..1316385	+	340	15606903	asd	aq_1866	-	aspartate-semialdehyde dehydrogenase
1300	 47.10	0	1316399..1316812	+	137	15606904	-	aq_1869	-	hypothetical protein
1301	 44.74	0	1316869..1319823	+	984	15606905	secA	aq_1870	-	preprotein translocase subunit SecA
1302	 43.82	0	1319839..1321164	+	441	15606906	pmbA	aq_1871	-	peptide maturation
1303	 40.36	0	1321781..1323004	+	407	15606907	-	aq_1873	-	hypothetical protein
1304	 43.62	0	1323017..1323901	+	294	15606908	-	aq_1875	-	hypothetical protein
1305	 45.98	0	1323947..1324381	+	144	15606909	rplM	aq_1877	-	50S ribosomal protein L13
1306	 46.62	0	1324378..1324821	+	147	15606910	rpsI	aq_1878	-	ribosomal protein S09
1307	 44.77	0	1324806..1325828	+	340	15606911	argC	aq_1879	-	N-Acetyl-gamma-glutamylphosphate reductase
1308	 46.25	0	1325853..1326944	+	363	15606912	dnaN	aq_1882	-	DNA polymerase III beta chain
1309	 44.89	0	1327171..1327923	+	250	15606913	-	aq_1884	-	hypothetical protein
1310	 43.68	0	1327901..1329040	+	379	15606914	sbcD	aq_1886	-	ATP-dependent dsDNA exonuclease
1311	 42.98	0	1329030..1329983	+	317	15606915	mesJ	aq_1887	-	cell cycle protein MesJ
1312	 48.15	+1	1329967..1331073	-	368	15606916	sucD1	aq_1888	-	succinyl-CoA ligase alpha subunit
1313	 45.10	0	1331127..1332095	+	322	15606917	nadA	aq_1889	-	quinolinate synthetase
1314	 44.54	0	1332092..1332814	-	240	15606918	tsnR	aq_1890	-	rRNA methylase
1315	 44.35	0	1332824..1333930	-	368	15606919	-	aq_1891	-	hypothetical protein
1316	 44.12	0	1333920..1334855	-	311	15606920	ilvE	aq_1893	-	branched-chain amino acid aminotransferase
1317	 38.52	-1	1334770..1335483	+	237	15606921	-	aq_1894	-	hypothetical protein
1318	 43.63	0	1335480..1336508	+	342	15606922	-	aq_1896	-	hypothetical protein
1319	 45.78	0	1336481..1337356	-	291	15606923	folD	aq_1898	-	methylenetetrahydrofolate dehydrogenase
43.45	MEAN

3.70	STD DEV
