IslandPath Analysis: Aquifex aeolicus VF5

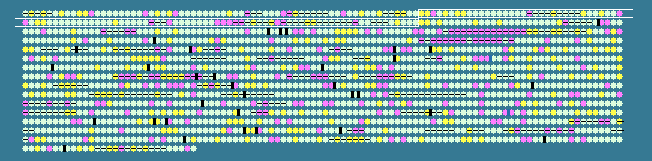

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.45   STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
67	 47.62	+1	50396..50605	+	69	15605677	rpmB	aq_080	-	ribosomal protein L28
68	 49.29	+1	50605..51801	+	398	15605678	aroC	aq_081	-	chorismate synthase
69	 35.66	-2	51803..52405	+	200	15605679	-	aq_082	-	hypothetical protein
70	 41.10	0	52390..53406	-	338	15605680	-	aq_083	-	hypothetical protein
71	 48.26	+1	53671..54474	+	267	15605681	kdsA	aq_085	-	2-dehydro-3-deoxyphosphooctonate aldolase
72	 43.74	0	54471..55133	+	220	15605682	modC	aq_086	-	molybdenum ABC transporter permease
73	 48.54	+1	55256..55597	+	113	15605683	-	aq_087	-	hypothetical protein
74	 47.92	+1	55612..55947	+	111	15605684	-	aq_088	-	hypothetical protein
75	 44.94	0	55975..56379	+	134	15605685	-	aq_090	-	hypothetical protein
76	 44.95	0	56372..57964	+	530	15607134	-	aq_091m	-	AAA ATPase family protein
77	 46.01	0	57961..60366	-	801	15605686	nrdA	aq_094	-	ribonucleotide reductase alpha chain
78	 43.63	0	60452..61675	-	407	15605687	-	aq_097	-	hypothetical protein
79	 46.20	0	61696..61998	+	100	15605688	secG	aq_098	-	protein export membrane protein SecG
80	 42.67	0	61934..62779	+	281	15605689	hemK	aq_099	-	protoporphyrinogen oxidase
81	 43.49	0	62770..64020	+	416	15605690	hly3	aq_101	-	hemolysin
82	 42.51	0	63986..64726	-	246	15605691	-	aq_103	-	hypothetical protein
83	 43.85	0	64729..65841	-	370	15605692	-	aq_104	-	hypothetical protein
84	 40.83	0	65727..66446	+	239	15605693	-	aq_106	-	hypothetical protein
85	 37.96	-1	65828..66151	-	107	15607135	rbfA	aq_106a	-	ribosome-binding factor A
86	 46.46	0	66706..66903	+	65	15605694	fdx4	aq_108a	-	ferredoxin
87	 41.98	0	66900..67142	-	80	15605695	hfq	aq_108b	-	host factor I
88	 46.31	0	67339..67677	+	112	15605696	glnB	aq_109	-	nitrogen regulatory PII protein
89	 47.09	0	67698..69107	+	469	15605697	glnA	aq_111	-	glutamine synthetase
90	 46.62	0	69169..70440	+	423	15605698	amtB	aq_112	-	ammonium transporter
91	 46.04	0	70454..71500	+	348	15605699	-	aq_113	-	hypothetical protein
92	 44.90	0	71803..72243	-	146	15605700	-	aq_114	-	hypothetical protein
93	 42.99	0	72560..74122	-	520	15605701	-	aq_116	-	hypothetical protein
94	 47.82	+1	74123..75316	-	397	15605702	pgk	aq_118	-	phosphoglycerate kinase
95	 46.48	0	75328..75981	-	217	15605703	talC	aq_119	-	putative translaldolase
96	 46.65	0	76010..77038	-	342	15605704	-	aq_121	-	hypothetical protein
97	 47.03	0	77035..78246	-	403	15605705	hisS1	aq_122	-	histidyl-tRNA synthetase
98	 41.89	0	78328..78666	+	112	15605706	rpsP	aq_123	-	ribosomal protein S16
99	 45.83	0	78663..78902	+	79	15605707	-	aq_124a	-	hypothetical protein
100	 37.09	-1	78902..79300	+	132	15605708	-	aq_125	-	hypothetical protein
101	 38.06	-1	79305..79748	+	147	15605709	-	aq_126	-	hypothetical protein
102	 44.44	0	79748..80566	+	272	15605710	-	aq_127	-	hypothetical protein
103	 47.00	0	80390..81808	-	472	15605711	-	aq_128	-	hypothetical protein
104	 49.46	+1	81823..82287	+	154	15605712	ribH	aq_132	-	riboflavin synthase beta subunit
105	 42.95	0	82284..82730	+	148	15605713	nusB	aq_133	-	transcription antitermination protein NusB
106	 46.05	0	82932..83387	+	151	15605714	-	aq_134	-	hypothetical protein
107	 42.41	0	83384..84331	+	315	15605715	nueM	aq_135	-	NADH dehydrogenase (ubiquinone)
108	 46.63	0	84354..85421	+	355	15605716	cpx	aq_136	-	cytochrome c peroxidase
109	 43.14	0	85418..86488	-	356	15605717	ribD1	aq_138	-	riboflavin specific deaminase
110	 41.27	0	86485..87429	-	314	15605718	ribF	aq_139	-	riboflavin kinase
111	 46.17	0	87436..87801	-	121	15605719	pkcI	aq_141	-	protein kinase C inhibitor
112	 45.12	0	88156..88596	+	146	15605720	-	aq_142	-	hypothetical protein
113	 40.46	0	88593..89546	+	317	15605721	rfaC2	aq_145	-	ADP-heptose:LPS heptosyltransferase
114	 43.34	0	89543..90421	+	292	15605722	cobW	aq_147	-	cobalamin synthesis related protein CobW
115	 43.18	0	90418..91077	+	219	15605723	deoC	aq_148	-	deoxyribose-phosphate aldolase
116	 47.69	+1	91085..91864	+	259	15605724	gltA	aq_150	-	citrate synthase
117	 42.63	0	91861..92301	+	146	15605725	tlpA	aq_152	-	thiol disulfide interchange protein
118	 45.01	0	92881..93771	+	296	15605726	ctaA	aq_153	-	heme O oxygenase
119	 45.39	0	93768..94646	+	292	15605727	ctaB	aq_154	-	cytochrome c oxidase assembly factor
120	 43.58	0	94648..95808	+	386	15605728	-	aq_155	-	hypothetical protein
121	 41.10	0	96008..96406	+	132	15605729	-	aq_156	-	hypothetical protein
122	 38.65	-1	96408..96896	+	162	15605730	-	aq_157	-	hypothetical protein
123	 42.72	0	96893..97297	+	134	15605731	apfA	aq_158	-	AP4A hydrolase
124	 45.72	0	97287..97835	-	182	15605732	-	aq_159	-	hypothetical protein
125	 38.51	-1	98536..99018	+	160	15605733	folK	aq_162	-	folate biosynthesis 7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
126	 41.91	0	99015..100343	+	442	15605734	ntrC4	aq_164	-	NtrC family transcriptional regulator
127	 41.16	0	100330..101019	-	229	15605735	-	aq_165	-	hypothetical protein
128	 44.24	0	101014..101811	+	265	15605736	proC	aq_166	-	pyrroline carboxylate reductase
129	 40.42	0	101772..102392	+	206	15605737	-	aq_167	-	hypothetical protein
130	 43.73	0	102389..102898	-	169	15605738	-	aq_168	-	hypothetical protein
131	 41.67	0	102853..103296	-	147	15605739	-	aq_169	-	hypothetical protein
132	 46.04	0	103299..104660	-	453	15605740	bioA	aq_170	-	DAPA aminotransferase
133	 36.03	-2	104858..105598	+	246	15605741	-	aq_171	-	hypothetical protein
134	 37.41	-1	105912..106574	-	220	15605742	mutY2	aq_172	-	endonuclease III
135	 39.78	0	106547..107290	-	247	15605743	-	aq_173	-	hypothetical protein
136	 38.77	-1	107287..108795	-	502	15605744	-	aq_175	-	hypothetical protein
137	 38.16	-1	108792..108998	-	68	15605745	-	aq_175a	-	hypothetical protein
138	 41.67	0	109002..109145	-	47	15605746	rpmH	aq_175b	-	ribosomal protein L34
139	 48.84	+1	109189..109491	-	100	15605747	atpE	aq_177	-	ATP synthase F0 subunit c
140	 43.87	0	109507..109914	-	135	15605748	-	aq_178	-	hypothetical protein
141	 43.63	0	109916..110566	-	216	15605749	atpB	aq_179	-	ATP synthase F0 subunit a
142	 47.90	+1	110616..111377	+	253	15605750	hisF	aq_181	-	HisF (cyclase)
143	 33.60	-2	111355..112101	-	248	15605751	-	aq_182	-	hypothetical protein
144	 37.10	-1	112111..113304	-	397	15605752	-	aq_183	-	hypothetical protein
145	 44.59	0	113301..113531	-	76	15605753	rpoZ	aq_183a	-	RNA polymerase omega subunit
146	 42.42	0	113515..113844	-	109	15605754	-	aq_184	-	hypothetical protein
147	 45.99	0	114179..114652	-	157	15605755	tagD1	aq_185	-	glycerol-3-phosphate cytidyltransferase
148	 48.08	+1	114649..116079	-	476	15605756	aldH1	aq_186	-	aldehyde dehydrogenase
149	 47.52	+1	116090..117442	-	450	15605757	hslU	aq_192	-	ATP-dependent protease ATP-binding subunit
150	 46.88	0	117420..117884	-	154	15605758	-	aq_194	-	hypothetical protein
151	 46.82	0	117938..118960	+	340	15605759	trpD1	aq_196	-	phosphoribosylanthranilate transferase
152	 40.48	0	118960..120162	+	400	15605760	-	aq_197	-	hypothetical protein
153	 46.90	0	120228..121451	+	407	15605761	-	aq_199	-	hypothetical protein
154	 46.57	0	121448..122074	+	208	15605762	-	aq_200	-	hypothetical protein
155	 43.35	0	122071..122679	+	202	15605763	-	aq_202	-	hypothetical protein
156	 39.93	0	122663..123844	+	393	15605764	atpG2	aq_203	-	ATP synthase F1 gamma subunit
157	 46.03	0	123819..124700	-	293	15605765	-	aq_204	-	hypothetical protein
158	 42.04	0	124821..127829	+	1002	15605766	nirB	aq_206	-	nitrite reductase (NAD(P)H) large subunit
159	 45.99	0	127845..128579	+	244	15605767	cobA	aq_207	-	uroporphyrin-III c-methyltransferase
160	 44.73	0	128584..129513	+	309	15605768	trpD2	aq_209	-	phosphoribosylanthranilate transferase
161	 43.10	0	129647..130066	+	139	15605769	fhp	aq_211	-	flavohemoprotein
162	 46.00	0	130079..130528	+	149	15605770	cynS	aq_212	-	cyanate hydratase
163	 47.57	+1	130544..131161	+	205	15605771	glnBi	aq_213	-	PII-like protein GlnBi
164	 46.15	0	131158..132585	+	475	15605772	nasA	aq_215	-	nitrate transporter
165	 44.53	0	132582..134582	+	666	15605773	narB	aq_217	-	nitrate reductase narB
166	 41.29	0	134585..136105	-	506	15605774	nifA	aq_218	-	NifA family transcriptional regulator
43.45	MEAN

3.70	STD DEV
