IslandPath Analysis: Aquifex aeolicus VF5

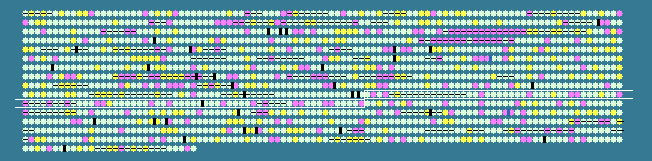

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
958	 41.80	0	972668..973954	-	428	15606563	spsI	aq_1367	-	glucose-1-phosphate thymidylyltransferase
959	 39.84	0	973969..974475	-	168	15606564	tagD2	aq_1368	-	glycerol-3-phosphate cytidyltransferase
960	 40.23	0	974450..975232	+	260	15606565	-	aq_1369	-	hypothetical protein
961	 38.76	-1	975229..975744	+	171	15606566	rlpA1	aq_1370	-	rare lipoprotein A
962	 46.00	0	975755..977128	+	457	15606567	argH	aq_1372	-	argininosuccinate lyase
963	 47.69	+1	977204..977983	+	259	15606568	nuoH2	aq_1373	-	NADH dehydrogenase I chain H
964	 41.91	0	977950..978252	+	100	15606569	nuoH3	aq_1374	-	NADH dehydrogenase I chain H
965	 46.41	0	978259..978885	+	208	15606570	nuoI2	aq_1375	-	NADH dehydrogenase I chain I
966	 44.32	0	978882..979418	+	178	15606571	nuoJ2	aq_1377	-	NADH dehydrogenase I chain J
967	 46.60	0	979399..979707	+	102	15606572	nuoK2	aq_1378	-	NADH dehydrogenase I chain K
968	 46.30	0	979710..981644	+	644	15606573	nuoL3	aq_1379	-	NADH dehydrogenase I chain L
969	 42.36	0	981656..983161	+	501	15606574	nuoM2	aq_1382	-	NADH dehydrogenase I chain M
970	 44.92	0	983175..984641	+	488	15606575	nuoN2	aq_1383	-	NADH dehydrogenase I chain N
971	 42.26	0	984638..985018	+	126	15606576	nuoA1	aq_1385	-	NADH dehydrogenase I chain A
972	 43.97	0	984987..985766	+	259	15606577	-	aq_1386	-	hypothetical protein
973	 42.39	0	985792..986100	+	102	15606578	arsR	aq_1387	-	ArsR family transcriptional regulator
974	 43.65	0	986343..987302	+	319	15606579	-	aq_1388	-	hypothetical protein
975	 42.77	0	987292..988224	-	310	15606580	fba	aq_1390	-	fructose-1,6-bisphosphate aldolase class II
976	 40.37	0	988669..989634	+	321	15606581	-	aq_1391	-	hypothetical protein
977	 36.06	-1	989839..990717	+	292	15606582	-	aq_1392	-	hypothetical protein
978	 46.53	0	990701..992458	-	585	15606583	lig	aq_1394	-	ATP-dependent DNA ligase
979	 42.88	0	992455..993114	-	219	15606584	leuD	aq_1398	-	3-isopropylmalate dehydratase
980	 42.12	0	993552..995600	+	682	15606585	-	aq_1400	-	cellulose synthase regulator protein
981	 41.00	0	995597..996574	+	325	15606586	celY	aq_1401	-	endoglucanase fragment
982	 41.48	0	996504..998516	+	670	15606587	-	aq_1402	-	hypothetical protein
983	 44.21	0	998504..999496	+	330	15606588	-	aq_1403	-	hypothetical protein
984	 42.04	0	999493..1000227	+	244	15606589	-	aq_1404	-	hypothetical protein
985	 37.91	-1	1000217..1000894	-	225	15606590	-	aq_1405	-	hypothetical protein
986	 41.10	0	1000870..1003149	-	759	15606591	bcsA	aq_1407	-	cellulose synthase catalytic subunit
987	 41.79	0	1003352..1004191	+	279	15606592	-	aq_1408	-	hypothetical protein
988	 43.43	0	1004130..1004525	+	131	15606593	-	aq_1409	-	hypothetical protein
989	 49.35	+1	1004522..1005826	-	434	15606594	trpB2	aq_1410	-	tryptophan synthase subunit beta
990	 43.83	0	1005831..1006916	-	361	15606595	-	aq_1412	-	hypothetical protein
991	 46.60	0	1006934..1010431	+	1165	15606596	valS	aq_1413	-	valyl-tRNA synthetase
992	 37.91	-1	1010435..1010893	-	152	15606597	furR2	aq_1418	-	FUR family transcriptional regulator
993	 38.45	-1	1010900..1011505	-	201	15606598	mobA	aq_1419	-	molybdopterin-guanine dinucleotide biosynthesis protein A
994	 43.33	0	1011429..1012328	-	299	15606599	-	aq_1420	-	hypothetical protein
995	 44.44	0	1012351..1012944	+	197	15606600	-	aq_1421	-	hypothetical protein
996	 45.82	0	1012941..1014686	-	581	15606601	dpbF	aq_1422	-	DNA polymerase beta family protein
997	 47.05	0	1014723..1015451	+	242	15606602	pdxJ	aq_1423	-	pyridoxal phosphate biosynthetic protein PdxJ
998	 42.50	0	1015431..1016543	-	370	15606603	hemF	aq_1424	-	oxygen-independent coproporphyrinogen III oxidase
999	 41.58	0	1016582..1016884	+	100	15606604	-	aq_1426	-	hypothetical protein
1000	 37.35	-1	1016881..1017951	+	356	15606605	lpxB	aq_1427	-	lipid A disaccharide synthetase
1001	 39.84	0	1017961..1018590	+	209	15606606	-	aq_1428	-	hypothetical protein
1002	 42.20	0	1018582..1019472	-	296	15606607	metF	aq_1429	-	5,10-methylenetetrahydrofolate reductase
1003	 45.45	0	1019553..1019915	+	120	15606608	ppdD1	aq_1432	-	pilin
1004	 44.17	0	1019985..1020344	+	119	15606609	fimZ	aq_1433	-	minor pilin
1005	 38.58	-1	1020328..1020765	+	145	15606610	ppdD2	aq_1434	-	pilin
1006	 43.75	0	1020672..1021103	+	143	15606611	ppdD3	aq_1435	-	pilin
1007	 40.43	0	1021100..1021930	+	276	15606612	-	aq_1436	-	hypothetical protein
1008	 35.92	-2	1021935..1023788	+	617	15606613	-	aq_1439	-	hypothetical protein
1009	 42.91	0	1023795..1025549	+	584	15606614	oppA	aq_1441	-	extracellular solute binding protein
1010	 40.63	0	1025935..1029099	+	1054	15606615	-	aq_1442	-	hypothetical protein
1011	 43.03	0	1029091..1029678	-	195	15606616	-	aq_1444	-	hypothetical protein
1012	 44.61	0	1029714..1031753	-	679	15606617	ctrA2	aq_1445	-	cation transporter E1-E2 family ATPase
1013	 35.66	-2	1031810..1032367	-	185	15606618	-	aq_1446	-	hypothetical protein
1014	 38.80	-1	1032379..1034499	-	706	15606619	-	aq_1447	-	hypothetical protein
1015	 47.38	+1	1034504..1034923	-	139	15606620	mutT	aq_1449	-	8-oxo-dGTPase domain-containing protein
1016	 45.01	0	1034952..1036313	+	453	15606621	htrA	aq_1450	-	periplasmic serine protease
1017	 45.55	0	1036324..1037256	+	310	15606622	rpoS	aq_1452	-	RNA polymerase sigma factor RpoS
1018	 41.21	0	1037256..1038068	+	270	15606623	-	aq_1453	-	hypothetical protein
1019	 43.18	0	1038417..1039127	+	236	15606624	-	aq_1455	-	hypothetical protein
1020	 44.23	0	1038984..1039616	-	210	15606625	-	aq_1457	-	hypothetical protein
1021	 43.71	0	1039761..1040666	+	301	15606626	gcvT	aq_1458	-	aminomethyltransferase (glycine cleavage system T protein)
1022	 39.91	0	1040657..1042405	-	582	15606627	npr	aq_1459	-	neutral protease
1023	 44.78	0	1042119..1043009	+	296	15606628	-	aq_1462	-	hypothetical protein
1024	 46.80	0	1043006..1043755	+	249	15606629	-	aq_1464	-	hypothetical protein
1025	 39.44	-1	1043752..1044144	+	130	15606630	-	aq_1465	-	hypothetical protein
1026	 42.26	0	1044125..1044505	-	126	15606631	-	aq_1466	-	hypothetical protein
1027	 42.28	0	1044483..1045253	-	256	15606632	-	aq_1467	-	hypothetical protein
1028	 42.83	0	1045240..1046439	-	399	15606633	folP	aq_1468	-	dihydropteroate synthase
1029	 46.51	0	1047198..1048631	+	477	15606634	accC2	aq_1470	-	biotin carboxylase
1030	 45.34	0	1049037..1050443	+	468	15606635	dnaB	aq_1472	-	replicative DNA helicase
1031	 41.44	0	1050573..1051361	+	262	15606636	-	aq_1473	-	hypothetical protein
1032	 45.60	0	1051345..1052754	+	469	15606637	gspE	aq_1474	-	general secretion pathway protein E
1033	 40.33	0	1052751..1053293	+	180	15606638	-	aq_1476	-	hypothetical protein
1034	 39.29	-1	1053274..1054095	+	273	15606639	-	aq_1477	-	hypothetical protein
1035	 44.50	0	1054026..1054661	-	211	15606640	recR	aq_1478	-	recombination protein RecR
1036	 46.70	0	1054920..1055510	-	196	15606641	-	aq_1480	-	hypothetical protein
1037	 41.56	0	1055518..1056003	-	161	15606642	-	aq_1481	-	hypothetical protein
1038	 44.65	0	1056000..1056485	-	161	15606643	-	aq_1482	-	hypothetical protein
1039	 39.07	-1	1056478..1057104	-	208	15606644	-	aq_1483	-	hypothetical protein
1040	 42.94	0	1057089..1057619	-	176	15606645	-	aq_1484	-	hypothetical protein
1041	 36.49	-1	1057616..1057900	-	94	15606646	himA	aq_1484a	-	DNA binding protein HU
1042	 45.71	0	1057932..1059539	-	535	15606647	rpsA	aq_1485	-	ribosomal protein S01
1043	 43.54	0	1059606..1060379	-	257	15606648	trmD	aq_1489	-	tRNA guanine-N1 methyltransferase
1044	 43.92	0	1060369..1062096	-	575	15606649	rpoD	aq_1490	-	RNA polymerase sigma factor RpoD
1045	 42.02	0	1062135..1063631	-	498	15606650	dnaG	aq_1493	-	DNA primase
1046	 39.53	-1	1063698..1064084	+	128	15606651	-	aq_1494	-	hypothetical protein
1047	 34.98	-2	1064073..1064678	-	201	15606652	ogt	aq_1495	-	O-6-methylguanine-DNA-alkyltransferase
1048	 43.09	0	1064736..1065596	-	286	15606653	xylR	aq_1496	-	NagC/XylR family transcriptional regulator
1049	 44.19	0	1065593..1065988	-	131	15606654	-	aq_1498	-	hypothetical protein
1050	 44.55	0	1066291..1066932	+	213	15606655	sodA	aq_1499	-	Fe/Mn family superoxide dismutase
1051	 33.20	-2	1066938..1067708	+	256	15606656	-	aq_1501	-	hypothetical protein
1052	 33.33	-2	1067668..1068834	-	388	15606657	-	aq_1502	-	hypothetical protein
1053	 43.38	0	1068818..1069474	-	218	15606658	-	aq_1503	-	hypothetical protein
1054	 41.89	0	1069471..1070802	-	443	15606659	trk1	aq_1504	-	K+ transport protein
1055	 42.32	0	1070796..1072886	-	696	15606660	nrdF	aq_1505	-	ribonucleotide reductase beta chain
1056	 44.91	0	1072992..1073630	-	212	15606661	omt	aq_1507	-	O-methyltransferase
1057	 38.79	-1	1073611..1074489	-	292	15606662	-	aq_1508	-	hypothetical protein
43.45	MEAN

3.70	STD DEV
