IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

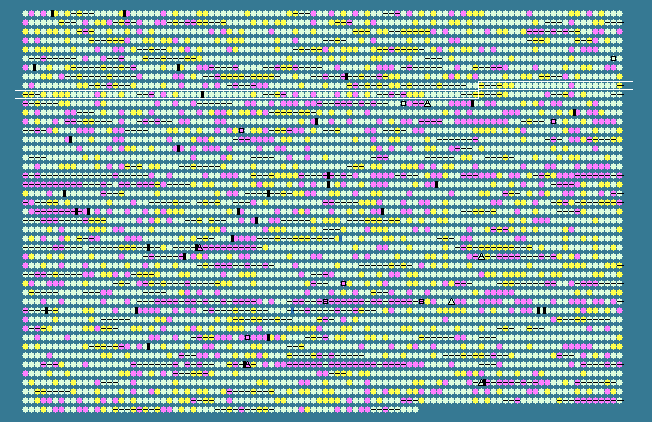

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
877	 78.14	+1	1014032..1014667	-	211	153003756	-	Anae109_0888	-	hypothetical protein
878	 76.06	0	1014753..1016126	-	457	153003757	-	Anae109_0889	-	two component, sigma54 specific, Fis family transcriptional regulator
879	 75.74	0	1016123..1017499	-	458	153003758	-	Anae109_0890	-	integral membrane sensor signal transduction histidine kinase
880	 78.45	+1	1017510..1019036	-	508	153003759	-	Anae109_0891	-	outer membrane efflux protein
881	 77.11	+1	1019307..1020350	+	347	153003760	-	Anae109_0892	-	secretion protein HlyD family protein
882	 77.25	+1	1020347..1021300	+	317	153003761	-	Anae109_0893	-	ABC transporter related
883	 75.56	0	1021297..1022241	+	314	153003762	-	Anae109_0894	-	ABC transporter related
884	 72.47	0	1022238..1023374	+	378	153003763	-	Anae109_0895	-	ABC-2 type transporter
885	 73.37	0	1023371..1024519	+	382	153003764	-	Anae109_0896	-	ABC-2 type transporter
886	 73.55	0	1024590..1025519	+	309	153003765	-	Anae109_0897	-	ABC transporter related
887	 69.82	0	1025516..1026277	+	253	153003766	-	Anae109_0898	-	ABC-2 type transporter
888	 72.07	0	1026509..1027360	+	283	153003767	-	Anae109_0899	-	hypothetical protein
889	 75.96	0	1027480..1029297	+	605	153003768	-	Anae109_0900	-	ATP-dependent DNA helicase RecQ
890	 74.50	0	1029302..1029850	+	182	153003769	-	Anae109_0901	-	hypothetical protein
891	 73.50	0	1029976..1030443	+	155	153003770	-	Anae109_0902	-	BadM/Rrf2 family transcriptional regulator
892	 66.18	-1	1030440..1031879	+	479	153003771	-	Anae109_0903	-	cysteine desulfurase activator complex subunit SufB
893	 71.92	0	1031882..1032700	+	272	153003772	-	Anae109_0904	-	FeS assembly ATPase SufC
894	 76.41	0	1032709..1034022	+	437	153003773	-	Anae109_0905	-	FeS assembly protein SufD
895	 73.87	0	1034019..1035296	+	425	153003774	-	Anae109_0906	-	SufS subfamily cysteine desulfurase
896	 74.00	0	1035322..1035771	+	149	153003775	-	Anae109_0907	-	NifU family SUF system FeS assembly protein
897	 73.76	0	1035775..1036338	+	187	153003776	-	Anae109_0908	-	hypothetical protein
898	 71.63	0	1036346..1036708	-	120	153003777	-	Anae109_0909	-	FHA domain-containing protein
899	 70.23	0	1036891..1037787	+	298	153003778	-	Anae109_0910	-	hypothetical protein
900	 79.67	+1	1037879..1039777	-	632	153003779	-	Anae109_0911	-	PDZ/DHR/GLGF domain-containing protein
901	 77.19	+1	1039915..1040826	-	303	153003780	-	Anae109_0912	-	peptidase S1 and S6 chymotrypsin/Hap
902	 77.74	+1	1040823..1041734	-	303	153003781	-	Anae109_0913	-	peptidase S1 and S6 chymotrypsin/Hap
903	 76.54	0	1041783..1042319	-	178	153003782	-	Anae109_0914	-	hypothetical protein
904	 78.49	+1	1042541..1043149	+	202	153003783	-	Anae109_0915	-	two component LuxR family transcriptional regulator
905	 76.30	0	1043255..1043773	+	172	153003784	-	Anae109_0916	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
906	 77.94	+1	1043834..1044232	-	132	153003785	-	Anae109_0917	-	translation initiation factor SUI1
907	 81.15	+2	1044157..1045392	-	411	153003786	-	Anae109_0918	-	TfuA domain-containing protein
908	 80.18	+1	1045389..1046528	-	379	153003787	-	Anae109_0919	-	hypothetical protein
909	 72.72	0	1046593..1047996	+	467	153003788	-	Anae109_0920	-	peptidase M20
910	 69.76	0	1048185..1050704	+	839	153003789	-	Anae109_0921	-	glycogen/starch/alpha-glucan phosphorylase
911	 75.24	0	1050610..1051029	-	139	153003790	-	Anae109_0922	-	methylated-DNA-(protein)-cysteine S-methyltransferase DNA binding
912	 75.26	0	1051093..1051674	+	193	153003791	-	Anae109_0923	-	hypothetical protein
913	 69.42	-1	1051749..1052330	+	193	153003792	-	Anae109_0924	-	LemA family protein
914	 78.04	+1	1052341..1053096	+	251	153003793	-	Anae109_0925	-	hypothetical protein
915	 74.96	0	1053105..1053743	+	212	153003794	-	Anae109_0926	-	hypothetical protein
916	 73.56	0	1053773..1055251	-	492	153003795	-	Anae109_0927	-	sodium/hydrogen exchanger
917	 78.09	+1	1055326..1056393	-	355	153003796	-	Anae109_0928	-	radical SAM domain-containing protein
918	 73.19	0	1056425..1057099	+	224	153003797	-	Anae109_0929	-	XRE family transcriptional regulator
919	 76.29	0	1057202..1058572	+	456	153003798	-	Anae109_0930	-	response regulator receiver protein
920	 73.63	0	1058904..1059104	+	66	153003799	-	Anae109_0931	-	hypothetical protein
921	 75.88	0	1059196..1060335	+	379	153003800	-	Anae109_0932	-	hypothetical protein
922	 67.83	-1	1060477..1060992	+	171	153003801	-	Anae109_0933	-	OmpA/MotB domain-containing protein
923	 76.43	0	1061135..1061554	+	139	153003802	-	Anae109_0934	-	hypothetical protein
924	 69.46	-1	1061585..1062586	+	333	153003803	-	Anae109_0935	-	band 7 protein
925	 76.25	0	1062699..1063397	+	232	153003804	-	Anae109_0936	-	hypothetical protein
926	 78.10	+1	1063550..1064389	-	279	153003805	-	Anae109_0937	-	TPR repeat-containing protein
927	 71.81	0	1064402..1065295	-	297	153003806	-	Anae109_0938	-	Ku family containing protein
928	 76.38	0	1065326..1067869	+	847	153003807	-	Anae109_0939	-	DNA ligase D
929	 72.07	0	1068020..1068352	+	110	153003808	-	Anae109_0940	-	hypothetical protein
930	 74.07	0	1068615..1070018	+	467	153003809	-	Anae109_0941	-	MscS mechanosensitive ion channel
931	 76.33	0	1070231..1072528	+	765	153003810	-	Anae109_0942	-	tetratricopeptide TPR_4
932	 76.02	0	1072720..1073403	-	227	153003811	-	Anae109_0943	-	hypothetical protein
933	 72.45	0	1073461..1073892	-	143	153003812	-	Anae109_0944	-	hypothetical protein
934	 76.48	0	1073889..1075886	-	665	153003813	-	Anae109_0945	-	ABC transporter related
935	 75.53	0	1075896..1076786	-	296	153003814	-	Anae109_0946	-	protoheme IX farnesyltransferase
936	 76.00	0	1076972..1077646	+	224	153003815	-	Anae109_0947	-	putative lipoprotein
937	 70.33	0	1077708..1077980	-	90	153003816	-	Anae109_0948	-	hypothetical protein
938	 71.38	0	1078064..1078975	+	303	153003817	-	Anae109_0949	-	PP-loop domain-containing protein
939	 77.24	+1	1078972..1079652	+	226	153003818	-	Anae109_0950	-	deoxyribose-phosphate aldolase
940	 72.48	0	1079689..1080858	+	389	153003819	-	Anae109_0951	-	phosphopentomutase
941	 72.70	0	1080917..1083037	-	706	153003820	-	Anae109_0952	-	peptidase S9 prolyl oligopeptidase
942	 70.58	0	1083202..1084530	-	442	153003821	-	Anae109_0953	-	hydroxylamine oxidase
943	 78.75	+1	1084724..1084996	-	90	153003822	-	Anae109_0954	-	hypothetical protein
944	 68.64	-1	1085360..1086829	-	489	153003823	-	Anae109_0955	-	nitrite reductase (cytochrome; ammonia-forming)
945	 71.08	0	1086859..1087311	-	150	153003824	-	Anae109_0956	-	cytochrome c-type protein
946	 67.43	-1	1087588..1087980	-	130	153003825	-	Anae109_0957	-	hypothetical protein
947	 71.24	0	1087973..1088497	-	174	153003826	-	Anae109_0958	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
948	 74.24	0	1088490..1090391	-	633	153003827	-	Anae109_0959	-	stage II sporulation E family protein
949	 67.57	-1	1090405..1090737	-	110	153003828	-	Anae109_0960	-	hypothetical protein
950	 70.31	0	1090737..1091915	-	392	153003829	-	Anae109_0961	-	hypothetical protein
951	 73.86	0	1091908..1092435	-	175	153003830	-	Anae109_0962	-	hypothetical protein
952	 74.21	0	1092580..1095030	+	816	153003831	-	Anae109_0963	-	hypothetical protein
953	 69.06	-1	1095107..1096654	-	515	153003832	-	Anae109_0964	-	nitrite reductase (cytochrome; ammonia-forming)
954	 73.23	0	1096863..1098263	-	466	153003833	-	Anae109_0965	-	two component, sigma54 specific, Fis family transcriptional regulator
955	 77.11	+1	1098260..1100107	-	615	153003834	-	Anae109_0966	-	multi-sensor signal transduction histidine kinase
956	 69.10	-1	1100216..1101532	-	438	153003835	-	Anae109_0967	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
957	 72.31	0	1101697..1103520	+	607	153003836	-	Anae109_0968	-	AMP-dependent synthetase and ligase
958	 79.24	+1	1103607..1104656	-	349	153003837	-	Anae109_0969	-	hypothetical protein
959	 74.70	0	1104666..1105076	-	136	153003838	-	Anae109_0970	-	hypothetical protein
960	 74.38	0	1105089..1106216	-	375	153003839	-	Anae109_0971	-	adventurous gliding motility protein R
961	 75.28	0	1106213..1107118	-	301	153003840	-	Anae109_0972	-	chromosome partitioning-like ATPase
962	 69.14	-1	1107196..1107519	+	107	153003841	-	Anae109_0973	-	hypothetical protein
963	 74.93	0	1107521..1108282	+	253	153003842	-	Anae109_0974	-	cobyrinic acid ac-diamide synthase
964	 67.83	-1	1108289..1108888	-	199	153003843	-	Anae109_0975	-	PHA accumulation regulator DNA-binding protein
965	 79.85	+1	1109000..1110766	+	588	153003844	-	Anae109_0976	-	Zinc finger-domain-containing protein
966	 78.73	+1	1110763..1111533	+	256	153003845	-	Anae109_0977	-	hypothetical protein
967	 78.72	+1	1111836..1112615	+	259	153003846	-	Anae109_0978	-	glycerophosphoryl diester phosphodiesterase
968	 73.82	0	1112612..1113631	-	339	153003847	-	Anae109_0979	-	hypothetical protein
969	 70.53	0	1113763..1114047	-	94	153003848	-	Anae109_0980	-	hypothetical protein
970	 73.18	0	1114206..1115540	+	444	153003849	-	Anae109_0981	-	cytochrome bd ubiquinol oxidase subunit I
971	 75.38	0	1115537..1116592	+	351	153003850	-	Anae109_0982	-	cytochrome bd ubiquinol oxidase subunit II
972	 73.93	0	1116645..1117691	-	348	153003851	-	Anae109_0983	-	threonine aldolase
973	 75.34	0	1117749..1119926	-	725	153003852	-	Anae109_0984	-	hypothetical protein
974	 74.89	0	1120052..1120270	-	72	153003853	-	Anae109_0985	-	hypothetical protein
975	 75.49	0	1120372..1121811	-	479	153003854	-	Anae109_0986	-	hypothetical protein
976	 77.93	+1	1121857..1122291	-	144	153003855	-	Anae109_0987	-	hypothetical protein
73.23	MEAN

3.77	STD DEV
