IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

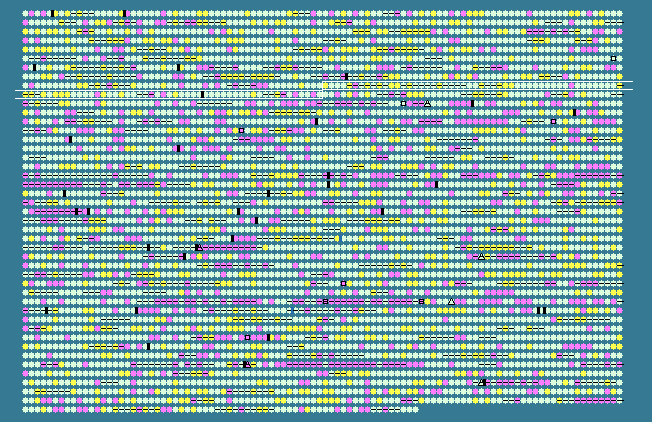

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 73.23   STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
851	 78.38	+1	981955..983124	-	389	153003730	-	Anae109_0860	-	polysulphide reductase NrfD
852	 73.23	0	983124..984053	-	309	153003731	-	Anae109_0861	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
853	 71.81	0	984056..986641	-	861	153003732	-	Anae109_0862	-	molydopterin dinucleotide-binding region
854	 71.60	0	986750..987337	-	195	153003733	-	Anae109_0863	-	molybdopterin oxidoreductase Fe4S4 region
855	 76.89	0	987517..989628	+	703	153003734	-	Anae109_0864	-	superfamily I DNA/RNA helicase-like protein
856	 68.45	-1	989800..990303	+	167	153003735	-	Anae109_0865	-	redoxin domain-containing protein
857	 72.75	0	990366..991367	-	333	153003736	-	Anae109_0866	-	cupin 2 domain-containing protein
858	 77.45	+1	993816..994928	-	370	153003737	-	Anae109_0869	-	putative lipoprotein
859	 73.71	0	994937..997534	-	865	153003738	-	Anae109_0870	-	TonB family protein
860	 80.70	+1	997540..998280	-	246	153003739	-	Anae109_0871	-	TonB family protein
861	 71.60	0	998277..998702	-	141	153003740	-	Anae109_0872	-	biopolymer transport protein ExbD/TolR
862	 76.90	0	998730..999452	-	240	153003741	-	Anae109_0873	-	MotA/TolQ/ExbB proton channel
863	 77.38	+1	999702..1000784	+	360	153003742	-	Anae109_0874	-	ICE-like protease
864	 75.00	0	1000866..1001369	+	167	153003743	-	Anae109_0875	-	ECF subfamily RNA polymerase sigma-24 factor
865	 79.12	+1	1001366..1002136	+	256	153003744	-	Anae109_0876	-	hypothetical protein
866	 75.60	0	1002193..1004319	+	708	153003745	-	Anae109_0877	-	peptidase C14 caspase catalytic subunit p20
867	 74.05	0	1004330..1006414	-	694	153003746	-	Anae109_0878	-	ABC transporter related
868	 75.34	0	1006553..1006990	+	145	153003747	-	Anae109_0879	-	hypothetical protein
869	 76.45	0	1007071..1007775	+	234	153003748	-	Anae109_0880	-	two component transcriptional regulator
870	 77.68	+1	1007772..1009133	+	453	153003749	-	Anae109_0881	-	integral membrane sensor signal transduction histidine kinase
871	 75.36	0	1009186..1009392	-	68	153003750	-	Anae109_0882	-	hypothetical protein
872	 75.81	0	1009483..1010127	+	214	153003751	-	Anae109_0883	-	hypothetical protein
873	 74.65	0	1010155..1010868	+	237	153003752	-	Anae109_0884	-	TetR family transcriptional regulator
874	 76.14	0	1010832..1011749	-	305	153003753	-	Anae109_0885	-	short-chain dehydrogenase/reductase SDR
875	 75.54	0	1011801..1012262	-	153	153003754	-	Anae109_0886	-	hypothetical protein
876	 71.75	0	1012280..1013911	-	543	153003755	-	Anae109_0887	-	delta-1-pyrroline-5-carboxylate dehydrogenase
877	 78.14	+1	1014032..1014667	-	211	153003756	-	Anae109_0888	-	hypothetical protein
878	 76.06	0	1014753..1016126	-	457	153003757	-	Anae109_0889	-	two component, sigma54 specific, Fis family transcriptional regulator
879	 75.74	0	1016123..1017499	-	458	153003758	-	Anae109_0890	-	integral membrane sensor signal transduction histidine kinase
880	 78.45	+1	1017510..1019036	-	508	153003759	-	Anae109_0891	-	outer membrane efflux protein
881	 77.11	+1	1019307..1020350	+	347	153003760	-	Anae109_0892	-	secretion protein HlyD family protein
882	 77.25	+1	1020347..1021300	+	317	153003761	-	Anae109_0893	-	ABC transporter related
883	 75.56	0	1021297..1022241	+	314	153003762	-	Anae109_0894	-	ABC transporter related
884	 72.47	0	1022238..1023374	+	378	153003763	-	Anae109_0895	-	ABC-2 type transporter
885	 73.37	0	1023371..1024519	+	382	153003764	-	Anae109_0896	-	ABC-2 type transporter
886	 73.55	0	1024590..1025519	+	309	153003765	-	Anae109_0897	-	ABC transporter related
887	 69.82	0	1025516..1026277	+	253	153003766	-	Anae109_0898	-	ABC-2 type transporter
888	 72.07	0	1026509..1027360	+	283	153003767	-	Anae109_0899	-	hypothetical protein
889	 75.96	0	1027480..1029297	+	605	153003768	-	Anae109_0900	-	ATP-dependent DNA helicase RecQ
890	 74.50	0	1029302..1029850	+	182	153003769	-	Anae109_0901	-	hypothetical protein
891	 73.50	0	1029976..1030443	+	155	153003770	-	Anae109_0902	-	BadM/Rrf2 family transcriptional regulator
892	 66.18	-1	1030440..1031879	+	479	153003771	-	Anae109_0903	-	cysteine desulfurase activator complex subunit SufB
893	 71.92	0	1031882..1032700	+	272	153003772	-	Anae109_0904	-	FeS assembly ATPase SufC
894	 76.41	0	1032709..1034022	+	437	153003773	-	Anae109_0905	-	FeS assembly protein SufD
895	 73.87	0	1034019..1035296	+	425	153003774	-	Anae109_0906	-	SufS subfamily cysteine desulfurase
896	 74.00	0	1035322..1035771	+	149	153003775	-	Anae109_0907	-	NifU family SUF system FeS assembly protein
897	 73.76	0	1035775..1036338	+	187	153003776	-	Anae109_0908	-	hypothetical protein
898	 71.63	0	1036346..1036708	-	120	153003777	-	Anae109_0909	-	FHA domain-containing protein
899	 70.23	0	1036891..1037787	+	298	153003778	-	Anae109_0910	-	hypothetical protein
900	 79.67	+1	1037879..1039777	-	632	153003779	-	Anae109_0911	-	PDZ/DHR/GLGF domain-containing protein
901	 77.19	+1	1039915..1040826	-	303	153003780	-	Anae109_0912	-	peptidase S1 and S6 chymotrypsin/Hap
902	 77.74	+1	1040823..1041734	-	303	153003781	-	Anae109_0913	-	peptidase S1 and S6 chymotrypsin/Hap
903	 76.54	0	1041783..1042319	-	178	153003782	-	Anae109_0914	-	hypothetical protein
904	 78.49	+1	1042541..1043149	+	202	153003783	-	Anae109_0915	-	two component LuxR family transcriptional regulator
905	 76.30	0	1043255..1043773	+	172	153003784	-	Anae109_0916	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
906	 77.94	+1	1043834..1044232	-	132	153003785	-	Anae109_0917	-	translation initiation factor SUI1
907	 81.15	+2	1044157..1045392	-	411	153003786	-	Anae109_0918	-	TfuA domain-containing protein
908	 80.18	+1	1045389..1046528	-	379	153003787	-	Anae109_0919	-	hypothetical protein
909	 72.72	0	1046593..1047996	+	467	153003788	-	Anae109_0920	-	peptidase M20
910	 69.76	0	1048185..1050704	+	839	153003789	-	Anae109_0921	-	glycogen/starch/alpha-glucan phosphorylase
911	 75.24	0	1050610..1051029	-	139	153003790	-	Anae109_0922	-	methylated-DNA-(protein)-cysteine S-methyltransferase DNA binding
912	 75.26	0	1051093..1051674	+	193	153003791	-	Anae109_0923	-	hypothetical protein
913	 69.42	-1	1051749..1052330	+	193	153003792	-	Anae109_0924	-	LemA family protein
914	 78.04	+1	1052341..1053096	+	251	153003793	-	Anae109_0925	-	hypothetical protein
915	 74.96	0	1053105..1053743	+	212	153003794	-	Anae109_0926	-	hypothetical protein
916	 73.56	0	1053773..1055251	-	492	153003795	-	Anae109_0927	-	sodium/hydrogen exchanger
917	 78.09	+1	1055326..1056393	-	355	153003796	-	Anae109_0928	-	radical SAM domain-containing protein
918	 73.19	0	1056425..1057099	+	224	153003797	-	Anae109_0929	-	XRE family transcriptional regulator
919	 76.29	0	1057202..1058572	+	456	153003798	-	Anae109_0930	-	response regulator receiver protein
920	 73.63	0	1058904..1059104	+	66	153003799	-	Anae109_0931	-	hypothetical protein
921	 75.88	0	1059196..1060335	+	379	153003800	-	Anae109_0932	-	hypothetical protein
922	 67.83	-1	1060477..1060992	+	171	153003801	-	Anae109_0933	-	OmpA/MotB domain-containing protein
923	 76.43	0	1061135..1061554	+	139	153003802	-	Anae109_0934	-	hypothetical protein
924	 69.46	-1	1061585..1062586	+	333	153003803	-	Anae109_0935	-	band 7 protein
925	 76.25	0	1062699..1063397	+	232	153003804	-	Anae109_0936	-	hypothetical protein
926	 78.10	+1	1063550..1064389	-	279	153003805	-	Anae109_0937	-	TPR repeat-containing protein
927	 71.81	0	1064402..1065295	-	297	153003806	-	Anae109_0938	-	Ku family containing protein
928	 76.38	0	1065326..1067869	+	847	153003807	-	Anae109_0939	-	DNA ligase D
929	 72.07	0	1068020..1068352	+	110	153003808	-	Anae109_0940	-	hypothetical protein
930	 74.07	0	1068615..1070018	+	467	153003809	-	Anae109_0941	-	MscS mechanosensitive ion channel
931	 76.33	0	1070231..1072528	+	765	153003810	-	Anae109_0942	-	tetratricopeptide TPR_4
932	 76.02	0	1072720..1073403	-	227	153003811	-	Anae109_0943	-	hypothetical protein
933	 72.45	0	1073461..1073892	-	143	153003812	-	Anae109_0944	-	hypothetical protein
934	 76.48	0	1073889..1075886	-	665	153003813	-	Anae109_0945	-	ABC transporter related
935	 75.53	0	1075896..1076786	-	296	153003814	-	Anae109_0946	-	protoheme IX farnesyltransferase
936	 76.00	0	1076972..1077646	+	224	153003815	-	Anae109_0947	-	putative lipoprotein
937	 70.33	0	1077708..1077980	-	90	153003816	-	Anae109_0948	-	hypothetical protein
938	 71.38	0	1078064..1078975	+	303	153003817	-	Anae109_0949	-	PP-loop domain-containing protein
939	 77.24	+1	1078972..1079652	+	226	153003818	-	Anae109_0950	-	deoxyribose-phosphate aldolase
940	 72.48	0	1079689..1080858	+	389	153003819	-	Anae109_0951	-	phosphopentomutase
941	 72.70	0	1080917..1083037	-	706	153003820	-	Anae109_0952	-	peptidase S9 prolyl oligopeptidase
942	 70.58	0	1083202..1084530	-	442	153003821	-	Anae109_0953	-	hydroxylamine oxidase
943	 78.75	+1	1084724..1084996	-	90	153003822	-	Anae109_0954	-	hypothetical protein
944	 68.64	-1	1085360..1086829	-	489	153003823	-	Anae109_0955	-	nitrite reductase (cytochrome; ammonia-forming)
945	 71.08	0	1086859..1087311	-	150	153003824	-	Anae109_0956	-	cytochrome c-type protein
946	 67.43	-1	1087588..1087980	-	130	153003825	-	Anae109_0957	-	hypothetical protein
947	 71.24	0	1087973..1088497	-	174	153003826	-	Anae109_0958	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
948	 74.24	0	1088490..1090391	-	633	153003827	-	Anae109_0959	-	stage II sporulation E family protein
949	 67.57	-1	1090405..1090737	-	110	153003828	-	Anae109_0960	-	hypothetical protein
950	 70.31	0	1090737..1091915	-	392	153003829	-	Anae109_0961	-	hypothetical protein
73.23	MEAN

3.77	STD DEV
