IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

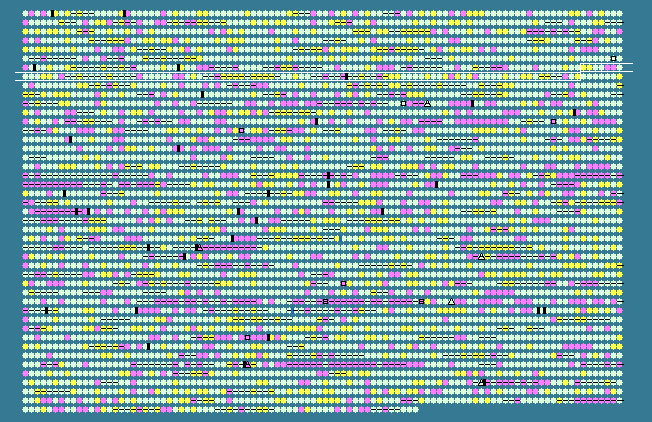

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
694	 79.34	+1	795443..796105	-	220	153003573	-	Anae109_0701	-	methyltransferase type 11
695	 78.68	+1	796102..797025	-	307	153003574	-	Anae109_0702	-	Ppx/GppA phosphatase
696	 73.82	0	797033..798346	-	437	153003575	-	Anae109_0703	-	TolB domain-containing protein
697	 74.28	0	798343..799104	-	253	153003576	-	Anae109_0704	-	TonB family protein
698	 67.54	-1	799105..799563	-	152	153003577	-	Anae109_0705	-	biopolymer transport protein ExbD/TolR
699	 67.75	-1	799576..800313	-	245	153003578	-	Anae109_0706	-	Tol-Pal system TolQ
700	 71.54	0	800783..801439	+	218	153003579	-	Anae109_0707	-	LigA
701	 76.41	0	801450..802229	+	259	153003580	-	Anae109_0708	-	glutamate racemase
702	 69.95	0	802510..803058	+	182	153003581	-	Anae109_0709	-	hypothetical protein
703	 72.08	0	803075..803758	+	227	153003582	-	Anae109_0710	-	cell division ATP-binding protein FtsE
704	 78.98	+1	803761..804645	+	294	153003583	-	Anae109_0711	-	hypothetical protein
705	 80.05	+1	804649..805761	+	370	153003584	-	Anae109_0712	-	peptidase M23B
706	 74.64	0	805839..807218	+	459	153003585	-	Anae109_0713	-	carboxyl-terminal protease
707	 68.13	-1	807390..808895	+	501	153003586	-	Anae109_0714	-	glycosyl transferase family protein
708	 75.79	0	808982..809518	-	178	153003587	-	Anae109_0715	-	GCN5-related N-acetyltransferase
709	 74.29	0	809691..810713	-	340	153003588	-	Anae109_0716	-	glycosyl transferase family protein
710	 77.73	+1	810792..811496	-	234	153003589	-	Anae109_0717	-	hydrolase
711	 76.11	0	811704..813101	-	465	153003590	-	Anae109_0718	-	signal recognition particle-docking protein FtsY
712	 72.76	0	813352..816948	-	1198	153003591	-	Anae109_0719	-	chromosome segregation protein SMC
713	 74.18	0	817204..818121	-	305	153003592	-	Anae109_0720	-	hypothetical protein
714	 72.04	0	818127..818684	-	185	153003593	-	Anae109_0721	-	hypothetical protein
715	 77.63	+1	818688..820274	-	528	153003594	-	Anae109_0722	-	fimbrial assembly family protein
716	 73.22	0	820278..821636	-	452	153003595	-	Anae109_0723	-	hypothetical protein
717	 72.78	0	821636..822355	-	239	153003596	-	Anae109_0724	-	hypothetical protein
718	 75.08	0	822355..823020	-	221	153003597	-	Anae109_0725	-	hypothetical protein
719	 75.16	0	823017..823628	-	203	153003598	-	Anae109_0726	-	hypothetical protein
720	 66.43	-1	823636..824049	-	137	153003599	-	Anae109_0727	-	general secretion pathway protein G
721	 70.98	0	824055..825284	-	409	153003600	-	Anae109_0728	-	general secretion pathway protein F
722	 70.20	0	825288..827099	-	603	153003601	-	Anae109_0729	-	general secretory pathway protein E
723	 72.42	0	827118..829796	-	892	153003602	-	Anae109_0730	-	general secretion pathway protein D
724	 71.23	0	829818..830846	-	342	153003603	-	Anae109_0731	-	hypothetical protein
725	 74.15	0	830993..832408	-	471	153003604	-	Anae109_0732	-	two component, sigma54 specific, Fis family transcriptional regulator
726	 68.32	-1	832759..833121	-	120	153003605	-	Anae109_0733	-	ribosomal protein L31
727	 66.59	-1	833246..834559	-	437	153003606	-	Anae109_0734	-	transcription termination factor Rho
728	 74.52	0	834817..836916	+	699	153003607	-	Anae109_0735	-	DNA ligase, NAD-dependent
729	 78.01	+1	836916..837197	+	93	153003608	-	Anae109_0736	-	acylphosphatase
730	 72.64	0	837369..840062	+	897	153003609	-	Anae109_0737	-	radical SAM domain-containing protein
731	 70.85	0	840250..842472	+	740	153003610	-	Anae109_0738	-	ribonuclease
732	 72.49	0	842478..843782	+	434	153003611	-	Anae109_0739	-	putative ribonuclease BN
733	 66.93	-1	843928..844308	+	126	153003612	-	Anae109_0740	-	histone family protein DNA-binding protein
734	 78.73	+1	844390..846411	-	673	153003613	-	Anae109_0741	-	type III secretion FHIPEP protein
735	 80.62	+1	846408..847439	-	343	153003614	-	Anae109_0742	-	type III secretion exporter
736	 81.08	+2	847436..848212	-	258	153003615	-	Anae109_0743	-	type III secretion system inner membrane R protein
737	 77.53	+1	848209..848475	-	88	153003616	-	Anae109_0744	-	export protein FliQ
738	 75.15	0	848481..849152	-	223	153003617	-	Anae109_0745	-	type III secretion system protein
739	 83.75	+2	849149..849511	-	120	153003618	-	Anae109_0746	-	hypothetical protein
740	 78.61	+1	849508..850512	-	334	153003619	-	Anae109_0747	-	type III secretion system apparatus protein YscQ/HrcQ
741	 78.33	+1	850967..851686	-	239	153003620	-	Anae109_0748	-	secretory protein YscJ/FliF family protein
742	 78.53	+1	851699..852052	-	117	153003621	-	Anae109_0749	-	hypothetical protein
743	 71.67	0	852060..852479	-	139	153003622	-	Anae109_0750	-	hypothetical protein
744	 71.77	0	852640..853953	+	437	153003623	-	Anae109_0751	-	hypothetical protein
745	 75.27	0	854047..855162	-	371	153003624	-	Anae109_0752	-	hypothetical protein
746	 77.50	+1	855336..856757	+	473	153003625	-	Anae109_0753	-	histidinol dehydrogenase
747	 72.01	0	856754..857371	+	205	153003626	-	Anae109_0754	-	imidazoleglycerol-phosphate dehydratase
748	 74.96	0	857430..858044	+	204	153003627	-	Anae109_0755	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
749	 75.59	0	858053..858769	+	238	153003628	-	Anae109_0756	-	histidine biosynthesis protein
750	 74.15	0	858784..859545	+	253	153003629	-	Anae109_0757	-	imidazoleglycerol phosphate synthase, cyclase subunit
751	 60.51	-2	860546..860740	+	64	153003630	-	Anae109_0759	-	30S ribosomal protein S21
752	 70.00	0	860760..861209	+	149	153003631	-	Anae109_0760	-	GatB/Yqey domain-containing protein
753	 74.29	0	861303..863126	+	607	153003632	-	Anae109_0761	-	DNA primase
754	 67.80	-1	863123..865582	+	819	153003633	-	Anae109_0762	-	RNA polymerase, sigma 70 subunit, RpoD
755	 70.99	0	865713..866453	+	246	153003634	-	Anae109_0763	-	hypothetical protein
756	 72.94	0	866460..867224	+	254	153003635	-	Anae109_0764	-	ribonuclease H
757	 77.86	+1	867243..868010	-	255	153003636	-	Anae109_0765	-	hypothetical protein
758	 76.64	0	868025..869407	-	460	153003637	-	Anae109_0766	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
759	 73.64	0	869466..869795	-	109	153003638	-	Anae109_0767	-	hypothetical protein
760	 68.82	-1	869831..870388	-	185	153003639	-	Anae109_0768	-	peptide deformylase
761	 79.90	+1	870460..873633	-	1057	153003640	-	Anae109_0769	-	heat shock protein DnaJ domain-containing protein
762	 77.54	+1	873730..875937	-	735	153003641	-	Anae109_0770	-	primosomal protein N'
763	 79.72	+1	876010..876714	+	234	153003642	-	Anae109_0771	-	hypothetical protein
764	 70.38	0	877156..878853	+	565	153003643	-	Anae109_0772	-	hypothetical protein
765	 74.33	0	878929..879567	-	212	153003644	-	Anae109_0773	-	hypothetical protein
766	 73.93	0	879631..880965	-	444	153003645	-	Anae109_0774	-	recombination factor protein RarA
767	 70.55	0	880983..881831	+	282	153003646	-	Anae109_0775	-	ATP-NAD/AcoX kinase
768	 77.56	+1	882352..884187	+	611	153003647	-	Anae109_0776	-	DNA repair protein RecN
769	 74.06	0	884129..885007	+	292	153003648	-	Anae109_0777	-	protein phosphatase 2C-like protein
770	 70.59	0	885197..886114	+	305	153003649	-	Anae109_0778	-	peptidase M23B
771	 77.87	+1	886155..886841	-	228	153003650	-	Anae109_0779	-	hypothetical protein
772	 67.87	-1	886982..889816	+	944	153003651	-	Anae109_0780	-	preprotein translocase, SecA subunit
773	 76.96	0	889951..891135	+	394	153003652	-	Anae109_0781	-	hypothetical protein
774	 74.19	0	891209..891766	-	185	153003653	-	Anae109_0782	-	CBS domain-containing protein
775	 77.30	+1	891822..892799	+	325	153003654	-	Anae109_0783	-	HhH-GPD family protein
776	 64.66	-2	892853..893101	+	82	153003655	-	Anae109_0784	-	AsnC family transcriptional regulator
777	 72.71	0	893124..894215	-	363	153003656	-	Anae109_0785	-	hypothetical protein
778	 75.42	0	894225..894932	-	235	153003657	-	Anae109_0786	-	oxidoreductase FAD/NAD(P)-binding subunit
779	 75.80	0	895021..895863	-	280	153003658	-	Anae109_0787	-	beta-lactamase domain-containing protein
780	 70.22	0	895930..896463	-	177	153003659	-	Anae109_0788	-	adenine phosphoribosyltransferase
781	 78.95	+1	896530..897384	-	284	153003660	-	Anae109_0789	-	peptidase M23B
782	 72.55	0	897381..898145	-	254	153003661	-	Anae109_0790	-	stationary-phase survival protein SurE
783	 74.19	0	898210..898701	-	163	153003662	-	Anae109_0791	-	MarR family transcriptional regulator
784	 78.64	+1	898849..900627	+	592	153003663	-	Anae109_0792	-	GAF sensor signal transduction histidine kinase
785	 79.30	+1	900735..902183	+	482	153003664	-	Anae109_0793	-	major facilitator transporter
786	 73.89	0	903389..903859	-	156	153003665	-	Anae109_0795	-	YbaK/prolyl-tRNA synthetase associated region
787	 78.05	+1	904090..904704	+	204	153003666	-	Anae109_0796	-	hypothetical protein
788	 77.59	+1	904821..905525	+	234	153003667	-	Anae109_0797	-	radical SAM domain-containing protein
789	 73.39	0	905509..906579	-	356	153003668	-	Anae109_0798	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
790	 69.80	0	906762..907622	+	286	153003669	-	Anae109_0799	-	anti-sigma-factor antagonist
791	 68.82	-1	907633..908004	+	123	153003670	-	Anae109_0800	-	anti-sigma-factor antagonist
792	 71.11	0	908012..908416	+	134	153003671	-	Anae109_0801	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
793	 78.17	+1	908407..909414	+	335	153003672	-	Anae109_0802	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
73.23	MEAN

3.77	STD DEV
