IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

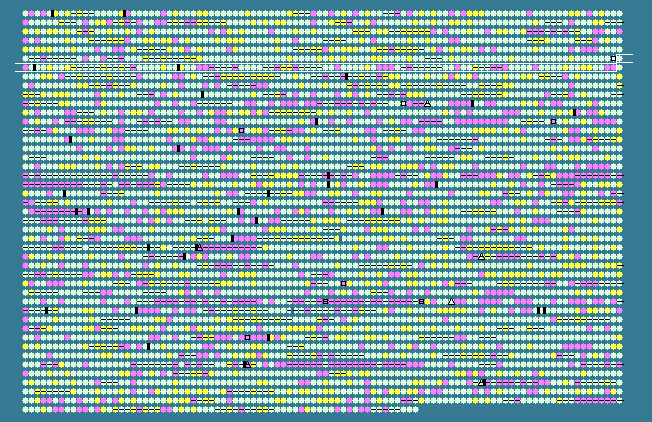

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
600	 71.51	0	685641..686879	-	412	153003479	-	Anae109_0607	-	filamentation induced by cAMP protein Fic
601	 68.22	-1	687008..687394	+	128	153003480	-	Anae109_0608	-	hypothetical protein
602	 71.61	0	687404..688354	+	316	153003481	-	Anae109_0609	-	hypothetical protein
603	 74.87	0	689001..691718	+	905	153003482	-	Anae109_0610	-	type III restriction protein res subunit
604	 75.21	0	692189..693358	-	389	153003483	-	Anae109_0611	-	acetylornithine deacetylase (ArgE)
605	 78.23	+1	693363..694703	-	446	153003484	-	Anae109_0612	-	N-formimino-L-glutamate deiminase
606	 76.15	0	694828..695628	+	266	153003485	-	Anae109_0613	-	diaminopimelate epimerase
607	 74.80	0	695632..697500	+	622	153003486	-	Anae109_0614	-	putative GAF sensor protein
608	 77.57	+1	697515..698972	+	485	153003487	-	Anae109_0615	-	response regulator receiver protein
609	 77.00	+1	699008..699820	+	270	153003488	-	Anae109_0616	-	PhzF family phenazine biosynthesis protein
610	 76.01	0	699867..700187	-	106	153003489	-	Anae109_0617	-	hypothetical protein
611	 73.56	0	700240..700689	-	149	153003490	-	Anae109_0618	-	hemerythrin-like metal-binding protein
612	 73.96	0	700884..702308	-	474	153003491	-	Anae109_0619	-	peptidase M16 domain-containing protein
613	 74.25	0	702305..703861	-	518	153003492	-	Anae109_0620	-	integral membrane sensor signal transduction histidine kinase
614	 77.78	+1	704027..704854	+	275	153003493	-	Anae109_0621	-	hypothetical protein
615	 73.49	0	704917..705561	-	214	153003494	-	Anae109_0622	-	hypothetical protein
616	 74.80	0	705643..706650	+	335	153003495	-	Anae109_0623	-	DeoR family transcriptional regulator
617	 77.42	+1	706647..707753	+	368	153003496	-	Anae109_0624	-	transcriptional regulator-like protein
618	 73.22	0	707941..708306	+	121	153003497	-	Anae109_0625	-	response regulator receiver protein
619	 68.54	-1	709461..709727	-	88	153003498	-	Anae109_0626	-	hypothetical protein
620	 70.49	0	709823..710110	+	95	153003499	-	Anae109_0627	-	hypothetical protein
621	 73.81	0	710214..711095	-	293	153003500	-	Anae109_0628	-	6-phosphogluconate dehydrogenase NAD-binding
622	 73.07	0	711270..712487	+	405	153003501	-	Anae109_0629	-	amine oxidase
623	 73.70	0	712488..715160	-	890	153003502	-	Anae109_0630	-	ATPase
624	 78.62	+1	715276..715752	-	158	153003503	-	Anae109_0631	-	arginine repressor, ArgR
625	 72.34	0	715749..717845	-	698	153003504	-	Anae109_0632	-	arginine biosynthesis bifunctional protein ArgJ
626	 76.52	0	717847..718881	-	344	153003505	-	Anae109_0633	-	N-acetyl-gamma-glutamyl-phosphate reductase
627	 76.72	0	719195..720010	+	271	153003506	-	Anae109_0634	-	hypothetical protein
628	 74.78	0	720142..721164	+	340	153003507	-	Anae109_0635	-	hypothetical protein
629	 73.52	0	721189..722589	-	466	153003508	-	Anae109_0636	-	cytochrome c biogenesis protein transmembrane region
630	 69.63	0	722743..723957	+	404	153003509	-	Anae109_0637	-	aminotransferase class V
631	 67.32	-1	723972..724433	+	153	153003510	-	Anae109_0638	-	scaffold protein
632	 68.18	-1	724447..724776	+	109	153003511	-	Anae109_0639	-	iron-sulfur cluster assembly accessory protein
633	 73.40	0	724849..725472	+	207	153003512	-	Anae109_0640	-	co-chaperone Hsc20
634	 73.45	0	725485..727371	+	628	153003513	-	Anae109_0641	-	chaperone protein HscA
635	 71.24	0	727378..727683	+	101	153003514	-	Anae109_0642	-	ferredoxin
636	 68.69	-1	727700..727897	+	65	153003515	-	Anae109_0643	-	hypothetical protein
637	 76.60	0	727916..728992	-	358	153003516	-	Anae109_0644	-	response regulator receiver modulated CheB methylesterase
638	 74.81	0	728992..729900	-	302	153003517	-	Anae109_0645	-	protein-glutamate O-methyltransferase
639	 72.94	0	729904..730461	-	185	153003518	-	Anae109_0646	-	putative CheW protein
640	 75.85	0	730480..732156	-	558	153003519	-	Anae109_0647	-	CheA signal transduction histidine kinase
641	 76.02	0	732165..732677	-	170	153003520	-	Anae109_0648	-	hypothetical protein
642	 76.17	0	732674..733483	-	269	153003521	-	Anae109_0649	-	GAF domain-containing protein
643	 65.59	-2	733494..733865	-	123	153003522	-	Anae109_0650	-	response regulator receiver protein
644	 79.20	+1	734211..734936	+	241	153003523	-	Anae109_0651	-	hypothetical protein
645	 80.02	+1	734933..735868	+	311	153003524	-	Anae109_0652	-	hypothetical protein
646	 69.12	-1	735877..736569	-	230	153003525	-	Anae109_0653	-	response regulator receiver protein
647	 76.08	0	736645..737154	+	169	153003526	-	Anae109_0654	-	putative CheW protein
648	 74.36	0	737151..737540	+	129	153003527	-	Anae109_0655	-	CheW domain-containing protein
649	 70.92	0	737560..738828	+	422	153003528	-	Anae109_0656	-	methyl-accepting chemotaxis sensory transducer
650	 74.79	0	738865..741141	+	758	153003529	-	Anae109_0657	-	CheA signal transduction histidine kinase
651	 76.34	0	741138..742160	+	340	153003530	-	Anae109_0658	-	response regulator receiver modulated CheB methylesterase
652	 76.20	0	742157..743656	+	499	153003531	-	Anae109_0659	-	protein-glutamate O-methyltransferase
653	 63.02	-2	743665..744048	+	127	153003532	-	Anae109_0660	-	response regulator receiver protein
654	 70.01	0	744172..744918	+	248	153003533	-	Anae109_0661	-	hypothetical protein
655	 75.33	0	744940..746244	+	434	153003534	-	Anae109_0662	-	pyrimidine-nucleoside phosphorylase
656	 73.85	0	746292..747140	+	282	153003535	-	Anae109_0663	-	inosine guanosine and xanthosine phosphorylase family protein
657	 71.77	0	747187..747558	+	123	153003536	-	Anae109_0664	-	type IV pilus assembly PilZ
658	 78.66	+1	747737..748153	+	138	153003537	-	Anae109_0665	-	cytidine deaminase
659	 76.37	0	748215..749183	+	322	153003538	-	Anae109_0666	-	riboflavin biosynthesis protein RibF
660	 65.67	-2	749317..751023	+	568	153003539	-	Anae109_0667	-	type IV-A pilus assembly ATPase PilB
661	 67.67	-1	751055..752152	+	365	153003540	-	Anae109_0668	-	twitching motility protein
662	 67.38	-1	752214..753473	+	419	153003541	-	Anae109_0669	-	type II secretion system protein
663	 75.62	0	753489..755129	+	546	153003542	-	Anae109_0670	-	signal transduction histidine kinase, nitrogen specific, NtrB
664	 73.65	0	755139..756512	+	457	153003543	-	Anae109_0671	-	two component, sigma54 specific, Fis family transcriptional regulator
665	 69.05	-1	756632..761632	-	1666	153003544	-	Anae109_0672	-	Tfp pilus assembly protein tip-associated adhesin PilY1-like protein
666	 73.61	0	761650..762153	-	167	153003545	-	Anae109_0673	-	hypothetical protein
667	 71.89	0	762162..763424	-	420	153003546	-	Anae109_0674	-	hypothetical protein
668	 74.83	0	763430..764017	-	195	153003547	-	Anae109_0675	-	hypothetical protein
669	 71.67	0	764026..764664	-	212	153003548	-	Anae109_0676	-	hypothetical protein
670	 71.15	0	764817..766667	+	616	153003549	-	Anae109_0677	-	TPR repeat-containing protein
671	 71.54	0	766699..767457	-	252	153003550	-	Anae109_0678	-	hypothetical protein
672	 70.29	0	767454..768365	-	303	153003551	-	Anae109_0679	-	hypothetical protein
673	 67.00	-1	768450..769046	-	198	153003552	-	Anae109_0680	-	fimbrial protein pilin
674	 72.35	0	769288..770307	+	339	153003553	-	Anae109_0681	-	ABC transporter related
675	 74.80	0	770311..771183	+	290	153003554	-	Anae109_0682	-	peptidase A24A domain-containing protein
676	 79.27	+1	771187..772329	+	380	153003555	-	Anae109_0683	-	integral membrane sensor signal transduction histidine kinase
677	 73.74	0	772378..773748	+	456	153003556	-	Anae109_0684	-	two component, sigma54 specific, Fis family transcriptional regulator
678	 72.87	0	773965..774222	+	85	153003557	-	Anae109_0685	-	XRE family transcriptional regulator
679	 67.99	-1	774278..775333	+	351	153003558	-	Anae109_0686	-	type IV pilus assembly protein PilM
680	 66.67	-1	775336..775917	+	193	153003559	-	Anae109_0687	-	fimbrial assembly family protein
681	 64.76	-2	775924..776553	+	209	153003560	-	Anae109_0688	-	type IV pilus biogenesis protein PilO
682	 74.03	0	776550..777092	+	180	153003561	-	Anae109_0689	-	hypothetical protein
683	 72.00	0	777098..779779	+	893	153003562	-	Anae109_0690	-	type IV pilus secretin PilQ
684	 70.53	0	779788..780408	+	206	153003563	-	Anae109_0691	-	hypothetical protein
685	 71.90	0	780526..780888	+	120	153003564	-	Anae109_0692	-	hypothetical protein
686	 63.35	-2	780984..781556	+	190	153003565	-	Anae109_0693	-	translation elongation factor P
687	 72.70	0	781593..782156	+	187	153003566	-	Anae109_0694	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
688	 69.86	0	782175..783554	+	459	153003567	-	Anae109_0695	-	acetyl-CoA carboxylase, biotin carboxylase
689	 75.76	0	783764..786445	+	893	153003568	-	Anae109_0696	-	TPR repeat-containing protein
690	 70.23	0	786458..787354	+	298	153003569	-	Anae109_0697	-	general secretion pathway protein-related protein
691	 77.12	+1	787403..791335	+	1310	153003570	-	Anae109_0698	-	hypothetical protein
692	 76.35	0	791320..794571	+	1083	153003571	-	Anae109_0699	-	surface antigen (D15)
693	 73.39	0	794775..795428	-	217	153003572	-	Anae109_0700	-	HAD family hydrolase
694	 79.34	+1	795443..796105	-	220	153003573	-	Anae109_0701	-	methyltransferase type 11
695	 78.68	+1	796102..797025	-	307	153003574	-	Anae109_0702	-	Ppx/GppA phosphatase
696	 73.82	0	797033..798346	-	437	153003575	-	Anae109_0703	-	TolB domain-containing protein
697	 74.28	0	798343..799104	-	253	153003576	-	Anae109_0704	-	TonB family protein
698	 67.54	-1	799105..799563	-	152	153003577	-	Anae109_0705	-	biopolymer transport protein ExbD/TolR
699	 67.75	-1	799576..800313	-	245	153003578	-	Anae109_0706	-	Tol-Pal system TolQ
73.23	MEAN

3.77	STD DEV
