IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

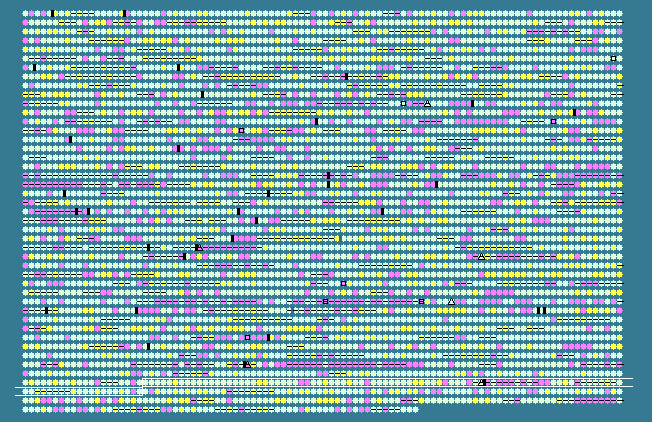

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 73.23   STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4121	 73.09	0	4882838..4884145	-	435	153007000	-	Anae109_4163	-	3-ketoacyl-CoA thiolase
4122	 73.96	0	4884317..4884796	+	159	153007001	-	Anae109_4164	-	hemerythrin HHE cation binding domain-containing protein
4123	 71.90	0	4884797..4885771	-	324	153007002	-	Anae109_4165	-	nuclease
4124	 72.07	0	4885843..4886841	+	332	153007003	-	Anae109_4166	-	ABC transporter related
4125	 73.69	0	4886863..4887702	-	279	153007004	-	Anae109_4167	-	SAM-dependent methyltransferase
4126	 78.79	+1	4887725..4888978	-	417	153007005	-	Anae109_4168	-	ribosomal small subunit Rsm22
4127	 75.03	0	4888991..4889935	-	314	153007006	-	Anae109_4169	-	ribonuclease Z
4128	 76.60	0	4890037..4890489	+	150	153007007	-	Anae109_4170	-	hypothetical protein
4129	 69.84	0	4890492..4891280	-	262	153007008	-	Anae109_4171	-	hypothetical protein
4130	 71.80	0	4891289..4892086	-	265	153007009	-	Anae109_4172	-	ABC transporter, inner membrane subunit
4131	 74.88	0	4892181..4892996	+	271	153007010	-	Anae109_4173	-	oxidoreductase FAD/NAD(P)-binding subunit
4132	 76.35	0	4893286..4896258	+	990	153007011	-	Anae109_4174	-	serine/threonine protein kinase
4133	 74.50	0	4896262..4896759	+	165	153007012	-	Anae109_4175	-	hypothetical protein
4134	 74.09	0	4896970..4898262	+	430	153007013	-	Anae109_4176	-	proteinase inhibitor I4 serpin
4135	 71.70	0	4898275..4898751	-	158	153007014	-	Anae109_4177	-	GCN5-related N-acetyltransferase
4136	 75.80	0	4898818..4899441	-	207	153007015	-	Anae109_4178	-	hypothetical protein
4137	 72.96	0	4899477..4900016	+	179	153007016	-	Anae109_4179	-	hypothetical protein
4138	 73.07	0	4900071..4902005	-	644	153007017	-	Anae109_4180	-	thimet oligopeptidase
4139	 72.04	0	4902134..4903213	-	359	153007018	-	Anae109_4181	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
4140	 79.71	+1	4903297..4904385	-	362	153007019	-	Anae109_4182	-	monooxygenase FAD-binding
4141	 78.48	+1	4904382..4906142	-	586	153007020	-	Anae109_4183	-	AMP-dependent synthetase and ligase
4142	 75.27	0	4906139..4906417	-	92	153007021	-	Anae109_4184	-	hypothetical protein
4143	 74.53	0	4906421..4907488	-	355	153007022	-	Anae109_4185	-	3-oxoacyl-(ACP) synthase III
4144	 73.81	0	4907579..4909159	-	526	153007023	-	Anae109_4186	-	histidine kinase
4145	 71.44	0	4909255..4911936	+	893	153007024	-	Anae109_4187	-	ATPase
4146	 76.06	0	4912033..4913118	-	361	153007025	-	Anae109_4188	-	beta-lactamase domain-containing protein
4147	 69.09	-1	4913253..4913747	+	164	153007026	-	Anae109_4189	-	DoxX family protein
4148	 69.24	-1	4913817..4914905	-	362	153007027	-	Anae109_4190	-	aspartate-semialdehyde dehydrogenase
4149	 75.07	0	4915029..4915766	-	245	153007028	-	Anae109_4191	-	tRNA pseudouridine synthase A
4150	 74.36	0	4915787..4917034	+	415	153007029	-	Anae109_4192	-	hypothetical protein
4151	 77.53	+1	4917068..4918651	+	527	153007030	-	Anae109_4193	-	hypothetical protein
4152	 76.19	0	4918735..4919784	+	349	153007031	-	Anae109_4194	-	polyprenyl synthetase
4153	 75.39	0	4919913..4920989	-	358	153007032	-	Anae109_4195	-	permease YjgP/YjgQ family protein
4154	 71.30	0	4921157..4922278	+	373	153007033	-	Anae109_4196	-	NAD-dependent epimerase/dehydratase
4155	 79.57	+1	4922275..4923336	+	353	153007034	-	Anae109_4197	-	hypothetical protein
4156	 74.37	0	4923305..4924381	+	358	153007035	-	Anae109_4198	-	glycosyl transferase family protein
4157	 72.65	0	4924378..4926183	+	601	153007036	-	Anae109_4199	-	glycosyl transferase family protein
4158	 67.53	-1	4926266..4927072	+	268	153007037	-	Anae109_4200	-	band 7 protein
4159	 76.43	0	4927197..4928333	-	378	153007038	-	Anae109_4201	-	putative glycosyl hydrolase
4160	 76.67	0	4928349..4928708	-	119	153007039	-	Anae109_4202	-	hypothetical protein
4161	 71.83	0	4928753..4930282	+	509	153007040	-	Anae109_4203	-	UbiD family decarboxylase
4162	 74.93	0	4930279..4930980	+	233	153007041	-	Anae109_4204	-	ubiquinone/menaquinone biosynthesis methyltransferase
4163	 70.63	0	4930977..4931582	+	201	153007042	-	Anae109_4205	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
4164	 70.53	0	4931583..4932746	+	387	153007043	-	Anae109_4206	-	radical SAM domain-containing protein
4165	 72.36	0	4932761..4934638	+	625	153007044	-	Anae109_4207	-	radical SAM domain-containing protein
4166	 76.90	0	4934635..4935885	+	416	153007045	-	Anae109_4208	-	amidohydrolase
4167	 77.37	+1	4935882..4936787	+	301	153007046	-	Anae109_4209	-	4-hydroxybenzoate polyprenyltransferase, putative
4168	 74.65	0	4936795..4937370	+	191	153007047	-	Anae109_4210	-	regulatory protein, ArsR
4169	 74.17	0	4937383..4938594	-	403	153007048	-	Anae109_4211	-	PAS/PAC sensor signal transduction histidine kinase
4170	 79.85	+1	4938657..4940264	-	535	153007049	-	Anae109_4212	-	LigA
4171	 69.71	0	4940362..4941480	+	372	153007050	-	Anae109_4213	-	peptide chain release factor 1
4172	 75.76	0	4941623..4942480	+	285	153007051	-	Anae109_4214	-	HemK family modification methylase
4173	 74.31	0	4942579..4943847	+	422	153007052	-	Anae109_4215	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
4174	 72.40	0	4943844..4944506	+	220	153007053	-	Anae109_4216	-	ATP phosphoribosyltransferase
4175	 66.93	-1	4944625..4945008	+	127	153007054	-	Anae109_4217	-	hypothetical protein
4176	 72.70	0	4945014..4945709	-	231	153007055	-	Anae109_4218	-	oxidoreductase molybdopterin binding
4177	 71.98	0	4945861..4947252	-	463	153007056	-	Anae109_4219	-	phage integrase family protein
4178	 69.47	0	4947498..4947818	-	106	153007057	-	Anae109_4220	-	hypothetical protein
4179	 74.01	0	4947959..4948693	+	244	153007058	-	Anae109_4221	-	hypothetical protein
4180	 69.07	-1	4948674..4949255	-	193	153007059	-	Anae109_4222	-	hypothetical protein
4181	 64.42	-2	4949700..4952543	-	947	153007060	-	Anae109_4223	-	DNA methylase N-4/N-6 domain-containing protein
4182	 60.23	-2	4952604..4953815	+	403	153007061	-	Anae109_4224	-	hypothetical protein
4183	 72.61	0	4953896..4954534	-	212	153007062	-	Anae109_4225	-	MerR family transcriptional regulator
4184	 69.07	-1	4954574..4954906	-	110	153007063	-	Anae109_4226	-	DNA binding domain-containing protein
4185	 72.35	0	4954970..4956184	+	404	153007064	-	Anae109_4227	-	hypothetical protein
4186	 67.75	-1	4956181..4956921	+	246	153007065	-	Anae109_4228	-	hypothetical protein
4187	 67.27	-1	4957072..4958058	+	328	153007066	-	Anae109_4229	-	ATPase central domain-containing protein
4188	 65.91	-1	4958149..4960518	+	789	153007067	-	Anae109_4230	-	hypothetical protein
4189	 75.79	0	4961065..4961634	+	189	153007068	-	Anae109_4231	-	hypothetical protein
4190	 75.57	0	4961891..4962373	+	160	153007069	-	Anae109_4232	-	hypothetical protein
4191	 77.10	+1	4962382..4963119	-	245	153007070	-	Anae109_4233	-	patatin
4192	 72.08	0	4963245..4964150	+	301	153007071	-	Anae109_4234	-	hypothetical protein
4193	 68.40	-1	4964211..4965653	+	480	153007072	-	Anae109_4235	-	carbon starvation protein CstA
4194	 73.04	0	4965745..4966890	-	381	153007073	-	Anae109_4236	-	hypothetical protein
4195	 75.20	0	4967139..4967759	-	206	153007074	-	Anae109_4237	-	hypothetical protein
4196	 71.30	0	4967983..4968414	-	143	153007075	-	Anae109_4238	-	dehydratase
4197	 76.14	0	4968444..4969667	-	407	153007076	-	Anae109_4239	-	monooxygenase FAD-binding
4198	 76.92	0	4969685..4970923	-	412	153007077	-	Anae109_4240	-	putative flavoprotein
4199	 71.10	0	4970997..4971605	-	202	153007078	-	Anae109_4241	-	OsmC family protein
4200	 74.28	0	4971872..4973854	+	660	153007079	-	Anae109_4242	-	sigma-54 dependent trancsriptional regulator
4201	 76.24	0	4973931..4974776	-	281	153007080	-	Anae109_4243	-	hypothetical protein
4202	 75.11	0	4974911..4976272	-	453	153007081	-	Anae109_4244	-	amino acid permease-associated region
4203	 77.07	+1	4976331..4977512	-	393	153007082	-	Anae109_4245	-	aminotransferase class I and II
4204	 77.11	+1	4977660..4977908	+	82	153007083	-	Anae109_4246	-	hypothetical protein
4205	 74.85	0	4977993..4978799	-	268	153007084	-	Anae109_4247	-	triple helix repeat-containing collagen
4206	 71.46	0	4978996..4979496	+	166	153007085	-	Anae109_4248	-	hypothetical protein
4207	 74.81	0	4979515..4979907	-	130	153007086	-	Anae109_4249	-	hypothetical protein
4208	 75.84	0	4979943..4982852	+	969	153007087	-	Anae109_4250	-	PAS/PAC sensor signal transduction histidine kinase
4209	 77.68	+1	4982876..4984900	-	674	153007088	-	Anae109_4251	-	multi-sensor signal transduction histidine kinase
4210	 73.90	0	4984974..4985429	-	151	153007089	-	Anae109_4252	-	response regulator receiver protein
4211	 76.36	0	4985563..4987605	+	680	153007090	-	Anae109_4253	-	fibronectin type III domain-containing protein
4212	 75.16	0	4987727..4988209	-	160	153007091	-	Anae109_4254	-	hypothetical protein
4213	 78.13	+1	4988367..4990529	+	720	153007092	-	Anae109_4255	-	TonB-dependent receptor
4214	 73.94	0	4990543..4991298	-	251	153007093	-	Anae109_4256	-	diguanylate phosphodiesterase
4215	 74.50	0	4991444..4992835	-	463	153007094	-	Anae109_4257	-	two component, sigma54 specific, Fis family transcriptional regulator
4216	 75.74	0	4992836..4994356	-	506	153007095	-	Anae109_4258	-	histidine kinase
4217	 76.86	0	4994494..4995219	+	241	153007096	-	Anae109_4259	-	TonB family protein
4218	 72.40	0	4995255..4995620	-	121	153007097	-	Anae109_4260	-	hypothetical protein
4219	 68.28	-1	4996026..4996460	+	144	153007098	-	Anae109_4261	-	hypothetical protein
4220	 75.38	0	4996620..4998053	+	477	153007099	-	Anae109_4262	-	outer membrane efflux protein
73.23	MEAN

3.77	STD DEV
