IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

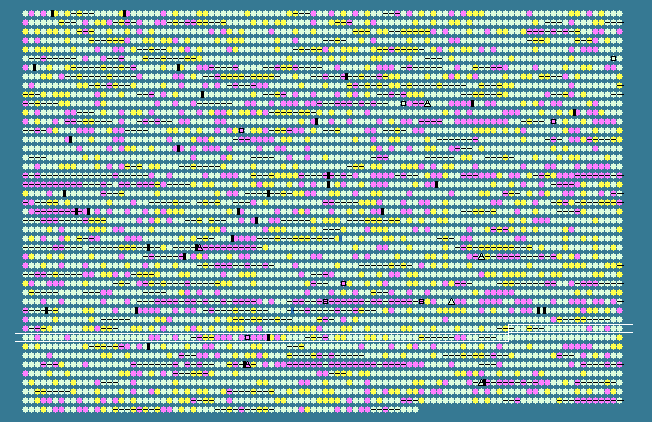

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3582	 70.74	0	4236293..4236562	-	89	153006461	-	Anae109_3621	-	putative transmembrane anti-sigma factor
3583	 74.43	0	4236559..4237215	-	218	153006462	-	Anae109_3622	-	ECF subfamily RNA polymerase sigma-24 factor
3584	 74.25	0	4237925..4239295	+	456	153006463	-	Anae109_3623	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
3585	 80.80	+2	4239640..4240389	-	249	153006464	-	Anae109_3624	-	hypothetical protein
3586	 73.37	0	4240386..4240952	-	188	153006465	-	Anae109_3625	-	ECF subfamily RNA polymerase sigma-24 factor
3587	 72.61	0	4241068..4241706	+	212	153006466	-	Anae109_3626	-	methionine-R-sulfoxide reductase
3588	 72.88	0	4241703..4242362	+	219	153006467	-	Anae109_3627	-	peptide methionine sulfoxide reductase
3589	 74.18	0	4242421..4243125	-	234	153006468	-	Anae109_3628	-	oxidoreductase molybdopterin binding
3590	 73.18	0	4243122..4243781	-	219	153006469	-	Anae109_3629	-	hypothetical protein
3591	 70.37	0	4243887..4244399	-	170	153006470	-	Anae109_3630	-	hypothetical protein
3592	 72.40	0	4244603..4244986	-	127	153006471	-	Anae109_3631	-	response regulator receiver protein
3593	 73.70	0	4244983..4246248	-	421	153006472	-	Anae109_3632	-	histidine kinase
3594	 74.98	0	4246245..4247423	-	392	153006473	-	Anae109_3633	-	glycosyltransferase
3595	 69.62	0	4248173..4248511	-	112	153006474	-	Anae109_3635	-	nitrogen regulatory protein P-II
3596	 70.13	0	4248882..4250411	+	509	153006475	-	Anae109_3636	-	ammonium transporter
3597	 73.49	0	4250572..4252065	+	497	153006476	-	Anae109_3637	-	glycosyl transferase group 1
3598	 66.67	-1	4252141..4252785	-	214	153006477	-	Anae109_3638	-	YceI family protein
3599	 70.67	0	4252782..4253330	-	182	153006478	-	Anae109_3639	-	YceI family protein
3600	 73.36	0	4253446..4254342	+	298	153006479	-	Anae109_3640	-	LysR family transcriptional regulator
3601	 72.47	0	4254671..4255669	+	332	153006480	-	Anae109_3641	-	hypothetical protein
3602	 74.67	0	4255774..4256223	-	149	153006481	-	Anae109_3642	-	protein tyrosine phosphatase
3603	 68.32	-1	4256220..4257365	-	381	153006482	-	Anae109_3643	-	arsenical-resistance protein
3604	 73.02	0	4257375..4257815	-	146	153006483	-	Anae109_3644	-	regulatory protein ArsR
3605	 70.10	0	4257879..4258286	+	135	153006484	-	Anae109_3645	-	thioredoxin domain-containing protein
3606	 74.96	0	4258296..4258994	+	232	153006485	-	Anae109_3646	-	cytochrome c biogenesis protein transmembrane region
3607	 70.50	0	4259029..4260123	+	364	153006486	-	Anae109_3647	-	permease
3608	 68.80	-1	4260135..4260368	+	77	153006487	-	Anae109_3648	-	redox-active disulfide protein 2
3609	 72.58	0	4260455..4261384	-	309	153006488	-	Anae109_3649	-	hypothetical protein
3610	 71.59	0	4261860..4262489	-	209	153006489	-	Anae109_3650	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
3611	 74.82	0	4262555..4263106	-	183	153006490	-	Anae109_3651	-	alkylhydroperoxidase
3612	 72.97	0	4263908..4264795	-	295	153006491	-	Anae109_3652	-	putative adenylate/guanylate cyclase
3613	 72.94	0	4264822..4265538	-	238	153006492	-	Anae109_3653	-	phosphodiesterase
3614	 72.79	0	4266136..4266951	+	271	153006493	-	Anae109_3654	-	hypothetical protein
3615	 73.46	0	4267040..4267819	-	259	153006494	-	Anae109_3655	-	short-chain dehydrogenase/reductase SDR
3616	 73.56	0	4267871..4268494	+	207	153006495	-	Anae109_3656	-	TetR family transcriptional regulator
3617	 72.98	0	4269010..4270038	-	342	153006496	-	Anae109_3657	-	LysR family transcriptional regulator
3618	 70.73	0	4270115..4271050	+	311	153006497	-	Anae109_3658	-	alpha/beta hydrolase fold
3619	 73.56	0	4271165..4271962	+	265	153006498	-	Anae109_3659	-	hypothetical protein
3620	 72.22	0	4272209..4272928	-	239	153006499	-	Anae109_3660	-	beta-lactamase domain-containing protein
3621	 74.05	0	4272900..4273820	-	306	153006500	-	Anae109_3661	-	TetR family transcriptional regulator
3622	 65.58	-2	4274126..4274584	+	152	153006501	-	Anae109_3662	-	activator of Hsp90 ATPase 1 family protein
3623	 68.04	-1	4274691..4275128	-	145	153006502	-	Anae109_3663	-	hypothetical protein
3624	 73.29	0	4275257..4276147	+	296	153006503	-	Anae109_3664	-	LysR family transcriptional regulator
3625	 75.57	0	4276402..4276884	+	160	153006504	-	Anae109_3665	-	hypothetical protein
3626	 66.67	-1	4277316..4277663	+	115	153006505	-	Anae109_3666	-	GYD family protein
3627	 73.68	0	4278039..4280789	+	916	153006506	-	Anae109_3667	-	ATPase-like protein
3628	 73.00	0	4281249..4282874	+	541	153006507	-	Anae109_3668	-	response regulator receiver protein
3629	 72.31	0	4283013..4283933	+	306	153006508	-	Anae109_3669	-	alpha/beta hydrolase fold
3630	 65.89	-1	4284242..4284625	-	127	153006509	-	Anae109_3670	-	hypothetical protein
3631	 77.54	+1	4284868..4285152	+	94	153006510	-	Anae109_3671	-	hypothetical protein
3632	 77.50	+1	4285182..4285892	+	236	153006511	-	Anae109_3672	-	glutamine amidotransferase class-I
3633	 64.10	-2	4286112..4286423	-	103	153006512	-	Anae109_3673	-	helix-turn-helix domain-containing protein
3634	 64.69	-2	4286420..4286773	-	117	153006513	-	Anae109_3674	-	hypothetical protein
3635	 69.72	0	4286823..4287182	+	119	153006514	-	Anae109_3675	-	hypothetical protein
3636	 71.83	0	4287301..4287687	+	128	153006515	-	Anae109_3676	-	hypothetical protein
3637	 65.40	-2	4287691..4288086	+	131	153006516	-	Anae109_3677	-	IS66 Orf2 family protein
3638	 68.02	-1	4288106..4289653	+	515	153006517	-	Anae109_3678	-	transposase IS66
3639	 67.37	-1	4290307..4294293	-	1328	153006518	-	Anae109_3679	-	hypothetical protein
3640	 64.42	-2	4294334..4294600	+	88	153006519	-	Anae109_3680	-	hypothetical protein
3641	 67.64	-1	4294616..4295131	+	171	153006520	-	Anae109_3681	-	hypothetical protein
3642	 77.31	+1	4295824..4297035	+	403	153006521	-	Anae109_3683	-	glycosyl transferase family protein
3643	 67.76	-1	4296933..4297667	-	244	153006522	-	Anae109_3684	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
3644	 78.02	+1	4297664..4299151	-	495	153006523	-	Anae109_3685	-	TPR repeat-containing protein
3645	 72.86	0	4299156..4299785	-	209	153006524	-	Anae109_3686	-	lytic transglycosylase catalytic
3646	 72.51	0	4299876..4301483	+	535	153006525	-	Anae109_3687	-	L-aspartate oxidase
3647	 74.46	0	4301503..4302156	-	217	153006526	-	Anae109_3688	-	hypothetical protein
3648	 71.99	0	4302153..4302791	-	212	153006527	-	Anae109_3689	-	orotate phosphoribosyltransferase
3649	 77.53	+1	4302788..4303606	-	272	153006528	-	Anae109_3690	-	nuclease
3650	 70.95	0	4303622..4304158	-	178	153006529	-	Anae109_3691	-	hypothetical protein
3651	 66.67	-1	4304161..4304529	-	122	153006530	-	Anae109_3692	-	hypothetical protein
3652	 73.82	0	4304643..4305509	-	288	153006531	-	Anae109_3693	-	alpha/beta hydrolase fold
3653	 79.81	+1	4305543..4307459	-	638	153006532	-	Anae109_3694	-	TPR repeat-containing protein
3654	 77.25	+1	4307520..4308152	-	210	153006533	-	Anae109_3695	-	DNA binding domain-containing protein
3655	 71.46	0	4308182..4308994	+	270	153006534	-	Anae109_3696	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3656	 70.87	0	4308999..4309712	-	237	153006535	-	Anae109_3697	-	hypothetical protein
3657	 72.51	0	4309709..4310632	-	307	153006536	-	Anae109_3698	-	fibronectin type III domain-containing protein
3658	 76.83	0	4310786..4311808	-	340	153006537	-	Anae109_3699	-	aspartate-semialdehyde dehydrogenase
3659	 77.89	+1	4311915..4312814	-	299	153006538	-	Anae109_3700	-	hypothetical protein
3660	 74.91	0	4312827..4314281	-	484	153006539	-	Anae109_3701	-	peptidase M50
3661	 78.39	+1	4314383..4315141	-	252	153006540	-	Anae109_3702	-	peptidase M22 glycoprotease
3662	 71.85	0	4315152..4316828	-	558	153006541	-	Anae109_3703	-	putative membrane-associated zinc metalloprotease
3663	 74.32	0	4316934..4318109	-	391	153006542	-	Anae109_3704	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
3664	 73.14	0	4318138..4318971	-	277	153006543	-	Anae109_3705	-	phosphatidate cytidylyltransferase
3665	 73.31	0	4318975..4319742	-	255	153006544	-	Anae109_3706	-	undecaprenyl diphosphate synthase
3666	 75.55	0	4319833..4320879	+	348	153006545	-	Anae109_3707	-	protein kinase
3667	 80.80	+2	4321002..4321730	+	242	153006546	-	Anae109_3708	-	hypothetical protein
3668	 71.09	0	4321743..4322624	+	293	153006547	-	Anae109_3709	-	DNA replication protein-like protein
3669	 74.57	0	4322676..4323839	-	387	153006548	-	Anae109_3710	-	aspartate kinase
3670	 71.54	0	4324062..4324328	+	88	153006549	-	Anae109_3711	-	DNA-directed RNA polymerase, omega subunit
3671	 76.56	0	4324438..4325124	-	228	153006550	-	Anae109_3712	-	hypothetical protein
3672	 70.42	0	4325121..4325732	-	203	153006551	-	Anae109_3713	-	hypothetical protein
3673	 63.61	-2	4326168..4326461	+	97	153006552	-	Anae109_3714	-	chaperonin Cpn10
3674	 67.03	-1	4326502..4328145	+	547	153006553	-	Anae109_3715	-	chaperonin GroEL
3675	 71.59	0	4328297..4328560	+	87	153006554	-	Anae109_3716	-	hypothetical protein
3676	 74.82	0	4328668..4330347	+	559	153006555	-	Anae109_3717	-	hypothetical protein
3677	 75.06	0	4330151..4330591	-	146	153006556	-	Anae109_3718	-	hypothetical protein
3678	 73.13	0	4330673..4331074	-	133	153006557	-	Anae109_3719	-	thioesterase superfamily protein
3679	 72.35	0	4331163..4332059	-	298	153006558	-	Anae109_3720	-	hypothetical protein
3680	 73.71	0	4332175..4333494	+	439	153006559	-	Anae109_3721	-	phospholipase D/transphosphatidylase
3681	 74.62	0	4333567..4337739	-	1390	153006560	-	Anae109_3722	-	hypothetical protein
73.23	MEAN

3.77	STD DEV
