IslandPathversion 1.0

IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

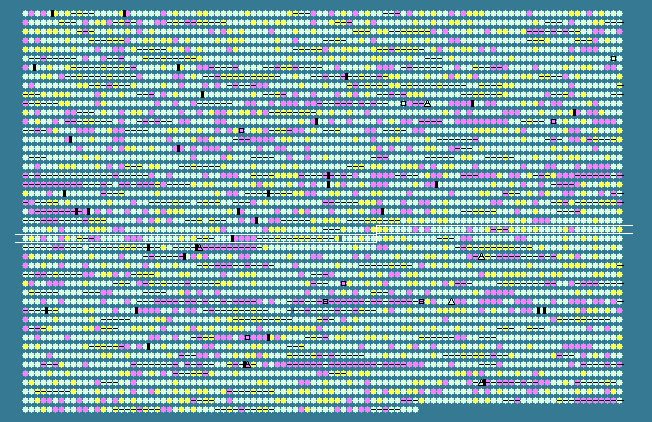

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2460	 77.68	+1	2872514..2873203	-	229	153005339	-	Anae109_2479	-	GCN5-related N-acetyltransferase
2461	 78.38	+1	2873258..2874760	-	500	153005340	-	Anae109_2480	-	ATPase central domain-containing protein
2462	 72.44	0	2874757..2876592	-	611	153005341	-	Anae109_2481	-	type II secretion system protein E
2463	 74.24	0	2876696..2876893	-	65	153005342	-	Anae109_2482	-	FmdB family regulatory protein
2464	 71.77	0	2877308..2878189	+	293	153005343	-	Anae109_2483	-	hypothetical protein
2465	 74.19	0	2878259..2878750	-	163	153005344	-	Anae109_2484	-	hypothetical protein
2466	 67.59	-1	2878827..2879474	-	215	153005345	-	Anae109_2485	-	inorganic diphosphatase
2467	 71.34	0	2879517..2880458	-	313	153005346	-	Anae109_2486	-	Serine O-acetyltransferase
2468	 69.68	0	2880455..2881384	-	309	153005347	-	Anae109_2487	-	cysteine synthase A
2469	 73.22	0	2881472..2883622	-	716	153005348	-	Anae109_2488	-	excinuclease ABC, C subunit
2470	 75.38	0	2883734..2884399	-	221	153005349	-	Anae109_2489	-	hypothetical protein
2471	 71.32	0	2884547..2885578	-	343	153005350	-	Anae109_2490	-	cytochrome c class I
2472	 73.63	0	2885829..2887709	+	626	153005351	-	Anae109_2491	-	histidine kinase
2473	 74.03	0	2887709..2889067	+	452	153005352	-	Anae109_2492	-	two component, sigma54 specific, Fis family transcriptional regulator
2474	 70.41	0	2889080..2891269	-	729	153005353	-	Anae109_2493	-	excinuclease ABC subunit B
2475	 66.67	-1	2891368..2891571	+	67	153005354	-	Anae109_2494	-	cold-shock DNA-binding domain-containing protein
2476	 72.04	0	2891656..2891841	+	61	153005355	-	Anae109_2495	-	hypothetical protein
2477	 71.91	0	2891884..2893332	-	482	153005356	-	Anae109_2496	-	cysteinyl-tRNA synthetase
2478	 78.04	+1	2893344..2894504	-	386	153005357	-	Anae109_2497	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2479	 61.63	-2	2894687..2895202	-	171	153005358	-	Anae109_2498	-	CarD family transcriptional regulator
2480	 79.72	+1	2895364..2897715	+	783	153005359	-	Anae109_2499	-	DNA internalization-related competence protein ComEC/Rec2
2481	 67.42	-1	2897718..2897981	+	87	153005360	-	Anae109_2500	-	hypothetical protein
2482	 78.50	+1	2897996..2898916	+	306	153005361	-	Anae109_2501	-	FHA domain-containing protein
2483	 71.67	0	2899085..2899504	-	139	153005362	-	Anae109_2502	-	hypothetical protein
2484	 78.13	+1	2899684..2900913	-	409	153005363	-	Anae109_2503	-	TPR repeat-containing protein
2485	 71.30	0	2900989..2902284	-	431	153005364	-	Anae109_2504	-	adenylosuccinate synthetase
2486	 79.17	+1	2902377..2903408	-	343	153005365	-	Anae109_2505	-	histidine--tRNA ligase
2487	 73.72	0	2903515..2905101	-	528	153005366	-	Anae109_2506	-	D-3-phosphoglycerate dehydrogenase
2488	 71.07	0	2905320..2905955	-	211	153005367	-	Anae109_2507	-	TetR family transcriptional regulator
2489	 75.39	0	2906036..2908465	-	809	153005368	-	Anae109_2508	-	organic solvent tolerance protein OstA-like protein
2490	 75.89	0	2908505..2910055	-	516	153005369	-	Anae109_2509	-	hypothetical protein
2491	 77.56	+1	2910146..2911357	-	403	153005370	-	Anae109_2510	-	FolC bifunctional protein
2492	 69.46	-1	2911484..2912341	-	285	153005371	-	Anae109_2511	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
2493	 73.24	0	2912698..2913732	+	344	153005372	-	Anae109_2512	-	phosphoribosylformylglycinamidine cyclo-ligase
2494	 76.19	0	2913729..2914421	+	230	153005373	-	Anae109_2513	-	phosphoribosylglycinamide formyltransferase
2495	 75.65	0	2914575..2916122	+	515	153005374	-	Anae109_2514	-	phytoene dehydrogenase
2496	 70.27	0	2916224..2916445	+	73	153005375	-	Anae109_2515	-	ribosomal protein L28
2497	 76.13	0	2916607..2917917	+	436	153005376	-	Anae109_2516	-	hypothetical protein
2498	 70.27	0	2917942..2918940	-	332	153005377	-	Anae109_2517	-	adenosine deaminase
2499	 76.31	0	2918976..2919452	-	158	153005378	-	Anae109_2518	-	hypothetical protein
2500	 78.21	+1	2919595..2919906	+	103	153005379	-	Anae109_2519	-	hypothetical protein
2501	 72.81	0	2919903..2920748	+	281	153005380	-	Anae109_2520	-	methylenetetrahydrofolate dehydrogenase (NADP(+))
2502	 76.83	0	2920745..2921875	+	376	153005381	-	Anae109_2521	-	metallophosphoesterase
2503	 73.50	0	2922085..2923167	+	360	153005382	-	Anae109_2522	-	glycine cleavage system aminomethyltransferase T
2504	 66.41	-1	2923184..2923567	+	127	153005383	-	Anae109_2523	-	glycine cleavage system H protein
2505	 73.69	0	2923655..2924992	+	445	153005384	-	Anae109_2524	-	glycine dehydrogenase subunit 1
2506	 72.02	0	2924995..2926563	+	522	153005385	-	Anae109_2525	-	glycine dehydrogenase subunit 2
2507	 68.94	-1	2926666..2927148	-	160	153005386	-	Anae109_2526	-	methylglyoxal synthase
2508	 80.05	+1	2927240..2928412	-	390	153005387	-	Anae109_2527	-	TonB family protein
2509	 75.30	0	2928524..2929705	-	393	153005388	-	Anae109_2528	-	TonB family protein
2510	 77.12	+1	2929817..2931730	+	637	153005389	-	Anae109_2529	-	glycosyl transferase family protein
2511	 76.19	0	2931750..2932883	-	377	153005390	-	Anae109_2530	-	hypothetical protein
2512	 64.86	-2	2932912..2933133	-	73	153005391	-	Anae109_2531	-	translation initiation factor IF-1
2513	 65.15	-2	2933230..2933427	-	65	153005392	-	Anae109_2532	-	cold-shock DNA-binding domain-containing protein
2514	 75.48	0	2933602..2934021	-	139	153005393	-	Anae109_2533	-	TPR repeat-containing protein
2515	 70.52	0	2934031..2934939	-	302	153005394	-	Anae109_2534	-	hypothetical protein
2516	 76.09	0	2935125..2935538	+	137	153005395	-	Anae109_2535	-	Holliday junction resolvase YqgF
2517	 74.04	0	2935556..2936572	+	338	153005396	-	Anae109_2536	-	aminodeoxychorismate lyase
2518	 63.43	-2	2936731..2938803	+	690	153005397	-	Anae109_2537	-	putative serine protein kinase, PrkA
2519	 66.67	-1	2938852..2939958	+	368	153005398	-	Anae109_2538	-	hypothetical protein
2520	 64.05	-2	2939967..2941454	+	495	153005399	-	Anae109_2539	-	SpoVR family protein
2521	 74.11	0	2941568..2942857	+	429	153005400	-	Anae109_2540	-	peptidase M23B
2522	 70.21	0	2943082..2943420	-	112	153005401	-	Anae109_2541	-	hypothetical protein
2523	 75.16	0	2943908..2944225	-	105	153005402	-	Anae109_2542	-	hypothetical protein
2524	 75.53	0	2944614..2947085	-	823	153005403	-	Anae109_2543	-	multi-sensor hybrid histidine kinase
2525	 71.41	0	2947204..2949246	-	680	153005404	-	Anae109_2544	-	DEAD/DEAH box helicase domain-containing protein
2526	 70.48	0	2949378..2950451	+	357	153005405	-	Anae109_2545	-	RNA polymerase sigma-70
2527	 81.15	+2	2950448..2951110	-	220	153005406	-	Anae109_2546	-	membrane protein
2528	 75.91	0	2951323..2952090	+	255	153005407	-	Anae109_2547	-	hypothetical protein
2529	 77.02	+1	2952092..2954371	+	759	153005408	-	Anae109_2548	-	hypothetical protein
2530	 71.29	0	2954667..2955164	+	165	153005409	-	Anae109_2549	-	peptidylprolyl isomerase FKBP-type
2531	 79.23	+1	2955216..2956910	-	564	153005410	-	Anae109_2550	-	hypothetical protein
2532	 70.87	0	2956990..2957940	+	316	153005411	-	Anae109_2551	-	hydrolase
2533	 74.14	0	2957937..2958725	+	262	153005412	-	Anae109_2552	-	short-chain dehydrogenase/reductase SDR
2534	 74.32	0	2958751..2959155	+	134	153005413	-	Anae109_2553	-	ferredoxin-like protein
2535	 76.53	0	2959159..2959989	-	276	153005414	-	Anae109_2554	-	hypothetical protein
2536	 69.41	-1	2960478..2961497	-	339	153005415	-	Anae109_2555	-	alcohol dehydrogenase
2537	 66.78	-1	2961664..2962557	+	297	153005416	-	Anae109_2556	-	AraC-like transcriptional regulator
2538	 68.32	-1	2962580..2963125	-	181	153005417	-	Anae109_2557	-	pyruvate phosphate dikinase PEP/pyruvate-binding
2539	 65.81	-1	2963254..2963370	+	38	153005418	-	Anae109_2558	-	phosphoenolpyruvate synthase
2540	 71.62	0	2963498..2964568	+	356	153005419	-	Anae109_2559	-	pirin domain-containing protein
2541	 75.85	0	2964585..2966141	-	518	153005420	-	Anae109_2560	-	PAS/PAC sensor signal transduction histidine kinase
2542	 75.62	0	2966230..2966631	+	133	153005421	-	Anae109_2561	-	hypothetical protein
2543	 77.16	+1	2966632..2967279	-	215	153005422	-	Anae109_2562	-	V-type ATPase, D subunit
2544	 74.55	0	2967276..2968658	-	460	153005423	-	Anae109_2563	-	V-type ATP synthase subunit B
2545	 76.28	0	2968662..2970398	-	578	153005424	-	Anae109_2564	-	V-type ATP synthase subunit A
2546	 78.48	+1	2970395..2970775	-	126	153005425	-	Anae109_2565	-	V-type ATP synthase, F subunit
2547	 81.87	+2	2970772..2971797	-	341	153005426	-	Anae109_2566	-	H+transporting two-sector ATPase C (AC39) subunit
2548	 80.93	+2	2971799..2972380	-	193	153005427	-	Anae109_2567	-	H+transporting two-sector ATPase E subunit
2549	 69.91	0	2972385..2972600	-	71	153005428	-	Anae109_2568	-	H+transporting two-sector ATPase C subunit
2550	 77.00	+1	2972616..2974493	-	625	153005429	-	Anae109_2569	-	V-type ATPase 116 kDa subunit
2551	 75.06	0	2975149..2975589	+	146	153005430	-	Anae109_2570	-	NUDIX hydrolase
2552	 76.66	0	2975653..2976993	-	446	153005431	-	Anae109_2571	-	hypothetical protein
2553	 77.01	+1	2977085..2977867	+	260	153005432	-	Anae109_2572	-	phage SPO1 DNA polymerase-related protein
2554	 75.00	0	2984025..2984696	-	223	153005433	-	Anae109_2573	-	guanylate kinase
2555	 75.23	0	2984686..2985561	-	291	153005434	-	Anae109_2574	-	hypothetical protein
2556	 70.89	0	2985618..2985830	-	70	153005435	-	Anae109_2575	-	hypothetical protein
2557	 78.57	+1	2985851..2986984	-	377	153005436	-	Anae109_2576	-	glycosyl transferase group 1
2558	 73.71	0	2986998..2987480	-	160	153005437	-	Anae109_2577	-	cytidyltransferase-like protein
2559	 75.77	0	2987488..2988498	-	336	153005438	-	Anae109_2578	-	ribokinase-like domain-containing protein
73.23	MEAN

3.77	STD DEV
