IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

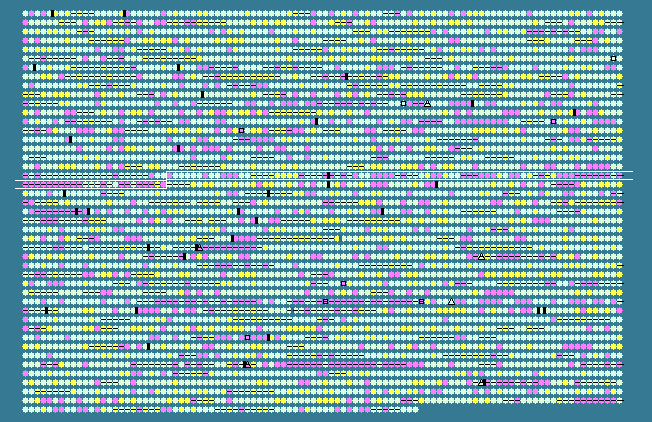

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1825	 67.61	-1	2097875..2098300	-	141	153004704	-	Anae109_1842	-	hypothetical protein
1826	 72.98	0	2098353..2100965	+	870	153004705	-	Anae109_1843	-	hypothetical protein
1827	 70.95	0	2101049..2101468	-	139	153004706	-	Anae109_1844	-	hypothetical protein
1828	 72.94	0	2101761..2103098	+	445	153004707	-	Anae109_1845	-	glutamyl-tRNA reductase
1829	 71.65	0	2103182..2104687	+	501	153004708	-	Anae109_1846	-	histidine kinase
1830	 71.16	0	2104684..2106063	+	459	153004709	-	Anae109_1847	-	two component, sigma54 specific, Fis family transcriptional regulator
1831	 66.23	-1	2106396..2107319	-	307	153004710	-	Anae109_1848	-	RNA polymerase sigma factor RpoH
1832	 72.94	0	2107620..2108336	+	238	153004711	-	Anae109_1849	-	histidine kinase A domain-containing protein
1833	 69.82	0	2108333..2108713	+	126	153004712	-	Anae109_1850	-	response regulator receiver protein
1834	 68.35	-1	2108895..2109605	+	236	153004713	-	Anae109_1851	-	50S ribosomal protein L3
1835	 67.05	-1	2109735..2111306	-	523	153004714	-	Anae109_1852	-	hypothetical protein
1836	 68.83	-1	2111408..2113258	-	616	153004715	-	Anae109_1853	-	GTP-binding protein TypA
1837	 74.70	0	2113428..2116763	+	1111	153004716	-	Anae109_1854	-	histidine kinase
1838	 76.15	0	2116760..2118562	+	600	153004717	-	Anae109_1855	-	histidine kinase
1839	 78.06	+1	2118566..2119513	+	315	153004718	-	Anae109_1856	-	hypothetical protein
1840	 72.57	0	2119593..2121794	-	733	153004719	-	Anae109_1857	-	fibronectin type III domain-containing protein
1841	 72.73	0	2123074..2123436	+	120	153004720	-	Anae109_1858	-	hypothetical protein
1842	 77.30	+1	2123479..2125068	+	529	153004721	-	Anae109_1859	-	hypothetical protein
1843	 79.97	+1	2125077..2126858	+	593	153004722	-	Anae109_1860	-	hypothetical protein
1844	 79.17	+1	2126858..2130289	+	1143	153004723	-	Anae109_1861	-	hypothetical protein
1845	 78.10	+1	2130292..2132601	+	769	153004724	-	Anae109_1862	-	hypothetical protein
1846	 77.85	+1	2132594..2133889	-	431	153004725	-	Anae109_1863	-	response regulator receiver protein
1847	 67.91	-1	2133957..2134922	-	321	153004726	-	Anae109_1864	-	magnesium and cobalt transport protein CorA
1848	 75.06	0	2135099..2135491	+	130	153004727	-	Anae109_1865	-	glyoxalase/bleomycin resistance protein/dioxygenase
1849	 76.43	0	2135524..2136291	+	255	153004728	-	Anae109_1866	-	hydroxyacylglutathione hydrolase
1850	 74.96	0	2136303..2136905	+	200	153004729	-	Anae109_1867	-	CDP-alcohol phosphatidyltransferase
1851	 68.52	-1	2136963..2138039	+	358	153004730	-	Anae109_1868	-	hypothetical protein
1852	 64.57	-2	2138626..2140059	-	477	153004731	-	Anae109_1869	-	PKD domain-containing protein
1853	 73.43	0	2140433..2141821	+	462	153004732	-	Anae109_1870	-	histidine kinase
1854	 69.65	0	2142186..2142554	+	122	153004733	-	Anae109_1871	-	hypothetical protein
1855	 69.96	0	2142612..2145158	+	848	153004734	-	Anae109_1872	-	hypothetical protein
1856	 69.35	-1	2145298..2147343	+	681	153004735	-	Anae109_1873	-	threonyl-tRNA synthetase
1857	 71.06	0	2147914..2149482	+	522	153004736	-	Anae109_1874	-	2-isopropylmalate synthase
1858	 73.97	0	2149482..2150918	+	478	153004737	-	Anae109_1875	-	isopropylmalate isomerase large subunit
1859	 69.60	0	2150923..2151501	+	192	153004738	-	Anae109_1876	-	3-isopropylmalate dehydratase, small subunit
1860	 69.59	0	2151611..2153323	+	570	153004739	-	Anae109_1877	-	acetolactate synthase, large subunit, biosynthetic type
1861	 69.10	-1	2153325..2153858	+	177	153004740	-	Anae109_1878	-	acetolactate synthase, small subunit
1862	 68.90	-1	2153874..2154902	+	342	153004741	-	Anae109_1879	-	ketol-acid reductoisomerase
1863	 70.43	0	2155083..2155772	+	229	153004742	-	Anae109_1880	-	translation initiation factor IF-3
1864	 63.73	-2	2155860..2156063	+	67	153004743	-	Anae109_1881	-	50S ribosomal protein L35
1865	 71.30	0	2156164..2156508	+	114	153004744	-	Anae109_1882	-	50S ribosomal protein L20
1866	 71.20	0	2156519..2157598	+	359	153004745	-	Anae109_1883	-	phenylalanyl-tRNA synthetase, alpha subunit
1867	 75.95	0	2157608..2160010	+	800	153004746	-	Anae109_1884	-	phenylalanyl-tRNA synthetase, beta subunit
1868	 77.85	+1	2160013..2160459	+	148	153004747	-	Anae109_1885	-	hypothetical protein
1869	 62.00	-2	2160539..2160838	+	99	153004748	-	Anae109_1886	-	integration host factor, alpha subunit
1870	 68.72	-1	2161422..2161811	+	129	153004749	-	Anae109_1887	-	putative 6-pyruvoyl tetrahydropterin synthase
1871	 78.33	+1	2161801..2162460	+	219	153004750	-	Anae109_1888	-	GTP cyclohydrolase I
1872	 76.30	0	2162457..2163131	+	224	153004751	-	Anae109_1889	-	short-chain dehydrogenase/reductase SDR
1873	 73.09	0	2163128..2164513	+	461	153004752	-	Anae109_1890	-	FAD linked oxidase domain-containing protein
1874	 68.70	-1	2164716..2166581	+	621	153004753	-	Anae109_1891	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1875	 67.62	-1	2166604..2167653	+	349	153004754	-	Anae109_1892	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1876	 61.90	-2	2168010..2168282	+	90	153004755	-	Anae109_1893	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1877	 68.30	-1	2168292..2169455	+	387	153004756	-	Anae109_1894	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1878	 68.56	-1	2169452..2170348	+	298	153004757	-	Anae109_1895	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1879	 67.21	-1	2170366..2170917	+	183	153004758	-	Anae109_1896	-	pyruvate ferredoxin/flavodoxin oxidoreductase
1880	 77.94	+1	2170993..2171799	-	268	153004759	-	Anae109_1897	-	TPR repeat-containing protein
1881	 74.75	0	2171929..2172423	-	164	153004760	-	Anae109_1898	-	putative lipoprotein
1882	 64.58	-2	2172474..2172665	+	63	153004761	-	Anae109_1899	-	hypothetical protein
1883	 69.11	-1	2172677..2173618	+	313	153004762	-	Anae109_1900	-	NAD-dependent epimerase/dehydratase
1884	 73.16	0	2173646..2174584	+	312	153004763	-	Anae109_1901	-	NAD-dependent epimerase/dehydratase
1885	 77.04	+1	2174685..2175638	+	317	153004764	-	Anae109_1902	-	hypothetical protein
1886	 75.23	0	2175655..2176530	-	291	153004765	-	Anae109_1903	-	monofunctional biosynthetic peptidoglycan transglycosylase
1887	 66.17	-1	2176853..2177458	+	201	153004766	-	Anae109_1904	-	manganese and iron superoxide dismutase
1888	 76.96	0	2177548..2178402	-	284	153004767	-	Anae109_1905	-	hypothetical protein
1889	 79.20	+1	2178493..2179593	+	366	153004768	-	Anae109_1906	-	A/G-specific adenine glycosylase
1890	 69.62	0	2180022..2180393	+	123	153004769	-	Anae109_1907	-	30S ribosomal protein S12
1891	 63.06	-2	2180414..2180884	+	156	153004770	-	Anae109_1908	-	30S ribosomal protein S7
1892	 66.00	-1	2181098..2183191	+	697	153004771	-	Anae109_1909	-	translation elongation factor G
1893	 67.84	-1	2183225..2184415	+	396	153004772	-	Anae109_1910	-	elongation factor Tu
1894	 63.73	-2	2184505..2184810	+	101	153004773	-	Anae109_1911	-	30S ribosomal protein S10
1895	 68.92	-1	2184823..2185443	+	206	153004774	-	Anae109_1912	-	ribosomal protein L4/L1e
1896	 65.65	-2	2185440..2185733	+	97	153004775	-	Anae109_1913	-	50S ribosomal protein L23
1897	 69.49	0	2185756..2186604	+	282	153004776	-	Anae109_1914	-	50S ribosomal protein L2
1898	 64.95	-2	2186628..2186918	+	96	153004777	-	Anae109_1915	-	ribosomal protein S19
1899	 72.87	0	2186932..2187366	+	144	153004778	-	Anae109_1916	-	ribosomal protein L22
1900	 67.70	-1	2187387..2188061	+	224	153004779	-	Anae109_1917	-	ribosomal protein S3
1901	 68.59	-1	2188094..2188510	+	138	153004780	-	Anae109_1918	-	50S ribosomal protein L16
1902	 66.67	-1	2188524..2188799	+	91	153004781	-	Anae109_1919	-	50S ribosomal protein L29
1903	 63.95	-2	2188805..2189062	+	85	153004782	-	Anae109_1920	-	ribosomal protein S17
1904	 66.40	-1	2189066..2189434	+	122	153004783	-	Anae109_1921	-	50S ribosomal protein L14
1905	 66.03	-1	2189437..2189751	+	104	153004784	-	Anae109_1922	-	ribosomal protein L24
1906	 63.72	-2	2189852..2190394	+	180	153004785	-	Anae109_1923	-	50S ribosomal protein L5
1907	 64.52	-2	2190406..2190591	+	61	153004786	-	Anae109_1924	-	ribosomal protein S14
1908	 66.67	-1	2190604..2191002	+	132	153004787	-	Anae109_1925	-	ribosomal protein S8
1909	 66.67	-1	2191016..2191558	+	180	153004788	-	Anae109_1926	-	ribosomal protein L6
1910	 69.44	-1	2191619..2191978	+	119	153004789	-	Anae109_1927	-	ribosomal protein L18
1911	 71.60	0	2191990..2192496	+	168	153004790	-	Anae109_1928	-	ribosomal protein S5
1912	 70.83	0	2192506..2192745	+	79	153004791	-	Anae109_1929	-	50S ribosomal protein L30
1913	 71.92	0	2192782..2193276	+	164	153004792	-	Anae109_1930	-	50S ribosomal protein L15
1914	 66.82	-1	2193349..2194686	+	445	153004793	-	Anae109_1931	-	preprotein translocase subunit SecY
1915	 71.16	0	2194739..2195383	+	214	153004794	-	Anae109_1932	-	adenylate kinase
1916	 76.17	0	2195407..2196216	+	269	153004795	-	Anae109_1933	-	methionine aminopeptidase, type I
1917	 62.39	-2	2196439..2196555	+	38	153004796	-	Anae109_1934	-	ribosomal protein L36
1918	 69.27	-1	2196582..2196965	+	127	153004797	-	Anae109_1935	-	30S ribosomal protein S13
1919	 70.62	0	2196996..2197475	+	159	153004798	-	Anae109_1936	-	30S ribosomal protein S11
1920	 67.46	-1	2197493..2198119	+	208	153004799	-	Anae109_1937	-	30S ribosomal protein S4
1921	 65.20	-2	2198367..2199386	+	339	153004800	-	Anae109_1938	-	DNA-directed RNA polymerase subunit alpha
1922	 69.63	0	2199416..2199922	+	168	153004801	-	Anae109_1939	-	ribosomal protein L17
1923	 79.49	+1	2200044..2200667	+	207	153004802	-	Anae109_1940	-	phosphoesterase PA-phosphatase related
1924	 67.04	-1	2200772..2201038	+	88	153004803	-	Anae109_1941	-	ribosomal protein S16
73.23	MEAN

3.77	STD DEV
