IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

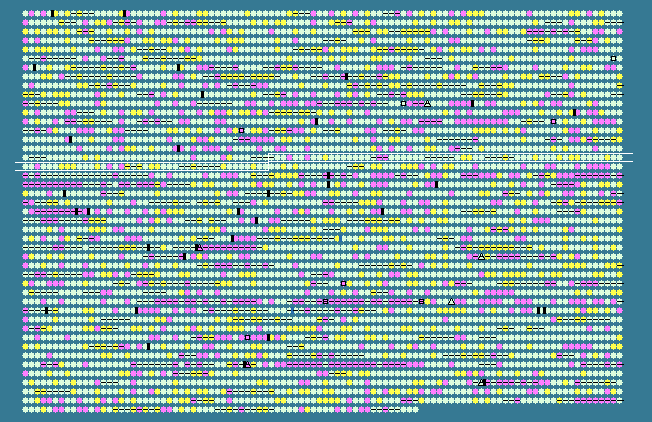

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1642	 70.90	0	1863073..1863474	-	133	153004521	-	Anae109_1658	-	hypothetical protein
1643	 70.47	0	1864511..1866322	+	603	153004522	-	Anae109_1659	-	hypothetical protein
1644	 70.39	0	1866528..1867010	+	160	153004523	-	Anae109_1660	-	hypothetical protein
1645	 65.54	-2	1867158..1868489	+	443	153004524	-	Anae109_1661	-	extracellular solute-binding protein
1646	 72.03	0	1868627..1869670	+	347	153004525	-	Anae109_1662	-	ABC transporter related
1647	 70.74	0	1869661..1870593	+	310	153004526	-	Anae109_1663	-	binding-protein-dependent transport systems inner membrane component
1648	 66.78	-1	1870611..1871456	+	281	153004527	-	Anae109_1664	-	binding-protein-dependent transport systems inner membrane component
1649	 75.73	0	1871474..1872952	+	492	153004528	-	Anae109_1665	-	methylmalonate-semialdehyde dehydrogenase
1650	 73.73	0	1873011..1873661	+	216	153004529	-	Anae109_1666	-	NADPH-dependent FMN reductase
1651	 77.69	+1	1873678..1875474	-	598	153004530	-	Anae109_1667	-	UBA/THIF-type NAD/FAD binding protein
1652	 72.31	0	1875693..1876082	-	129	153004531	-	Anae109_1668	-	hypothetical protein
1653	 74.43	0	1876247..1877869	+	540	153004532	-	Anae109_1669	-	hemerythrin HHE cation binding domain-containing protein
1654	 76.04	0	1878029..1878508	-	159	153004533	-	Anae109_1670	-	outer membrane lipoprotein, putative
1655	 76.37	0	1878778..1881045	+	755	153004534	-	Anae109_1671	-	histidine kinase
1656	 75.51	0	1881042..1881776	-	244	153004535	-	Anae109_1672	-	phosphoesterase PA-phosphatase related
1657	 73.57	0	1881990..1882496	-	168	153004536	-	Anae109_1673	-	blue (type1) copper domain-containing protein
1658	 74.17	0	1882734..1883519	-	261	153004537	-	Anae109_1674	-	3-hydroxybutyrate dehydrogenase
1659	 71.43	0	1883516..1884460	-	314	153004538	-	Anae109_1675	-	inner-membrane translocator
1660	 69.21	-1	1884457..1885320	-	287	153004539	-	Anae109_1676	-	inner-membrane translocator
1661	 68.64	-1	1885327..1886541	-	404	153004540	-	Anae109_1677	-	ABC branched-chain amino acid transporter, periplasmic ligand biinding protein
1662	 72.92	0	1886564..1887283	-	239	153004541	-	Anae109_1678	-	ABC transporter related
1663	 73.31	0	1887280..1888032	-	250	153004542	-	Anae109_1679	-	ABC transporter related
1664	 73.60	0	1888302..1892093	-	1263	153004543	-	Anae109_1680	-	cell wall/surface repeat-containing protein
1665	 72.03	0	1892447..1893397	-	316	153004544	-	Anae109_1681	-	aldo/keto reductase
1666	 73.47	0	1893613..1894185	-	190	153004545	-	Anae109_1682	-	hypothetical protein
1667	 71.46	0	1894185..1895039	-	284	153004546	-	Anae109_1683	-	metallophosphoesterase
1668	 75.30	0	1895389..1895805	+	138	153004547	-	Anae109_1684	-	GreA/GreB family elongation factor
1669	 74.41	0	1895840..1896304	-	154	153004548	-	Anae109_1685	-	hemerythrin HHE cation binding domain-containing protein
1670	 73.13	0	1896298..1896993	-	231	153004549	-	Anae109_1686	-	hypothetical protein
1671	 75.65	0	1897105..1898106	+	333	153004550	-	Anae109_1687	-	sigma-54 dependent trancsriptional regulator
1672	 73.24	0	1898157..1898795	+	212	153004551	-	Anae109_1688	-	hypothetical protein
1673	 74.18	0	1898782..1899420	+	212	153004552	-	Anae109_1689	-	hypothetical protein
1674	 78.99	+1	1899515..1900861	+	448	153004553	-	Anae109_1690	-	outer membrane efflux protein
1675	 77.28	+1	1900858..1901865	+	335	153004554	-	Anae109_1691	-	RND family efflux transporter MFP subunit
1676	 73.16	0	1901862..1905218	+	1118	153004555	-	Anae109_1692	-	acriflavin resistance protein
1677	 71.30	0	1905364..1905687	-	107	153004556	-	Anae109_1693	-	carboxymuconolactone decarboxylase
1678	 76.22	0	1905818..1906843	-	341	153004557	-	Anae109_1694	-	ABC transporter related
1679	 76.62	0	1906840..1907643	-	267	153004558	-	Anae109_1695	-	binding-protein-dependent transport systems inner membrane component
1680	 76.26	0	1907640..1908515	-	291	153004559	-	Anae109_1696	-	binding-protein-dependent transport systems inner membrane component
1681	 77.38	+1	1908512..1909855	-	447	153004560	-	Anae109_1697	-	extracellular solute-binding protein
1682	 74.47	0	1910121..1910402	-	93	153004561	-	Anae109_1698	-	YciI-like protein
1683	 75.90	0	1910420..1911004	-	194	153004562	-	Anae109_1699	-	pyridoxal 5'-phosphate synthase
1684	 73.69	0	1912003..1913169	+	388	153004563	-	Anae109_1700	-	HNH endonuclease
1685	 75.82	0	1913462..1914007	+	181	153004564	-	Anae109_1701	-	hypothetical protein
1686	 78.18	+1	1913925..1915400	-	491	153004565	-	Anae109_1702	-	TPR repeat-containing protein
1687	 74.45	0	1915557..1916417	-	286	153004566	-	Anae109_1703	-	coproporphyrinogen III oxidase
1688	 71.21	0	1916653..1918281	+	542	153004567	-	Anae109_1704	-	peptide chain release factor 3
1689	 70.50	0	1918396..1919724	-	442	153004568	-	Anae109_1705	-	major facilitator transporter
1690	 79.29	+1	1920127..1920831	-	234	153004569	-	Anae109_1706	-	NAD-dependent epimerase/dehydratase
1691	 73.40	0	1920962..1921540	+	192	153004570	-	Anae109_1707	-	LemA family protein
1692	 79.01	+1	1921540..1923435	+	631	153004571	-	Anae109_1708	-	peptidase M48 Ste24p
1693	 77.72	+1	1923613..1924743	+	376	153004572	-	Anae109_1709	-	type I topoisomerase
1694	 71.90	0	1924755..1925825	-	356	153004573	-	Anae109_1710	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1695	 73.25	0	1926052..1926735	+	227	153004574	-	Anae109_1711	-	hypothetical protein
1696	 70.80	0	1926719..1927879	+	386	153004575	-	Anae109_1712	-	hypothetical protein
1697	 71.60	0	1927881..1929683	+	600	153004576	-	Anae109_1713	-	cytochrome c assembly protein
1698	 76.78	0	1929927..1930994	+	355	153004577	-	Anae109_1714	-	transport-associated
1699	 75.09	0	1931009..1931281	+	90	153004578	-	Anae109_1715	-	transport-associated
1700	 74.37	0	1931480..1932517	-	345	153004579	-	Anae109_1716	-	hypothetical protein
1701	 69.87	0	1932658..1933500	+	280	153004580	-	Anae109_1717	-	hypothetical protein
1702	 70.37	0	1933650..1933946	+	98	153004581	-	Anae109_1718	-	hypothetical protein
1703	 69.41	-1	1934010..1935137	-	375	153004582	-	Anae109_1719	-	phosphoserine aminotransferase
1704	 75.68	0	1935360..1936724	-	454	153004583	-	Anae109_1720	-	major facilitator transporter
1705	 75.74	0	1936721..1937161	-	146	153004584	-	Anae109_1721	-	hypothetical protein
1706	 75.13	0	1937225..1939516	-	763	153004585	-	Anae109_1722	-	GAF sensor signal transduction histidine kinase
1707	 77.87	+1	1939919..1940266	+	115	153004586	-	Anae109_1723	-	BFD/(2Fe-2S)-binding domain-containing protein
1708	 77.28	+1	1940304..1944965	+	1553	153004587	-	Anae109_1724	-	DEAD/DEAH box helicase domain-containing protein
1709	 77.39	+1	1944980..1945828	+	282	153004588	-	Anae109_1725	-	DNA-(apurinic or apyrimidinic site) lyase
1710	 71.49	0	1945813..1946247	+	144	153004589	-	Anae109_1726	-	cupin 2 domain-containing protein
1711	 76.61	0	1946264..1946947	-	227	153004590	-	Anae109_1727	-	Rieske (2Fe-2S) domain-containing protein
1712	 73.29	0	1948002..1948514	+	170	153004591	-	Anae109_1729	-	hypothetical protein
1713	 80.38	+1	1948511..1949203	+	230	153004592	-	Anae109_1730	-	hypothetical protein
1714	 74.37	0	1949225..1950172	-	315	153004593	-	Anae109_1731	-	cation diffusion facilitator family transporter
1715	 68.10	-1	1950297..1951481	-	394	153004594	-	Anae109_1732	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
1716	 74.45	0	1951555..1953327	+	590	153004595	-	Anae109_1733	-	potassium efflux system protein
1717	 69.73	0	1953507..1954256	-	249	153004596	-	Anae109_1734	-	hypothetical protein
1718	 77.71	+1	1954324..1956234	-	636	153004597	-	Anae109_1735	-	SARP family transcriptional regulator
1719	 76.61	0	1956371..1957768	+	465	153004598	-	Anae109_1736	-	TPR repeat-containing protein
1720	 77.11	+1	1957799..1958890	+	363	153004599	-	Anae109_1737	-	Cys/Met metabolism pyridoxal-phosphate-dependent protein
1721	 73.08	0	1959147..1960097	+	316	153004600	-	Anae109_1738	-	Ig domain-containing protein
1722	 78.54	+1	1960121..1960735	-	204	153004601	-	Anae109_1739	-	DTW domain-containing protein
1723	 78.77	+1	1960892..1961494	+	200	153004602	-	Anae109_1740	-	hypothetical protein
1724	 71.22	0	1961491..1961973	+	160	153004603	-	Anae109_1741	-	ybaK/ebsC protein
1725	 71.84	0	1962339..1963634	+	431	153004604	-	Anae109_1742	-	hypothetical protein
1726	 74.43	0	1963870..1964397	+	175	153004605	-	Anae109_1743	-	ribonuclease H
1727	 74.47	0	1964747..1966195	+	482	153004606	-	Anae109_1744	-	aminoacyl-histidine dipeptidase
1728	 73.16	0	1966315..1967469	+	384	153004607	-	Anae109_1745	-	hypothetical protein
1729	 78.23	+1	1967466..1967906	+	146	153004608	-	Anae109_1746	-	peptidoglycan binding domain-containing protein
1730	 73.12	0	1968014..1968199	+	61	153004609	-	Anae109_1747	-	hypothetical protein
1731	 74.80	0	1968297..1968542	+	81	153004610	-	Anae109_1748	-	hypothetical protein
1732	 71.30	0	1968610..1968933	-	107	153004611	-	Anae109_1749	-	peptidylprolyl isomerase FKBP-type
1733	 71.78	0	1969125..1969652	-	175	153004612	-	Anae109_1750	-	rubrerythrin
1734	 76.84	0	1969752..1970822	+	356	153004613	-	Anae109_1751	-	phospholipid/glycerol acyltransferase
1735	 76.58	0	1970798..1971160	-	120	153004614	-	Anae109_1752	-	hypothetical protein
1736	 72.40	0	1971363..1972931	+	522	153004615	-	Anae109_1753	-	putative alpha-isopropylmalate/homocitrate synthase family transferase
1737	 73.62	0	1972928..1973992	+	354	153004616	-	Anae109_1754	-	3-isopropylmalate dehydrogenase
1738	 70.78	0	1974185..1975666	+	493	153004617	-	Anae109_1755	-	peptidase M48 Ste24p
1739	 78.32	+1	1975686..1976663	+	325	153004618	-	Anae109_1756	-	aldo/keto reductase
1740	 74.06	0	1977268..1979337	-	689	153004619	-	Anae109_1757	-	translation elongation factor G
1741	 72.83	0	1979586..1980185	+	199	153004620	-	Anae109_1758	-	hypothetical protein
73.23	MEAN

3.77	STD DEV
