IslandPathversion 1.0

IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

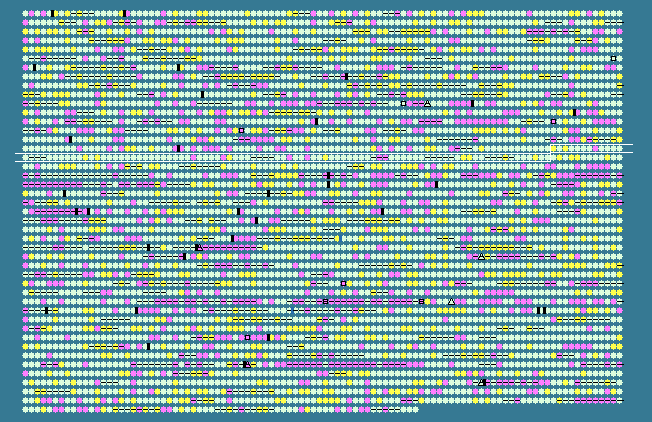

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 73.23 STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1589	 77.04	+1	1806194..1806463	+	89	153004468	-	Anae109_1605	-	FxsA-like protein
1590	 72.80	0	1806652..1808070	+	472	153004469	-	Anae109_1606	-	FAD linked oxidase domain-containing protein
1591	 77.43	+1	1808250..1808816	+	188	153004470	-	Anae109_1607	-	hemerythrin HHE cation binding domain-containing protein
1592	 75.40	0	1808829..1809263	-	144	153004471	-	Anae109_1608	-	hypothetical protein
1593	 76.49	0	1809456..1810076	+	206	153004472	-	Anae109_1609	-	putative RNA methylase
1594	 72.46	0	1810517..1810930	+	137	153004473	-	Anae109_1610	-	hypothetical protein
1595	 70.86	0	1810981..1811409	-	142	153004474	-	Anae109_1611	-	hypothetical protein
1596	 67.50	-1	1811836..1812558	-	240	153004475	-	Anae109_1612	-	hypothetical protein
1597	 74.85	0	1812712..1814973	-	753	153004476	-	Anae109_1613	-	spermine synthase
1598	 74.54	0	1815106..1816401	-	431	153004477	-	Anae109_1614	-	CBS domain-containing protein
1599	 72.45	0	1816462..1817325	+	287	153004478	-	Anae109_1615	-	hypothetical protein
1600	 71.34	0	1817420..1818211	+	263	153004479	-	Anae109_1616	-	dienelactone hydrolase
1601	 73.08	0	1818208..1818987	+	259	153004480	-	Anae109_1617	-	ABC transporter related
1602	 71.36	0	1818984..1819793	+	269	153004481	-	Anae109_1618	-	ABC-2 type transporter
1603	 70.82	0	1819964..1821118	+	384	153004482	-	Anae109_1619	-	alcohol dehydrogenase
1604	 76.39	0	1821154..1821585	+	143	153004483	-	Anae109_1620	-	hypothetical protein
1605	 73.25	0	1821911..1823596	+	561	153004484	-	Anae109_1621	-	hypothetical protein
1606	 74.90	0	1824049..1824813	+	254	153004485	-	Anae109_1622	-	hypothetical protein
1607	 75.34	0	1824823..1825917	-	364	153004486	-	Anae109_1623	-	hypothetical protein
1608	 70.31	0	1826113..1826469	+	118	153004487	-	Anae109_1624	-	hypothetical protein
1609	 74.17	0	1826658..1828016	+	452	153004488	-	Anae109_1625	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1610	 74.63	0	1828129..1829748	+	539	153004489	-	Anae109_1626	-	oxidoreductase
1611	 78.06	+1	1829727..1830902	-	391	153004490	-	Anae109_1627	-	hypothetical protein
1612	 74.07	0	1831046..1831828	-	260	153004491	-	Anae109_1628	-	hypothetical protein
1613	 76.84	0	1832112..1833773	+	553	153004492	-	Anae109_1629	-	para-aminobenzoate synthase, subunit I
1614	 76.64	0	1833777..1834157	-	126	153004493	-	Anae109_1630	-	hypothetical protein
1615	 71.18	0	1834305..1835942	+	545	153004494	-	Anae109_1631	-	ABC transporter related
1616	 73.69	0	1836547..1837713	-	388	153004495	-	Anae109_1632	-	HNH endonuclease
1617	 74.62	0	1838422..1839201	+	259	153004496	-	Anae109_1633	-	hypothetical protein
1618	 73.58	0	1839179..1839583	+	134	153004497	-	Anae109_1634	-	hypothetical protein
1619	 75.73	0	1839580..1840815	+	411	153004498	-	Anae109_1635	-	major facilitator transporter
1620	 73.48	0	1840918..1841709	+	263	153004499	-	Anae109_1636	-	short-chain dehydrogenase/reductase SDR
1621	 71.01	0	1841745..1842158	-	137	153004500	-	Anae109_1637	-	cupin 2 domain-containing protein
1622	 74.37	0	1842379..1843416	-	345	153004501	-	Anae109_1638	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1623	 75.00	0	1843413..1844492	-	359	153004502	-	Anae109_1639	-	sulfate ABC transporter, ATPase subunit
1624	 72.92	0	1844489..1845448	-	319	153004503	-	Anae109_1640	-	sulfate ABC transporter, inner membrane subunit CysW
1625	 73.45	0	1845445..1846284	-	279	153004504	-	Anae109_1641	-	sulfate ABC transporter, inner membrane subunit CysT
1626	 75.23	0	1846281..1847669	-	462	153004505	-	Anae109_1642	-	phosphoadenylyl-sulfate reductase (thioredoxin), adenylyl-sulfate kinase
1627	 71.69	0	1847666..1848940	-	424	153004506	-	Anae109_1643	-	sulfate adenylyltransferase, large subunit
1628	 71.23	0	1848940..1849860	-	306	153004507	-	Anae109_1644	-	sulfate adenylyltransferase subunit 2
1629	 68.46	-1	1850138..1850638	+	166	153004508	-	Anae109_1645	-	bacterio-opsin linked product
1630	 73.85	0	1850709..1852169	-	486	153004509	-	Anae109_1646	-	metallophosphoesterase
1631	 76.07	0	1852303..1852770	+	155	153004510	-	Anae109_1647	-	hypothetical protein
1632	 75.97	0	1852772..1853287	+	171	153004511	-	Anae109_1648	-	hemerythrin HHE cation binding domain-containing protein
1633	 72.12	0	1853385..1855088	+	567	153004512	-	Anae109_1649	-	AMP-dependent synthetase and ligase
1634	 69.51	0	1855212..1856405	+	397	153004513	-	Anae109_1650	-	hypothetical protein
1635	 78.48	+1	1856463..1857224	-	253	153004514	-	Anae109_1651	-	GDSL family lipase
1636	 76.13	0	1857381..1857887	-	168	153004515	-	Anae109_1652	-	GreA/GreB family elongation factor
1637	 73.27	0	1858004..1858684	+	226	153004516	-	Anae109_1653	-	putative alkylated DNA repair protein
1638	 70.11	0	1858706..1859170	-	154	153004517	-	Anae109_1654	-	glyoxalase/bleomycin resistance protein/dioxygenase
1639	 70.40	0	1859389..1860807	+	472	153004518	-	Anae109_1655	-	cytochrome bd ubiquinol oxidase subunit I
1640	 71.33	0	1860807..1861835	+	342	153004519	-	Anae109_1656	-	cytochrome d ubiquinol oxidase, subunit II
1641	 73.24	0	1862612..1863022	+	136	153004520	-	Anae109_1657	-	hypothetical protein
1642	 70.90	0	1863073..1863474	-	133	153004521	-	Anae109_1658	-	hypothetical protein
1643	 70.47	0	1864511..1866322	+	603	153004522	-	Anae109_1659	-	hypothetical protein
1644	 70.39	0	1866528..1867010	+	160	153004523	-	Anae109_1660	-	hypothetical protein
1645	 65.54	-2	1867158..1868489	+	443	153004524	-	Anae109_1661	-	extracellular solute-binding protein
1646	 72.03	0	1868627..1869670	+	347	153004525	-	Anae109_1662	-	ABC transporter related
1647	 70.74	0	1869661..1870593	+	310	153004526	-	Anae109_1663	-	binding-protein-dependent transport systems inner membrane component
1648	 66.78	-1	1870611..1871456	+	281	153004527	-	Anae109_1664	-	binding-protein-dependent transport systems inner membrane component
1649	 75.73	0	1871474..1872952	+	492	153004528	-	Anae109_1665	-	methylmalonate-semialdehyde dehydrogenase
1650	 73.73	0	1873011..1873661	+	216	153004529	-	Anae109_1666	-	NADPH-dependent FMN reductase
1651	 77.69	+1	1873678..1875474	-	598	153004530	-	Anae109_1667	-	UBA/THIF-type NAD/FAD binding protein
1652	 72.31	0	1875693..1876082	-	129	153004531	-	Anae109_1668	-	hypothetical protein
1653	 74.43	0	1876247..1877869	+	540	153004532	-	Anae109_1669	-	hemerythrin HHE cation binding domain-containing protein
1654	 76.04	0	1878029..1878508	-	159	153004533	-	Anae109_1670	-	outer membrane lipoprotein, putative
1655	 76.37	0	1878778..1881045	+	755	153004534	-	Anae109_1671	-	histidine kinase
1656	 75.51	0	1881042..1881776	-	244	153004535	-	Anae109_1672	-	phosphoesterase PA-phosphatase related
1657	 73.57	0	1881990..1882496	-	168	153004536	-	Anae109_1673	-	blue (type1) copper domain-containing protein
1658	 74.17	0	1882734..1883519	-	261	153004537	-	Anae109_1674	-	3-hydroxybutyrate dehydrogenase
1659	 71.43	0	1883516..1884460	-	314	153004538	-	Anae109_1675	-	inner-membrane translocator
1660	 69.21	-1	1884457..1885320	-	287	153004539	-	Anae109_1676	-	inner-membrane translocator
1661	 68.64	-1	1885327..1886541	-	404	153004540	-	Anae109_1677	-	ABC branched-chain amino acid transporter, periplasmic ligand biinding protein
1662	 72.92	0	1886564..1887283	-	239	153004541	-	Anae109_1678	-	ABC transporter related
1663	 73.31	0	1887280..1888032	-	250	153004542	-	Anae109_1679	-	ABC transporter related
1664	 73.60	0	1888302..1892093	-	1263	153004543	-	Anae109_1680	-	cell wall/surface repeat-containing protein
1665	 72.03	0	1892447..1893397	-	316	153004544	-	Anae109_1681	-	aldo/keto reductase
1666	 73.47	0	1893613..1894185	-	190	153004545	-	Anae109_1682	-	hypothetical protein
1667	 71.46	0	1894185..1895039	-	284	153004546	-	Anae109_1683	-	metallophosphoesterase
1668	 75.30	0	1895389..1895805	+	138	153004547	-	Anae109_1684	-	GreA/GreB family elongation factor
1669	 74.41	0	1895840..1896304	-	154	153004548	-	Anae109_1685	-	hemerythrin HHE cation binding domain-containing protein
1670	 73.13	0	1896298..1896993	-	231	153004549	-	Anae109_1686	-	hypothetical protein
1671	 75.65	0	1897105..1898106	+	333	153004550	-	Anae109_1687	-	sigma-54 dependent trancsriptional regulator
1672	 73.24	0	1898157..1898795	+	212	153004551	-	Anae109_1688	-	hypothetical protein
1673	 74.18	0	1898782..1899420	+	212	153004552	-	Anae109_1689	-	hypothetical protein
1674	 78.99	+1	1899515..1900861	+	448	153004553	-	Anae109_1690	-	outer membrane efflux protein
1675	 77.28	+1	1900858..1901865	+	335	153004554	-	Anae109_1691	-	RND family efflux transporter MFP subunit
1676	 73.16	0	1901862..1905218	+	1118	153004555	-	Anae109_1692	-	acriflavin resistance protein
1677	 71.30	0	1905364..1905687	-	107	153004556	-	Anae109_1693	-	carboxymuconolactone decarboxylase
1678	 76.22	0	1905818..1906843	-	341	153004557	-	Anae109_1694	-	ABC transporter related
1679	 76.62	0	1906840..1907643	-	267	153004558	-	Anae109_1695	-	binding-protein-dependent transport systems inner membrane component
1680	 76.26	0	1907640..1908515	-	291	153004559	-	Anae109_1696	-	binding-protein-dependent transport systems inner membrane component
1681	 77.38	+1	1908512..1909855	-	447	153004560	-	Anae109_1697	-	extracellular solute-binding protein
1682	 74.47	0	1910121..1910402	-	93	153004561	-	Anae109_1698	-	YciI-like protein
1683	 75.90	0	1910420..1911004	-	194	153004562	-	Anae109_1699	-	pyridoxal 5'-phosphate synthase
1684	 73.69	0	1912003..1913169	+	388	153004563	-	Anae109_1700	-	HNH endonuclease
1685	 75.82	0	1913462..1914007	+	181	153004564	-	Anae109_1701	-	hypothetical protein
1686	 78.18	+1	1913925..1915400	-	491	153004565	-	Anae109_1702	-	TPR repeat-containing protein
1687	 74.45	0	1915557..1916417	-	286	153004566	-	Anae109_1703	-	coproporphyrinogen III oxidase
1688	 71.21	0	1916653..1918281	+	542	153004567	-	Anae109_1704	-	peptide chain release factor 3
73.23	MEAN

3.77	STD DEV
