IslandPath Analysis: Anaeromyxobacter sp. Fw109-5

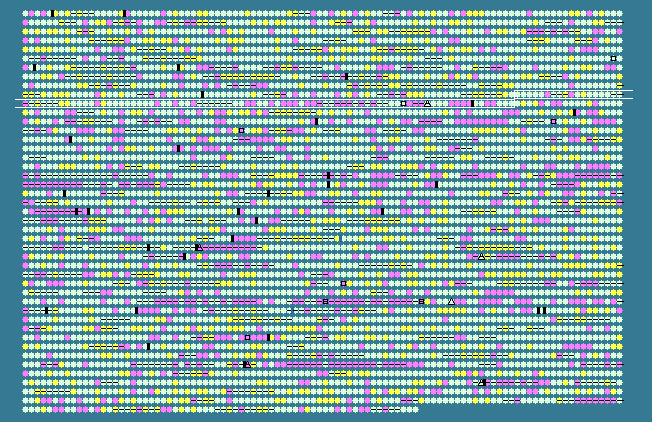

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 73.23   STD DEV: 3.77
Anaeromyxobacter sp. Fw109-5, complete genome - 1..5277990
4466 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
983	 72.51	0	1130356..1130817	-	153	153003862	-	Anae109_0994	-	HNH nuclease
984	 75.52	0	1130866..1132029	-	387	153003863	-	Anae109_0995	-	LigA
985	 70.80	0	1132164..1132598	+	144	153003864	-	Anae109_0996	-	hypothetical protein
986	 74.54	0	1132729..1133757	+	342	153003865	-	Anae109_0997	-	Holliday junction DNA helicase B
987	 73.45	0	1134122..1135285	-	387	153003866	-	Anae109_0998	-	HNH endonuclease
988	 68.87	-1	1135423..1135740	-	105	153003867	-	Anae109_0999	-	hypothetical protein
989	 69.89	0	1135891..1136634	-	247	153003868	-	Anae109_1000	-	rhomboid family protein
990	 71.91	0	1136924..1137838	+	304	153003869	-	Anae109_1001	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
991	 77.08	+1	1137845..1138084	+	79	153003870	-	Anae109_1002	-	hypothetical protein
992	 68.79	-1	1138351..1138821	-	156	153003871	-	Anae109_1003	-	cyclase/dehydrase
993	 70.83	0	1139083..1139322	+	79	153003872	-	Anae109_1004	-	hypothetical protein
994	 77.63	+1	1139379..1139843	-	154	153003873	-	Anae109_1005	-	hypothetical protein
995	 71.56	0	1139840..1140289	-	149	153003874	-	Anae109_1006	-	hypothetical protein
996	 71.02	0	1140405..1141322	-	305	153003875	-	Anae109_1007	-	DNA polymerase LigD polymerase subunit
997	 73.00	0	1141418..1142317	-	299	153003876	-	Anae109_1008	-	Ku family containing protein
998	 72.12	0	1142704..1143033	-	109	153003877	-	Anae109_1009	-	hypothetical protein
999	 71.29	0	1143274..1144548	-	424	153003878	-	Anae109_1010	-	acetyl-CoA hydrolase/transferase
1000	 76.26	0	1144635..1145405	-	256	153003879	-	Anae109_1011	-	hypothetical protein
1001	 68.04	-1	1145475..1145837	-	120	153003880	-	Anae109_1012	-	response regulator receiver protein
1002	 75.75	0	1145980..1146750	+	256	153003881	-	Anae109_1013	-	hypothetical protein
1003	 77.26	+1	1146999..1148405	-	468	153003882	-	Anae109_1014	-	phosphoribosyltransferase
1004	 75.94	0	1148655..1150832	+	725	153003883	-	Anae109_1015	-	copper-translocating P-type ATPase
1005	 74.36	0	1151024..1152349	+	441	153003884	-	Anae109_1016	-	integral membrane sensor signal transduction histidine kinase
1006	 74.11	0	1152324..1153706	+	460	153003885	-	Anae109_1017	-	two component, sigma54 specific, Fis family transcriptional regulator
1007	 78.12	+1	1153891..1154466	+	191	153003886	-	Anae109_1018	-	hypothetical protein
1008	 78.59	+1	1154499..1155479	-	326	153003887	-	Anae109_1019	-	hypothetical protein
1009	 74.20	0	1155509..1156105	-	198	153003888	-	Anae109_1020	-	TetR family transcriptional regulator
1010	 72.01	0	1156369..1156986	+	205	153003889	-	Anae109_1021	-	hypothetical protein
1011	 76.55	0	1157107..1158411	+	434	153003890	-	Anae109_1022	-	outer membrane efflux protein
1012	 73.00	0	1158578..1159714	+	378	153003891	-	Anae109_1023	-	RND family efflux transporter MFP subunit
1013	 69.04	-1	1159730..1162843	+	1037	153003892	-	Anae109_1024	-	acriflavin resistance protein
1014	 77.87	+1	1162840..1164339	-	499	153003893	-	Anae109_1025	-	GntR family transcriptional regulator
1015	 74.07	0	1164361..1164711	-	116	153003894	-	Anae109_1026	-	hypothetical protein
1016	 76.57	0	1164784..1165752	+	322	153003895	-	Anae109_1027	-	histidine kinase
1017	 75.40	0	1165700..1167622	-	640	153003896	-	Anae109_1028	-	sulfatase
1018	 75.06	0	1167726..1168607	-	293	153003897	-	Anae109_1029	-	UspA domain-containing protein
1019	 71.86	0	1168724..1169956	-	410	153003898	-	Anae109_1030	-	glucose sorbosone dehydrogenase
1020	 76.33	0	1170062..1170589	-	175	153003899	-	Anae109_1031	-	hypothetical protein
1021	 74.61	0	1170694..1173816	+	1040	153003900	-	Anae109_1032	-	spermine synthase
1022	 73.60	0	1173857..1175530	-	557	153003901	-	Anae109_1033	-	multi-sensor signal transduction histidine kinase
1023	 69.29	-1	1175692..1176186	-	164	153003902	-	Anae109_1034	-	flavin reductase domain-containing protein
1024	 72.02	0	1176345..1176998	+	217	153003903	-	Anae109_1035	-	hypothetical protein
1025	 73.92	0	1177467..1177838	+	123	153003904	-	Anae109_1036	-	dinitrogenase iron-molybdenum cofactor biosynthesis protein
1026	 67.58	-1	1177961..1178287	-	108	153003905	-	Anae109_1037	-	zinc finger, UBP-type
1027	 71.86	0	1178605..1179816	-	403	153003906	-	Anae109_1038	-	hypothetical protein
1028	 69.81	0	1179835..1180407	-	190	153003907	-	Anae109_1039	-	TetR family transcriptional regulator
1029	 67.67	-1	1181034..1183028	+	664	153003908	-	Anae109_1040	-	PAS/PAC sensor hybrid histidine kinase
1030	 69.83	0	1183149..1184507	-	452	153003909	-	Anae109_1041	-	TrkA domain-containing protein
1031	 70.04	0	1184512..1186113	-	533	153003910	-	Anae109_1042	-	cation transporter
1032	 71.63	0	1186389..1187093	-	234	153003911	-	Anae109_1043	-	ABC transporter related
1033	 71.57	0	1187095..1188297	-	400	153003912	-	Anae109_1044	-	hypothetical protein
1034	 75.96	0	1188294..1189487	-	397	153003913	-	Anae109_1045	-	RND family efflux transporter MFP subunit
1035	 72.77	0	1189484..1190089	-	201	153003914	-	Anae109_1046	-	TetR family transcriptional regulator
1036	 72.40	0	1190290..1190760	+	156	153003915	-	Anae109_1047	-	hypothetical protein
1037	 72.33	0	1190791..1191249	+	152	153003916	-	Anae109_1048	-	hypothetical protein
1038	 66.87	-1	1191252..1191737	+	161	153003917	-	Anae109_1049	-	hypothetical protein
1039	 69.26	-1	1192078..1193040	+	320	153003918	-	Anae109_1050	-	alcohol dehydrogenase
1040	 75.02	0	1193063..1194367	-	434	153003919	-	Anae109_1051	-	NADH dehydrogenase
1041	 70.64	0	1194723..1195049	-	108	153003920	-	Anae109_1052	-	hypothetical protein
1042	 69.42	-1	1195143..1195433	-	96	153003921	-	Anae109_1053	-	hypothetical protein
1043	 72.16	0	1195430..1196176	-	248	153003922	-	Anae109_1054	-	oxidoreductase FAD/NAD(P)-binding subunit
1044	 66.50	-1	1196180..1196788	-	202	153003923	-	Anae109_1055	-	oxidoreductase molybdopterin binding
1045	 67.40	-1	1197408..1198088	-	226	153003924	-	Anae109_1057	-	glyoxalase/bleomycin resistance protein/dioxygenase
1046	 69.05	-1	1198150..1199574	-	474	153003925	-	Anae109_1058	-	epocide hydrolase domain-containing protein
1047	 69.86	0	1199856..1200920	-	354	153003926	-	Anae109_1059	-	alpha/beta hydrolase fold
1048	 67.42	-1	1201037..1201303	+	88	153003927	-	Anae109_1060	-	hypothetical protein
1049	 67.77	-1	1201535..1203343	+	602	153003928	-	Anae109_1061	-	sigma-54 dependent trancsriptional regulator
1050	 69.21	-1	1203392..1204297	-	301	153003929	-	Anae109_1062	-	hypothetical protein
1051	 71.37	0	1204294..1204548	-	84	153003930	-	Anae109_1063	-	hypothetical protein
1052	 70.19	0	1204562..1205128	-	188	153003931	-	Anae109_1064	-	activator of Hsp90 ATPase 1 family protein
1053	 66.67	-1	1205125..1205499	-	124	153003932	-	Anae109_1065	-	regulatory protein ArsR
1054	 67.83	-1	1205826..1208564	-	912	153003933	-	Anae109_1066	-	hypothetical protein
1055	 59.26	-2	1208970..1209320	+	116	153003934	-	Anae109_1067	-	hypothetical protein
1056	 71.47	0	1209714..1210067	+	117	153003935	-	Anae109_1068	-	DNA binding domain-containing protein
1057	 66.97	-1	1210114..1210770	-	218	153003936	-	Anae109_1069	-	hypothetical protein
1058	 71.89	0	1210794..1211693	-	299	153003937	-	Anae109_1070	-	hypothetical protein
1059	 69.26	-1	1211690..1212268	-	192	153003938	-	Anae109_1071	-	hypothetical protein
1060	 74.20	0	1212426..1213991	+	521	153003939	-	Anae109_1072	-	hypothetical protein
1061	 74.54	0	1213988..1215295	+	435	153003940	-	Anae109_1073	-	hypothetical protein
1062	 74.90	0	1215292..1219455	+	1387	153003941	-	Anae109_1074	-	hypothetical protein
1063	 72.56	0	1219452..1220792	+	446	153003942	-	Anae109_1075	-	hypothetical protein
1064	 71.16	0	1221060..1222238	+	392	153003943	-	Anae109_1076	-	transposase mutator type
1065	 63.42	-2	1222259..1222597	+	112	153003944	-	Anae109_1077	-	hypothetical protein
1066	 68.26	-1	1222718..1223470	+	250	153003945	-	Anae109_1078	-	hypothetical protein
1067	 66.36	-1	1223691..1224020	+	109	153003946	-	Anae109_1079	-	hypothetical protein
1068	 72.39	0	1224274..1225722	+	482	153003947	-	Anae109_1080	-	phage integrase family protein
1069	 74.70	0	1226164..1226412	+	82	153003948	-	Anae109_1081	-	phage transcriptional regulator, AlpA
1070	 73.75	0	1226412..1227329	+	305	153003949	-	Anae109_1082	-	hypothetical protein
1071	 70.39	0	1227330..1228001	+	223	153003950	-	Anae109_1083	-	hypothetical protein
1072	 67.21	-1	1228325..1229239	-	304	153003951	-	Anae109_1084	-	restriction endonuclease
1073	 69.70	0	1229779..1230801	+	340	153003952	-	Anae109_1085	-	hypothetical protein
1074	 68.56	-1	1230839..1231684	+	281	153003953	-	Anae109_1086	-	hypothetical protein
1075	 69.43	-1	1231744..1232286	-	180	153003954	-	Anae109_1087	-	hypothetical protein
1076	 72.04	0	1232761..1233318	-	185	153003955	-	Anae109_1088	-	isochorismatase hydrolase
1077	 75.14	0	1233376..1235028	-	550	153003956	-	Anae109_1089	-	thiamine pyrophosphate protein central region
1078	 67.99	-1	1235124..1235426	-	100	153003957	-	Anae109_1090	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1079	 66.67	-1	1235608..1235796	-	62	153003958	-	Anae109_1091	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1080	 76.12	0	1235938..1236318	-	126	153003959	-	Anae109_1092	-	hypothetical protein
1081	 71.84	0	1236388..1237218	+	276	153003960	-	Anae109_1093	-	ribosomal RNA methyltransferase RrmJ/FtsJ
1082	 70.26	0	1237443..1238693	-	416	153003961	-	Anae109_1094	-	tyrosyl-tRNA synthetase
73.23	MEAN

3.77	STD DEV
