IslandPath Analysis: Anaplasma marginale str. St. Maries

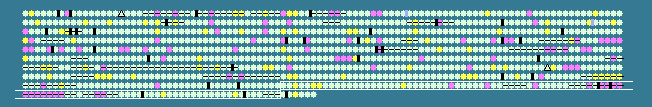

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 49.65   STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
844	 46.97	0	1082130..1084724	-	864	56417214	polA	AM1214	-	DNA polymerase I
845	 52.45	0	1085541..1085927	+	128	56417215	-	AM1216	-	hypothetical protein
846	 53.91	+1	1085950..1086858	+	302	56417216	argF	AM1217	-	ornithine carbamoyltransferase
847	 47.13	0	1086868..1087983	+	371	56417217	recF	AM1218	-	recombination protein F
848	 46.75	-1	1087980..1088441	-	153	56417218	omp6	AM1219	-	outer membrane protein 6
849	 53.65	+1	1088481..1089671	-	396	56417219	omp7	AM1220	-	outer membrane protein 7
850	 53.33	+1	1089736..1090935	-	399	56417220	omp8	AM1221	-	outer membrane protein 8
851	 52.97	+1	1090999..1092210	-	403	56417221	omp9	AM1222	-	outer membrane protein 9
852	 52.10	0	1092273..1093535	-	420	56417222	omp10	AM1223	-	outer membrane protein 10
853	 52.49	0	1093976..1094518	-	180	56417223	-	AM1225	-	hypothetical protein
854	 51.17	0	1094876..1095514	+	212	56417224	-	AM1226	-	hypothetical protein
855	 48.05	0	1095979..1096902	-	307	56417225	-	AM1228	-	hypothetical protein
856	 47.62	0	1097053..1098417	-	454	56417226	mviN	AM1229	-	virulence factor MVIN
857	 50.35	0	1098643..1099500	+	285	56417227	lgt	AM1231	-	prolipoprotein diacylglyceryl transferase
858	 50.93	0	1099740..1099955	+	71	56417228	-	AM1232	-	hypothetical protein
859	 47.77	0	1100204..1100494	-	96	161544978	rpsT	AM1233	-	30S ribosomal protein S20
860	 47.52	0	1100613..1101338	-	241	56417230	plsC	AM1235	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
861	 49.64	0	1101370..1101927	+	185	56417231	def	AM1236	-	N-formylmethionylaminoacyl-tRNA deformylase
862	 52.12	0	1102174..1103046	+	290	56417232	-	AM1237	-	hypothetical protein
863	 49.52	0	1103188..1103916	+	242	56417233	-	AM1238	-	hypothetical protein
864	 54.39	+1	1104007..1104234	-	75	56417234	-	AM1239	-	hypothetical protein
865	 48.79	0	1104293..1104499	-	68	56417235	-	AM1240	-	hypothetical protein
866	 46.67	-1	1104735..1105244	-	169	56417236	-	AM1241	-	hypothetical protein
867	 48.92	0	1105289..1106398	-	369	56417237	-	AM1242	-	hypothetical protein
868	 47.44	0	1106811..1108766	-	651	56417238	uvrB	AM1243	-	excinuclease ABC subunit B
869	 46.95	0	1108831..1110336	+	501	56417239	secD	AM1245	-	preprotein translocase subunit SecD
870	 50.71	0	1110826..1112649	+	607	56417240	-	AM1248	-	hypothetical protein
871	 47.01	0	1113315..1113548	+	77	56417241	orfY	AM1251	-	ORF Y
872	 45.13	-1	1113621..1114010	+	129	56417242	orfX	AM1253	-	ORF X
873	 51.11	0	1114075..1115559	-	494	56417243	-	AM1254	-	hypothetical protein
874	 52.32	0	1115669..1116658	-	329	56417244	omp11	AM1255	-	outer membrane protein 11
875	 48.60	0	1116852..1117709	-	285	56417245	omp12	AM1257	-	outer membrane protein 12
876	 52.79	+1	1117917..1118975	-	352	56417246	omp13	AM1258	-	outer membrane protein 13
877	 51.20	0	1119261..1120514	+	417	56417247	ftsZ	AM1261	-	cell division protein FtsZ
878	 44.52	-1	1120891..1121355	+	154	56417248	-	AM1264	-	hypothetical protein
879	 46.45	-1	1121429..1122244	+	271	56417249	parA	AM1266	-	chromosome partitioning protein
880	 48.55	0	1122241..1123068	+	275	56417250	parB	AM1267	-	chromosome partitioning protein
881	 49.39	0	1123080..1123652	+	190	56417251	rimM	AM1269	-	16S rRNA processing protein
882	 49.15	0	1123649..1124356	+	235	56417252	trmD	AM1270	-	tRNA (guanine-N1)-methyltransferase
883	 47.16	0	1124349..1124753	+	134	56417253	rplS	AM1271	-	50S ribosomal protein L19
884	 48.85	0	1124760..1125281	-	173	56417254	cinA	AM1272	-	competence / damage-inducible protein
885	 46.26	-1	1125347..1127257	+	636	56417255	thrS	AM1273	-	threonyl-tRNA synthetase
886	 43.82	-2	1127287..1127820	+	177	56417256	infC	AM1274	-	translation initiation factor IF-3
887	 51.32	0	1128227..1128682	-	151	56417257	-	AM1275	-	hypothetical protein
888	 50.85	0	1128686..1129387	-	233	56417258	-	AM1276	-	hypothetical protein
889	 48.96	0	1129505..1130515	-	336	56417259	asd	AM1277	-	aspartate-semialdehyde dehydrogenase
890	 48.54	0	1130517..1130825	-	102	56417260	-	AM1278	-	hypothetical protein
891	 49.89	0	1130831..1132255	-	474	56417261	dnaZ	AM1280	-	DNA polymerase III gamma subunit
892	 47.16	0	1132441..1133445	-	334	56417262	gapB	AM1283	-	NAD(P)-dependent glyceraldehyde 3-phosphate dehydrogenase
893	 48.25	0	1133834..1134778	+	314	56417263	-	AM1285	-	hypothetical protein
894	 50.23	0	1134794..1135450	+	218	56417264	-	AM1286	-	isoprenoid biosynthesis protein
895	 44.04	-1	1135475..1136632	-	385	56417265	ftsW	AM1287	-	cell division protein
896	 47.46	0	1136614..1137816	-	400	56417266	metK	AM1288	-	S-adenosylmethionine synthetase
897	 44.39	-1	1138038..1139204	+	388	56417267	ubiH	AM1289	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
898	 39.41	-2	1139216..1139824	-	202	56417268	-	AM1292	-	hypothetical protein
899	 43.66	-2	1140100..1140951	+	283	56417269	glyQ	AM1294	-	glycyl-tRNA synthetase subunit alpha
900	 39.71	-2	1140953..1143037	+	694	56417270	glyS	AM1295	-	glycyl-tRNA synthetase beta chain
901	 41.84	-2	1143119..1144258	+	379	56417271	dnaJ	AM1296	-	DNAJ protein
902	 36.87	-2	1144277..1145095	-	272	56417272	nadC	AM1297	-	nicotinate-nucleotide pyrophosphorylase
903	 33.50	-2	1145154..1145750	+	198	56417273	-	AM1298	-	hypothetical protein
904	 38.96	-2	1145742..1146239	-	165	56417274	ruvC	AM1299	-	holliday (crossover) junction endodeoxyribonuclease
905	 38.71	-2	1146258..1147076	-	272	56417275	coxC	AM1300	-	cytochrome C oxidase subunit III
906	 39.60	-2	1147146..1147943	-	265	56417276	hemE	AM1301	-	uroporphyrinogen decarboxylase
907	 44.56	-1	1148564..1149445	+	293	56417277	-	AM1303	-	hypothetical protein
908	 48.17	0	1149432..1149950	-	172	56417278	-	AM1304	-	hypothetical protein
909	 48.87	0	1149934..1151130	-	398	161544977	-	AM1305	-	hypothetical protein
910	 47.94	0	1151233..1152033	+	266	56417280	-	AM1306	-	hypothetical protein
911	 46.50	-1	1152053..1153009	+	318	56417281	nadA	AM1307	-	quinolinate synthetase
912	 47.04	0	1153031..1153402	-	123	56417282	fdxA	AM1309	-	ferredoxin II
913	 45.99	-1	1153528..1154499	+	323	56417283	ilvC	AM1310	-	ketol-acid reductoisomerase
914	 40.70	-2	1154526..1154783	-	85	56417284	infC	AM1311	-	translation initiation factor IF-3
915	 49.24	0	1154957..1157377	-	806	56417285	virD4	AM1312	-	VirD4 protein
916	 50.30	0	1157425..1158438	-	337	56417286	virB11	AM1313	-	VirB11 protein
917	 50.52	0	1158480..1159817	-	445	56417287	virB10	AM1314	-	VirB10 protein
918	 47.98	0	1159825..1160664	-	279	56417288	virB9	AM1315	-	VirB9 protein
919	 46.23	-1	1160651..1161340	-	229	56417289	virB8	AM1316	-	VirB8 protein
920	 49.91	0	1161459..1162592	-	377	56417290	ribA	AM1317	-	GTP cyclohydrolase II
921	 48.87	0	1162709..1163950	-	413	56417291	-	AM1319	-	hypothetical protein
922	 52.46	0	1163892..1164419	-	175	56417292	-	AM1320	-	hypothetical protein
923	 51.80	0	1164480..1165313	-	277	56417293	dapF	AM1323	-	diaminopimelate epimerase
924	 56.76	+2	1165325..1166041	-	238	56417294	-	AM1324	-	hypothetical protein
925	 48.72	0	1166183..1166611	-	142	56417295	-	AM1325	-	hypothetical protein
926	 50.95	0	1167047..1168204	+	385	56417296	pgk	AM1326	-	phosphoglycerate kinase
927	 48.74	0	1168396..1169589	-	397	56417297	xseA	AM1327	-	exodeoxyribonuclease large subunit
928	 47.23	0	1169564..1170232	-	222	56417298	-	AM1328	-	hypothetical protein
929	 52.09	0	1170411..1171247	+	278	161544976	dapD	AM1331	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
930	 49.32	0	1171248..1172579	+	443	56417300	trmE	AM1332	-	tRNA modification GTPase TrmE
931	 50.54	0	1172736..1173293	-	185	56417301	dfp	AM1335	-	phosphopantothenoylcysteine decarboxylase
932	 49.48	0	1173303..1175402	+	699	56417302	recG	AM1336	-	ATP-dependent DNA helicase
933	 51.38	0	1175585..1176565	+	326	56417303	-	AM1337	-	hypothetical protein
934	 51.84	0	1176700..1178109	-	469	56417304	purF	AM1338	-	amidophosphoribosyltransferase
935	 51.52	0	1178260..1178820	-	186	56417305	pth	AM1339	-	peptidyl-tRNA hydrolase
936	 53.58	+1	1178825..1179481	-	218	56417306	rplY	AM1340	-	50S ribosomal protein L25/general stress protein Ctc
937	 47.95	0	1179523..1179741	-	72	56417307	-	AM1341	-	hypothetical protein
938	 52.67	+1	1183255..1184004	-	249	56417308	-	AM1346	-	hypothetical protein
939	 52.29	0	1183943..1185145	-	400	56417309	dapE	AM1347	-	succinyl-diaminopimelate desuccinylase
940	 51.42	0	1185315..1187006	-	563	56417310	kefB	AM1348	-	glutathione-regulated potassium-efflux system protein
941	 52.84	+1	1187020..1187583	-	187	56417311	-	AM1349	-	hypothetical protein
942	 47.20	0	1187811..1188257	-	148	56417312	-	AM1350	-	hypothetical protein
943	 52.73	+1	1188388..1189413	-	341	56417313	pdhB	AM1351	-	pyruvate dehydrogenase subunit beta
49.65	MEAN

2.84	STD DEV
