IslandPath Analysis: Anaplasma marginale str. St. Maries

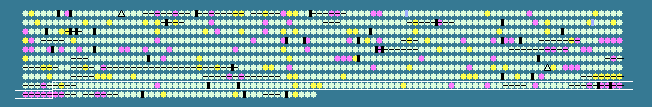

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
806	 53.00	+1	1039207..1039857	-	216	56417176	omp3	AM1159	-	outer membrane protein 3
807	 54.32	+1	1039827..1040150	+	107	56417177	-	AM1161	-	hypothetical protein
808	 48.03	0	1040420..1041637	+	405	56417178	omp4	AM1164	-	outer membrane protein 4
809	 46.99	0	1041615..1041863	+	82	56417179	-	AM1165	-	hypothetical protein
810	 52.19	0	1041982..1043100	+	372	56417180	omp5	AM1166	-	outer membrane protein 5
811	 47.55	0	1043468..1044283	-	271	56417181	-	AM1168	-	hypothetical protein
812	 48.88	0	1044334..1046256	-	640	56417182	ccmF	AM1169	-	cytochrome c-type biogenesis protein
813	 49.56	0	1046615..1049086	+	823	56417183	valS	AM1170	-	valyl-tRNA synthetase
814	 48.22	0	1049982..1050431	-	149	56417184	smpB	AM1171	-	SsrA-binding protein
815	 50.55	0	1050434..1051066	-	210	56417185	ribA	AM1172	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
816	 46.29	-1	1051085..1051609	-	174	56417186	greA	AM1173	-	transcription elongation factor greA
817	 50.92	0	1051606..1053129	-	507	56417187	atpA	AM1174	-	F0F1 ATP synthase subunit alpha
818	 51.13	0	1053149..1053721	-	190	56417188	atpH	AM1175	-	ATP synthase delta chain
819	 46.83	0	1054297..1054548	-	83	56417189	-	AM1179	-	hypothetical protein
820	 48.91	0	1054552..1055790	-	412	56417190	-	AM1180	-	hypothetical protein
821	 47.94	0	1055787..1056539	-	250	56417191	-	AM1181	-	hypothetical protein
822	 46.37	-1	1056544..1057770	-	408	56417192	-	AM1183	-	hypothetical protein
823	 44.48	-1	1058051..1059100	+	349	56417193	-	AM1185	-	hypothetical protein
824	 49.11	0	1059095..1060324	-	409	56417194	-	AM1186	-	hypothetical protein
825	 50.48	0	1060680..1061933	-	417	56417195	gltA	AM1187	-	citrate synthase
826	 50.82	0	1061970..1063559	-	529	56417196	guaA	AM1188	-	bifunctional GMP synthase/glutamine amidotransferase protein
827	 52.81	+1	1063676..1063906	-	76	56417197	-	AM1189	-	hypothetical protein
828	 51.52	0	1064038..1064433	+	131	56417198	-	AM1191	-	hypothetical protein
829	 52.00	0	1065049..1066350	+	433	56417199	pdhC	AM1192	-	branched-chain alpha-keto acid dehydrogenase subunit E2
830	 49.41	0	1066507..1066761	-	84	56417200	-	AM1193	-	hypothetical protein
831	 52.00	0	1066669..1067568	+	299	161544979	fbaB	AM1194	-	fructose-bisphosphate aldolase
832	 48.39	0	1067822..1069627	-	601	56417202	pbpA1	AM1196	-	penicillin-binding protein
833	 49.15	0	1069608..1070543	-	311	56417203	secF	AM1197	-	preprotein translocase subunit SecF
834	 50.92	0	1070689..1071069	+	126	56417204	-	AM1200	-	hypothetical protein
835	 48.26	0	1071072..1072304	-	410	56417205	hemA	AM1202	-	5-aminolevulinate synthase
836	 51.16	0	1072474..1073718	-	414	56417206	tyrS	AM1205	-	tyrosyl-tRNA synthetase
837	 49.61	0	1074028..1075434	+	468	56417207	glnA	AM1206	-	glutamine synthetase
838	 46.65	-1	1075445..1076473	+	342	56417208	mraY1	AM1207	-	phospho-n-acetylmuramoyl-pentapeptide-transferase
839	 47.46	0	1076483..1077466	+	327	56417209	ispB	AM1208	-	octaprenyl-diphosphate synthase
840	 49.52	0	1077541..1079622	-	693	56417210	-	AM1209	-	hypothetical protein
841	 49.58	0	1079749..1080468	-	239	56417211	mkl	AM1210	-	ribonucleotide transport ATP-binding protein
842	 49.87	0	1080473..1081252	-	259	56417212	-	AM1212	-	hypothetical protein
843	 48.40	0	1081271..1082053	-	260	56417213	rpe	AM1213	-	ribulose-phosphate 3-epimerase
844	 46.97	0	1082130..1084724	-	864	56417214	polA	AM1214	-	DNA polymerase I
845	 52.45	0	1085541..1085927	+	128	56417215	-	AM1216	-	hypothetical protein
846	 53.91	+1	1085950..1086858	+	302	56417216	argF	AM1217	-	ornithine carbamoyltransferase
847	 47.13	0	1086868..1087983	+	371	56417217	recF	AM1218	-	recombination protein F
848	 46.75	-1	1087980..1088441	-	153	56417218	omp6	AM1219	-	outer membrane protein 6
849	 53.65	+1	1088481..1089671	-	396	56417219	omp7	AM1220	-	outer membrane protein 7
850	 53.33	+1	1089736..1090935	-	399	56417220	omp8	AM1221	-	outer membrane protein 8
851	 52.97	+1	1090999..1092210	-	403	56417221	omp9	AM1222	-	outer membrane protein 9
852	 52.10	0	1092273..1093535	-	420	56417222	omp10	AM1223	-	outer membrane protein 10
853	 52.49	0	1093976..1094518	-	180	56417223	-	AM1225	-	hypothetical protein
854	 51.17	0	1094876..1095514	+	212	56417224	-	AM1226	-	hypothetical protein
855	 48.05	0	1095979..1096902	-	307	56417225	-	AM1228	-	hypothetical protein
856	 47.62	0	1097053..1098417	-	454	56417226	mviN	AM1229	-	virulence factor MVIN
857	 50.35	0	1098643..1099500	+	285	56417227	lgt	AM1231	-	prolipoprotein diacylglyceryl transferase
858	 50.93	0	1099740..1099955	+	71	56417228	-	AM1232	-	hypothetical protein
859	 47.77	0	1100204..1100494	-	96	161544978	rpsT	AM1233	-	30S ribosomal protein S20
860	 47.52	0	1100613..1101338	-	241	56417230	plsC	AM1235	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
861	 49.64	0	1101370..1101927	+	185	56417231	def	AM1236	-	N-formylmethionylaminoacyl-tRNA deformylase
862	 52.12	0	1102174..1103046	+	290	56417232	-	AM1237	-	hypothetical protein
863	 49.52	0	1103188..1103916	+	242	56417233	-	AM1238	-	hypothetical protein
864	 54.39	+1	1104007..1104234	-	75	56417234	-	AM1239	-	hypothetical protein
865	 48.79	0	1104293..1104499	-	68	56417235	-	AM1240	-	hypothetical protein
866	 46.67	-1	1104735..1105244	-	169	56417236	-	AM1241	-	hypothetical protein
867	 48.92	0	1105289..1106398	-	369	56417237	-	AM1242	-	hypothetical protein
868	 47.44	0	1106811..1108766	-	651	56417238	uvrB	AM1243	-	excinuclease ABC subunit B
869	 46.95	0	1108831..1110336	+	501	56417239	secD	AM1245	-	preprotein translocase subunit SecD
870	 50.71	0	1110826..1112649	+	607	56417240	-	AM1248	-	hypothetical protein
871	 47.01	0	1113315..1113548	+	77	56417241	orfY	AM1251	-	ORF Y
872	 45.13	-1	1113621..1114010	+	129	56417242	orfX	AM1253	-	ORF X
873	 51.11	0	1114075..1115559	-	494	56417243	-	AM1254	-	hypothetical protein
874	 52.32	0	1115669..1116658	-	329	56417244	omp11	AM1255	-	outer membrane protein 11
875	 48.60	0	1116852..1117709	-	285	56417245	omp12	AM1257	-	outer membrane protein 12
876	 52.79	+1	1117917..1118975	-	352	56417246	omp13	AM1258	-	outer membrane protein 13
877	 51.20	0	1119261..1120514	+	417	56417247	ftsZ	AM1261	-	cell division protein FtsZ
878	 44.52	-1	1120891..1121355	+	154	56417248	-	AM1264	-	hypothetical protein
879	 46.45	-1	1121429..1122244	+	271	56417249	parA	AM1266	-	chromosome partitioning protein
880	 48.55	0	1122241..1123068	+	275	56417250	parB	AM1267	-	chromosome partitioning protein
881	 49.39	0	1123080..1123652	+	190	56417251	rimM	AM1269	-	16S rRNA processing protein
882	 49.15	0	1123649..1124356	+	235	56417252	trmD	AM1270	-	tRNA (guanine-N1)-methyltransferase
883	 47.16	0	1124349..1124753	+	134	56417253	rplS	AM1271	-	50S ribosomal protein L19
884	 48.85	0	1124760..1125281	-	173	56417254	cinA	AM1272	-	competence / damage-inducible protein
885	 46.26	-1	1125347..1127257	+	636	56417255	thrS	AM1273	-	threonyl-tRNA synthetase
886	 43.82	-2	1127287..1127820	+	177	56417256	infC	AM1274	-	translation initiation factor IF-3
887	 51.32	0	1128227..1128682	-	151	56417257	-	AM1275	-	hypothetical protein
888	 50.85	0	1128686..1129387	-	233	56417258	-	AM1276	-	hypothetical protein
889	 48.96	0	1129505..1130515	-	336	56417259	asd	AM1277	-	aspartate-semialdehyde dehydrogenase
890	 48.54	0	1130517..1130825	-	102	56417260	-	AM1278	-	hypothetical protein
891	 49.89	0	1130831..1132255	-	474	56417261	dnaZ	AM1280	-	DNA polymerase III gamma subunit
892	 47.16	0	1132441..1133445	-	334	56417262	gapB	AM1283	-	NAD(P)-dependent glyceraldehyde 3-phosphate dehydrogenase
893	 48.25	0	1133834..1134778	+	314	56417263	-	AM1285	-	hypothetical protein
894	 50.23	0	1134794..1135450	+	218	56417264	-	AM1286	-	isoprenoid biosynthesis protein
895	 44.04	-1	1135475..1136632	-	385	56417265	ftsW	AM1287	-	cell division protein
896	 47.46	0	1136614..1137816	-	400	56417266	metK	AM1288	-	S-adenosylmethionine synthetase
897	 44.39	-1	1138038..1139204	+	388	56417267	ubiH	AM1289	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
898	 39.41	-2	1139216..1139824	-	202	56417268	-	AM1292	-	hypothetical protein
899	 43.66	-2	1140100..1140951	+	283	56417269	glyQ	AM1294	-	glycyl-tRNA synthetase subunit alpha
900	 39.71	-2	1140953..1143037	+	694	56417270	glyS	AM1295	-	glycyl-tRNA synthetase beta chain
901	 41.84	-2	1143119..1144258	+	379	56417271	dnaJ	AM1296	-	DNAJ protein
902	 36.87	-2	1144277..1145095	-	272	56417272	nadC	AM1297	-	nicotinate-nucleotide pyrophosphorylase
903	 33.50	-2	1145154..1145750	+	198	56417273	-	AM1298	-	hypothetical protein
904	 38.96	-2	1145742..1146239	-	165	56417274	ruvC	AM1299	-	holliday (crossover) junction endodeoxyribonuclease
905	 38.71	-2	1146258..1147076	-	272	56417275	coxC	AM1300	-	cytochrome C oxidase subunit III
49.65	MEAN

2.84	STD DEV
