IslandPath Analysis: Anaplasma marginale str. St. Maries

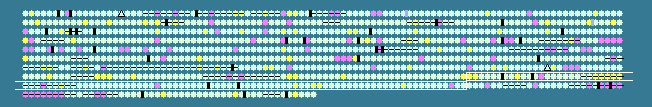

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
775	 53.78	+1	1004848..1005072	+	74	161544981	atpE	AM1112	-	F0F1 ATP synthase subunit C
776	 54.29	+1	1005079..1005579	+	166	56417146	-	AM1113	-	hypothetical protein
777	 50.00	0	1005576..1006073	+	165	56417147	-	AM1114	-	hypothetical protein
778	 49.02	0	1006198..1007472	-	424	56417148	ftsA	AM1115	-	cell division protein FTSA
779	 50.95	0	1007504..1009075	-	523	56417149	trkH	AM1116	-	potassium uptake protein
780	 49.27	0	1009146..1010651	+	501	56417150	mesJ	AM1117	-	cell cycle protein
781	 49.75	0	1010664..1012496	+	610	56417151	ftsH	AM1119	-	cell division protein
782	 49.56	0	1012689..1015307	+	872	161544980	secA	AM1120	-	preprotein translocase subunit SecA
783	 58.94	+2	1015158..1015364	-	68	56417153	-	AM1121	-	hypothetical protein
784	 47.33	0	1015383..1016132	-	249	56417154	-	AM1122	-	hypothetical protein
785	 46.23	-1	1016136..1017089	-	317	56417155	czcD	AM1123	-	cation efflux system protein
786	 50.38	0	1017256..1017918	-	220	56417156	ccmB	AM1125	-	heme exporter protein B
787	 46.14	-1	1018019..1018432	+	137	56417157	dksA	AM1126	-	dnaK suppressor protein
788	 47.08	0	1018760..1019443	-	227	56417158	dtbS	AM1128	-	dethiobiotin synthase
789	 49.46	0	1019519..1020436	+	305	56417159	ftsY	AM1129	-	cell division protein
790	 50.51	0	1020711..1022177	+	488	56417160	icd	AM1131	-	isocitrate dehydrogenase
791	 51.96	0	1022302..1024062	+	586	56417161	recJ	AM1133	-	single-stranded-DNA-specific exonuclease
792	 49.33	0	1024037..1024336	-	99	56417162	-	AM1135	-	hypothetical protein
793	 48.97	0	1024527..1025786	+	419	56417163	pcnB	AM1136	-	poly (A) polymerase
794	 48.53	0	1025923..1026363	-	146	56417164	ndk	AM1137	-	nucleoside diphosphate kinase
795	 50.18	0	1026592..1027155	+	187	56417165	-	AM1138	-	hypothetical protein
796	 56.19	+2	1027570..1028562	+	330	56417166	omp1	AM1139	-	outer membrane protein 1
797	 59.00	+2	1028727..1029665	+	312	56417167	opag3	AM1140	-	msp2 operon associated gene 3
798	 59.06	+2	1028745..1029848	-	367	56417168	-	AM1141	-	hypothetical protein
799	 58.33	+2	1029680..1030591	+	303	56417169	opag2	AM1142	-	msp2 operon associated gene 2
800	 56.23	+2	1030615..1031007	+	130	56417170	opag1	AM1143	-	msp2 operon associated gene 1
801	 47.88	0	1031020..1032243	+	407	56417171	msp2	AM1144	-	major surface protein 2
802	 49.70	0	1032455..1032949	-	164	56417172	-	AM1145	-	hypothetical protein
803	 51.45	0	1032906..1033490	+	194	56417173	-	AM1146	-	hypothetical protein
804	 44.10	-1	1034507..1034896	-	129	56417174	orfX	AM1149	-	ORF X
805	 51.16	0	1038392..1039126	-	244	56417175	omp2	AM1156	-	outer membrane protein 2
806	 53.00	+1	1039207..1039857	-	216	56417176	omp3	AM1159	-	outer membrane protein 3
807	 54.32	+1	1039827..1040150	+	107	56417177	-	AM1161	-	hypothetical protein
808	 48.03	0	1040420..1041637	+	405	56417178	omp4	AM1164	-	outer membrane protein 4
809	 46.99	0	1041615..1041863	+	82	56417179	-	AM1165	-	hypothetical protein
810	 52.19	0	1041982..1043100	+	372	56417180	omp5	AM1166	-	outer membrane protein 5
811	 47.55	0	1043468..1044283	-	271	56417181	-	AM1168	-	hypothetical protein
812	 48.88	0	1044334..1046256	-	640	56417182	ccmF	AM1169	-	cytochrome c-type biogenesis protein
813	 49.56	0	1046615..1049086	+	823	56417183	valS	AM1170	-	valyl-tRNA synthetase
814	 48.22	0	1049982..1050431	-	149	56417184	smpB	AM1171	-	SsrA-binding protein
815	 50.55	0	1050434..1051066	-	210	56417185	ribA	AM1172	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
816	 46.29	-1	1051085..1051609	-	174	56417186	greA	AM1173	-	transcription elongation factor greA
817	 50.92	0	1051606..1053129	-	507	56417187	atpA	AM1174	-	F0F1 ATP synthase subunit alpha
818	 51.13	0	1053149..1053721	-	190	56417188	atpH	AM1175	-	ATP synthase delta chain
819	 46.83	0	1054297..1054548	-	83	56417189	-	AM1179	-	hypothetical protein
820	 48.91	0	1054552..1055790	-	412	56417190	-	AM1180	-	hypothetical protein
821	 47.94	0	1055787..1056539	-	250	56417191	-	AM1181	-	hypothetical protein
822	 46.37	-1	1056544..1057770	-	408	56417192	-	AM1183	-	hypothetical protein
823	 44.48	-1	1058051..1059100	+	349	56417193	-	AM1185	-	hypothetical protein
824	 49.11	0	1059095..1060324	-	409	56417194	-	AM1186	-	hypothetical protein
825	 50.48	0	1060680..1061933	-	417	56417195	gltA	AM1187	-	citrate synthase
826	 50.82	0	1061970..1063559	-	529	56417196	guaA	AM1188	-	bifunctional GMP synthase/glutamine amidotransferase protein
827	 52.81	+1	1063676..1063906	-	76	56417197	-	AM1189	-	hypothetical protein
828	 51.52	0	1064038..1064433	+	131	56417198	-	AM1191	-	hypothetical protein
829	 52.00	0	1065049..1066350	+	433	56417199	pdhC	AM1192	-	branched-chain alpha-keto acid dehydrogenase subunit E2
830	 49.41	0	1066507..1066761	-	84	56417200	-	AM1193	-	hypothetical protein
831	 52.00	0	1066669..1067568	+	299	161544979	fbaB	AM1194	-	fructose-bisphosphate aldolase
832	 48.39	0	1067822..1069627	-	601	56417202	pbpA1	AM1196	-	penicillin-binding protein
833	 49.15	0	1069608..1070543	-	311	56417203	secF	AM1197	-	preprotein translocase subunit SecF
834	 50.92	0	1070689..1071069	+	126	56417204	-	AM1200	-	hypothetical protein
835	 48.26	0	1071072..1072304	-	410	56417205	hemA	AM1202	-	5-aminolevulinate synthase
836	 51.16	0	1072474..1073718	-	414	56417206	tyrS	AM1205	-	tyrosyl-tRNA synthetase
837	 49.61	0	1074028..1075434	+	468	56417207	glnA	AM1206	-	glutamine synthetase
838	 46.65	-1	1075445..1076473	+	342	56417208	mraY1	AM1207	-	phospho-n-acetylmuramoyl-pentapeptide-transferase
839	 47.46	0	1076483..1077466	+	327	56417209	ispB	AM1208	-	octaprenyl-diphosphate synthase
840	 49.52	0	1077541..1079622	-	693	56417210	-	AM1209	-	hypothetical protein
841	 49.58	0	1079749..1080468	-	239	56417211	mkl	AM1210	-	ribonucleotide transport ATP-binding protein
842	 49.87	0	1080473..1081252	-	259	56417212	-	AM1212	-	hypothetical protein
843	 48.40	0	1081271..1082053	-	260	56417213	rpe	AM1213	-	ribulose-phosphate 3-epimerase
844	 46.97	0	1082130..1084724	-	864	56417214	polA	AM1214	-	DNA polymerase I
845	 52.45	0	1085541..1085927	+	128	56417215	-	AM1216	-	hypothetical protein
846	 53.91	+1	1085950..1086858	+	302	56417216	argF	AM1217	-	ornithine carbamoyltransferase
847	 47.13	0	1086868..1087983	+	371	56417217	recF	AM1218	-	recombination protein F
848	 46.75	-1	1087980..1088441	-	153	56417218	omp6	AM1219	-	outer membrane protein 6
849	 53.65	+1	1088481..1089671	-	396	56417219	omp7	AM1220	-	outer membrane protein 7
850	 53.33	+1	1089736..1090935	-	399	56417220	omp8	AM1221	-	outer membrane protein 8
851	 52.97	+1	1090999..1092210	-	403	56417221	omp9	AM1222	-	outer membrane protein 9
852	 52.10	0	1092273..1093535	-	420	56417222	omp10	AM1223	-	outer membrane protein 10
853	 52.49	0	1093976..1094518	-	180	56417223	-	AM1225	-	hypothetical protein
854	 51.17	0	1094876..1095514	+	212	56417224	-	AM1226	-	hypothetical protein
855	 48.05	0	1095979..1096902	-	307	56417225	-	AM1228	-	hypothetical protein
856	 47.62	0	1097053..1098417	-	454	56417226	mviN	AM1229	-	virulence factor MVIN
857	 50.35	0	1098643..1099500	+	285	56417227	lgt	AM1231	-	prolipoprotein diacylglyceryl transferase
858	 50.93	0	1099740..1099955	+	71	56417228	-	AM1232	-	hypothetical protein
859	 47.77	0	1100204..1100494	-	96	161544978	rpsT	AM1233	-	30S ribosomal protein S20
860	 47.52	0	1100613..1101338	-	241	56417230	plsC	AM1235	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
861	 49.64	0	1101370..1101927	+	185	56417231	def	AM1236	-	N-formylmethionylaminoacyl-tRNA deformylase
862	 52.12	0	1102174..1103046	+	290	56417232	-	AM1237	-	hypothetical protein
863	 49.52	0	1103188..1103916	+	242	56417233	-	AM1238	-	hypothetical protein
864	 54.39	+1	1104007..1104234	-	75	56417234	-	AM1239	-	hypothetical protein
865	 48.79	0	1104293..1104499	-	68	56417235	-	AM1240	-	hypothetical protein
866	 46.67	-1	1104735..1105244	-	169	56417236	-	AM1241	-	hypothetical protein
867	 48.92	0	1105289..1106398	-	369	56417237	-	AM1242	-	hypothetical protein
868	 47.44	0	1106811..1108766	-	651	56417238	uvrB	AM1243	-	excinuclease ABC subunit B
869	 46.95	0	1108831..1110336	+	501	56417239	secD	AM1245	-	preprotein translocase subunit SecD
870	 50.71	0	1110826..1112649	+	607	56417240	-	AM1248	-	hypothetical protein
871	 47.01	0	1113315..1113548	+	77	56417241	orfY	AM1251	-	ORF Y
872	 45.13	-1	1113621..1114010	+	129	56417242	orfX	AM1253	-	ORF X
873	 51.11	0	1114075..1115559	-	494	56417243	-	AM1254	-	hypothetical protein
874	 52.32	0	1115669..1116658	-	329	56417244	omp11	AM1255	-	outer membrane protein 11
49.65	MEAN

2.84	STD DEV
