IslandPath Analysis: Anaplasma marginale str. St. Maries

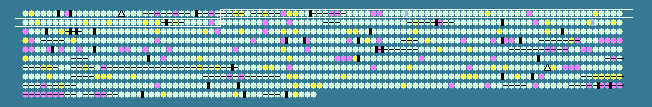

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
34	 46.74	-1	36761..38125	-	454	56416404	rho	AM051	-	transcription termination factor Rho
35	 51.94	0	38234..38851	-	205	56416405	-	AM052	-	hypothetical protein
36	 55.22	+1	39269..39469	+	66	56416406	rpmI	AM053	-	50S ribosomal protein L35
37	 53.23	+1	39496..39882	+	128	56416407	rplT	AM054	-	50S ribosomal protein L20
38	 51.99	0	39845..40900	+	351	56416408	pheS	AM055	-	phenylalanyl tRNA synthetase alpha subunit
39	 50.46	0	40991..41749	+	252	56416409	-	AM056	-	hypothetical protein
40	 51.13	0	41930..43216	+	428	56416410	glmU	AM058	-	UDP-N-acetylglucosamine pyrophosphorylase
41	 53.70	+1	43369..43638	-	89	56416411	rpsP	AM059	-	30S ribosomal protein S16
42	 51.20	0	43929..45215	+	428	56416412	proP1	AM060	-	proline/betaine transport protein
43	 47.01	0	47834..48067	+	77	56416413	orfY	AM063	-	ORF Y
44	 45.96	-1	48140..48535	+	131	56416414	orfX	AM065	-	ORF X
45	 55.24	+1	49429..50469	+	346	56416415	fpbA	AM069	-	iron binding protein FbpA precursor
46	 54.44	+1	50470..50649	+	59	56416416	-	AM070	-	hypothetical protein
47	 49.60	0	50899..54888	-	1329	56416417	-	AM071	-	hypothetical protein
48	 51.68	0	55153..61272	+	2039	56416418	-	AM072	-	hypothetical protein
49	 48.46	0	61443..61898	-	151	56416419	-	AM073	-	transcriptional regulator NrdR
50	 50.66	0	62431..62886	+	151	56416420	-	AM074	-	hypothetical protein
51	 52.59	+1	63055..64269	+	404	56416421	omp14	AM075	-	outer membrane protein 14
52	 44.78	-1	64841..65242	-	133	56416422	orfX	AM077	-	ORF X
53	 46.08	-1	67571..67978	+	135	56416423	orfX	AM082	-	ORF X
54	 51.11	0	68810..69889	+	359	56416424	recA	AM085	-	recombinase A
55	 49.75	0	69984..70586	+	200	56416425	pyrE	AM087	-	orotate phosphoribosyltransferase
56	 50.31	0	70620..71426	+	268	56416426	thiF	AM088	-	thiamine biosynthesis protein
57	 49.00	0	71782..72630	-	282	56416427	msp4	AM090	-	major surface protein 4
58	 46.43	-1	75388..76326	-	312	56416428	-	AM092	-	hypothetical protein
59	 46.11	-1	76411..76731	-	106	56416429	-	AM093	-	hypothetical protein
60	 45.59	-1	76781..76984	+	67	56416430	-	AM094	-	hypothetical protein
61	 51.72	0	77419..77766	-	115	56416431	trxA	AM096	-	thioredoxin
62	 50.31	0	77775..78587	-	270	56416432	trbG	AM097	-	conjugal transfer protein trbG precursor
63	 49.06	0	78838..79956	-	372	56416433	pdhA	AM101	-	pyruvate dehydrogenase E1 component, alpha subunit precursor
64	 49.68	0	79928..80869	-	313	56416434	rrf	AM102	-	hypothetical protein
65	 49.80	0	84517..85998	-	493	56416435	guaB	AM105	-	inosine monophosphate dehydrogenase
66	 52.42	0	86056..86820	-	254	56416436	ppnK	AM106	-	inorganic polyphosphate/ATP-NAD kinase
67	 48.20	0	86873..87094	-	73	161544994	rpmE	AM108	-	50S ribosomal protein L31
68	 51.47	0	87396..88415	+	339	56416438	fabD	AM110	-	malonyl CoA-acyl carrier protein transacylase
69	 49.53	0	88417..89052	+	211	56416439	tmk	AM111	-	thymidylate kinase
70	 49.41	0	89107..90375	+	422	56416440	-	AM112	-	hypothetical protein
71	 51.99	0	90533..91186	-	217	56416441	-	AM113	-	hypothetical protein
72	 49.43	0	91268..91795	+	175	56416442	secB	AM114	-	preprotein translocase subunit SecB
73	 47.86	0	91749..92567	+	272	56416443	-	AM116	-	hypothetical protein
74	 46.61	-1	92821..94131	-	436	56416444	mpp	AM117	-	mitochondrial processing protease
75	 51.02	0	94178..95500	+	440	56416445	-	AM118	-	hypothetical protein
76	 50.93	0	95806..97209	+	467	56416446	-	AM119	-	hypothetical protein
77	 52.43	0	97306..97923	-	205	56416447	ribA	AM120	-	riboflavin synthase subunit alpha
78	 55.74	+2	97418..98149	+	243	56416448	-	AM122	-	hypothetical protein
79	 50.29	0	98205..100475	-	756	56416449	msp1B-2	AM123	-	major surface protein 1B-2
80	 49.54	0	100706..101902	-	398	56416450	msp1bpg2	AM124	-	major surface protein 1B
81	 49.49	0	101880..105338	-	1152	56416451	mfd	AM125	-	transcription repair coupling factor
82	 49.81	0	105394..105909	+	171	56416452	rnhA	AM126	-	ribonuclease H
83	 48.50	0	105919..108918	+	999	56416453	-	AM127	-	hypothetical protein
84	 48.95	0	109082..109843	+	253	56416454	pyrH	AM128	-	uridylate kinase
85	 45.29	-1	109852..110403	+	183	56416455	frr	AM130	-	ribosome recycling factor
86	 48.50	0	110416..111114	+	232	56416456	uppS	AM131	-	putative undecaprenyl diphosphate synthase
87	 48.93	0	111068..111952	+	294	56416457	cdsA	AM132	-	phosphatidate cytidylyltransferase
88	 49.79	0	112247..114160	-	637	56416458	msp1Bpg3	AM133	-	major surface protein 1B
89	 51.40	0	114304..117225	-	973	56416459	-	AM136	-	hypothetical protein
90	 49.11	0	117369..118097	-	242	56416460	purC	AM137	-	phosphoribosoylaminoimidazole-succinocarboxamide synthase
91	 49.50	0	118215..119507	+	430	56416461	hisS	AM138	-	histidyl-tRNA synthetase
92	 47.88	0	119517..120272	-	251	56416462	-	AM139	-	hypothetical protein
93	 51.56	0	120631..121656	+	341	56416463	coxW	AM141	-	cytochrome C oxidase assembly protein
94	 52.28	0	121691..122524	+	277	56416464	panB	AM142	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
95	 48.80	0	122666..123292	-	208	56416465	ccmA	AM144	-	cytochrome c biogenesis protein CcmA
96	 53.77	+1	123325..124611	-	428	56416466	murA	AM145	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
97	 49.28	0	124613..125170	-	185	56416467	dcd	AM147	-	deoxycytidine triphosphate deaminase
98	 50.24	0	125269..126114	-	281	56416468	-	AM148	-	hypothetical protein
99	 50.90	0	126498..126776	+	92	56416469	cspA	AM149	-	cold shock protein
100	 51.05	0	126818..128905	+	695	56416470	ntrY	AM150	-	nitrogen regulation protein
101	 46.68	-1	128874..130079	+	401	56416471	rnd	AM151	-	ribonuclease D
102	 50.54	0	130162..132183	-	673	56416472	ligA	AM152	-	DNA ligase
103	 53.15	+1	132192..132524	-	110	56416473	grxC2	AM153	-	glutaredoxin-like protein GRLA
104	 50.63	0	132514..132750	-	78	56416474	-	AM154	-	hypothetical protein
105	 46.74	-1	132894..133445	-	183	56416475	-	AM156	-	hypothetical protein
106	 52.01	0	133393..134763	-	456	56416476	radA	AM157	-	DNA repair protein RadA
107	 51.76	0	135010..137652	+	880	56416477	-	AM159	-	hypothetical protein
108	 50.34	0	137659..138246	+	195	56416478	-	AM160	-	hypothetical protein
109	 47.40	0	138257..138640	+	127	56416479	rpsF	AM161	-	30S ribosomal protein S6
110	 48.68	0	138716..138943	+	75	56416480	rpsR	AM161.5	-	30S ribosomal protein S18
111	 53.24	+1	138963..139625	+	220	56416481	rplI	AM162	-	50S ribosomal protein L9
112	 53.13	+1	139651..140943	+	430	56416482	glyA	AM164	-	glycine/serine hydroxymethyltransferase
113	 49.12	0	141074..141415	+	113	56416483	-	AM166	-	hypothetical protein
114	 50.09	0	141396..143144	+	582	56416484	msbA2	AM167	-	ABC efflux transporter
115	 53.28	+1	143415..145214	+	599	56416485	sdhA	AM168	-	succinate dehydrogenase flavoprotein subunit
116	 47.53	0	145239..146027	+	262	56416486	sdhB	AM169	-	succinate dehydrogenase iron-sulfur subunit
117	 50.11	0	146028..146903	+	291	56416487	thyX	AM170	-	FAD-dependent thymidylate synthase
118	 48.39	0	147040..148221	+	393	56416488	bcr2	AM171	-	bicyclomycin resistance protein
119	 49.30	0	148363..149358	-	331	56416489	ruvB	AM172	-	Holliday junction DNA helicase B
120	 53.05	+1	149355..149927	-	190	56416490	ruvA	AM173	-	holliday junction DNA helicase
121	 54.58	+1	149924..150676	-	250	56416491	ccmc	AM175	-	heme exporter protein C
122	 50.20	0	150861..151595	+	244	56416492	gmk	AM177	-	guanylate kinase
123	 54.45	+1	151721..152833	+	370	56416493	-	AM178	-	hypothetical protein
124	 51.22	0	152987..153886	+	299	56416494	folD	AM179	-	methylenetetrahydrofolate dehydrogenase
125	 50.09	0	154357..156576	+	739	56416495	msp1B-1	AM180	-	major surface protein 1B-1
126	 53.86	+1	157060..159456	+	798	56416496	-	AM185	-	hypothetical protein
127	 50.67	0	159495..159944	-	149	56416497	msp1Bpg1	AM188	-	major surface protein 1B
128	 50.71	0	160185..160817	-	210	56416498	-	AM189	-	hypothetical protein
129	 52.96	+1	161059..161598	-	179	56416499	cycM	AM190	-	cytochrome C
130	 50.10	0	161998..163518	-	506	56416500	nuoL2	AM193	-	NADH dehydrogenase I chain L
131	 50.58	0	163888..166542	-	884	56416501	ppdK	AM195	-	pyruvate phosphate dikinase
132	 45.49	-1	166838..167347	-	169	56416502	-	AM197	-	hypothetical protein
133	 49.84	0	167350..167973	-	207	56416503	-	AM198	-	hypothetical protein
49.65	MEAN

2.84	STD DEV
