IslandPath Analysis: Anaplasma marginale str. St. Maries

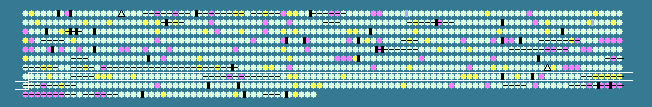

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
702	 49.74	0	911021..912586	+	521	56417072	coxA	AM1008	-	cytochrome c oxidase subunit I
703	 49.78	0	912596..913501	+	301	56417073	ctaB	AM1009	-	protoheme IX farnesyltransferase
704	 52.43	0	913554..914480	-	308	56417074	-	AM1010	-	hypothetical protein
705	 54.32	+1	914624..915886	+	420	56417075	purD	AM1011	-	phosphoribosylamine--glycine ligase
706	 51.87	0	915917..916423	+	168	56417076	yajC	AM1012	-	preprotein translocase subunit
707	 49.97	0	916492..918318	+	608	56417077	glmS	AM1013	-	glucosamine--fructose-6-phosphate aminotransferase
708	 50.61	0	918685..919824	-	379	56417078	dnaN	AM1014	-	DNA polymerase III beta chain
709	 48.13	0	920045..920659	-	204	56417079	rnd	AM1015	-	ribonuclease D
710	 49.71	0	920724..921596	-	290	56417080	czcR	AM1016	-	transcriptional activator protein
711	 49.23	0	921897..922544	-	215	56417081	-	AM1018	-	hypothetical protein
712	 50.57	0	923388..923915	-	175	56417082	ppa	AM1020	-	inorganic phosphatase protein
713	 53.78	+1	924979..925203	-	74	56417083	-	AM1021	-	hypothetical protein
714	 53.68	+1	925139..925600	-	153	56417084	rpsI	AM1022	-	30S ribosomal protein S9
715	 54.00	+1	925572..926084	-	170	56417085	rplM	AM1023	-	50S ribosomal protein L13
716	 48.35	0	926120..927517	+	465	56417086	tolC	AM1024	-	outer membrane protein
717	 51.35	0	927536..928129	+	197	56417087	-	AM1025	-	hypothetical protein
718	 49.03	0	928257..929288	-	343	56417088	-	AM1027	-	hypothetical protein
719	 55.13	+1	929392..930171	+	259	56417089	prsA	AM1028	-	phosphoribosylpyrophosphate synthetase
720	 52.34	0	930364..930684	+	106	56417090	-	AM1030	-	hypothetical protein
721	 50.70	0	930720..933356	-	878	161544982	acnA	AM1032	-	aconitate hydratase
722	 51.43	0	933744..934196	-	150	56417092	apaG	AM1035	-	ApaG
723	 49.67	0	934272..935342	+	356	56417093	purK	AM1036	-	phosphoribosylaminoimidazole carboxylase
724	 49.03	0	935472..937625	-	717	56417094	-	AM1037	-	hypothetical protein
725	 50.81	0	938242..939717	+	491	56417095	-	AM1041	-	hypothetical protein
726	 49.86	0	940029..941474	+	481	56417096	-	AM1046	-	hypothetical protein
727	 52.11	0	941505..945434	-	1309	56417097	-	AM1048	-	hypothetical protein
728	 52.12	0	945638..949768	-	1376	56417098	-	AM1050	-	hypothetical protein
729	 49.23	0	950058..955655	-	1865	56417099	-	AM1051	-	hypothetical protein
730	 48.97	0	956209..958638	-	809	56417100	virB4	AM1053	-	VirB4 protein
731	 46.67	-1	958771..959145	-	124	56417101	-	AM1054	-	hypothetical protein
732	 46.83	0	959418..959795	-	125	56417102	-	AM1055	-	hypothetical protein
733	 47.21	0	960582..961172	-	196	56417103	-	AM1056	-	hypothetical protein
734	 52.64	+1	961182..961730	-	182	56417104	-	AM1057	-	hypothetical protein
735	 44.81	-1	961959..962324	+	121	56417105	-	AM1058	-	hypothetical protein
736	 46.67	-1	962297..962566	+	89	56417106	orfY	AM1059	-	ORF Y
737	 45.45	-1	962633..963028	+	131	56417107	orfX	AM1061	-	ORF X
738	 46.54	-1	963365..966196	+	943	56417108	msp3	AM1063	-	major surface protein 3
739	 51.12	0	966443..967555	+	370	56417109	hflK	AM1064	-	hflK protein
740	 46.39	-1	967557..968429	+	290	56417110	hflC	AM1065	-	hflC protein
741	 51.09	0	968432..969895	+	487	56417111	-	AM1066	-	hypothetical protein
742	 49.76	0	969888..970502	+	204	56417112	-	AM1067	-	hypothetical protein
743	 52.36	0	970489..971187	+	232	56417113	rnc	AM1069	-	ribonuclease III
744	 49.04	0	971218..971841	+	207	56417114	cox11	AM1070	-	cytochrome C oxidase assembly protein
745	 55.81	+2	971851..972633	-	260	56417115	-	AM1073	-	hypothetical protein
746	 54.34	+1	972972..973766	-	264	56417116	ana29	AM1076	-	hypothetical protein
747	 47.30	0	973899..974120	+	73	56417117	-	AM1077	-	hypothetical protein
748	 52.40	0	974177..975052	-	291	56417118	-	AM1078	-	hypothetical protein
749	 50.34	0	975249..976583	-	444	56417119	-	AM1079	-	hypothetical protein
750	 49.16	0	976596..978017	-	473	56417120	-	AM1080	-	hypothetical protein
751	 46.78	-1	977980..978492	-	170	56417121	lspA	AM1081	-	lipoprotein signal peptidase
752	 51.10	0	978571..979482	-	303	56417122	ribF	AM1082	-	riboflavin kinase / FAD synthetase protein
753	 49.79	0	979550..979792	+	80	56417123	grxC1	AM1083	-	glutaredoxin 3
754	 54.31	+1	979944..980801	-	285	56417124	hemK	AM1084	-	protein-(glutamine-N5) methyltransferase
755	 52.38	0	980982..981779	-	265	56417125	map	AM1086	-	methionine aminopeptidase
756	 52.05	0	981783..983096	-	437	56417126	sucB	AM1087	-	dihydrolipoamide acetyltransferase component
757	 49.23	0	983127..983516	-	129	56417127	-	AM1088	-	hypothetical protein
758	 51.78	0	983746..984645	-	299	56417128	panC	AM1089	-	pantoate-beta-alanine ligase
759	 51.79	0	984734..985876	+	380	56417129	-	AM1091	-	hypothetical protein
760	 49.35	0	985863..987092	-	409	56417130	dsbD	AM1092	-	C-type cytochrome biogenesis protein
761	 51.65	0	987136..987468	-	110	56417131	-	AM1093	-	hypothetical protein
762	 51.45	0	987506..988609	+	367	56417132	-	AM1094	-	hypothetical protein
763	 48.80	0	988615..990954	+	779	56417133	oma87	AM1096	-	outer membrane protein
764	 52.58	+1	990941..991501	+	186	56417134	-	AM1097	-	hypothetical protein
765	 49.77	0	991507..991950	+	147	56417135	fabZ	AM1098	-	(3R)-hydroxymyristoyl-ACP dehydratase
766	 49.61	0	991965..993506	+	513	56417136	purH	AM1099	-	phosphoribosylaminoimidazolecarboxamide formyltransferase (AICAR transformylase)
767	 49.72	0	993515..994057	-	180	56417137	pgsA	AM1100	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
768	 49.81	0	994766..996070	+	434	56417138	-	AM1103	-	hypothetical protein
769	 49.83	0	996098..998122	+	674	56417139	slt	AM1104	-	soluble lytic murein transglycosylase precursor
770	 49.34	0	998129..998815	-	228	56417140	surf1	AM1105	-	surfeit locus protein 1
771	 48.33	0	999373..1001166	+	597	56417141	-	AM1108	-	hypothetical protein
772	 48.85	0	1001259..1002611	-	450	56417142	-	AM1109	-	hypothetical protein
773	 50.00	0	1002680..1003483	+	267	56417143	atpB	AM1110	-	F0F1 ATP synthase subunit A
774	 55.18	+1	1003567..1004193	-	208	56417144	-	AM1111	-	hypothetical protein
775	 53.78	+1	1004848..1005072	+	74	161544981	atpE	AM1112	-	F0F1 ATP synthase subunit C
776	 54.29	+1	1005079..1005579	+	166	56417146	-	AM1113	-	hypothetical protein
777	 50.00	0	1005576..1006073	+	165	56417147	-	AM1114	-	hypothetical protein
778	 49.02	0	1006198..1007472	-	424	56417148	ftsA	AM1115	-	cell division protein FTSA
779	 50.95	0	1007504..1009075	-	523	56417149	trkH	AM1116	-	potassium uptake protein
780	 49.27	0	1009146..1010651	+	501	56417150	mesJ	AM1117	-	cell cycle protein
781	 49.75	0	1010664..1012496	+	610	56417151	ftsH	AM1119	-	cell division protein
782	 49.56	0	1012689..1015307	+	872	161544980	secA	AM1120	-	preprotein translocase subunit SecA
783	 58.94	+2	1015158..1015364	-	68	56417153	-	AM1121	-	hypothetical protein
784	 47.33	0	1015383..1016132	-	249	56417154	-	AM1122	-	hypothetical protein
785	 46.23	-1	1016136..1017089	-	317	56417155	czcD	AM1123	-	cation efflux system protein
786	 50.38	0	1017256..1017918	-	220	56417156	ccmB	AM1125	-	heme exporter protein B
787	 46.14	-1	1018019..1018432	+	137	56417157	dksA	AM1126	-	dnaK suppressor protein
788	 47.08	0	1018760..1019443	-	227	56417158	dtbS	AM1128	-	dethiobiotin synthase
789	 49.46	0	1019519..1020436	+	305	56417159	ftsY	AM1129	-	cell division protein
790	 50.51	0	1020711..1022177	+	488	56417160	icd	AM1131	-	isocitrate dehydrogenase
791	 51.96	0	1022302..1024062	+	586	56417161	recJ	AM1133	-	single-stranded-DNA-specific exonuclease
792	 49.33	0	1024037..1024336	-	99	56417162	-	AM1135	-	hypothetical protein
793	 48.97	0	1024527..1025786	+	419	56417163	pcnB	AM1136	-	poly (A) polymerase
794	 48.53	0	1025923..1026363	-	146	56417164	ndk	AM1137	-	nucleoside diphosphate kinase
795	 50.18	0	1026592..1027155	+	187	56417165	-	AM1138	-	hypothetical protein
796	 56.19	+2	1027570..1028562	+	330	56417166	omp1	AM1139	-	outer membrane protein 1
797	 59.00	+2	1028727..1029665	+	312	56417167	opag3	AM1140	-	msp2 operon associated gene 3
798	 59.06	+2	1028745..1029848	-	367	56417168	-	AM1141	-	hypothetical protein
799	 58.33	+2	1029680..1030591	+	303	56417169	opag2	AM1142	-	msp2 operon associated gene 2
800	 56.23	+2	1030615..1031007	+	130	56417170	opag1	AM1143	-	msp2 operon associated gene 1
801	 47.88	0	1031020..1032243	+	407	56417171	msp2	AM1144	-	major surface protein 2
49.65	MEAN

2.84	STD DEV
