IslandPath Analysis: Anaplasma marginale str. St. Maries

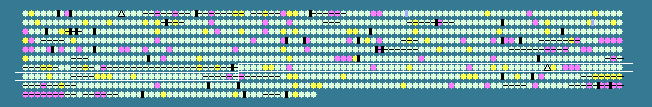

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
637	 50.29	0	834518..835195	+	225	56417007	cmk	AM916	-	cytidylate kinase
638	 50.06	0	835260..836939	+	559	56417008	rpsA	AM917	-	30S ribosomal protein S1
639	 51.59	0	836943..837824	+	293	56417009	sppA	AM918	-	protease IV
640	 50.20	0	838073..838570	+	165	56417010	-	AM919	-	hypothetical protein
641	 57.99	+2	838571..839008	+	145	56417011	-	AM920	-	hypothetical protein
642	 56.08	+2	839324..840277	+	317	56417012	-	AM921	-	hypothetical protein
643	 50.24	0	840581..841633	+	350	56417013	hemH	AM922	-	ferrochelatase
644	 49.11	0	841636..842700	-	354	56417014	-	AM923	-	hypothetical protein
645	 41.28	-2	842956..843282	-	108	56417015	-	AM924	-	hypothetical protein
646	 48.48	0	843819..844742	-	307	56417016	hflK	AM925	-	HFLK protein
647	 50.18	0	844805..845653	-	282	56417017	-	AM926	-	hypothetical protein
648	 47.85	0	845751..848354	+	867	56417018	-	AM927	-	hypothetical protein
649	 51.52	0	848679..849662	-	327	56417019	qor	AM928	-	quinone oxidoreductase
650	 52.06	0	849768..852170	-	800	56417020	-	AM929	-	hypothetical protein
651	 49.94	0	852504..853310	+	268	56417021	folP	AM931	-	dihydropteroate synthase
652	 51.07	0	853769..857077	+	1102	56417022	carB	AM933	-	carbamoyl phosphate synthase large subunit
653	 51.15	0	858293..858685	-	130	56417023	-	AM936	-	hypothetical protein
654	 52.27	0	858850..860238	-	462	56417024	fumC	AM937	-	fumarate hydratase
655	 48.23	0	860408..861058	+	216	56417025	-	AM938	-	hypothetical protein
656	 51.87	0	861059..862423	+	454	56417026	pyrC	AM939	-	dihydroorotase
657	 49.52	0	862557..863915	-	452	56417027	glmM	AM940	-	phosphoglucosamine mutase
658	 50.70	0	863952..864596	-	214	56417028	lipB	AM941	-	lipoyltransferase
659	 45.02	-1	864687..865379	-	230	56417029	radC	AM942	-	DNA repair protein
660	 48.42	0	865600..865884	+	94	161544983	groES	AM943	-	co-chaperonin GroES
661	 49.94	0	865932..867581	+	549	56417031	groEL	AM944	-	chaperonin GroEL
662	 50.55	0	868196..868927	-	243	56417032	-	AM947	-	hypothetical protein
663	 48.87	0	869149..871767	+	872	56417033	clpB	AM949	-	ATP-dependent Clp protease ATP-binding subunit
664	 48.80	0	871879..873540	-	553	56417034	-	AM950	-	hypothetical protein
665	 54.18	+1	873771..874763	-	330	56417035	-	AM952	-	hypothetical protein
666	 51.15	0	874868..875608	-	246	56417036	-	AM953	-	hypothetical protein
667	 48.62	0	875813..876211	+	132	56417037	-	AM955	-	hypothetical protein
668	 52.34	0	876183..877787	+	534	56417038	pepA	AM956	-	leucyl aminopeptidase
669	 50.08	0	877803..878447	+	214	56417039	-	AM957	-	hypothetical protein
670	 49.25	0	878594..880069	-	491	56417040	-	AM959	-	hypothetical protein
671	 50.57	0	880211..880993	-	260	56417041	purQ	AM960	-	phosphoribosylformylglycinamidine synthase
672	 52.72	+1	881074..882987	+	637	56417042	gidA	AM961	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
673	 52.48	0	883300..884265	-	321	56417043	glpX	AM964	-	fructose 1,6-bisphosphatase II
674	 51.71	0	884352..885053	+	233	56417044	-	AM965	-	hypothetical protein
675	 44.52	-1	885213..885668	+	151	56417045	-	AM967	-	hypothetical protein
676	 50.88	0	885769..886053	+	94	56417046	-	AM968	-	hypothetical protein
677	 51.38	0	886040..887014	+	324	56417047	bioB	AM969	-	biotin synthase
678	 48.84	0	887742..890792	+	1016	56417048	purL	AM973	-	phosphoribosylformylglycinamidine synthase
679	 53.62	+1	890823..891029	+	68	56417049	-	AM974	-	hypothetical protein
680	 50.64	0	891166..891870	+	234	56417050	-	AM975	-	hypothetical protein
681	 54.63	+1	891926..892141	-	71	56417051	-	AM976	-	hypothetical protein
682	 52.82	+1	892150..892698	-	182	56417052	-	AM977	-	hypothetical protein
683	 48.01	0	892797..894077	-	426	56417053	-	AM979	-	hypothetical protein
684	 48.78	0	894252..894620	+	122	56417054	-	AM980	-	hypothetical protein
685	 49.49	0	894865..895755	+	296	56417055	-	AM981	-	hypothetical protein
686	 49.54	0	895993..896646	-	217	56417056	-	AM982	-	hypothetical protein
687	 51.23	0	896760..897815	+	351	56417057	purM	AM983	-	phosphoribosylaminoimidazole synthetase
688	 49.84	0	897807..898757	-	316	56417058	xerC	AM984	-	integrase/recombinase ripx
689	 53.16	+1	898926..900095	+	389	56417059	gpsA	AM985	-	gylcerol-3-phosphate dehydrogenase
690	 53.07	+1	900092..900547	+	151	56417060	omp15	AM987	-	outer membrane protein 15
691	 44.27	-1	900783..901157	-	124	56417061	orfX	AM989	-	ORF X
692	 44.23	-1	901157..901468	-	103	56417062	orfY	AM990	-	ORF Y
693	 45.63	-1	901852..903234	-	460	56417063	rho	AM992	-	transcription termination factor Rho
694	 50.15	0	903504..903842	-	112	56417064	-	AM997	-	hypothetical protein
695	 52.11	0	904024..904593	+	189	56417065	hslV	AM998	-	ATP-dependent protease peptidase subunit
696	 48.38	0	904590..906038	+	482	56417066	hslU	AM999	-	ATP-dependent protease ATP-binding subunit
697	 51.34	0	906042..906785	+	247	56417067	ubiE	AM1000	-	ubiquinone/menaquinone biosynthesis methyltransferase
698	 47.37	0	906786..908153	-	455	56417068	metS	AM1001	-	methionyl-tRNA synthetase
699	 49.96	0	908599..909837	+	412	56417069	lysC	AM1005	-	aspartate kinase
700	 49.07	0	909871..910086	-	71	56417070	-	AM1006	-	hypothetical protein
701	 50.54	0	910094..910924	+	276	56417071	coxB	AM1007	-	cytochrome c oxidase subunit II
702	 49.74	0	911021..912586	+	521	56417072	coxA	AM1008	-	cytochrome c oxidase subunit I
703	 49.78	0	912596..913501	+	301	56417073	ctaB	AM1009	-	protoheme IX farnesyltransferase
704	 52.43	0	913554..914480	-	308	56417074	-	AM1010	-	hypothetical protein
705	 54.32	+1	914624..915886	+	420	56417075	purD	AM1011	-	phosphoribosylamine--glycine ligase
706	 51.87	0	915917..916423	+	168	56417076	yajC	AM1012	-	preprotein translocase subunit
707	 49.97	0	916492..918318	+	608	56417077	glmS	AM1013	-	glucosamine--fructose-6-phosphate aminotransferase
708	 50.61	0	918685..919824	-	379	56417078	dnaN	AM1014	-	DNA polymerase III beta chain
709	 48.13	0	920045..920659	-	204	56417079	rnd	AM1015	-	ribonuclease D
710	 49.71	0	920724..921596	-	290	56417080	czcR	AM1016	-	transcriptional activator protein
711	 49.23	0	921897..922544	-	215	56417081	-	AM1018	-	hypothetical protein
712	 50.57	0	923388..923915	-	175	56417082	ppa	AM1020	-	inorganic phosphatase protein
713	 53.78	+1	924979..925203	-	74	56417083	-	AM1021	-	hypothetical protein
714	 53.68	+1	925139..925600	-	153	56417084	rpsI	AM1022	-	30S ribosomal protein S9
715	 54.00	+1	925572..926084	-	170	56417085	rplM	AM1023	-	50S ribosomal protein L13
716	 48.35	0	926120..927517	+	465	56417086	tolC	AM1024	-	outer membrane protein
717	 51.35	0	927536..928129	+	197	56417087	-	AM1025	-	hypothetical protein
718	 49.03	0	928257..929288	-	343	56417088	-	AM1027	-	hypothetical protein
719	 55.13	+1	929392..930171	+	259	56417089	prsA	AM1028	-	phosphoribosylpyrophosphate synthetase
720	 52.34	0	930364..930684	+	106	56417090	-	AM1030	-	hypothetical protein
721	 50.70	0	930720..933356	-	878	161544982	acnA	AM1032	-	aconitate hydratase
722	 51.43	0	933744..934196	-	150	56417092	apaG	AM1035	-	ApaG
723	 49.67	0	934272..935342	+	356	56417093	purK	AM1036	-	phosphoribosylaminoimidazole carboxylase
724	 49.03	0	935472..937625	-	717	56417094	-	AM1037	-	hypothetical protein
725	 50.81	0	938242..939717	+	491	56417095	-	AM1041	-	hypothetical protein
726	 49.86	0	940029..941474	+	481	56417096	-	AM1046	-	hypothetical protein
727	 52.11	0	941505..945434	-	1309	56417097	-	AM1048	-	hypothetical protein
728	 52.12	0	945638..949768	-	1376	56417098	-	AM1050	-	hypothetical protein
729	 49.23	0	950058..955655	-	1865	56417099	-	AM1051	-	hypothetical protein
730	 48.97	0	956209..958638	-	809	56417100	virB4	AM1053	-	VirB4 protein
731	 46.67	-1	958771..959145	-	124	56417101	-	AM1054	-	hypothetical protein
732	 46.83	0	959418..959795	-	125	56417102	-	AM1055	-	hypothetical protein
733	 47.21	0	960582..961172	-	196	56417103	-	AM1056	-	hypothetical protein
734	 52.64	+1	961182..961730	-	182	56417104	-	AM1057	-	hypothetical protein
735	 44.81	-1	961959..962324	+	121	56417105	-	AM1058	-	hypothetical protein
736	 46.67	-1	962297..962566	+	89	56417106	orfY	AM1059	-	ORF Y
49.65	MEAN

2.84	STD DEV
