IslandPath Analysis: Anaplasma marginale str. St. Maries

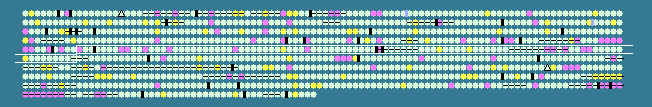

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
410	 40.83	-2	541381..541500	+	39	56416780	rpmJ	AM593	-	large subunit ribosomal protein L36
411	 51.39	0	541529..541888	+	119	56416781	-	AM594	-	hypothetical protein
412	 53.00	+1	541901..542551	-	216	56416782	-	AM595	-	hypothetical protein
413	 47.62	0	542576..542848	-	90	56416783	rpmA	AM596	-	50S ribosomal protein L27
414	 48.84	0	542852..543154	-	100	161544989	rplU	AM597	-	50S ribosomal protein L21
415	 47.69	0	543637..544932	+	431	56416785	eno	AM600	-	enolase 1 (2-phosphoglycerate dehydratase 1)
416	 47.28	0	544934..545980	+	348	56416786	obgE	AM601	-	GTPase ObgE
417	 45.64	-1	545943..546332	+	129	56416787	-	AM603	-	hypothetical protein
418	 44.75	-1	546503..547378	-	291	56416788	mraW	AM605	-	S-adenosyl-methyltransferase MraW
419	 46.74	-1	547550..548086	-	178	56416789	ygfA	AM606	-	5-formyltetrahydrofolate cyclo-ligase
420	 50.48	0	548370..553613	+	1747	56416790	-	AM612	-	hypothetical protein
421	 43.33	-2	553836..555356	+	506	56416791	-	AM613	-	hypothetical protein
422	 49.47	0	555884..556453	-	189	56416792	-	AM615	-	hypothetical protein
423	 47.41	0	556586..558397	-	603	56416793	-	AM616	-	hypothetical protein
424	 47.41	0	558602..559624	-	340	56416794	trxB2	AM617	-	thioredoxin reductase
425	 45.99	-1	559705..561039	-	444	56416795	pmbA	AM618	-	pmbA protein
426	 46.57	-1	561049..561645	-	198	56416796	folE	AM619	-	GTP cyclohydrolase
427	 48.96	0	561652..562515	-	287	56416797	atpG	AM620	-	ATP synthase gamma chain
428	 50.54	0	562810..564006	+	398	56416798	nuoD	AM623	-	NADH dehydrogenase subunit D
429	 49.02	0	564011..564520	+	169	56416799	nuoE	AM624	-	NADH dehydrogenase subunit E
430	 49.21	0	564510..565208	+	232	56416800	dnaQ	AM625	-	DNA polymerase III epsilon chain
431	 49.27	0	565245..566825	-	526	56416801	-	AM626	-	hypothetical protein
432	 49.45	0	567191..567829	+	212	56416802	-	AM628	-	hypothetical protein
433	 49.00	0	568265..570115	+	616	56416803	-	AM629	-	hypothetical protein
434	 47.00	0	570249..570782	-	177	56416804	-	AM630	-	hypothetical protein
435	 49.14	0	570776..571648	-	290	56416805	rpoH	AM631	-	RNA polymerase sigma-32 factor
436	 43.17	-2	571770..572084	+	104	56416806	-	AM632	-	hypothetical protein
437	 47.97	0	572081..572326	+	81	56416807	-	AM634	-	hypothetical protein
438	 50.03	0	572766..582350	+	3194	56416808	-	AM638	-	hypothetical protein
439	 47.88	0	582496..583554	-	352	56416809	nuoH	AM640	-	NADH dehydrogenase subunit H
440	 50.67	0	583556..585631	-	691	56416810	nuoG	AM641	-	NADH dehydrogenase subunit G
441	 50.46	0	585639..585854	-	71	56416811	-	AM642	-	hypothetical protein
442	 49.03	0	586035..588416	-	793	56416812	gyrB2	AM644	-	DNA gyrase subunit B
443	 50.66	0	588750..589355	+	201	56416813	ubiX	AM645	-	3-octaprenyl-4-hydroxybenzoate carboxyl-lyase
444	 53.76	+1	589454..589879	-	141	56416814	-	AM647	-	hypothetical protein
445	 47.96	0	590379..591602	-	407	56416815	-	AM649	-	hypothetical protein
446	 46.33	-1	591574..591927	-	117	56416816	adx1	AM650	-	ferredoxin [2Fe-2S] adrenodoxin-like precursor adx1
447	 52.02	0	591953..593761	-	602	56416817	hscA	AM651	-	heat shock protein
448	 44.08	-1	593749..594297	-	182	56416818	hscB	AM652	-	chaperone protein
449	 49.00	0	594578..594979	-	133	56416819	nifU	AM654	-	scaffold protein
450	 50.53	0	594988..596214	-	408	56416820	iscS	AM655	-	cysteine desulfurase
451	 50.03	0	596247..597809	-	520	56416821	-	AM656	-	hypothetical protein
452	 50.35	0	598007..598711	+	234	56416822	-	AM657	-	hypothetical protein
453	 48.69	0	599013..600614	+	533	56416823	lysK	AM658	-	lysyl-tRNA synthetase
454	 50.58	0	600760..601101	+	113	56416824	-	AM660	-	hypothetical protein
455	 49.73	0	601147..601890	-	247	56416825	truA	AM661	-	tRNA pseudouridine synthase A
456	 48.49	0	601887..602783	-	298	56416826	pyrB	AM662	-	aspartate carbamoyltransferase catalytic subunit
457	 48.64	0	602946..603605	-	219	56416827	-	AM664	-	putative translaldolase
458	 49.10	0	603602..603988	-	128	56416828	atpC	AM665	-	ATP synthase epsilon chain
459	 52.02	0	604058..605518	-	486	56416829	atpD	AM666	-	F0F1 ATP synthase subunit beta
460	 46.01	-1	605894..607345	+	483	56416830	mgtE	AM668	-	magnesium transporter
461	 49.67	0	607824..608429	+	201	56416831	ftsJ	AM669	-	cell division protein
462	 52.76	+1	608913..609782	+	289	56416832	-	AM670	-	hypothetical protein
463	 49.47	0	609843..610784	+	313	56416833	-	AM671	-	hypothetical protein
464	 48.78	0	611370..612968	+	532	56416834	-	AM673	-	hypothetical protein
465	 49.77	0	613573..616785	+	1070	56416835	-	AM675	-	hypothetical protein
466	 49.28	0	617089..618480	-	463	56416836	-	AM676	-	hypothetical protein
467	 49.31	0	618649..620388	-	579	56416837	argS	AM678	-	arginyl-tRNA synthetase
468	 49.79	0	620653..621369	+	238	56416838	recO	AM680	-	DNA repair protein RecO
469	 52.45	0	621444..622055	+	203	56416839	-	AM681	-	hypothetical protein
470	 55.07	+1	622067..622273	+	68	56416840	-	AM682	-	hypothetical protein
471	 52.59	+1	622240..623646	-	468	56416841	-	AM683	-	hypothetical protein
472	 48.40	0	623938..627243	-	1101	56416842	ileS	AM684	-	isoleucyl-tRNA synthetase
473	 46.58	-1	627607..628089	+	160	56416843	-	AM685	-	hypothetical protein
474	 52.75	+1	628055..628837	+	260	56416844	-	AM686	-	hypothetical protein
475	 53.70	+1	628841..629110	-	89	56416845	-	AM688	-	hypothetical protein
476	 50.77	0	629256..632300	+	1014	56416846	-	AM689	-	hypothetical protein
477	 51.43	0	632725..633741	-	338	56416847	prfB	AM692	-	peptide chain release factor 2
478	 49.14	0	634031..634783	-	250	56416848	-	AM694	-	hypothetical protein
479	 51.50	0	635162..636631	-	489	56416849	gatA	AM698	-	glutamyl-tRNA amidotransferase chain A
480	 49.81	0	636928..638220	+	430	56416850	folC	AM699	-	folylpolyglutamate synthase
481	 51.10	0	638378..639289	+	303	56416851	hemC	AM700	-	porphobilinogen deaminase
482	 51.44	0	639264..640163	+	299	56416852	murB	AM701	-	UDP-N-acetylenolpyruvoylglucosamine reductase
483	 53.12	+1	640456..644619	+	1387	56416853	ankA	AM705	-	ankyrin
484	 50.52	0	645424..645906	-	160	56416854	nuoI	AM707	-	NADH dehydrogenase subunit I
485	 46.53	-1	645922..646641	-	239	56416855	lepB	AM708	-	signal peptidase
486	 48.53	0	646652..647092	-	146	56416856	-	AM709	-	hypothetical protein
487	 52.16	0	647660..658138	+	3492	56416857	-	AM712	-	hypothetical protein
488	 43.40	-2	658530..658817	-	95	56416858	-	AM715	-	hypothetical protein
489	 44.35	-1	659399..659770	-	123	56416859	orfX	AM717	-	ORF X
490	 47.44	0	662843..663076	+	77	56416860	orfY	AM721	-	ORF Y
491	 45.36	-1	663149..663547	+	132	56416861	orfX	AM723	-	ORF X
492	 52.15	0	664842..666701	-	619	56416862	typA	AM730	-	GTP-binding protein
493	 46.59	-1	666756..669101	-	781	56416863	clpA	AM731	-	ATP-dependent Clp protease ATP-binding subunit
494	 43.56	-2	669205..669918	+	237	56416864	terC	AM733	-	membrane protein
495	 46.05	-1	670127..670480	-	117	56416865	rbfA	AM734	-	ribosome-binding factor A
496	 51.50	0	670477..672975	-	832	56416866	infB	AM735	-	translation initiation factor IF-2
497	 50.13	0	672991..674538	-	515	56416867	nusA	AM736	-	transcription elongation factor NusA
498	 48.01	0	675050..678163	-	1037	56416868	acrD	AM738	-	acriflavin resistance protein D
499	 46.62	-1	678393..679175	-	260	56416869	tatC	AM740	-	Sec-independent protein translocase protein
500	 50.12	0	679273..680541	-	422	56416870	ispG	AM741	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
501	 55.34	+2	680569..681945	-	458	56416871	-	AM742	-	hypothetical protein
502	 50.38	0	682043..683233	-	396	56416872	dxr	AM743	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
503	 50.76	0	683247..684692	-	481	56416873	nuoN1	AM744	-	NADH dehydrogenase chain N
504	 49.11	0	684695..686158	-	487	56416874	nuoM	AM745	-	NADH dehydrogenase chain M
505	 48.00	0	686155..688056	-	633	56416875	nuoL	AM746	-	NADH dehydrogenase chain L
506	 49.54	0	688124..688450	-	108	56416876	nuoK	AM747	-	NADH dehydrogenase chain K
507	 51.08	0	688499..689101	-	200	56416877	nuoJ	AM748	-	NADH dehydrogenase chain J
508	 51.74	0	689290..690582	-	430	56416878	nuoF	AM750	-	NADH dehydrogenase I subunit F
509	 50.00	0	690661..691824	-	387	56416879	fadB	AM752	-	3-hydroxyacyl-COA dehydrogenase
49.65	MEAN

2.84	STD DEV
