IslandPath Analysis: Anaplasma marginale str. St. Maries

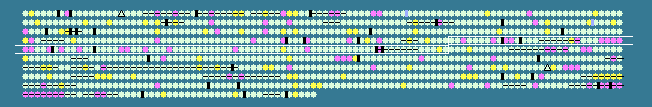

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
372	 47.18	0	501283..503181	+	632	56416742	-	AM543	-	hypothetical protein
373	 48.99	0	503759..505636	+	625	56416743	-	AM545	-	hypothetical protein
374	 42.74	-2	505658..505891	+	77	56416744	-	AM546	-	hypothetical protein
375	 46.92	0	506074..507987	+	637	56416745	-	AM547	-	hypothetical protein
376	 47.24	0	508787..510619	+	610	56416746	-	AM550	-	hypothetical protein
377	 48.36	0	510801..512963	+	720	56416747	-	AM551	-	hypothetical protein
378	 47.27	0	512951..513904	-	317	56416748	thiL	AM552	-	thiamin-monophosphate kinase
379	 45.16	-1	514140..515027	+	295	56416749	-	AM555	-	hypothetical protein
380	 50.23	0	515209..516492	+	427	56416750	bioA	AM556	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
381	 45.54	-1	516933..517268	+	111	56416751	-	AM557	-	hypothetical protein
382	 45.76	-1	517430..518242	-	270	56416752	ksgA	AM558	-	dimethyladenosine transferase
383	 46.47	-1	518375..519181	+	268	56416753	tpiA	AM559	-	triosephosphate isomerase
384	 46.27	-1	519165..520184	+	339	56416754	-	AM560	-	hypothetical protein
385	 50.29	0	520194..521219	+	341	56416755	-	AM561	-	hypothetical protein
386	 47.77	0	521178..521828	-	216	56416756	-	AM562	-	hypothetical protein
387	 49.72	0	521880..522233	+	117	56416757	folB	AM563	-	dihydroneopterin aldolase
388	 52.94	+1	522285..523238	+	317	56416758	mdh	AM564	-	malate dehydrogenase
389	 46.46	-1	523554..524231	-	225	56416759	ubiG	AM566	-	3-demethylubiquinone-9 3-methyltransferase
390	 50.35	0	524186..524755	+	189	56416760	infB	AM568	-	translation initiation factor IF-2
391	 49.38	0	524724..524966	-	80	56416761	-	AM569	-	hypothetical protein
392	 53.51	+1	525159..525599	+	146	56416762	rpiB	AM570	-	ribose 5-phosphate isomerase
393	 45.53	-1	525692..526396	+	234	56416763	ubiG	AM571	-	3-demethylubiquinone-9 3-methyltransferase
394	 47.73	0	526497..527003	-	168	56416764	gcp	AM572	-	O-sialoglycoprotein endopeptidase
395	 50.72	0	527013..527219	-	68	56416765	-	AM573	-	hypothetical protein
396	 46.76	-1	527461..528138	-	225	56416766	-	AM574	-	hypothetical protein
397	 43.08	-2	528119..528949	-	276	56416767	-	AM576	-	hypothetical protein
398	 45.97	-1	528928..529647	-	239	56416768	-	AM578	-	hypothetical protein
399	 45.34	-1	529698..530105	-	135	56416769	-	AM579	-	hypothetical protein
400	 42.89	-2	530080..530466	-	128	56416770	-	AM580	-	hypothetical protein
401	 45.59	-1	530463..531017	-	184	56416771	-	AM581	-	hypothetical protein
402	 38.60	-2	531026..531367	-	113	56416772	-	AM582	-	hypothetical protein
403	 48.79	0	531869..535012	-	1047	56416773	putA	AM583	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
404	 47.96	0	535097..536005	+	302	56416774	fabG	AM584	-	3-oxoacyl-reductase
405	 45.65	-1	536059..536391	-	110	56416775	-	AM586	-	hypothetical protein
406	 47.73	0	537408..538310	+	300	56416776	-	AM589	-	hypothetical protein
407	 42.53	-2	538467..539162	-	231	56416777	rlpA	AM590	-	rare lipoprotein A precursor
408	 46.33	-1	539361..540191	-	276	56416778	xthA2	AM591	-	exodeoxyribonuclease III
409	 48.71	0	540314..541048	-	244	56416779	-	AM592	-	hypothetical protein
410	 40.83	-2	541381..541500	+	39	56416780	rpmJ	AM593	-	large subunit ribosomal protein L36
411	 51.39	0	541529..541888	+	119	56416781	-	AM594	-	hypothetical protein
412	 53.00	+1	541901..542551	-	216	56416782	-	AM595	-	hypothetical protein
413	 47.62	0	542576..542848	-	90	56416783	rpmA	AM596	-	50S ribosomal protein L27
414	 48.84	0	542852..543154	-	100	161544989	rplU	AM597	-	50S ribosomal protein L21
415	 47.69	0	543637..544932	+	431	56416785	eno	AM600	-	enolase 1 (2-phosphoglycerate dehydratase 1)
416	 47.28	0	544934..545980	+	348	56416786	obgE	AM601	-	GTPase ObgE
417	 45.64	-1	545943..546332	+	129	56416787	-	AM603	-	hypothetical protein
418	 44.75	-1	546503..547378	-	291	56416788	mraW	AM605	-	S-adenosyl-methyltransferase MraW
419	 46.74	-1	547550..548086	-	178	56416789	ygfA	AM606	-	5-formyltetrahydrofolate cyclo-ligase
420	 50.48	0	548370..553613	+	1747	56416790	-	AM612	-	hypothetical protein
421	 43.33	-2	553836..555356	+	506	56416791	-	AM613	-	hypothetical protein
422	 49.47	0	555884..556453	-	189	56416792	-	AM615	-	hypothetical protein
423	 47.41	0	556586..558397	-	603	56416793	-	AM616	-	hypothetical protein
424	 47.41	0	558602..559624	-	340	56416794	trxB2	AM617	-	thioredoxin reductase
425	 45.99	-1	559705..561039	-	444	56416795	pmbA	AM618	-	pmbA protein
426	 46.57	-1	561049..561645	-	198	56416796	folE	AM619	-	GTP cyclohydrolase
427	 48.96	0	561652..562515	-	287	56416797	atpG	AM620	-	ATP synthase gamma chain
428	 50.54	0	562810..564006	+	398	56416798	nuoD	AM623	-	NADH dehydrogenase subunit D
429	 49.02	0	564011..564520	+	169	56416799	nuoE	AM624	-	NADH dehydrogenase subunit E
430	 49.21	0	564510..565208	+	232	56416800	dnaQ	AM625	-	DNA polymerase III epsilon chain
431	 49.27	0	565245..566825	-	526	56416801	-	AM626	-	hypothetical protein
432	 49.45	0	567191..567829	+	212	56416802	-	AM628	-	hypothetical protein
433	 49.00	0	568265..570115	+	616	56416803	-	AM629	-	hypothetical protein
434	 47.00	0	570249..570782	-	177	56416804	-	AM630	-	hypothetical protein
435	 49.14	0	570776..571648	-	290	56416805	rpoH	AM631	-	RNA polymerase sigma-32 factor
436	 43.17	-2	571770..572084	+	104	56416806	-	AM632	-	hypothetical protein
437	 47.97	0	572081..572326	+	81	56416807	-	AM634	-	hypothetical protein
438	 50.03	0	572766..582350	+	3194	56416808	-	AM638	-	hypothetical protein
439	 47.88	0	582496..583554	-	352	56416809	nuoH	AM640	-	NADH dehydrogenase subunit H
440	 50.67	0	583556..585631	-	691	56416810	nuoG	AM641	-	NADH dehydrogenase subunit G
441	 50.46	0	585639..585854	-	71	56416811	-	AM642	-	hypothetical protein
442	 49.03	0	586035..588416	-	793	56416812	gyrB2	AM644	-	DNA gyrase subunit B
443	 50.66	0	588750..589355	+	201	56416813	ubiX	AM645	-	3-octaprenyl-4-hydroxybenzoate carboxyl-lyase
444	 53.76	+1	589454..589879	-	141	56416814	-	AM647	-	hypothetical protein
445	 47.96	0	590379..591602	-	407	56416815	-	AM649	-	hypothetical protein
446	 46.33	-1	591574..591927	-	117	56416816	adx1	AM650	-	ferredoxin [2Fe-2S] adrenodoxin-like precursor adx1
447	 52.02	0	591953..593761	-	602	56416817	hscA	AM651	-	heat shock protein
448	 44.08	-1	593749..594297	-	182	56416818	hscB	AM652	-	chaperone protein
449	 49.00	0	594578..594979	-	133	56416819	nifU	AM654	-	scaffold protein
450	 50.53	0	594988..596214	-	408	56416820	iscS	AM655	-	cysteine desulfurase
451	 50.03	0	596247..597809	-	520	56416821	-	AM656	-	hypothetical protein
452	 50.35	0	598007..598711	+	234	56416822	-	AM657	-	hypothetical protein
453	 48.69	0	599013..600614	+	533	56416823	lysK	AM658	-	lysyl-tRNA synthetase
454	 50.58	0	600760..601101	+	113	56416824	-	AM660	-	hypothetical protein
455	 49.73	0	601147..601890	-	247	56416825	truA	AM661	-	tRNA pseudouridine synthase A
456	 48.49	0	601887..602783	-	298	56416826	pyrB	AM662	-	aspartate carbamoyltransferase catalytic subunit
457	 48.64	0	602946..603605	-	219	56416827	-	AM664	-	putative translaldolase
458	 49.10	0	603602..603988	-	128	56416828	atpC	AM665	-	ATP synthase epsilon chain
459	 52.02	0	604058..605518	-	486	56416829	atpD	AM666	-	F0F1 ATP synthase subunit beta
460	 46.01	-1	605894..607345	+	483	56416830	mgtE	AM668	-	magnesium transporter
461	 49.67	0	607824..608429	+	201	56416831	ftsJ	AM669	-	cell division protein
462	 52.76	+1	608913..609782	+	289	56416832	-	AM670	-	hypothetical protein
463	 49.47	0	609843..610784	+	313	56416833	-	AM671	-	hypothetical protein
464	 48.78	0	611370..612968	+	532	56416834	-	AM673	-	hypothetical protein
465	 49.77	0	613573..616785	+	1070	56416835	-	AM675	-	hypothetical protein
466	 49.28	0	617089..618480	-	463	56416836	-	AM676	-	hypothetical protein
467	 49.31	0	618649..620388	-	579	56416837	argS	AM678	-	arginyl-tRNA synthetase
468	 49.79	0	620653..621369	+	238	56416838	recO	AM680	-	DNA repair protein RecO
469	 52.45	0	621444..622055	+	203	56416839	-	AM681	-	hypothetical protein
470	 55.07	+1	622067..622273	+	68	56416840	-	AM682	-	hypothetical protein
471	 52.59	+1	622240..623646	-	468	56416841	-	AM683	-	hypothetical protein
49.65	MEAN

2.84	STD DEV
