IslandPath Analysis: Anaplasma marginale str. St. Maries

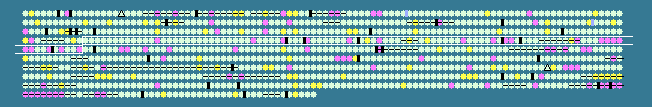

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
311	 48.35	0	410141..413011	-	956	56416681	uvrA	AM456	-	excinuclease ABC subunit A
312	 47.19	0	413045..413578	-	177	56416682	nusB	AM457	-	N utilization substance protein B
313	 48.67	0	413571..414020	-	149	161544991	ribH	AM458	-	riboflavin synthase subunit beta
314	 48.34	0	414052..415770	-	572	161544990	yidC	AM460	-	putative inner membrane protein translocase component YidC
315	 49.35	0	416086..416928	-	280	56416685	pssA	AM462	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
316	 50.07	0	416989..417693	-	234	56416686	psd	AM463	-	phosphatidylserine decarboxylase
317	 49.12	0	417952..421353	-	1133	56416687	-	AM465	-	hypothetical protein
318	 52.30	0	421771..425556	-	1261	56416688	-	AM470	-	hypothetical protein
319	 49.33	0	425738..426856	+	372	56416689	murG	AM471	-	UDP-N-acetylglucosamine-N-acetylmuramyl-(pentapeptide pyrophosphoryl-undecaprenol N-acetylglucosamine)
320	 47.09	0	427002..427568	+	188	56416690	efp	AM472	-	elongation factor PEF-P
321	 49.34	0	427571..428332	+	253	56416691	suhB	AM473	-	extragenic suppressor protein
322	 49.27	0	428329..429219	+	296	56416692	rluC	AM474	-	ribosomal large subunit pseudouridine synthase
323	 46.13	-1	429469..430836	-	455	56416693	pleD	AM475	-	response regulator PleD
324	 50.39	0	431033..431419	-	128	56416694	-	AM476	-	hypothetical protein
325	 47.53	0	431385..436238	-	1617	56416695	-	AM477	-	hypothetical protein
326	 51.93	0	436634..437359	+	241	56416696	-	AM480	-	hypothetical protein
327	 49.46	0	437361..438761	+	466	56416697	cysS	AM481	-	cysteinyl-tRNA synthetase
328	 48.31	0	439009..439983	+	324	56416698	nrdF	AM483	-	ribonucleotide-diphosphate reductase subunit beta
329	 49.00	0	439961..440560	+	199	56416699	-	AM485	-	hypothetical protein
330	 48.42	0	441151..441435	-	94	56416700	-	AM486	-	hypothetical protein
331	 47.58	0	441651..442682	+	343	56416701	-	AM487	-	hypothetical protein
332	 50.79	0	442810..444648	+	612	56416702	dnaG	AM488	-	DNA primase
333	 51.80	0	444617..444838	+	73	56416703	-	AM489	-	hypothetical protein
334	 48.18	0	444813..446711	-	632	56416704	rpoD	AM490	-	RNA polymerase sigma factor
335	 47.87	0	446914..447876	-	320	56416705	-	AM492	-	hypothetical protein
336	 48.62	0	448016..448885	+	289	56416706	ispE	AM493	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
337	 51.72	0	449010..449444	-	144	56416707	-	AM495	-	hypothetical protein
338	 49.02	0	449860..450216	-	118	56416708	cutA	AM497	-	periplasmic divalent cation tolerance protein
339	 44.00	-1	450260..452743	-	827	56416709	dhkA	AM498	-	sensory box histidine kinase/response regulator
340	 50.23	0	453242..453904	-	220	56416710	-	AM499	-	hypothetical protein
341	 50.47	0	454148..454468	+	106	56416711	-	AM500	-	hypothetical protein
342	 51.06	0	454671..456080	+	469	56416712	-	AM501	-	hypothetical protein
343	 46.78	-1	456208..458646	+	812	56416713	topA	AM502	-	DNA topoisomerase
344	 45.70	-1	458866..459342	-	158	56416714	-	AM504	-	hypothetical protein
345	 47.93	0	460409..460771	-	120	56416715	acpS	AM506	-	holo-(acyl-carrier-protein) synthase
346	 49.45	0	460768..462045	-	425	56416716	proS	AM507	-	prolyl-tRNA synthetase
347	 51.09	0	462309..463361	-	350	56416717	-	AM508	-	hypothetical protein
348	 43.66	-2	463648..464160	+	170	56416718	coaD	AM509	-	phosphopantetheine adenylyltransferase
349	 51.43	0	464331..465308	-	325	56416719	trxB	AM510	-	thioredoxin reductase
350	 47.60	0	465305..465928	-	207	56416720	tdpX1	AM511	-	thioredoxin peroxidase 1
351	 51.10	0	466204..466884	+	226	56416721	aatA	AM514	-	aspartate aminotransferase A
352	 47.67	0	466941..467561	+	206	56416722	aatA	AM515	-	aspartate aminotransferase A
353	 49.53	0	467807..469819	-	670	56416723	-	AM516	-	hypothetical protein
354	 50.17	0	469871..470464	-	197	56416724	-	AM517	-	hypothetical protein
355	 45.92	-1	470483..471793	-	436	56416725	-	AM518	-	hypothetical protein
356	 48.97	0	471817..473121	-	434	56416726	-	AM520	-	hypothetical protein
357	 48.79	0	473383..474249	+	288	56416727	mreC	AM521	-	rod shape determining protein
358	 53.51	+1	474358..475467	-	369	56416728	mreB	AM522	-	rod shape-determining protein
359	 50.16	0	475701..476621	+	306	56416729	truB	AM524	-	tRNA pseudouridine 55 synthase
360	 43.26	-2	476660..476941	+	93	56416730	rpsO	AM525	-	30S ribosomal protein S15
361	 51.03	0	476993..479410	+	805	56416731	pnp	AM526	-	polynucleotide phosphorylase/polyadenylase
362	 50.97	0	479416..480192	+	258	56416732	-	AM527	-	hypothetical protein
363	 49.17	0	480327..482126	+	599	56416733	lepA	AM528	-	GTP-binding protein LepA
364	 48.24	0	483114..483482	-	122	56416734	-	AM529	-	hypothetical protein
365	 55.13	+1	483889..485769	+	626	56416735	msp1a	AM530	-	major surface protein 1a
366	 51.96	0	486324..487166	+	280	56416736	mlp2	AM532	-	major surface protein 1a-like protein 22
367	 51.48	0	487640..488515	+	291	56416737	mlp3	AM535	-	major surface protein 1a-like protein 3
368	 55.24	+1	488938..489873	+	311	56416738	mlp4	AM536	-	major surface protein 1a-like protein 4
369	 52.87	+1	489895..490626	+	243	56416739	-	AM537	-	hypothetical protein
370	 50.53	0	491451..498992	+	2513	56416740	-	AM540	-	hypothetical protein
371	 48.14	0	499054..500883	+	609	56416741	-	AM541	-	hypothetical protein
372	 47.18	0	501283..503181	+	632	56416742	-	AM543	-	hypothetical protein
373	 48.99	0	503759..505636	+	625	56416743	-	AM545	-	hypothetical protein
374	 42.74	-2	505658..505891	+	77	56416744	-	AM546	-	hypothetical protein
375	 46.92	0	506074..507987	+	637	56416745	-	AM547	-	hypothetical protein
376	 47.24	0	508787..510619	+	610	56416746	-	AM550	-	hypothetical protein
377	 48.36	0	510801..512963	+	720	56416747	-	AM551	-	hypothetical protein
378	 47.27	0	512951..513904	-	317	56416748	thiL	AM552	-	thiamin-monophosphate kinase
379	 45.16	-1	514140..515027	+	295	56416749	-	AM555	-	hypothetical protein
380	 50.23	0	515209..516492	+	427	56416750	bioA	AM556	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
381	 45.54	-1	516933..517268	+	111	56416751	-	AM557	-	hypothetical protein
382	 45.76	-1	517430..518242	-	270	56416752	ksgA	AM558	-	dimethyladenosine transferase
383	 46.47	-1	518375..519181	+	268	56416753	tpiA	AM559	-	triosephosphate isomerase
384	 46.27	-1	519165..520184	+	339	56416754	-	AM560	-	hypothetical protein
385	 50.29	0	520194..521219	+	341	56416755	-	AM561	-	hypothetical protein
386	 47.77	0	521178..521828	-	216	56416756	-	AM562	-	hypothetical protein
387	 49.72	0	521880..522233	+	117	56416757	folB	AM563	-	dihydroneopterin aldolase
388	 52.94	+1	522285..523238	+	317	56416758	mdh	AM564	-	malate dehydrogenase
389	 46.46	-1	523554..524231	-	225	56416759	ubiG	AM566	-	3-demethylubiquinone-9 3-methyltransferase
390	 50.35	0	524186..524755	+	189	56416760	infB	AM568	-	translation initiation factor IF-2
391	 49.38	0	524724..524966	-	80	56416761	-	AM569	-	hypothetical protein
392	 53.51	+1	525159..525599	+	146	56416762	rpiB	AM570	-	ribose 5-phosphate isomerase
393	 45.53	-1	525692..526396	+	234	56416763	ubiG	AM571	-	3-demethylubiquinone-9 3-methyltransferase
394	 47.73	0	526497..527003	-	168	56416764	gcp	AM572	-	O-sialoglycoprotein endopeptidase
395	 50.72	0	527013..527219	-	68	56416765	-	AM573	-	hypothetical protein
396	 46.76	-1	527461..528138	-	225	56416766	-	AM574	-	hypothetical protein
397	 43.08	-2	528119..528949	-	276	56416767	-	AM576	-	hypothetical protein
398	 45.97	-1	528928..529647	-	239	56416768	-	AM578	-	hypothetical protein
399	 45.34	-1	529698..530105	-	135	56416769	-	AM579	-	hypothetical protein
400	 42.89	-2	530080..530466	-	128	56416770	-	AM580	-	hypothetical protein
401	 45.59	-1	530463..531017	-	184	56416771	-	AM581	-	hypothetical protein
402	 38.60	-2	531026..531367	-	113	56416772	-	AM582	-	hypothetical protein
403	 48.79	0	531869..535012	-	1047	56416773	putA	AM583	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
404	 47.96	0	535097..536005	+	302	56416774	fabG	AM584	-	3-oxoacyl-reductase
405	 45.65	-1	536059..536391	-	110	56416775	-	AM586	-	hypothetical protein
406	 47.73	0	537408..538310	+	300	56416776	-	AM589	-	hypothetical protein
407	 42.53	-2	538467..539162	-	231	56416777	rlpA	AM590	-	rare lipoprotein A precursor
408	 46.33	-1	539361..540191	-	276	56416778	xthA2	AM591	-	exodeoxyribonuclease III
409	 48.71	0	540314..541048	-	244	56416779	-	AM592	-	hypothetical protein
410	 40.83	-2	541381..541500	+	39	56416780	rpmJ	AM593	-	large subunit ribosomal protein L36
49.65	MEAN

2.84	STD DEV
