IslandPath Analysis: Anaplasma marginale str. St. Maries

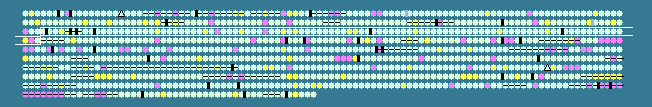

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
204	 49.16	0	255537..256073	+	178	56416574	rpsD	AM301	-	30S ribosomal protein S4
205	 47.26	0	256490..257638	-	382	56416575	-	AM302	-	hypothetical protein
206	 48.32	0	257698..258471	-	257	56416576	-	AM303	-	hypothetical protein
207	 54.67	+1	258486..259010	-	174	56416577	pgpA	AM305	-	phosphatidylglycerophosphatase A
208	 56.86	+2	259077..259331	-	84	56416578	-	AM306	-	hypothetical protein
209	 51.39	0	259718..261118	+	466	56416579	tig	AM308	-	trigger factor
210	 50.46	0	261123..261770	+	215	56416580	clpP	AM309	-	ATP-dependent Clp protease proteolytic subunit
211	 50.41	0	261780..262997	+	405	56416581	clpX	AM310	-	ATP-dependent protease ATP-binding subunit
212	 49.07	0	263016..265442	+	808	56416582	lon	AM311	-	ATP-dependent protease LA
213	 50.88	0	265965..266870	+	301	56416583	fmt	AM313	-	methionyl-tRNA formyltransferase
214	 51.32	0	267028..267861	+	277	56416584	-	AM315	-	hypothetical protein
215	 47.83	0	268029..268904	+	291	56416585	-	AM316	-	hypothetical protein
216	 51.22	0	269317..270339	+	340	56416586	thiE	AM318	-	thiamin monophosphate synthase
217	 47.64	0	270586..271899	-	437	56416587	-	AM320	-	hypothetical protein
218	 48.03	0	272040..272318	+	92	56416588	-	AM321	-	hypothetical protein
219	 51.63	0	272293..274566	+	757	56416589	ftsK	AM322	-	cell division protein
220	 49.29	0	274841..275893	-	350	56416590	-	AM324	-	hypothetical protein
221	 50.21	0	276120..277298	-	392	56416591	argD	AM326	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
222	 47.62	0	277480..278886	+	468	56416592	barA	AM327	-	histidine kinase sensor protein
223	 55.75	+2	278900..279751	-	283	56416593	-	AM328	-	hypothetical protein
224	 51.99	0	279717..280193	-	158	56416594	tolR	AM329	-	TolR protein
225	 49.06	0	280174..280866	-	230	56416595	tolQ	AM330	-	TolQ protein
226	 49.28	0	281043..282227	+	394	56416596	mutL	AM332	-	DNA mismatch repair protein
227	 48.20	0	282274..282939	+	221	56416597	mutL	AM333	-	DNA mismatch repair protein
228	 50.62	0	282953..284086	-	377	56416598	smf	AM334	-	DNA processing protein, chain A
229	 52.49	0	284565..285728	-	387	56416599	trmU	AM335	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
230	 46.53	-1	285916..286938	-	340	56416600	-	AM336	-	hypothetical protein
231	 55.22	+1	287239..288522	-	427	56416601	fabB	AM338	-	3-oxoacyl-(acyl-carrier-protein) synthase II
232	 46.55	-1	288627..288974	-	115	56416602	acpP	AM339	-	acyl carrier protein
233	 45.03	-1	289573..289743	-	56	56416603	rpmG	AM340	-	50S ribosomal protein L33
234	 50.00	0	289888..290631	+	247	56416604	-	AM342	-	hypothetical protein
235	 51.64	0	290619..291137	+	172	56416605	-	AM343	-	hypothetical protein
236	 49.68	0	291311..291622	+	103	56416606	-	AM345	-	hypothetical protein
237	 54.52	+1	292131..292970	+	279	56416607	-	AM346	-	hypothetical protein
238	 52.29	0	293135..296737	-	1200	56416608	-	AM347	-	hypothetical protein
239	 48.48	0	296823..297086	+	87	56416609	-	AM348	-	hypothetical protein
240	 50.10	0	297076..297588	+	170	56416610	coq7	AM349	-	ubiquinone biosynthesis protein
241	 45.47	-1	297645..298130	+	161	56416611	-	AM351	-	hypothetical protein
242	 49.30	0	298247..300946	-	899	56416612	-	AM354	-	hypothetical protein
243	 51.88	0	301069..305679	-	1536	56416613	-	AM356	-	hypothetical protein
244	 54.98	+1	305687..305917	-	76	56416614	-	AM357	-	hypothetical protein
245	 51.08	0	306198..310316	-	1372	56416615	-	AM359	-	hypothetical protein
246	 54.74	+1	310609..310893	-	94	56416616	-	AM360	-	hypothetical protein
247	 50.25	0	311228..319747	-	2839	56416617	-	AM366	-	hypothetical protein
248	 49.64	0	320035..323076	-	1013	56416618	-	AM368	-	hypothetical protein
249	 48.71	0	323519..325534	-	671	56416619	uvrD	AM369	-	DNA helicase II
250	 52.62	+1	325806..327449	+	547	56416620	-	AM371	-	hypothetical protein
251	 50.13	0	328606..331332	+	908	56416621	gyrA	AM372	-	DNA gyrase subunit A
252	 48.82	0	331332..331964	+	210	56416622	nth	AM373	-	endonuclease III
253	 49.83	0	332283..332888	+	201	56416623	-	AM375	-	hypothetical protein
254	 49.19	0	332974..334890	+	638	56416624	htpG	AM376	-	heat shock protein 90
255	 58.27	+2	335136..335516	+	126	56416625	-	AM378	-	hypothetical protein
256	 58.27	+2	335631..336011	+	126	56416626	-	AM380	-	hypothetical protein
257	 52.74	+1	336686..337396	-	236	56416627	-	AM382	-	hypothetical protein
258	 48.82	0	338112..339428	-	438	56416628	purB	AM384	-	adenylosuccinate lyase
259	 48.26	0	340263..342104	+	613	56416629	uvrC	AM385	-	excinuclease ABC subunit C
260	 51.42	0	342230..346690	-	1486	56416630	-	AM387	-	hypothetical protein
261	 49.52	0	347150..347878	-	242	56416631	birA	AM389	-	biotin-(acetyl-CoA carboxylase)
262	 49.18	0	347887..348555	-	222	56416632	gst	AM390	-	glutathione S-transferase
263	 47.88	0	348638..349180	-	180	56416633	-	AM391	-	hypothetical protein
264	 48.84	0	349511..350587	+	358	56416634	-	AM392	-	hypothetical protein
265	 51.71	0	350796..351437	+	213	56416635	recR	AM394	-	recombination protein
266	 53.85	+1	351434..351706	-	90	56416636	-	AM395	-	hypothetical protein
267	 50.17	0	351826..352710	-	294	56416637	znuA	AM396	-	high-affinity zinc uptake system protein
268	 47.56	0	352690..353427	+	245	56416638	znuC	AM397	-	zinc uptake system ATP-binding protein
269	 49.52	0	353420..354871	+	483	56416639	ubiB	AM399	-	ubiquinone biosynthesis protein
270	 48.76	0	354909..356114	+	401	56416640	-	AM400	-	hypothetical protein
271	 51.10	0	356277..357644	-	455	56416641	-	AM401	-	hypothetical protein
272	 49.45	0	357781..360423	-	880	56416642	-	AM402	-	hypothetical protein
273	 46.93	0	360719..361549	-	276	56416643	-	AM404	-	hypothetical protein
274	 51.09	0	361688..364480	+	930	56416644	kgd	AM405	-	alpha-ketoglutarate decarboxylase
275	 48.87	0	365054..366205	-	383	56416645	-	AM406	-	hypothetical protein
276	 51.10	0	366422..367327	-	301	56416646	dapA	AM407	-	dihydrodipicolinate synthase
277	 51.88	0	367524..367895	-	123	56416647	pkcI	AM409	-	protein kinase C inhibitor 1
278	 50.60	0	367892..369142	-	416	56416648	-	AM410	-	hypothetical protein
279	 48.82	0	369479..371938	+	819	56416649	mutS	AM412	-	DNA mismatch repair protein
280	 53.33	+1	371919..372203	+	94	56416650	-	AM413	-	hypothetical protein
281	 50.40	0	372351..373721	+	456	56416651	-	AM414	-	hypothetical protein
282	 48.68	0	373831..375153	+	440	56416652	-	AM415	-	hypothetical protein
283	 49.70	0	375143..376663	-	506	56416653	nadE	AM416	-	NH3-dependent NAD+ synthetase protein
284	 49.95	0	376670..377710	-	346	56416654	hemB	AM417	-	delta-aminolevulinic acid dehydratase
285	 48.68	0	377907..379496	+	529	56416655	pbpA2	AM418	-	penicillin-binding protein
286	 50.30	0	379536..382376	+	946	56416656	-	AM419	-	hypothetical protein
287	 50.14	0	382538..384001	+	487	56416657	-	AM420	-	hypothetical protein
288	 53.52	+1	384373..384912	-	179	56416658	ssb	AM424	-	single-strand binding protein
289	 47.29	0	385083..386465	+	460	56416659	mcd	AM425	-	malonyl-CoA decarboxylase
290	 49.79	0	386478..387935	+	485	56416660	gatB	AM426	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
291	 49.12	0	388435..389283	+	282	56416661	fabI	AM428	-	enoyl-[acyl-carrier-protein] reductase
292	 50.21	0	389525..390940	+	471	56416662	dnaA	AM430	-	chromosomal replication initiation protein
293	 50.30	0	391044..392039	-	331	56416663	-	AM431	-	hypothetical protein
294	 48.23	0	392119..392823	+	234	56416664	-	AM432	-	hypothetical protein
295	 48.56	0	393003..393764	+	253	56416665	pdxJ	AM434	-	pyridoxal phosphate biosynthetic protein PdxJ
296	 46.80	-1	394935..395825	-	296	56416666	-	AM435	-	hypothetical protein
297	 50.84	0	395807..396400	-	197	56416667	-	AM436	-	hypothetical protein
298	 49.37	0	397133..397849	+	238	56416668	coaE	AM438	-	dephospho-CoA kinase
299	 48.92	0	397898..399700	-	600	56416669	thiC	AM440	-	thiamine biosynthesis protein ThiC
300	 50.60	0	399744..400409	-	221	56416670	-	AM441	-	hypothetical protein
301	 54.01	+1	400474..400860	-	128	56416671	rpoZ	AM442	-	DNA-directed RNA polymerase omega subunit
302	 45.37	-1	401195..401518	-	107	56416672	-	AM445	-	hypothetical protein
303	 49.36	0	401901..404390	+	829	56416673	leuS	AM446	-	leucyl-tRNA synthetase
49.65	MEAN

2.84	STD DEV
