IslandPath Analysis: Anaplasma marginale str. St. Maries

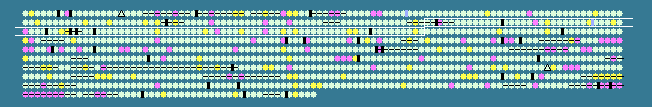

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
168	 50.60	0	209431..211503	+	690	56416538	fusA	AM253	-	elongation factor G
169	 49.58	0	211515..212696	+	393	56416539	tuf	AM254	-	elongation factor Tu
170	 45.07	-1	212796..213008	+	70	56416540	secE	AM255	-	preprotein translocase subunit SecE
171	 48.68	0	212992..213558	+	188	56416541	nusG	AM256	-	transcription antitermination protein
172	 51.13	0	213562..214005	+	147	56416542	rplK	AM258	-	50S ribosomal protein L11
173	 48.89	0	214002..214676	+	224	161544992	rplA	AM259	-	50S ribosomal protein L1
174	 51.42	0	214712..215203	+	163	56416544	rplJ	AM260	-	50S ribosomal protein L10
175	 48.89	0	215328..215732	+	134	56416545	rplL	AM261	-	50S ribosomal protein L7/L12
176	 48.78	0	215769..219917	+	1382	56416546	rpoB	AM262	-	DNA-directed RNA polymerase subunit beta
177	 50.31	0	219929..224176	+	1415	56416547	rpoC	AM263	-	DNA-directed RNA polymerase beta' chain
178	 50.20	0	224173..225192	-	339	56416548	rnhB	AM264	-	ribonuclease HII
179	 51.05	0	225409..228828	+	1139	56416549	-	AM265	-	hypothetical protein
180	 51.59	0	229023..229526	-	167	56416550	-	AM266	-	hypothetical protein
181	 51.18	0	229773..230915	-	380	56416551	-	AM268	-	hypothetical protein
182	 51.52	0	231322..231849	+	175	56416552	-	AM270	-	hypothetical protein
183	 49.10	0	231937..232710	-	257	56416553	-	AM271	-	pantothenate kinase
184	 49.23	0	232717..233886	-	389	56416554	pyrD	AM273	-	dihydroorotate dehydrogenase 2
185	 47.55	0	234047..234637	+	196	56416555	-	AM275	-	hypothetical protein
186	 45.68	-1	234769..235521	+	250	56416556	-	AM276	-	hypothetical protein
187	 49.94	0	235885..236751	+	288	56416557	-	AM279	-	hypothetical protein
188	 53.50	+1	236889..237488	+	199	56416558	pdxH	AM281	-	pyridoxamine 5-phosphate oxidase
189	 50.46	0	237493..238911	-	472	56416559	murE	AM282	-	UDP-N-acetylmuramoylalanyl-D-glutamate 2,6-diaminopimelate ligase
190	 50.00	0	238895..239110	+	71	56416560	-	AM283	-	hypothetical protein
191	 50.53	0	239132..240358	-	408	56416561	metC	AM284	-	cystathionine beta-lyase
192	 52.74	+1	240312..240785	-	157	56416562	bolA	AM285	-	bolA like protein
193	 50.85	0	240922..241857	+	311	56416563	-	AM286	-	hypothetical protein
194	 47.96	0	242268..245651	+	1127	56416564	dnaE	AM287	-	DNA polymerase III alpha subunit
195	 55.00	+1	245891..247279	+	462	56416565	rrs	AM289	-	3-phosphoshikimate 1-carboxyvinyltransferase
196	 51.04	0	249067..249450	+	127	56416566	sdhC	AM290	-	succinate dehydrogenase cytochrome b556 subunit
197	 50.93	0	249312..249686	-	124	56416567	-	AM291	-	hypothetical protein
198	 49.57	0	249441..249791	+	116	56416568	sdhD	AM292	-	succinate dehyrdrogenase subunit D
199	 53.68	+1	249942..251312	+	456	56416569	pep1	AM294	-	hypothetical protein
200	 51.60	0	251856..252638	-	260	56416570	thiD	AM295	-	phosphomethylpyrimidine kinase
201	 45.95	-1	252646..253311	-	221	56416571	-	AM296	-	hypothetical protein
202	 49.22	0	253312..254664	-	450	56416572	perM	AM297	-	permease perM-like
203	 46.33	-1	254937..255290	-	117	56416573	-	AM299	-	hypothetical protein
204	 49.16	0	255537..256073	+	178	56416574	rpsD	AM301	-	30S ribosomal protein S4
205	 47.26	0	256490..257638	-	382	56416575	-	AM302	-	hypothetical protein
206	 48.32	0	257698..258471	-	257	56416576	-	AM303	-	hypothetical protein
207	 54.67	+1	258486..259010	-	174	56416577	pgpA	AM305	-	phosphatidylglycerophosphatase A
208	 56.86	+2	259077..259331	-	84	56416578	-	AM306	-	hypothetical protein
209	 51.39	0	259718..261118	+	466	56416579	tig	AM308	-	trigger factor
210	 50.46	0	261123..261770	+	215	56416580	clpP	AM309	-	ATP-dependent Clp protease proteolytic subunit
211	 50.41	0	261780..262997	+	405	56416581	clpX	AM310	-	ATP-dependent protease ATP-binding subunit
212	 49.07	0	263016..265442	+	808	56416582	lon	AM311	-	ATP-dependent protease LA
213	 50.88	0	265965..266870	+	301	56416583	fmt	AM313	-	methionyl-tRNA formyltransferase
214	 51.32	0	267028..267861	+	277	56416584	-	AM315	-	hypothetical protein
215	 47.83	0	268029..268904	+	291	56416585	-	AM316	-	hypothetical protein
216	 51.22	0	269317..270339	+	340	56416586	thiE	AM318	-	thiamin monophosphate synthase
217	 47.64	0	270586..271899	-	437	56416587	-	AM320	-	hypothetical protein
218	 48.03	0	272040..272318	+	92	56416588	-	AM321	-	hypothetical protein
219	 51.63	0	272293..274566	+	757	56416589	ftsK	AM322	-	cell division protein
220	 49.29	0	274841..275893	-	350	56416590	-	AM324	-	hypothetical protein
221	 50.21	0	276120..277298	-	392	56416591	argD	AM326	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
222	 47.62	0	277480..278886	+	468	56416592	barA	AM327	-	histidine kinase sensor protein
223	 55.75	+2	278900..279751	-	283	56416593	-	AM328	-	hypothetical protein
224	 51.99	0	279717..280193	-	158	56416594	tolR	AM329	-	TolR protein
225	 49.06	0	280174..280866	-	230	56416595	tolQ	AM330	-	TolQ protein
226	 49.28	0	281043..282227	+	394	56416596	mutL	AM332	-	DNA mismatch repair protein
227	 48.20	0	282274..282939	+	221	56416597	mutL	AM333	-	DNA mismatch repair protein
228	 50.62	0	282953..284086	-	377	56416598	smf	AM334	-	DNA processing protein, chain A
229	 52.49	0	284565..285728	-	387	56416599	trmU	AM335	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
230	 46.53	-1	285916..286938	-	340	56416600	-	AM336	-	hypothetical protein
231	 55.22	+1	287239..288522	-	427	56416601	fabB	AM338	-	3-oxoacyl-(acyl-carrier-protein) synthase II
232	 46.55	-1	288627..288974	-	115	56416602	acpP	AM339	-	acyl carrier protein
233	 45.03	-1	289573..289743	-	56	56416603	rpmG	AM340	-	50S ribosomal protein L33
234	 50.00	0	289888..290631	+	247	56416604	-	AM342	-	hypothetical protein
235	 51.64	0	290619..291137	+	172	56416605	-	AM343	-	hypothetical protein
236	 49.68	0	291311..291622	+	103	56416606	-	AM345	-	hypothetical protein
237	 54.52	+1	292131..292970	+	279	56416607	-	AM346	-	hypothetical protein
238	 52.29	0	293135..296737	-	1200	56416608	-	AM347	-	hypothetical protein
239	 48.48	0	296823..297086	+	87	56416609	-	AM348	-	hypothetical protein
240	 50.10	0	297076..297588	+	170	56416610	coq7	AM349	-	ubiquinone biosynthesis protein
241	 45.47	-1	297645..298130	+	161	56416611	-	AM351	-	hypothetical protein
242	 49.30	0	298247..300946	-	899	56416612	-	AM354	-	hypothetical protein
243	 51.88	0	301069..305679	-	1536	56416613	-	AM356	-	hypothetical protein
244	 54.98	+1	305687..305917	-	76	56416614	-	AM357	-	hypothetical protein
245	 51.08	0	306198..310316	-	1372	56416615	-	AM359	-	hypothetical protein
246	 54.74	+1	310609..310893	-	94	56416616	-	AM360	-	hypothetical protein
247	 50.25	0	311228..319747	-	2839	56416617	-	AM366	-	hypothetical protein
248	 49.64	0	320035..323076	-	1013	56416618	-	AM368	-	hypothetical protein
249	 48.71	0	323519..325534	-	671	56416619	uvrD	AM369	-	DNA helicase II
250	 52.62	+1	325806..327449	+	547	56416620	-	AM371	-	hypothetical protein
251	 50.13	0	328606..331332	+	908	56416621	gyrA	AM372	-	DNA gyrase subunit A
252	 48.82	0	331332..331964	+	210	56416622	nth	AM373	-	endonuclease III
253	 49.83	0	332283..332888	+	201	56416623	-	AM375	-	hypothetical protein
254	 49.19	0	332974..334890	+	638	56416624	htpG	AM376	-	heat shock protein 90
255	 58.27	+2	335136..335516	+	126	56416625	-	AM378	-	hypothetical protein
256	 58.27	+2	335631..336011	+	126	56416626	-	AM380	-	hypothetical protein
257	 52.74	+1	336686..337396	-	236	56416627	-	AM382	-	hypothetical protein
258	 48.82	0	338112..339428	-	438	56416628	purB	AM384	-	adenylosuccinate lyase
259	 48.26	0	340263..342104	+	613	56416629	uvrC	AM385	-	excinuclease ABC subunit C
260	 51.42	0	342230..346690	-	1486	56416630	-	AM387	-	hypothetical protein
261	 49.52	0	347150..347878	-	242	56416631	birA	AM389	-	biotin-(acetyl-CoA carboxylase)
262	 49.18	0	347887..348555	-	222	56416632	gst	AM390	-	glutathione S-transferase
263	 47.88	0	348638..349180	-	180	56416633	-	AM391	-	hypothetical protein
264	 48.84	0	349511..350587	+	358	56416634	-	AM392	-	hypothetical protein
265	 51.71	0	350796..351437	+	213	56416635	recR	AM394	-	recombination protein
266	 53.85	+1	351434..351706	-	90	56416636	-	AM395	-	hypothetical protein
267	 50.17	0	351826..352710	-	294	56416637	znuA	AM396	-	high-affinity zinc uptake system protein
49.65	MEAN

2.84	STD DEV
