IslandPath Analysis: Anaplasma marginale str. St. Maries

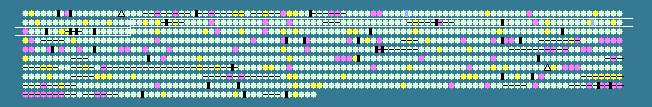

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 49.65 STD DEV: 2.84
Anaplasma marginale str. St. Maries, complete genome - 1..1197687
949 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
119	 49.30	0	148363..149358	-	331	56416489	ruvB	AM172	-	Holliday junction DNA helicase B
120	 53.05	+1	149355..149927	-	190	56416490	ruvA	AM173	-	holliday junction DNA helicase
121	 54.58	+1	149924..150676	-	250	56416491	ccmc	AM175	-	heme exporter protein C
122	 50.20	0	150861..151595	+	244	56416492	gmk	AM177	-	guanylate kinase
123	 54.45	+1	151721..152833	+	370	56416493	-	AM178	-	hypothetical protein
124	 51.22	0	152987..153886	+	299	56416494	folD	AM179	-	methylenetetrahydrofolate dehydrogenase
125	 50.09	0	154357..156576	+	739	56416495	msp1B-1	AM180	-	major surface protein 1B-1
126	 53.86	+1	157060..159456	+	798	56416496	-	AM185	-	hypothetical protein
127	 50.67	0	159495..159944	-	149	56416497	msp1Bpg1	AM188	-	major surface protein 1B
128	 50.71	0	160185..160817	-	210	56416498	-	AM189	-	hypothetical protein
129	 52.96	+1	161059..161598	-	179	56416499	cycM	AM190	-	cytochrome C
130	 50.10	0	161998..163518	-	506	56416500	nuoL2	AM193	-	NADH dehydrogenase I chain L
131	 50.58	0	163888..166542	-	884	56416501	ppdK	AM195	-	pyruvate phosphate dikinase
132	 45.49	-1	166838..167347	-	169	56416502	-	AM197	-	hypothetical protein
133	 49.84	0	167350..167973	-	207	56416503	-	AM198	-	hypothetical protein
134	 49.28	0	168165..169142	-	325	56416504	aspS	AM199	-	asparaginyl-tRNA synthetase
135	 48.37	0	169054..169944	-	296	56416505	aspS	AM200	-	asparaginyl-tRNA synthetase
136	 50.85	0	170363..170950	+	195	56416506	-	AM202	-	hypothetical protein
137	 50.27	0	170965..171891	+	308	56416507	gshB	AM203	-	glutathione synthetase
138	 49.55	0	172027..173031	+	334	56416508	ddlB	AM205	-	D-alanine--D-alanine ligase
139	 47.55	0	173024..173797	+	257	56416509	ftsQ	AM206	-	cell division protein
140	 47.97	0	174038..175438	+	466	56416510	ntrX	AM207	-	nitrogen assimilation regulatory protein
141	 44.62	-1	175825..176214	+	129	56416511	orfX	AM210	-	ORF X
142	 51.88	0	177599..179011	-	470	56416512	gor	AM215	-	glutathione reductase
143	 51.92	0	179210..181738	+	842	56416513	-	AM216	-	hypothetical protein
144	 48.74	0	181807..183273	+	488	56416514	-	AM217	-	hypothetical protein
145	 43.11	-2	183273..183896	+	207	56416515	-	AM218	-	hypothetical protein
146	 48.04	0	183893..184429	+	178	56416516	-	AM219	-	hypothetical protein
147	 49.31	0	184598..185461	+	287	56416517	-	AM220	-	hypothetical protein
148	 48.43	0	185456..186283	-	275	56416518	glnA	AM222	-	glutamine synthetase
149	 49.56	0	186261..187388	-	375	56416519	pstC	AM223	-	ABC-type phosphate transport system, permease component
150	 49.30	0	187473..190121	+	882	56416520	alaS	AM224	-	alanyl-tRNA synthetase
151	 52.54	+1	190828..191712	-	294	56416521	sucD	AM230	-	succinyl-CoA ligase chain A
152	 52.53	+1	191721..192887	-	388	56416522	sucC	AM231	-	succinyl-CoA synthetase beta chain
153	 50.38	0	192990..193253	-	87	161544993	rpsU	AM233	-	30S ribosomal protein S21
154	 50.25	0	193361..194377	-	338	56416524	pstS	AM235	-	phosphate ABC transporter, periplasmic phosphate-binding protein
155	 47.39	0	194437..195069	-	210	56416525	msp5	AM236	-	major surface protein 5
156	 50.93	0	195252..196268	-	338	56416526	-	AM237	-	hypothetical protein
157	 48.80	0	196271..196813	-	180	56416527	cybB	AM238	-	cytochrome b561
158	 48.80	0	197126..198754	+	542	56416528	-	AM240	-	hypothetical protein
159	 50.16	0	198949..200487	-	512	56416529	aprE	AM241	-	alkaline protease secretion protein
160	 47.49	0	200575..201231	-	218	56416530	-	AM242	-	hypothetical protein
161	 49.73	0	201697..203013	+	438	56416531	murD	AM243	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
162	 52.19	0	203038..204363	-	441	56416532	tolB	AM244	-	translocation protein TolB
163	 51.57	0	204370..205998	-	542	56416533	-	AM245	-	hypothetical protein
164	 53.05	+1	206240..206812	+	190	56416534	-	AM247	-	hypothetical protein
165	 51.41	0	206845..208338	+	497	56416535	-	AM248	-	hypothetical protein
166	 55.73	+2	208523..208897	+	124	56416536	rpsL	AM249	-	30S ribosomal protein S12
167	 48.86	0	208915..209397	+	160	56416537	rpsG	AM250	-	30S ribosomal protein S7
168	 50.60	0	209431..211503	+	690	56416538	fusA	AM253	-	elongation factor G
169	 49.58	0	211515..212696	+	393	56416539	tuf	AM254	-	elongation factor Tu
170	 45.07	-1	212796..213008	+	70	56416540	secE	AM255	-	preprotein translocase subunit SecE
171	 48.68	0	212992..213558	+	188	56416541	nusG	AM256	-	transcription antitermination protein
172	 51.13	0	213562..214005	+	147	56416542	rplK	AM258	-	50S ribosomal protein L11
173	 48.89	0	214002..214676	+	224	161544992	rplA	AM259	-	50S ribosomal protein L1
174	 51.42	0	214712..215203	+	163	56416544	rplJ	AM260	-	50S ribosomal protein L10
175	 48.89	0	215328..215732	+	134	56416545	rplL	AM261	-	50S ribosomal protein L7/L12
176	 48.78	0	215769..219917	+	1382	56416546	rpoB	AM262	-	DNA-directed RNA polymerase subunit beta
177	 50.31	0	219929..224176	+	1415	56416547	rpoC	AM263	-	DNA-directed RNA polymerase beta' chain
178	 50.20	0	224173..225192	-	339	56416548	rnhB	AM264	-	ribonuclease HII
179	 51.05	0	225409..228828	+	1139	56416549	-	AM265	-	hypothetical protein
180	 51.59	0	229023..229526	-	167	56416550	-	AM266	-	hypothetical protein
181	 51.18	0	229773..230915	-	380	56416551	-	AM268	-	hypothetical protein
182	 51.52	0	231322..231849	+	175	56416552	-	AM270	-	hypothetical protein
183	 49.10	0	231937..232710	-	257	56416553	-	AM271	-	pantothenate kinase
184	 49.23	0	232717..233886	-	389	56416554	pyrD	AM273	-	dihydroorotate dehydrogenase 2
185	 47.55	0	234047..234637	+	196	56416555	-	AM275	-	hypothetical protein
186	 45.68	-1	234769..235521	+	250	56416556	-	AM276	-	hypothetical protein
187	 49.94	0	235885..236751	+	288	56416557	-	AM279	-	hypothetical protein
188	 53.50	+1	236889..237488	+	199	56416558	pdxH	AM281	-	pyridoxamine 5-phosphate oxidase
189	 50.46	0	237493..238911	-	472	56416559	murE	AM282	-	UDP-N-acetylmuramoylalanyl-D-glutamate 2,6-diaminopimelate ligase
190	 50.00	0	238895..239110	+	71	56416560	-	AM283	-	hypothetical protein
191	 50.53	0	239132..240358	-	408	56416561	metC	AM284	-	cystathionine beta-lyase
192	 52.74	+1	240312..240785	-	157	56416562	bolA	AM285	-	bolA like protein
193	 50.85	0	240922..241857	+	311	56416563	-	AM286	-	hypothetical protein
194	 47.96	0	242268..245651	+	1127	56416564	dnaE	AM287	-	DNA polymerase III alpha subunit
195	 55.00	+1	245891..247279	+	462	56416565	rrs	AM289	-	3-phosphoshikimate 1-carboxyvinyltransferase
196	 51.04	0	249067..249450	+	127	56416566	sdhC	AM290	-	succinate dehydrogenase cytochrome b556 subunit
197	 50.93	0	249312..249686	-	124	56416567	-	AM291	-	hypothetical protein
198	 49.57	0	249441..249791	+	116	56416568	sdhD	AM292	-	succinate dehyrdrogenase subunit D
199	 53.68	+1	249942..251312	+	456	56416569	pep1	AM294	-	hypothetical protein
200	 51.60	0	251856..252638	-	260	56416570	thiD	AM295	-	phosphomethylpyrimidine kinase
201	 45.95	-1	252646..253311	-	221	56416571	-	AM296	-	hypothetical protein
202	 49.22	0	253312..254664	-	450	56416572	perM	AM297	-	permease perM-like
203	 46.33	-1	254937..255290	-	117	56416573	-	AM299	-	hypothetical protein
204	 49.16	0	255537..256073	+	178	56416574	rpsD	AM301	-	30S ribosomal protein S4
205	 47.26	0	256490..257638	-	382	56416575	-	AM302	-	hypothetical protein
206	 48.32	0	257698..258471	-	257	56416576	-	AM303	-	hypothetical protein
207	 54.67	+1	258486..259010	-	174	56416577	pgpA	AM305	-	phosphatidylglycerophosphatase A
208	 56.86	+2	259077..259331	-	84	56416578	-	AM306	-	hypothetical protein
209	 51.39	0	259718..261118	+	466	56416579	tig	AM308	-	trigger factor
210	 50.46	0	261123..261770	+	215	56416580	clpP	AM309	-	ATP-dependent Clp protease proteolytic subunit
211	 50.41	0	261780..262997	+	405	56416581	clpX	AM310	-	ATP-dependent protease ATP-binding subunit
212	 49.07	0	263016..265442	+	808	56416582	lon	AM311	-	ATP-dependent protease LA
213	 50.88	0	265965..266870	+	301	56416583	fmt	AM313	-	methionyl-tRNA formyltransferase
214	 51.32	0	267028..267861	+	277	56416584	-	AM315	-	hypothetical protein
215	 47.83	0	268029..268904	+	291	56416585	-	AM316	-	hypothetical protein
216	 51.22	0	269317..270339	+	340	56416586	thiE	AM318	-	thiamin monophosphate synthase
217	 47.64	0	270586..271899	-	437	56416587	-	AM320	-	hypothetical protein
218	 48.03	0	272040..272318	+	92	56416588	-	AM321	-	hypothetical protein
49.65	MEAN

2.84	STD DEV
