IslandPath Analysis: Anaeromyxobacter dehalogenans 2CP-C

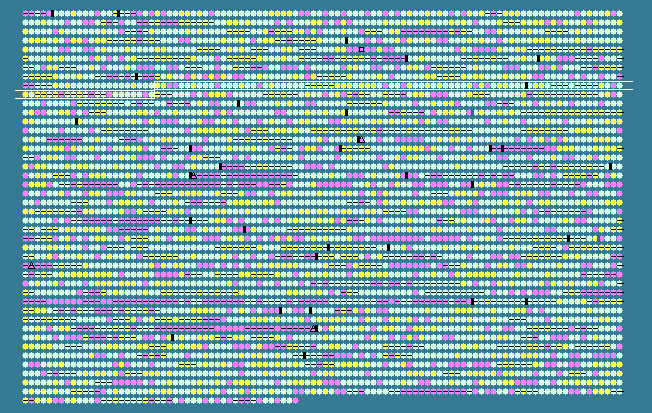

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 74.55 STD DEV: 4.53
Anaeromyxobacter dehalogenans 2CP-C, complete genome - 1..5013479
4346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
823	 78.09	0	960004..960870	-	288	86157253	-	Adeh_0826	-	formate dehydrogenase family accessory protein FdhD
824	 78.59	0	961080..963293	+	737	86157254	-	Adeh_0827	-	superfamily I DNA/RNA helicase
825	 69.50	-1	963424..963987	+	187	86157255	-	Adeh_0828	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
826	 70.55	0	964245..966485	+	746	86157256	-	Adeh_0829	-	peptidase M6, immune inhibitor A
827	 74.58	0	966523..968544	-	673	86157257	-	Adeh_0830	-	ABC transporter, duplicated ATPase subunits
828	 71.75	0	968606..970237	-	543	86157258	-	Adeh_0831	-	delta-1-pyrroline-5-carboxylate dehydrogenase
829	 79.97	+1	970361..970984	-	207	86157259	-	Adeh_0832	-	hypothetical protein
830	 76.09	0	971082..972482	-	466	86157260	-	Adeh_0833	-	two component, sigma54 specific, Fis family transcriptional regulator
831	 76.59	0	972479..973798	-	439	86157261	-	Adeh_0834	-	periplasmic sensor signal transduction histidine kinase
832	 74.19	0	973938..974867	+	309	86157262	-	Adeh_0835	-	ABC transporter, ATPase subunit
833	 69.95	-1	974864..975625	+	253	86157263	-	Adeh_0836	-	ABC transporter, inner membrane subunit
834	 73.55	0	975769..976581	+	270	86157264	-	Adeh_0837	-	hypothetical protein
835	 76.58	0	977323..978906	+	527	86157265	-	Adeh_0838	-	ATP-dependent DNA helicase RecQ
836	 77.66	0	978901..979464	-	187	86157266	-	Adeh_0839	-	hypothetical protein
837	 79.62	+1	979473..980159	-	228	86157267	-	Adeh_0840	-	hypothetical protein
838	 76.16	0	980283..980840	+	185	86157268	-	Adeh_0841	-	hypothetical protein
839	 71.94	0	981010..981483	+	157	86157269	-	Adeh_0842	-	BadM/Rrf2 family transcriptional regulator
840	 66.18	-1	981480..982919	+	479	86157270	-	Adeh_0843	-	cysteine desulfurase activator complex subunit SufB
841	 72.99	0	982923..983729	+	268	86157271	-	Adeh_0844	-	FeS assembly ATPase SufC
842	 78.39	0	983726..985039	+	437	86157272	-	Adeh_0845	-	FeS assembly protein SufD
843	 75.97	0	985036..986325	+	429	86157273	-	Adeh_0846	-	SufS subfamily cysteine desulfurase
844	 72.89	0	986360..986809	+	149	86157274	-	Adeh_0847	-	SUF system FeS assembly protein
845	 71.51	0	986854..987411	+	185	86157275	-	Adeh_0848	-	hypothetical protein
846	 73.73	0	987430..987882	-	150	86157276	-	Adeh_0849	-	FHA domain-containing protein
847	 77.55	0	987879..988319	-	146	86157277	-	Adeh_0850	-	universal stress protein UspA
848	 73.05	0	988549..989457	+	302	86157278	-	Adeh_0851	-	hypothetical protein
849	 81.44	+1	989515..991416	-	633	86157279	-	Adeh_0852	-	hypothetical protein
850	 80.99	+1	991565..992290	+	241	86157280	-	Adeh_0853	-	TonB-like
851	 75.18	0	992318..993550	-	410	86157281	-	Adeh_0854	-	hypothetical protein
852	 79.80	+1	993632..994537	-	301	86157282	-	Adeh_0855	-	peptidase S1 and S6, chymotrypsin/Hap
853	 81.15	+1	994534..995472	-	312	86157283	-	Adeh_0856	-	PDZ/DHR/GLGF
854	 82.23	+1	995620..996255	+	211	86157284	-	Adeh_0857	-	two component LuxR family transcriptional regulator
855	 78.68	0	996362..996877	+	171	86157285	-	Adeh_0858	-	FMN-binding pyridoxamine 5'-phosphate oxidase-related protein protein
856	 71.43	0	997304..998416	+	370	86157286	-	Adeh_0859	-	HNH nuclease
857	 78.63	0	998429..998821	-	130	86157287	-	Adeh_0860	-	translation initiation factor 1 (eIF-1/SUI1)
858	 83.00	+1	998818..1000029	-	403	86157288	-	Adeh_0861	-	TfuA-like protein
859	 81.32	+1	1000026..1001165	-	379	86157289	-	Adeh_0862	-	hypothetical protein
860	 73.89	0	1001236..1002633	+	465	86157290	-	Adeh_0863	-	peptidase M20
861	 69.64	-1	1002763..1005288	+	841	86157291	-	Adeh_0864	-	glycogen/starch/alpha-glucan phosphorylase
862	 77.93	0	1005191..1005634	-	147	86157292	-	Adeh_0865	-	methylated-DNA-(protein)-cysteine S-methyltransferase
863	 75.97	0	1005703..1006293	+	196	86157293	-	Adeh_0866	-	hypothetical protein
864	 70.26	0	1006387..1006971	+	194	86157294	-	Adeh_0867	-	hypothetical protein
865	 79.44	+1	1006971..1007753	+	260	86157295	-	Adeh_0868	-	hypothetical protein
866	 77.26	0	1007764..1008405	+	213	86157296	-	Adeh_0869	-	hypothetical protein
867	 74.75	0	1008425..1009897	-	490	86157297	-	Adeh_0870	-	Sodium/hydrogen exchanger
868	 79.05	0	1009969..1011042	-	357	86157298	-	Adeh_0871	-	radical SAM family protein
869	 72.02	0	1011128..1011706	+	192	86157299	-	Adeh_0872	-	transcriptional regulator
870	 79.13	+1	1011782..1013233	+	483	86157300	-	Adeh_0873	-	response regulator receiver domain-containing protein
871	 77.75	0	1013675..1014856	+	393	86157301	-	Adeh_0874	-	hypothetical protein
872	 75.49	0	1014853..1015623	+	256	86157302	-	Adeh_0875	-	nucleotidyl transferase
873	 73.23	0	1015628..1016389	+	253	86157303	-	Adeh_0876	-	methyltransferase type 11
874	 73.22	0	1016386..1017270	+	294	86157304	-	Adeh_0877	-	hypothetical protein
875	 80.83	+1	1017261..1017980	-	239	86157305	-	Adeh_0878	-	hypothetical protein
876	 69.40	-1	1018181..1018693	+	170	86157306	-	Adeh_0879	-	OmpA/MotB family outer membrane protein
877	 78.49	0	1018781..1019203	+	140	86157307	-	Adeh_0880	-	hypothetical protein
878	 69.93	-1	1019232..1020242	+	336	86157308	-	Adeh_0881	-	SPFH domain-containing protein/band 7 family protein
879	 77.17	0	1020343..1020999	+	218	86157309	-	Adeh_0882	-	hypothetical protein
880	 82.07	+1	1020996..1021787	-	263	86157310	-	Adeh_0883	-	TPR repeat-containing protein
881	 79.83	+1	1021930..1024110	+	726	86157311	-	Adeh_0884	-	ATP dependent DNA ligase
882	 74.04	0	1024325..1024663	+	112	86157312	-	Adeh_0885	-	hypothetical protein
883	 77.41	0	1024668..1024937	-	89	86157313	-	Adeh_0886	-	hypothetical protein
884	 74.61	0	1025001..1026296	+	431	86157314	-	Adeh_0887	-	MscS mechanosensitive ion channel
885	 77.60	0	1026531..1028816	+	761	86157315	-	Adeh_0888	-	TPR repeat-containing protein
886	 81.62	+1	1029040..1029507	+	155	86157316	-	Adeh_0889	-	PE-PGRS family protein
887	 81.27	+1	1029518..1031161	+	547	86157317	-	Adeh_0890	-	abortive infection protein
888	 75.57	0	1031171..1031866	-	231	86157318	-	Adeh_0891	-	two component transcriptional regulator
889	 76.38	0	1031863..1034571	-	902	86157319	-	Adeh_0892	-	osmosensitive K+ channel signal transduction histidine kinase
890	 77.78	0	1034568..1035179	-	203	86157320	-	Adeh_0893	-	potassium-transporting ATPase, C subunit
891	 73.52	0	1035191..1037278	-	695	86157321	-	Adeh_0894	-	potassium-translocating P-type ATPase, B subunit
892	 74.50	0	1037284..1039020	-	578	86157322	-	Adeh_0895	-	potassium-transporting ATPase subunit A
893	 77.59	0	1039466..1040683	+	405	86157323	-	Adeh_0896	-	glycosyltransferase
894	 77.37	0	1040993..1042720	+	575	86157324	-	Adeh_0897	-	hypothetical protein
895	 74.36	0	1042781..1043209	-	142	86157325	-	Adeh_0898	-	hypothetical protein
896	 77.20	0	1043206..1044069	-	287	86157326	-	Adeh_0899	-	ABC transporter, inner membrane subunit
897	 79.28	+1	1044066..1045016	-	316	86157327	-	Adeh_0900	-	ABC transporter, ATPase subunit
898	 74.36	0	1045036..1045932	-	298	86157328	-	Adeh_0901	-	protoheme IX farnesyltransferase
899	 70.41	0	1046094..1046360	-	88	86157329	-	Adeh_0902	-	hypothetical protein
900	 72.97	0	1046477..1047349	+	290	86157330	-	Adeh_0903	-	ATPase
901	 78.95	0	1047359..1048042	+	227	86157331	-	Adeh_0904	-	deoxyribose-phosphate aldolase
902	 74.32	0	1048080..1049255	+	391	86157332	-	Adeh_0905	-	phosphopentomutase
903	 79.37	+1	1049252..1050172	+	306	86157333	-	Adeh_0906	-	hypothetical protein
904	 79.12	+1	1050136..1050384	-	82	86157334	-	Adeh_0907	-	hypothetical protein
905	 72.33	0	1050402..1052660	-	752	86157335	-	Adeh_0908	-	periplasmic nitrate reductase subunit NapA apoprotein
906	 80.41	+1	1052685..1053077	-	130	86157336	-	Adeh_0909	-	hypothetical protein
907	 69.59	-1	1053180..1054652	-	490	86157337	-	Adeh_0910	-	respiratory nitrite reductase (cytochrome; ammonia-forming) precursor
908	 71.93	0	1054690..1055145	-	151	86157338	-	Adeh_0911	-	respiratory nitrite reductase specific menaquinol--cytochrome-c reductase (NrfH) precursor
909	 73.06	0	1055913..1060055	+	1380	86157339	-	Adeh_0912	-	fibronectin, type III/multicopper oxidase, type 2
910	 83.25	+1	1060158..1060724	+	188	86157340	-	Adeh_0913	-	putative dihydrolipoamide S-succinyltransferase
911	 72.81	0	1060828..1061283	+	151	86157341	-	Adeh_0914	-	bacterio-opsin linked product
912	 68.66	-1	1061293..1061694	-	133	86157342	-	Adeh_0915	-	hypothetical protein
913	 72.41	0	1061691..1062212	-	173	86157343	-	Adeh_0916	-	putative anti-sigma regulatory factor (serine/threonine protein kinase)
914	 76.60	0	1062199..1064091	-	630	86157344	-	Adeh_0917	-	serine phosphatase
915	 70.83	0	1064093..1064428	-	111	86157345	-	Adeh_0918	-	hypothetical protein
916	 72.47	0	1064428..1065582	-	384	86157346	-	Adeh_0919	-	hypothetical protein
917	 77.18	0	1065575..1066021	-	148	86157347	-	Adeh_0920	-	hypothetical protein
918	 74.19	0	1066018..1067187	-	389	86157348	-	Adeh_0921	-	hypothetical protein
919	 74.37	0	1067441..1068829	-	462	86157349	-	Adeh_0922	-	two component, sigma54 specific, Fis family transcriptional regulator
920	 77.33	0	1068826..1070691	-	621	86157350	-	Adeh_0923	-	multi-sensor signal transduction histidine kinase
921	 69.47	-1	1070829..1072148	-	439	86157351	-	Adeh_0924	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
922	 72.87	0	1072383..1074203	+	606	86157352	-	Adeh_0925	-	AMP-dependent synthetase and ligase
74.55	MEAN

4.53	STD DEV
