IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

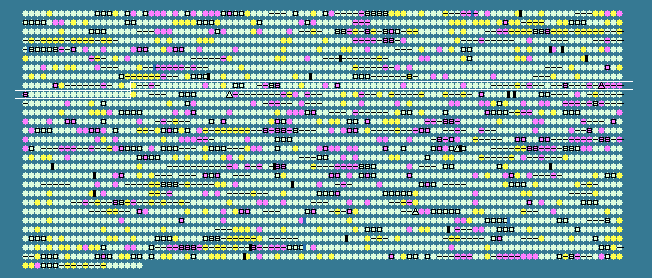

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
819	 45.49	+1	979666..981129	-	487	209694453	-	VSAL_I0877	-	aldehyde dehydrogenase
820	 42.19	0	981216..981599	-	127	209694454	-	VSAL_I0878	-	endoribonuclease L-PSP
821	 40.05	0	981768..982646	+	292	209694455	-	VSAL_I0879	-	transcriptional regulator, LysR-family
822	 32.42	-2	982878..983096	+	72	209694456	-	VSAL_I0880	-	hypothetical protein
823	 36.16	-1	983209..983985	-	258	209694457	-	VSAL_I0881	-	hypothetical protein
824	 41.93	0	984010..984765	-	251	209694458	-	VSAL_I0882	-	hypothetical protein
825	 40.97	0	984783..987374	-	863	209694459	-	VSAL_I0883	-	hypothetical protein
826	 37.44	0	987481..987894	-	137	209694460	-	VSAL_I0884	-	hypothetical protein
827	 40.40	0	988174..988725	-	183	209694461	gmhB	VSAL_I0885	-	D,D-heptose 1,7-bisphosphate phosphatase
828	 38.55	0	988979..990013	+	344	209694462	metN	VSAL_I0886	-	D-methionine transport ATP-binding protein MetN
829	 42.33	0	990003..990680	+	225	209694463	metI	VSAL_I0887	-	D-methionine transport system permease protein MetI
830	 40.86	0	990725..991534	+	269	209694464	metQ	VSAL_I0888	-	D-methionine-binding lipoprotein MetQ precursor
831	 34.78	-1	991596..991733	-	45	209694465	-	VSAL_I0889	-	50S ribosomal protein L36
832	 37.21	0	991733..991990	-	85	209694466	rpmE2	VSAL_I0890	-	50S ribosomal protein L31 type B
833	 42.49	0	992134..992832	+	232	209694467	-	VSAL_I0891	-	hypothetical protein
834	 45.28	+1	992979..994694	+	571	209694468	proS	VSAL_I0892	-	prolyl-tRNA synthetase
835	 36.31	-1	994766..995236	-	156	209694469	-	VSAL_I0893	-	hypothetical protein
836	 37.46	0	996870..997184	+	104	209694470	-	VSAL_I0895	-	transposase
837	 36.21	-1	997181..997528	+	115	209694471	-	VSAL_I0896	-	transposase
838	 38.23	0	999132..1000010	-	292	209694472	-	VSAL_I0898	-	HTH-type transcriptional regulator, rpiR family
839	 40.49	0	1000299..1001192	+	297	209694473	-	VSAL_I0899	-	dihydropicolinate synthase
840	 38.36	0	1001328..1001546	+	72	209694474	-	VSAL_I0900	-	hypothetical protein
841	 32.80	-2	1001546..1001734	+	62	209694475	-	VSAL_I0901	-	hypothetical protein
842	 37.78	0	1003914..1004228	+	104	209694476	-	VSAL_I0903	-	transposase
843	 35.92	-1	1004225..1004572	+	115	209694477	-	VSAL_I0904	-	transposase
844	 40.00	0	1007807..1008676	-	289	209694478	-	VSAL_I0907	-	putative hydrolase
845	 39.43	0	1008683..1009240	-	185	209694479	-	VSAL_I0908	-	outer membrane lipoprotein, Slp family
846	 41.00	0	1009256..1009555	-	99	209694480	-	VSAL_I0909	-	hypothetical protein
847	 43.73	+1	1009618..1010319	-	233	209694481	-	VSAL_I0910	-	glycoprotease
848	 42.02	0	1010327..1012282	-	651	209694482	-	VSAL_I0911	-	putative ATP-dependent helicase
849	 37.53	0	1012702..1013535	+	277	209694483	purU	VSAL_I0912	-	formyltetrahydrofolate deformylase
850	 36.09	-1	1013608..1014405	-	265	209694484	-	VSAL_I0913	-	putative hydrolytic enzyme
851	 25.76	-2	1014523..1014720	-	65	209694485	-	VSAL_I0914	-	hypothetical protein
852	 37.11	0	1014975..1015133	+	52	209694486	-	VSAL_I0915	-	membrane protein
853	 35.94	-1	1015660..1016541	-	293	209694487	-	VSAL_I0917	-	transposase
854	 37.00	0	1017599..1017925	-	108	209694488	-	VSAL_I0919	-	putative lipoprotein
855	 37.61	0	1018025..1020013	-	662	209694489	-	VSAL_I0920	-	nitrate and nitrite sensing methyl-accepting chemotaxis protein
856	 39.11	0	1020181..1020630	+	149	209694490	ribx	VSAL_I0921	-	putative rib operon regulator RibX
857	 42.34	0	1020632..1021753	+	373	209694491	ribD	VSAL_I0922	-	pyrimidine deaminase/pyrimidine reductase (riboflavin biosynthesis protein RibD)
858	 39.42	0	1021757..1022413	+	218	209694492	ribC	VSAL_I0923	-	riboflavin synthase alpha chain
859	 41.80	0	1022450..1023559	+	369	209694493	ribBA	VSAL_I0924	-	3,4-dihydroxy-2-butanone 4-phosphate synthase (GTP cyclohydrolase II) (riboflavin biosynthesis protein RibBA)
860	 41.61	0	1023709..1024179	+	156	209694494	ribH	VSAL_I0925	-	6,7-dimethyl-8-ribityllumazine synthase (riboflavin synthase beta chain)
861	 39.10	0	1024179..1024646	+	155	209694495	nusB	VSAL_I0926	-	N utilization substance protein B (protein NusB)
862	 37.46	0	1024736..1025728	+	330	209694496	thiL	VSAL_I0927	-	thiamine-monophosphate kinase
863	 36.71	0	1025731..1026234	+	167	209694497	pgpA	VSAL_I0928	-	phosphatidylglycerophosphatase A
864	 32.57	-2	1027355..1029592	+	745	209694498	luxQ	VSAL_I0930	-	autoinducer 2 sensor kinase/phosphatase LuxQ
865	 36.96	0	1029589..1029864	-	91	209694499	-	VSAL_I0931	-	hypothetical protein
866	 37.04	0	1029953..1030303	+	116	209694500	-	VSAL_I0932	-	antibiotic biosynthesis monooxygenase
867	 41.19	0	1030373..1032256	-	627	209694501	dxs	VSAL_I0933	-	1-deoxy-D-xylulose-5-phosphate synthase (1-deoxyxylulose 5-phosphate synthase)
868	 40.36	0	1032279..1033175	-	298	209694502	ispA	VSAL_I0934	-	geranyltranstransferase
869	 41.15	0	1033168..1033410	-	80	209694503	xseB	VSAL_I0935	-	exodeoxyribonuclease VII small subunit
870	 38.56	0	1033690..1034454	+	254	209694504	motA	VSAL_I0936	-	sodium-driven polar flagellar protein MotA
871	 42.69	+1	1034469..1035398	+	309	209694505	motB	VSAL_I0937	-	sodium-driven polar flagellar protein MotB
872	 38.51	0	1035565..1037013	+	482	209694506	thiI	VSAL_I0938	-	thiamine biosynthesis protein ThiI
873	 37.04	0	1037075..1037992	-	305	209694507	-	VSAL_I0939	-	transcriptional regulator, LysR family
874	 33.76	-1	1038067..1039011	+	314	209694508	-	VSAL_I0940	-	integral membrane protein
875	 41.62	0	1039081..1039671	-	196	209694509	thiJ	VSAL_I0941	-	protein ThiJ
876	 38.11	0	1039668..1040567	-	299	209694510	panE	VSAL_I0942	-	2-dehydropantoate 2-reductase
877	 39.36	0	1041789..1043132	-	447	209694511	-	VSAL_I0944	-	MSF transporter
878	 39.78	0	1043240..1043797	-	185	209694512	rotA	VSAL_I0945	-	peptidyl-prolyl cis-trans isomerase precursor
879	 39.82	0	1043800..1044369	-	189	209694513	-	VSAL_I0946	-	putative lipoprotein
880	 38.03	0	1044383..1045531	-	382	209694514	-	VSAL_I0947	-	putative methyltransferase
881	 37.46	0	1045625..1045939	+	104	209694515	bolA	VSAL_I0948	-	BolA protein
882	 41.54	0	1046336..1047676	+	446	209694516	nqrA	VSAL_I0949	-	Na(+)-translocating NADH-ubiquinone reductase subunit A
883	 43.45	+1	1047680..1048924	+	414	209694517	nqrB	VSAL_I0950	-	Na(+)-translocating NADH-quinone reductase subunit B
884	 39.56	0	1048914..1049684	+	256	209694518	nqrC	VSAL_I0951	-	Na+-translocating NADH-quinone reductase subunit C
885	 35.40	-1	1049684..1050313	+	209	209694519	nqrD	VSAL_I0952	-	Na+-translocating NADH-quinone reductase subunit D
886	 38.69	0	1050321..1050917	+	198	209694520	nqrE	VSAL_I0953	-	Na+-translocating NADH-quinone reductase subunit E
887	 39.77	0	1050947..1052173	+	408	209694521	nqrF	VSAL_I0954	-	NADH-uniquinone oxidoreductase subunit F
888	 37.48	0	1052339..1053376	+	345	209694522	-	VSAL_I0955	-	thiamine biosynthesis lipoprotein ApbE precursor
889	 38.46	0	1053388..1053621	+	77	209694523	-	VSAL_I0956	-	hypothetical protein
890	 39.02	0	1053775..1054689	+	304	209694524	dinB	VSAL_I0957	-	DNA polymerase IV
891	 35.94	-1	1055612..1056493	+	293	209694525	-	VSAL_I0959	-	transposase
892	 38.97	0	1057929..1058141	-	70	209694526	ahdIC	VSAL_I0960	-	DNA methyltransferase
893	 36.31	-1	1058250..1058786	+	178	209694527	-	VSAL_I0961	-	hypothetical protein
894	 37.04	0	1058783..1060183	+	466	209694528	-	VSAL_I0962	-	putative type III restriction enzyme
895	 35.14	-1	1060435..1061100	-	221	209694529	-	VSAL_I0963	-	hypothetical protein
896	 36.09	-1	1063619..1064671	-	350	209694530	dinB	VSAL_I0965	-	DNA polymerase IV
897	 33.70	-1	1064843..1066204	-	453	209694531	-	VSAL_I0966	-	putative phage recombinase/integrase
898	 33.52	-1	1066206..1066727	-	173	209694532	-	VSAL_I0967	-	hypothetical protein, putative phage gene
899	 34.53	-1	1066728..1069151	-	807	209694533	-	VSAL_I0968	-	hypothetical protein, putative phage gene
900	 34.66	-1	1069145..1071484	-	779	209694534	-	VSAL_I0969	-	hypothetical protein, putative phage gene
901	 35.94	-1	1072345..1073226	-	293	209694535	-	VSAL_I0972	-	transposase
902	 42.47	0	1074320..1075774	-	484	209694536	-	VSAL_I0973	-	aminoacyl-histidine dipeptidase
903	 40.99	0	1076578..1077870	+	430	209694537	-	VSAL_I0974	-	membrane permease
904	 40.52	0	1077908..1078366	+	152	209694538	gpt	VSAL_I0975	-	xanthine phosphoribosyltransferase (xanthine-guanin phosphoribosyltransferase)
905	 39.94	0	1078525..1079766	+	413	209694539	-	VSAL_I0976	-	putative esterase
906	 41.08	0	1079931..1081040	+	369	209694540	proB	VSAL_I0977	-	glutamate 5-kinase
907	 41.79	0	1081071..1082312	+	413	209694541	proA	VSAL_I0978	-	gamma-glutamyl phosphate reductase
908	 42.75	+1	1082414..1083379	-	321	209694542	lipA	VSAL_I0979	-	lipoyl synthase (lipoic acid synthase)
909	 39.88	0	1083372..1084058	-	228	209694543	lipB	VSAL_I0980	-	lipoyltransferase (lipoate-protein ligase B)
910	 40.00	0	1084196..1084465	-	89	209694544	-	VSAL_I0981	-	hypothetical protein
911	 38.10	0	1084621..1085796	-	391	209694545	dacA	VSAL_I0982	-	penicillin-binding protein 5 precursor (D-alanyl-D-alanin carboxypeptidase fraction A)
912	 37.04	0	1086079..1086888	-	269	209694546	-	VSAL_I0983	-	rare lipoprotein A
913	 41.00	0	1086892..1088013	-	373	209694547	mrdB	VSAL_I0984	-	rod shape-determining protein RodA
914	 41.05	0	1088013..1089890	-	625	209694548	mrdA	VSAL_I0985	-	penicillin-binding protein 2
915	 42.68	+1	1089894..1090364	-	156	209694549	-	VSAL_I0986	-	hypothetical protein
916	 39.94	0	1090368..1090685	-	105	209694550	-	VSAL_I0987	-	hypothetical protein
917	 36.99	0	1090734..1091771	-	345	209694551	holA	VSAL_I0988	-	DNA polymerase III, delta subunit
918	 38.70	0	1091774..1092406	-	210	209694552	-	VSAL_I0989	-	rare lipoprotein B precursor
39.44	MEAN

3.11	STD DEV
