IslandPath Analysis: Aliivibrio salmonicida LFI1238

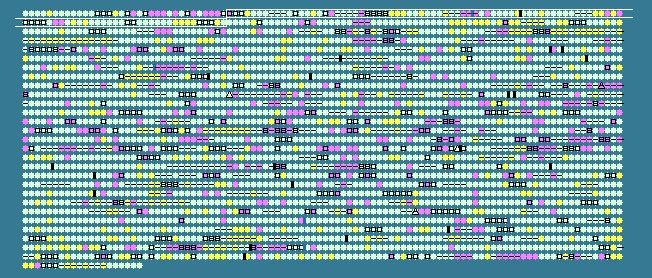

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
35	 35.94	-1	40119..41000	+	293	209693669	-	VSAL_I0038	-	transposase
36	 40.69	0	41289..42239	+	316	209693670	-	VSAL_I0039	-	transposase
37	 40.54	0	42740..43933	+	397	209693671	-	VSAL_I0040	-	transposase
38	 43.75	+1	44867..46393	+	508	209693672	-	VSAL_I0042	-	putative competence protein
39	 37.82	0	46481..47350	+	289	209693673	-	VSAL_I0043	-	putative acyltransferase
40	 37.18	0	47417..48040	-	207	209693674	dsbA	VSAL_I0044	-	thiol/disulfide interchange protein DsbA precursor
41	 41.87	0	48066..49049	-	327	209693675	rdoA	VSAL_I0045	-	putative phosphotransferase
42	 39.25	0	49108..50526	-	472	209693676	-	VSAL_I0046	-	putative ferredoxin
43	 36.74	0	50752..51015	-	87	209693677	-	VSAL_I0047	-	hypothetical protein
44	 38.04	0	51533..52318	+	261	209693678	-	VSAL_I0048	-	putative sporulation-control protein
45	 36.11	-1	52420..53067	+	215	209693679	hlyIII	VSAL_I0049	-	hemolysin III
46	 40.62	0	53364..54557	-	397	209693680	-	VSAL_I0050	-	transposase
47	 42.38	0	54711..54920	-	69	209693681	cspV	VSAL_I0051	-	cold shock protein
48	 42.27	0	55198..56730	-	510	209693682	ilvA	VSAL_I0052	-	threonine dehydratase
49	 44.87	+1	56735..58207	-	490	209693683	ilvD	VSAL_I0053	-	dihydroxy-acid dehydratase
50	 40.56	0	58234..58482	-	82	209693684	ilvM	VSAL_I0054	-	putative acetolactate synthase small regulatory subunit
51	 40.54	0	59847..61040	+	397	209693685	-	VSAL_I0056	-	transposase
52	 32.77	-2	61632..62159	+	175	209693686	-	VSAL_I0057	-	hypothetical protein
53	 39.35	0	62442..63239	+	265	209693687	-	VSAL_I0058	-	putative ParA chromosome partitioning protein
54	 39.49	0	63236..64210	+	324	209693688	-	VSAL_I0059	-	putative chromosome partitioning protein ParB
55	 41.98	0	64200..64604	+	134	209693689	-	VSAL_I0060	-	hypothetical protein
56	 38.98	0	64789..65160	+	123	209693690	-	VSAL_I0061	-	hypothetical protein
57	 34.85	-1	65851..66444	-	197	209693691	-	VSAL_I0062	-	hypothetical protein
58	 37.82	0	69062..69418	+	118	209693692	-	VSAL_I0065	-	transposase
59	 37.37	0	69494..69790	+	98	209693693	-	VSAL_I0066	-	transposase
60	 36.21	-1	72716..73063	-	115	209693694	-	VSAL_I0069	-	transposase
61	 37.78	0	73060..73374	-	104	209693695	-	VSAL_I0070	-	transposase
62	 44.01	+1	74902..76278	-	458	209693696	trkA	VSAL_I0072	-	Trk system potassium uptake protein TrkA
63	 43.00	+1	76303..77637	-	444	209693697	rsmB	VSAL_I0073	-	ribosomal RNA small subunit methyltransferase B
64	 42.96	+1	77686..78651	-	321	209693698	fmt	VSAL_I0074	-	methionyl-tRNA formyltransferase
65	 40.20	0	78654..79163	-	169	209693699	def	VSAL_I0075	-	peptide deformylase (polypeptide deformylase)
66	 37.85	0	79281..80342	+	353	209693700	-	VSAL_I0076	-	putative cell wall degradation enzyme
67	 43.24	+1	80351..81460	+	369	209693701	smf	VSAL_I0077	-	Smf protein
68	 37.34	0	81463..81936	+	157	209693702	-	VSAL_I0078	-	hypothetical protein
69	 38.60	0	81946..82515	+	189	209693703	yrdD	VSAL_I0079	-	DNA topoisomerase
70	 38.78	0	82555..83673	-	372	209693704	purK	VSAL_I0080	-	phosphoribosylaminoimidazole carboxylase ATPase subunit PurK
71	 43.20	+1	83673..84209	-	178	209693705	purE	VSAL_I0081	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
72	 41.40	0	84360..84917	+	185	209693706	-	VSAL_I0082	-	hypothetical protein
73	 38.81	0	84984..85805	+	273	209693707	aroE	VSAL_I0083	-	shikimate dehydrogenase
74	 35.48	-1	85879..86064	+	61	209693708	-	VSAL_I0084	-	hypothetical protein
75	 34.62	-1	86057..86602	-	181	209693709	-	VSAL_I0085	-	putative transferase
76	 33.56	-1	114812..115696	-	294	209693710	ilvY	VSAL_I0086	-	HTH-type transcriptional regulator, LysR-family
77	 39.06	0	115825..117309	+	494	209693711	ilvC	VSAL_I0087	-	ketol-acid reductoisomerase
78	 33.33	-1	117397..117648	-	83	209693712	-	VSAL_I0088	-	hypothetical protein
79	 40.89	0	117758..120826	-	1022	209693713	-	VSAL_I0089	-	putative integral membrane component of multidrug efflux system
80	 39.30	0	120838..121944	-	368	209693714	-	VSAL_I0090	-	putative multidrug transporter, HlyD family
81	 37.00	0	121963..122562	-	199	209693715	-	VSAL_I0091	-	HTH-type transcriptional regulator, TetR family
82	 39.58	0	122717..124732	+	671	209693716	rep	VSAL_I0092	-	ATP-dependent DNA helicase rep
83	 43.63	+1	124833..125240	-	135	209693717	-	VSAL_I0093	-	cytochrome c
84	 41.76	0	128498..130051	+	517	209693718	-	VSAL_I0095	-	transport protein, extracellular solute-binding protein
85	 40.29	0	130188..131165	+	325	209693719	-	VSAL_I0096	-	binding-protein-dependent transport system,inner membrane component
86	 42.46	0	131168..132109	+	313	209693720	-	VSAL_I0097	-	binding-protein-dependent transport system,inner membrane component
87	 43.26	+1	132347..133927	+	526	209693721	-	VSAL_I0098	-	transporter, BCCT family
88	 40.03	0	134012..134728	-	238	209693722	-	VSAL_I0099	-	putative exonuclease
89	 40.99	0	134738..136618	-	626	209693723	-	VSAL_I0100	-	putative cyclic nucleotide binding protein
90	 41.18	0	136794..137672	+	292	209693724	-	VSAL_I0101	-	hypothetical protein
91	 39.39	0	137656..137919	+	87	209693725	-	VSAL_I0102	-	hypothetical protein
92	 38.81	0	137970..139940	-	656	209693726	-	VSAL_I0103	-	HTH-type transcriptional regulator
93	 42.38	0	140087..140827	-	246	209693727	-	VSAL_I0104	-	hypothetical protein
94	 42.60	+1	140840..141886	-	348	209693728	-	VSAL_I0105	-	hypothetical protein
95	 40.72	0	141927..143063	-	378	209693729	-	VSAL_I0106	-	hypothetical protein
96	 45.62	+1	143122..143772	-	216	209693730	-	VSAL_I0107	-	membrane protein
97	 47.18	+2	143787..144566	-	259	209693731	-	VSAL_I0108	-	membrane protein
98	 28.62	-2	144627..144923	-	98	209693732	-	VSAL_I0109	-	hypothetical protein
99	 45.18	+1	144926..145288	-	120	209693733	-	VSAL_I0110	-	hypothetical protein
100	 31.03	-2	145290..145637	-	115	209693734	-	VSAL_I0111	-	hypothetical protein
101	 36.05	-1	145902..146783	+	293	209693735	-	VSAL_I0112	-	transposase
102	 37.78	0	146904..147218	+	104	209693736	-	VSAL_I0113	-	transposase
103	 36.21	-1	147215..147562	+	115	209693737	-	VSAL_I0114	-	transposase
104	 39.72	0	147634..149121	+	495	209693738	-	VSAL_I0115	-	transposase
105	 36.60	0	149312..151027	-	571	209693739	-	VSAL_I0116	-	hypothetical protein
106	 33.16	-2	151287..151856	-	189	209693740	-	VSAL_I0117	-	putative RNA polymerase sigma factor
107	 33.04	-2	151960..153300	-	446	209693741	-	VSAL_I0118	-	putative protein kinase
108	 38.92	0	153609..154199	+	196	209693742	-	VSAL_I0119	-	hypothetical protein
109	 43.36	+1	154286..155641	-	451	209693743	gor	VSAL_I0120	-	glutathione reductase
110	 41.07	0	155854..156693	-	279	209693744	-	VSAL_I0121	-	hypothetical protein
111	 43.42	+1	156846..158888	+	680	209693745	prlC	VSAL_I0122	-	oligopeptidase A
112	 39.65	0	158962..160401	-	479	209693746	-	VSAL_I0123	-	putative exported peptidase
113	 37.78	0	160523..160837	-	104	209693747	cyaY	VSAL_I0124	-	protein CyaY
114	 42.82	+1	161114..162367	+	417	209693748	lysA	VSAL_I0125	-	diaminopimelate decarboxylase
115	 42.60	+1	162449..163279	+	276	209693749	dapF	VSAL_I0126	-	diaminopimelate epimerase
116	 39.46	0	163276..163977	+	233	209693750	-	VSAL_I0127	-	hypothetical protein
117	 42.11	0	163970..164881	+	303	209693751	xerC	VSAL_I0128	-	tyrosine recombinase XerC
118	 37.78	0	165050..165364	+	104	209693752	-	VSAL_I0129	-	transposase
119	 40.47	0	165725..166915	-	396	209693753	-	VSAL_I0131	-	transposase
120	 39.42	0	167270..167860	+	196	209693754	-	VSAL_I0132	-	putative lipoprotein
121	 37.33	0	167877..169328	+	483	209693755	-	VSAL_I0133	-	hypothetical protein
122	 39.92	0	169900..171447	+	515	209693756	-	VSAL_I0134	-	L-2,4-diaminobutyrate decarboxylase
123	 39.73	0	171464..172792	+	442	209693757	iucD	VSAL_I0135	-	siderophore biosynthetis protein
124	 39.67	0	172803..175262	+	819	209693758	iucC	VSAL_I0136	-	siderophore biosynthesis protein
125	 40.58	0	175286..177451	+	721	209693759	-	VSAL_I0137	-	TonB-dependent iron-siderophore receptor precursor
126	 43.32	+1	177570..178520	+	316	209693760	-	VSAL_I0138	-	iron-siderophore ABC transporter, periplasmic binding protein
127	 43.42	+1	178517..179617	+	366	209693761	fepD	VSAL_I0139	-	iron-siderophore ABC transporter, membrane permease component
128	 46.00	+2	179607..180632	+	341	209693762	fecD	VSAL_I0140	-	iron-siderophore ABC transporter, membrane permease component
129	 43.00	+1	180647..181453	+	268	209693763	fepC	VSAL_I0141	-	iron-siderophore ABC transporter, ATP-binding protein
130	 37.78	0	181578..181892	+	104	209693764	-	VSAL_I0142	-	transposase
131	 36.21	-1	181889..182236	+	115	209693765	-	VSAL_I0143	-	transposase
132	 39.72	0	182308..183795	+	495	209693766	-	VSAL_I0144	-	transposase
133	 43.75	+1	185316..186620	-	434	209693767	rhlB	VSAL_I0146	-	ATP-dependent RNA helicase RhlB
134	 40.67	0	186733..187059	+	108	209693768	trxA	VSAL_I0147	-	thioredoxin 1
39.44	MEAN

3.11	STD DEV
