IslandPath Analysis: Aliivibrio salmonicida LFI1238

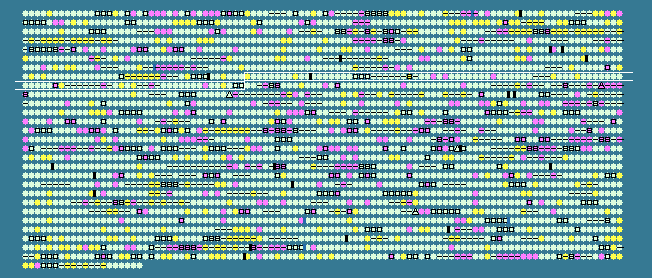

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
738	 43.25	+1	876495..877583	+	362	209694372	prfA	VSAL_I0790	-	peptide chain release factor 1
739	 39.79	0	877583..878449	+	288	209694373	hemK	VSAL_I0791	-	protein methyltransferase HemK
740	 37.27	0	878453..878833	+	126	209694374	-	VSAL_I0792	-	protein SirB, invasion gene expression up-regulator
741	 38.27	0	878836..879645	+	269	209694375	-	VSAL_I0793	-	protein SirB1
742	 40.00	0	879657..880511	+	284	209694376	kdsA	VSAL_I0794	-	2-dehydro-3-deoxyphosphooctonate aldolase
743	 40.82	0	880601..881428	-	275	209694377	cysG	VSAL_I0795	-	siroheme synthase (Includes: Uroporphyrin-III C-methyltransferase, Precorrin-2 dehydrogenase,Sirohydrochlorin ferrochelatase)
744	 41.70	0	881524..882336	-	270	209694378	-	VSAL_I0796	-	formate/nitrite transporter
745	 42.42	0	882434..882763	-	109	209694379	nirD	VSAL_I0797	-	nitrite reductase (NAD(P)H) small subunit
746	 43.81	+1	882766..885342	-	858	209694380	nirB	VSAL_I0798	-	nitrite reductase (NAD(P)H) large subunit
747	 40.75	0	885635..887509	-	624	209694381	-	VSAL_I0799	-	methyl-accepting chemotaxis protein
748	 40.79	0	887932..889593	+	553	209694382	nutA	VSAL_I0800	-	5'-nucleotidase precursor
749	 38.39	0	889989..890423	-	144	209694383	-	VSAL_I0801	-	hypothetical protein
750	 41.38	0	890523..893231	-	902	209694384	copA	VSAL_I0802	-	copper-transporting P-type ATPase
751	 37.59	0	893319..893717	+	132	209694385	cueR	VSAL_I0803	-	HTH-type transcriptional regulator CueR (copper export regulator)
752	 39.18	0	893742..894596	-	284	209694386	-	VSAL_I0804	-	thioredoxin
753	 38.65	0	894931..895758	-	275	209694387	-	VSAL_I0805	-	putative exported NAD-or NADP-dependent oxidoreductase
754	 37.86	0	895887..896792	-	301	209694388	-	VSAL_I0806	-	putative NAD dependent epimerase/dehydratase
755	 38.66	0	896899..897480	+	193	209694389	yfcE	VSAL_I0807	-	phosphodiesterase
756	 37.82	0	898508..898819	+	103	209694390	-	VSAL_I0809	-	transposase
757	 36.21	-1	898816..899163	+	115	209694391	-	VSAL_I0810	-	transposase
758	 39.65	0	899235..900722	+	495	209694392	-	VSAL_I0811	-	transposase
759	 37.36	0	901288..901833	-	181	209694393	toxS	VSAL_I0812	-	transmembrane regulatory protein ToxS
760	 38.23	0	902909..904807	+	632	209694394	htpG	VSAL_I0814	-	chaperone protein HtpG (heat shock protein HtpG)
761	 41.82	0	905084..905731	+	215	209694395	adk	VSAL_I0815	-	adenylate kinase
762	 38.49	0	905815..906783	+	322	209694396	hemH	VSAL_I0816	-	ferrochelatase
763	 41.26	0	907133..908431	+	432	209694397	tig	VSAL_I0817	-	trigger factor (TF)
764	 40.06	0	908532..909155	+	207	209694398	clpP	VSAL_I0818	-	ATP-dependent Clp protease proteolytic subunit
765	 44.83	+1	910404..911612	+	402	209694399	tnpR	VSAL_I0820	-	transposase
766	 39.72	0	912000..914363	+	787	209694400	lon	VSAL_I0821	-	ATP-dependent protease LA
767	 40.74	0	914503..914799	+	98	209694401	hupB	VSAL_I0822	-	DNA-binding protein HU-beta
768	 38.45	0	915001..916857	+	618	209694402	-	VSAL_I0823	-	peptidyl-prolyl cis-trans isomerase D
769	 31.65	-2	917063..917359	+	98	209694403	-	VSAL_I0824	-	hypothetical protein
770	 40.49	0	917450..918805	-	451	209694404	-	VSAL_I0825	-	di-/tripeptide transporter
771	 33.73	-1	919200..919697	+	165	209694405	rfaH	VSAL_I0826	-	transcriptional activator RfaH
772	 38.55	0	919744..921411	-	555	209694406	asnB	VSAL_I0827	-	asparagine synthetase B
773	 37.31	0	921693..923276	-	527	209694407	-	VSAL_I0828	-	sodium/hydrogen antiporter
774	 38.77	0	923355..924569	-	404	209694408	nagC	VSAL_I0829	-	N-acetylglucosamine repressor
775	 39.49	0	924571..925707	-	378	209694409	nagA	VSAL_I0830	-	N-acetylglucosamine-6-phosphate deacetylase
776	 42.05	0	926109..927599	+	496	209694410	nagE	VSAL_I0831	-	PTS permease for N-acetylglucosamine and glucose
777	 38.58	0	927768..929426	+	552	209694411	glnS	VSAL_I0832	-	glutaminyl-tRNA synthetase
778	 36.94	0	929500..929943	-	147	209694412	fur	VSAL_I0833	-	ferric uptake regulator protein
779	 33.98	-1	930125..930589	+	154	209694413	-	VSAL_I0834	-	hypothetical protein
780	 39.77	0	930627..931154	-	175	209694414	fldA	VSAL_I0835	-	flavodoxin 1
781	 37.84	0	931214..931435	-	73	209694415	-	VSAL_I0836	-	hypothetical protein
782	 36.94	0	931522..932298	-	258	209694416	-	VSAL_I0837	-	putative esterase
783	 38.67	0	932392..932934	+	180	209694417	seqA	VSAL_I0838	-	protein SeqA (negative regulator of replication initiation)
784	 39.22	0	932983..934629	+	548	209694418	pgm	VSAL_I0839	-	phosphoglucomutase
785	 36.38	0	934715..935470	+	251	209694419	-	VSAL_I0840	-	hypothetical protein
786	 40.93	0	935590..936879	-	429	209694420	gltA	VSAL_I0841	-	citrate synthase
787	 39.80	0	937266..937667	+	133	209694421	sdhC	VSAL_I0842	-	succinate dehydrogenase cytochrome b556 subunit
788	 39.94	0	937661..938008	+	115	209694422	sdhD	VSAL_I0843	-	succinate dehydrogenase hydrophobic membrane anchor protein
789	 44.97	+1	938005..939774	+	589	209694423	sdhA	VSAL_I0844	-	succinate dehydrogenase flavoprotein subunit
790	 40.20	0	939789..940502	+	237	209694424	sdhB	VSAL_I0845	-	succinate dehydrogenase iron-sulfur protein
791	 42.53	0	940625..943441	+	938	209694425	sucA	VSAL_I0846	-	2-oxoglutarate dehydrogenase E1 component
792	 41.75	0	943461..944672	+	403	209694426	sucB	VSAL_I0847	-	dihydrolipoamide succinyltransferase component of 2-oxoglutarate dehydrogenase complex
793	 43.87	+1	944824..945990	+	388	209694427	sucC	VSAL_I0848	-	succinyl-CoA synthetase beta chain
794	 42.38	0	945990..946862	+	290	209694428	sucD	VSAL_I0849	-	succinyl-CoA synthetase alpha chain
795	 39.19	0	946963..947748	-	261	209694429	znuB	VSAL_I0850	-	high-affinity zinc uptake system membrane protein ZnuB
796	 39.17	0	947745..948515	-	256	209694430	znuC	VSAL_I0851	-	high-affinity zinc uptake system atp-binding protein ZnuC
797	 37.02	0	948604..949497	+	297	209694431	znuA	VSAL_I0852	-	high-affinity zinc uptake system protein ZnuA precursor
798	 39.22	0	949494..950834	+	446	209694432	-	VSAL_I0853	-	exported peptidase
799	 38.39	0	950894..951664	-	256	209694433	-	VSAL_I0854	-	hypothetical protein
800	 40.98	0	952023..953303	+	426	209694434	tyrS	VSAL_I0855	-	tyrosyl-tRNA synthetase
801	 42.82	+1	953440..955812	-	790	209694435	-	VSAL_I0856	-	hypothetical protein
802	 42.47	0	956160..957527	-	455	209694436	dcuC	VSAL_I0857	-	anaerobic C4-dicarboxylate transporter DcuC
803	 37.15	0	957853..958560	+	235	209694437	-	VSAL_I0858	-	membrane protein
804	 36.92	0	958628..958822	+	64	209694438	-	VSAL_I0859	-	hypothetical protein
805	 39.36	0	958840..959751	-	303	209694439	metR	VSAL_I0860	-	transcriptional activator MetR
806	 35.94	-1	960370..961251	+	293	209694440	-	VSAL_I0862	-	transposase
807	 44.36	+1	965183..966433	-	416	209694441	glyA	VSAL_I0864	-	serine hydroxymethyltransferase
808	 37.44	0	966748..967356	+	202	209694442	-	VSAL_I0865	-	putative ABC transporter permease
809	 41.59	0	967429..967755	-	108	209694443	-	VSAL_I0866	-	putative lipoprotein
810	 40.16	0	968844..969854	-	336	209694444	dppD	VSAL_I0868	-	dipeptide transport ATP-binding protein DppD
811	 39.50	0	969878..971758	-	626	209694445	-	VSAL_I0869	-	extracellular solute-binding protein
812	 39.98	0	971751..972803	-	350	209694446	yejE	VSAL_I0870	-	inner membrane ABC transporter permease protein
813	 40.43	0	972806..973834	-	342	209694447	yejB	VSAL_I0871	-	inner membrane ABC transporter permease protein
814	 35.59	-1	974090..974266	-	58	209694448	-	VSAL_I0872	-	hypothetical protein
815	 42.21	0	974411..975142	-	243	209694449	-	VSAL_I0873	-	hypothetical protein
816	 40.68	0	975139..976839	-	566	209694450	-	VSAL_I0874	-	hypothetical protein
817	 44.32	+1	976947..978521	-	524	209694451	-	VSAL_I0875	-	glycine betaine transporter OpuD
818	 42.42	0	978620..979609	-	329	209694452	-	VSAL_I0876	-	membrane dipeptidase
819	 45.49	+1	979666..981129	-	487	209694453	-	VSAL_I0877	-	aldehyde dehydrogenase
820	 42.19	0	981216..981599	-	127	209694454	-	VSAL_I0878	-	endoribonuclease L-PSP
821	 40.05	0	981768..982646	+	292	209694455	-	VSAL_I0879	-	transcriptional regulator, LysR-family
822	 32.42	-2	982878..983096	+	72	209694456	-	VSAL_I0880	-	hypothetical protein
823	 36.16	-1	983209..983985	-	258	209694457	-	VSAL_I0881	-	hypothetical protein
824	 41.93	0	984010..984765	-	251	209694458	-	VSAL_I0882	-	hypothetical protein
825	 40.97	0	984783..987374	-	863	209694459	-	VSAL_I0883	-	hypothetical protein
826	 37.44	0	987481..987894	-	137	209694460	-	VSAL_I0884	-	hypothetical protein
827	 40.40	0	988174..988725	-	183	209694461	gmhB	VSAL_I0885	-	D,D-heptose 1,7-bisphosphate phosphatase
828	 38.55	0	988979..990013	+	344	209694462	metN	VSAL_I0886	-	D-methionine transport ATP-binding protein MetN
829	 42.33	0	990003..990680	+	225	209694463	metI	VSAL_I0887	-	D-methionine transport system permease protein MetI
830	 40.86	0	990725..991534	+	269	209694464	metQ	VSAL_I0888	-	D-methionine-binding lipoprotein MetQ precursor
831	 34.78	-1	991596..991733	-	45	209694465	-	VSAL_I0889	-	50S ribosomal protein L36
832	 37.21	0	991733..991990	-	85	209694466	rpmE2	VSAL_I0890	-	50S ribosomal protein L31 type B
833	 42.49	0	992134..992832	+	232	209694467	-	VSAL_I0891	-	hypothetical protein
834	 45.28	+1	992979..994694	+	571	209694468	proS	VSAL_I0892	-	prolyl-tRNA synthetase
835	 36.31	-1	994766..995236	-	156	209694469	-	VSAL_I0893	-	hypothetical protein
836	 37.46	0	996870..997184	+	104	209694470	-	VSAL_I0895	-	transposase
837	 36.21	-1	997181..997528	+	115	209694471	-	VSAL_I0896	-	transposase
39.44	MEAN

3.11	STD DEV
