IslandPath Analysis: Aliivibrio salmonicida LFI1238

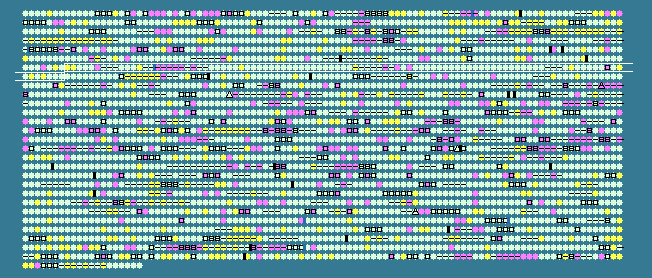

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
608	 44.53	+1	723697..724446	+	249	209694242	trmD	VSAL_I0651	-	tRNA(guanine-N1)methyltransferase
609	 43.50	+1	724487..724840	+	117	209694243	rplS	VSAL_I0652	-	50S ribosomal protein L19
610	 39.66	0	725054..726127	+	357	209694244	aroF	VSAL_I0653	-	phospho-2-dehydro-3-deoxyheptonate aldolase,Tyr-sensitive
611	 38.89	0	726134..727267	+	377	209694245	tyrA	VSAL_I0654	-	T-protein
612	 36.98	0	727315..728328	-	337	209694246	-	VSAL_I0655	-	putative membrane associated metallopeptidases
613	 34.70	-1	728351..728716	-	121	209694247	-	VSAL_I0656	-	putative signaling protein
614	 36.85	0	730675..732609	+	644	209694248	slt	VSAL_I0658	-	soluble lytic murein transglycosylase precursor
615	 39.76	0	732680..733006	+	108	209694249	trpR	VSAL_I0659	-	trp operon repressor
616	 39.08	0	732975..733496	-	173	209694250	-	VSAL_I0660	-	hypothetical protein
617	 36.14	-1	733504..734679	-	391	209694251	pheA	VSAL_I0661	-	P-protein (includes: chorismate mutase and prephenate dehydratase)
618	 40.50	0	734792..735154	-	120	209694252	raiA	VSAL_I0662	-	ribosome-associated inhibitor A
619	 39.19	0	735514..736281	-	255	209694253	-	VSAL_I0663	-	outer membrane protein
620	 43.69	+1	736402..737376	+	324	209694254	rluD	VSAL_I0664	-	ribosomal large subunit pseudouridine synthase D
621	 38.23	0	737376..738110	+	244	209694255	-	VSAL_I0665	-	hypothetical protein
622	 36.50	0	738205..740790	+	861	209694256	clpB	VSAL_I0666	-	chaperone ClpB (heat-shock protein)
623	 34.56	-1	746868..747275	-	135	209694257	-	VSAL_I0667	-	hypothetical protein
624	 33.73	-1	747265..748509	-	414	209694258	-	VSAL_I0668	-	hypothetical protein
625	 32.86	-2	748509..749141	-	210	209694259	-	VSAL_I0669	-	hypothetical protein
626	 35.85	-1	749107..749622	-	171	209694260	-	VSAL_I0670	-	hypothetical protein
627	 33.80	-1	749726..750157	+	143	209694261	-	VSAL_I0671	-	hypothetical protein
628	 39.24	0	750194..751345	-	383	209694262	-	VSAL_I0672	-	putative chromate transporter
629	 34.39	-1	752403..752591	-	62	209694263	-	VSAL_I0674	-	hypothetical protein
630	 42.07	0	752758..753810	-	350	209694264	dapD	VSAL_I0675	-	tetrahydrodipicolinate succinylase
631	 38.83	0	754187..754477	-	96	209694265	-	VSAL_I0676	-	hypothetical protein
632	 37.25	0	754689..755327	+	212	209694266	-	VSAL_I0677	-	hypothetical protein
633	 37.79	0	755360..756235	-	291	209694267	-	VSAL_I0678	-	HTH-type transciptional regulator, LysR-family
634	 40.91	0	756371..757360	+	329	209694268	-	VSAL_I0679	-	putative C4-dicarboxylate/malic acid transport protein
635	 40.01	0	757441..760824	+	1127	209694269	recC	VSAL_I0680	-	exodeoxyribonuclease V gamma chain
636	 40.58	0	761158..764784	+	1208	209694270	recB	VSAL_I0681	-	exodeoxyribonuclease V beta chain
637	 43.01	+1	764777..766801	+	674	209694271	recD	VSAL_I0682	-	exodeoxyribonuclease V alpha chain
638	 42.17	0	767012..768346	-	444	209694272	dcuB	VSAL_I0683	-	anaerobic c4-dicarboxylate transporter DcuB
639	 38.76	0	768445..769827	-	460	209694273	argH	VSAL_I0684	-	argininosuccinate lyase
640	 42.07	0	770708..772057	-	449	209694274	argA	VSAL_I0685	-	amino-acid acetyltransferase
641	 37.21	0	772199..772585	+	128	209694275	-	VSAL_I0686	-	hypothetical protein
642	 39.06	0	772764..773864	+	366	209694276	mltA	VSAL_I0687	-	membrane-bound lytic murein transglycosylase A precursor
643	 40.93	0	773959..774774	+	271	209694277	-	VSAL_I0688	-	hypothetical protein
644	 39.95	0	774899..775336	-	145	209694278	-	VSAL_I0689	-	conserved hypothetical protein, SufE-related protein
645	 40.64	0	775361..776578	-	405	209694279	sufS	VSAL_I0690	-	cysteine desulfurase
646	 41.14	0	776939..777847	+	302	209694280	gcvA	VSAL_I0691	-	glycine cleavage system transcriptional activator
647	 41.09	0	777840..778226	+	128	209694281	-	VSAL_I0692	-	membrane protein
648	 38.64	0	778223..779314	+	363	209694282	mtfA	VSAL_I0693	-	putative RNA 2'-O-ribose methyltransferase mtfA
649	 41.09	0	779521..780294	-	257	209694283	exo	VSAL_I0694	-	5'-3' exonuclease
650	 41.87	0	780377..781735	-	452	209694284	-	VSAL_I0695	-	hypothetical protein
651	 37.43	0	781864..783426	-	520	209694285	-	VSAL_I0696	-	hypothetical protein
652	 36.16	-1	783603..785834	-	743	209694286	-	VSAL_I0697	-	hypothetical protein
653	 37.59	0	785945..786790	-	281	209694287	queF	VSAL_I0698	-	7-cyano-7-deazaguanine reductase
654	 39.34	0	786899..787447	+	182	209694288	syd	VSAL_I0699	-	protein Syd
655	 42.12	0	787551..788324	+	257	209694289	-	VSAL_I0700	-	hypothetical protein
656	 43.20	+1	788386..788841	-	151	209694290	-	VSAL_I0701	-	hypothetical protein
657	 36.67	0	788841..789110	-	89	209694291	-	VSAL_I0702	-	hypothetical protein
658	 40.87	0	790040..791326	+	428	209694292	-	VSAL_I0703	-	PTS system, cellobiose permease IIC component
659	 36.93	0	791444..791749	+	101	209694293	bglE	VSAL_I0704	-	PTS system, cellobiose-specific component IIB
660	 38.09	0	791836..793245	+	469	209694294	pbgA	VSAL_I0705	-	6-phospho-beta-glucosidase
661	 32.16	-2	793275..794210	+	311	209694295	-	VSAL_I0706	-	putative glucokinase
662	 37.65	0	794221..794544	+	107	209694296	bglI	VSAL_I0707	-	phosphotransferase system (PTS) component IIA
663	 34.22	-1	794614..795624	+	336	209694297	-	VSAL_I0708	-	HTH-type transcriptional regulator, LacI family
664	 38.97	0	795907..797184	+	425	209694298	lamB	VSAL_I0709	-	maltoporin precursor (outer membrane protein S)
665	 35.60	-1	797251..797559	-	102	209694299	-	VSAL_I0710	-	hypothetical protein
666	 39.58	0	797562..798602	-	346	209694300	-	VSAL_I0711	-	hypothetical protein
667	 37.69	0	798705..799025	+	106	209694301	-	VSAL_I0712	-	hypothetical protein
668	 39.14	0	799022..799813	+	263	209694302	truC	VSAL_I0713	-	tRNA pseudouridine synthase C
669	 41.17	0	799918..800772	-	284	209694303	suhB	VSAL_I0714	-	inositol-1-monophosphatase
670	 39.51	0	800930..801658	+	242	209694304	yfhQ	VSAL_I0715	-	hypothetical tRNA/rRNA methyltransferase
671	 40.83	0	801764..802270	+	168	209694305	-	VSAL_I0716	-	HTH-type transcriptional regulator
672	 41.20	0	802296..803516	+	406	209694306	iscS	VSAL_I0717	-	cysteine desulfurase
673	 40.21	0	803550..803927	+	125	209694307	-	VSAL_I0718	-	putative iron-sulphur cluster biosynthesis protein
674	 39.81	0	804048..804371	+	107	209694308	iscA	VSAL_I0719	-	iron-binding protein IscA (iron-sulfur cluster assembly protein)
675	 39.34	0	804387..804902	+	171	209694309	hscB	VSAL_I0720	-	Co-chaperone protein HscB
676	 41.26	0	804938..806791	+	617	209694310	hscA	VSAL_I0721	-	chaperone protein HscA
677	 38.94	0	806794..807132	+	112	209694311	fdx	VSAL_I0722	-	2Fe-2S ferredoxin
678	 37.31	0	807261..807461	+	66	209694312	-	VSAL_I0723	-	iron-sulfur cluster assembly protein
679	 42.19	0	807699..808985	+	428	209694313	pepB	VSAL_I0724	-	peptidase B (aminopeptidase B)
680	 42.30	0	809074..809508	+	144	209694314	ndk	VSAL_I0725	-	nucleoside diphosphate kinase
681	 40.62	0	809739..810890	+	383	209694315	-	VSAL_I0726	-	hypothetical protein
682	 39.37	0	810887..811648	+	253	209694316	-	VSAL_I0727	-	putative type 4 fimbrial biogenesis protein PilF
683	 39.73	0	811638..812528	+	296	209694317	-	VSAL_I0728	-	hypothetical protein
684	 40.13	0	812541..813659	+	372	209694318	ispG	VSAL_I0729	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
685	 42.20	0	813694..814968	+	424	209694319	hisS	VSAL_I0730	-	histidyl-tRNA synthetase
686	 41.99	0	814980..815591	+	203	209694320	-	VSAL_I0731	-	putative outer membrane protein
687	 41.11	0	815602..816759	+	385	209694321	yfgL	VSAL_I0732	-	lipoprotein precursor
688	 40.39	0	816940..818442	+	500	209694322	-	VSAL_I0733	-	GTP-binding protein
689	 37.56	0	818497..819372	+	291	209694323	-	VSAL_I0734	-	hypothetical protein
690	 38.40	0	819669..819905	+	78	209694324	-	VSAL_I0735	-	hypothetical protein
691	 40.60	0	819907..821241	-	444	209694325	xseA	VSAL_I0736	-	exodeoxyribonuclease VII large subunit
692	 45.15	+1	821451..822914	+	487	209694326	guaB	VSAL_I0737a	-	inosine-5'-monophosphate dehydrogenase
693	 41.76	0	823131..824684	+	517	209694327	guaA	VSAL_I0738	-	GMP synthase [glutamine-hydrolyzing]
694	 41.15	0	824963..826522	+	519	209694328	-	VSAL_I0739	-	putative ion transporter
695	 36.64	0	826619..827254	-	211	209694329	-	VSAL_I0740	-	putative DNA-binding protein
696	 40.06	0	827315..828592	-	425	209694330	-	VSAL_I0741	-	hypothetical protein
697	 39.74	0	828610..828999	-	129	209694331	-	VSAL_I0742	-	putative endoribonuclease L-PSP
698	 35.94	-1	830386..831267	-	293	209694332	-	VSAL_I0744	-	transposase
699	 39.74	0	831701..832543	-	280	209694333	yeiG	VSAL_I0745	-	putative esterase
700	 45.08	+1	832820..833968	-	382	209694334	adhC	VSAL_I0746	-	alcohol dehydrogenase class 3
701	 39.40	0	834157..835029	+	290	209694335	-	VSAL_I0747	-	HTH-type transcriptional regulator, LysR-family
702	 44.38	+1	835031..835564	+	177	209694336	tadA	VSAL_I0748	-	tRNA-specific adenosine deaminase
703	 38.99	0	835973..837457	-	494	209694337	-	VSAL_I0749	-	membrane-bound transglycosylase
704	 44.12	+1	837821..841750	+	1309	209694338	purL	VSAL_I0750	-	phosphoribosylformylglycinamidine synthase
705	 37.40	0	841969..842460	+	163	209694339	-	VSAL_I0751	-	hypothetical protein
706	 36.76	0	842457..842660	+	67	209694340	-	VSAL_I0752	-	hypothetical protein
707	 40.94	0	842678..842953	-	91	209694341	-	VSAL_I0753	-	hypothetical protein
39.44	MEAN

3.11	STD DEV
