IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

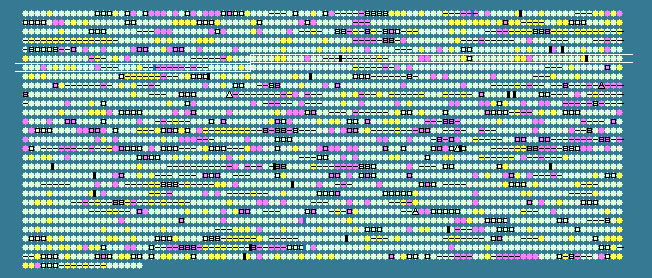

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
539	 40.50	0	640011..640526	+	171	209694173	lspA	VSAL_I0581	-	lipoprotein signal peptidase
540	 37.96	0	640621..641052	+	143	209694174	fkpB	VSAL_I0582	-	FkbP-type 16 kDa peptidyl-prolyl cis-trans isomerase
541	 40.53	0	641077..642021	+	314	209694175	ispH	VSAL_I0583	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
542	 42.10	0	642091..642900	+	269	209694176	dapB	VSAL_I0584	-	dihydrodipicolinate reductase
543	 44.42	+1	643459..644613	+	384	209694177	carA	VSAL_I0585	-	carbamoyl-phosphate synthase small chain
544	 43.86	+1	644631..647861	+	1076	209694178	carB	VSAL_I0586	-	carbamoyl-phosphate synthase large chain
545	 39.01	0	647963..649372	-	469	209694179	dacB	VSAL_I0587	-	penicillin-binding protein 4 precursor
546	 42.12	0	649514..650515	-	333	209694180	ompU	VSAL_I0588	-	major outer membrane protein OmpU
547	 39.24	0	651098..651571	+	157	209694181	greA	VSAL_I0589	-	transcription elongation factor GreA
548	 35.69	-1	651666..651962	-	98	209694182	-	VSAL_I0590	-	putative RNA-binding protein
549	 41.11	0	652081..652710	+	209	209694183	rrmJ	VSAL_I0591	-	ribosomal RNA large subunit methyltransferase J (cell division protein FtsJ)
550	 41.70	0	652796..654778	+	660	209694184	hflB	VSAL_I0592	-	cell division protein FtsH
551	 40.17	0	654843..655676	+	277	209694185	folP	VSAL_I0593	-	dihydropteroate synthase
552	 40.73	0	655733..657070	+	445	209694186	glmM	VSAL_I0594	-	phosphoglucosamine mutase
553	 40.54	0	657222..657554	+	110	209694187	secG	VSAL_I0595	-	protein-export membrane protein SecG (preprotein translocase band subunit)
554	 39.25	0	657962..658417	+	151	209694188	-	VSAL_I0596	-	hypothetical protein
555	 41.13	0	658434..659921	+	495	209694189	nusA	VSAL_I0597	-	transcription elongation protein NusA
556	 42.71	+1	659945..662620	+	891	209694190	-	VSAL_I0598	-	translation initiation factor IF-2
557	 41.67	0	662734..663141	+	135	209694191	rbfA	VSAL_I0599	-	ribosome-binding factor A
558	 41.07	0	663141..664097	+	318	209694192	truB	VSAL_I0600	-	tRNA pseudouridine synthase B
559	 42.22	0	664260..664529	+	89	209694193	rpsO	VSAL_I0601	-	30S ribosomal protein S15
560	 44.23	+1	664832..666988	+	718	209694194	pnp	VSAL_I0602	-	polyribonucleotide nucleotidyltransferase
561	 36.79	0	667099..668082	+	327	209694195	nlpI	VSAL_I0603	-	lipoprotein NlpI precursor
562	 37.09	0	668165..669043	-	292	209694196	-	VSAL_I0604	-	putative peptidase
563	 41.42	0	669053..670054	-	333	209694197	-	VSAL_I0605	-	putative peptidase
564	 37.50	0	670270..672309	-	679	209694198	-	VSAL_I0606	-	putative signaling protein
565	 36.22	-1	672524..673042	+	172	209694199	-	VSAL_I0607	-	hypothetical protein
566	 39.29	0	673032..673535	+	167	209694200	-	VSAL_I0608	-	putative acetyltransferase
567	 32.08	-2	673678..673836	+	52	209694201	-	VSAL_I0609	-	hypothetical protein
568	 33.73	-1	673857..674105	-	82	209694202	-	VSAL_I0610	-	hypothetical protein
569	 38.06	0	674232..674633	+	133	209694203	-	VSAL_I0611	-	DNA polymerase III, psi subunit
570	 38.26	0	674623..675069	+	148	209694204	rimI	VSAL_I0612	-	ribosomal-protein-alanine acetyltransferase
571	 42.88	+1	675187..676767	+	526	209694205	prfC	VSAL_I0613	-	peptide chain release factor 3 (RF-3)
572	 36.05	-1	676846..676992	+	48	209694206	-	VSAL_I0614	-	hypothetical protein
573	 36.55	0	676973..677749	+	258	209694207	-	VSAL_I0615	-	putative DNase
574	 43.61	+1	677973..679256	+	427	209694208	-	VSAL_I0616	-	putative sodium-dependent nucleoside transporter protein
575	 39.30	0	679393..680700	+	435	209694209	-	VSAL_I0617	-	transposase
576	 40.00	0	681014..681223	+	69	209694210	-	VSAL_I0618	-	hypothetical protein
577	 42.86	+1	681508..682284	+	258	209694211	deoC	VSAL_I0619	-	deoxyribose-phosphate aldolase
578	 42.19	0	682400..683731	+	443	209694212	deoA	VSAL_I0620	-	thymidine phosphorylase
579	 42.51	0	683742..684962	+	406	209694213	deoB	VSAL_I0621	-	phosphopentomutase
580	 37.33	0	685836..686435	-	199	209694214	smp	VSAL_I0623	-	peripheral membrane protein
581	 40.45	0	686566..687534	+	322	209694215	serB	VSAL_I0624	-	phosphoserine phosphatase
582	 37.81	0	687588..689933	-	781	209694216	-	VSAL_I0625	-	hypothetical protein
583	 43.12	+1	690051..691430	+	459	209694217	radA	VSAL_I0626	-	DNA repair protein RadA (dna repair protein sms)
584	 43.31	+1	691624..693708	+	694	209694218	fusA	VSAL_I0627	-	elongation factor G (EF-G)
585	 35.90	-1	693819..694052	-	77	209694219	-	VSAL_I0628	-	hypothetical protein
586	 39.20	0	694165..695442	-	425	209694220	codA	VSAL_I0629	-	cytosine deaminase
587	 42.26	0	695453..696706	-	417	209694221	codB	VSAL_I0630	-	cytosine permease
588	 38.64	0	697136..698812	-	558	209694222	-	VSAL_I0631	-	putative AMP-binding acetyl-CoA synthetase
589	 41.71	0	699029..701596	-	855	209694223	mutS	VSAL_I0632	-	DNA mismatch repair protein MutS
590	 42.77	+1	701705..702202	+	165	209694224	-	VSAL_I0633	-	putative competence-damaged protein
591	 39.66	0	702343..703386	+	347	209694225	recA	VSAL_I0634	-	protein RecA (recombinase A)
592	 42.28	0	703629..706211	+	860	209694226	alaS	VSAL_I0635	-	alanyl-tRNA synthetase
593	 37.26	0	706221..707390	+	389	209694227	lysC	VSAL_I0636	-	aspartokinase 2
594	 43.28	+1	707472..707672	+	66	209694228	csrA	VSAL_I0637	-	carbon storage regulator
595	 40.87	0	709310..709561	+	83	209694229	-	VSAL_I0638	-	oxaloacetate decarboxylase 1, subunit gamma
596	 41.50	0	709599..711386	+	595	209694230	-	VSAL_I0639	-	oxaloacetate decarboxylase 2, subunit alpha
597	 41.11	0	711398..712528	+	376	209694231	-	VSAL_I0640	-	oxaloacetate decarboxylase, beta subunit
598	 38.66	0	712625..713056	+	143	209694232	-	VSAL_I0641	-	inner membrane protein
599	 39.08	0	713065..715917	+	950	209694233	-	VSAL_I0642	-	exported pepdidase, putative zinc protease
600	 38.31	0	716044..717609	+	521	209694234	gshA	VSAL_I0643	-	glutamate--cysteine ligase
601	 40.83	0	717676..718275	+	199	209694235	-	VSAL_I0644	-	putative lipoprotein
602	 36.42	0	718309..718827	+	172	209694236	luxS	VSAL_I0645	-	S-ribosylhomocysteine lyase
603	 38.84	0	718895..720166	-	423	209694237	-	VSAL_I0646	-	putative transport protein
604	 35.35	-1	720268..721062	-	264	209694238	-	VSAL_I0647	-	inner membrane protein, putative cytochrome c assembly protein
605	 40.69	0	721225..722610	+	461	209694239	ffh	VSAL_I0648	-	signal recognition particle protein
606	 42.96	+1	722830..723120	+	96	209694240	rpsP	VSAL_I0649	-	30S ribosomal protein S16
607	 40.34	0	723147..723674	+	175	209694241	rimM	VSAL_I0650	-	16S rRNA processing protein RimM
608	 44.53	+1	723697..724446	+	249	209694242	trmD	VSAL_I0651	-	tRNA(guanine-N1)methyltransferase
609	 43.50	+1	724487..724840	+	117	209694243	rplS	VSAL_I0652	-	50S ribosomal protein L19
610	 39.66	0	725054..726127	+	357	209694244	aroF	VSAL_I0653	-	phospho-2-dehydro-3-deoxyheptonate aldolase,Tyr-sensitive
611	 38.89	0	726134..727267	+	377	209694245	tyrA	VSAL_I0654	-	T-protein
612	 36.98	0	727315..728328	-	337	209694246	-	VSAL_I0655	-	putative membrane associated metallopeptidases
613	 34.70	-1	728351..728716	-	121	209694247	-	VSAL_I0656	-	putative signaling protein
614	 36.85	0	730675..732609	+	644	209694248	slt	VSAL_I0658	-	soluble lytic murein transglycosylase precursor
615	 39.76	0	732680..733006	+	108	209694249	trpR	VSAL_I0659	-	trp operon repressor
616	 39.08	0	732975..733496	-	173	209694250	-	VSAL_I0660	-	hypothetical protein
617	 36.14	-1	733504..734679	-	391	209694251	pheA	VSAL_I0661	-	P-protein (includes: chorismate mutase and prephenate dehydratase)
618	 40.50	0	734792..735154	-	120	209694252	raiA	VSAL_I0662	-	ribosome-associated inhibitor A
619	 39.19	0	735514..736281	-	255	209694253	-	VSAL_I0663	-	outer membrane protein
620	 43.69	+1	736402..737376	+	324	209694254	rluD	VSAL_I0664	-	ribosomal large subunit pseudouridine synthase D
621	 38.23	0	737376..738110	+	244	209694255	-	VSAL_I0665	-	hypothetical protein
622	 36.50	0	738205..740790	+	861	209694256	clpB	VSAL_I0666	-	chaperone ClpB (heat-shock protein)
623	 34.56	-1	746868..747275	-	135	209694257	-	VSAL_I0667	-	hypothetical protein
624	 33.73	-1	747265..748509	-	414	209694258	-	VSAL_I0668	-	hypothetical protein
625	 32.86	-2	748509..749141	-	210	209694259	-	VSAL_I0669	-	hypothetical protein
626	 35.85	-1	749107..749622	-	171	209694260	-	VSAL_I0670	-	hypothetical protein
627	 33.80	-1	749726..750157	+	143	209694261	-	VSAL_I0671	-	hypothetical protein
628	 39.24	0	750194..751345	-	383	209694262	-	VSAL_I0672	-	putative chromate transporter
629	 34.39	-1	752403..752591	-	62	209694263	-	VSAL_I0674	-	hypothetical protein
630	 42.07	0	752758..753810	-	350	209694264	dapD	VSAL_I0675	-	tetrahydrodipicolinate succinylase
631	 38.83	0	754187..754477	-	96	209694265	-	VSAL_I0676	-	hypothetical protein
632	 37.25	0	754689..755327	+	212	209694266	-	VSAL_I0677	-	hypothetical protein
633	 37.79	0	755360..756235	-	291	209694267	-	VSAL_I0678	-	HTH-type transciptional regulator, LysR-family
634	 40.91	0	756371..757360	+	329	209694268	-	VSAL_I0679	-	putative C4-dicarboxylate/malic acid transport protein
635	 40.01	0	757441..760824	+	1127	209694269	recC	VSAL_I0680	-	exodeoxyribonuclease V gamma chain
636	 40.58	0	761158..764784	+	1208	209694270	recB	VSAL_I0681	-	exodeoxyribonuclease V beta chain
637	 43.01	+1	764777..766801	+	674	209694271	recD	VSAL_I0682	-	exodeoxyribonuclease V alpha chain
638	 42.17	0	767012..768346	-	444	209694272	dcuB	VSAL_I0683	-	anaerobic c4-dicarboxylate transporter DcuB
39.44	MEAN

3.11	STD DEV
