IslandPath Analysis: Aliivibrio salmonicida LFI1238

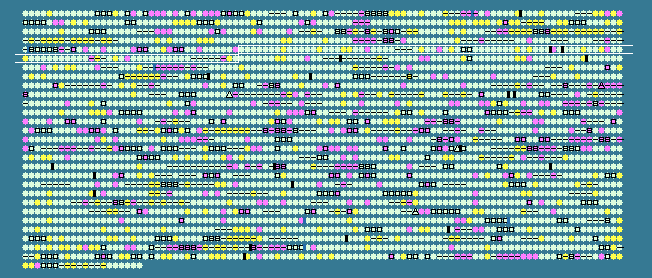

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
437	 41.23	0	532170..532739	+	189	209694071	mshB	VSAL_I0475	-	type IV pilus, prepilin-like protein (MSHB)
438	 40.30	0	532892..533365	+	157	209694072	mshA	VSAL_I0476	-	type IV pilus, mannose-sensitive hemagglutinin A
439	 39.07	0	533617..534087	+	156	209694073	mshA	VSAL_I0477	-	type IV pilus, mannose-sensitive hemagglutinin A
440	 37.07	0	534214..534828	+	204	209694074	mshC	VSAL_I0478	-	type IV pilus, prepilin-like protein (MSHC)
441	 38.05	0	534825..535418	+	197	209694075	mshD	VSAL_I0479	-	type IV pilus, prepilin-like protein (MSHD)
442	 40.61	0	535418..536173	+	251	209694076	mshO	VSAL_I0480	-	exported protein MshO
443	 40.00	0	536163..536597	+	144	209694077	mshP	VSAL_I0481	-	exported protein MshP
444	 45.88	+2	541014..542057	+	347	209694078	mreB	VSAL_I0483	-	rod shape-determining protein MreB
445	 37.53	0	542080..542937	+	285	209694079	mreC	VSAL_I0484	-	rod shape-determining protein MreC
446	 40.24	0	542927..543418	+	163	209694080	mreD	VSAL_I0485	-	rod shape-determining protein MreD
447	 39.76	0	543428..544003	+	191	209694081	-	VSAL_I0486	-	Maf-like protein
448	 39.73	0	544023..545492	+	489	209694082	cafA	VSAL_I0487	-	ribonuclease G
449	 38.74	0	545504..549367	+	1287	209694083	-	VSAL_I0488	-	hypothetical protein
450	 43.40	+1	549469..550233	+	254	209694084	-	VSAL_I0489	-	putative carbon-nitrogen hydrolase
451	 42.32	0	550344..551789	+	481	209694085	tldD	VSAL_I0490	-	protein TldD
452	 39.07	0	551887..552426	-	179	209694086	-	VSAL_I0491	-	hypothetical protein
453	 42.49	0	552536..553879	+	447	209694087	pmbA	VSAL_I0492	-	protein PmbA (protein TldE)
454	 44.84	+1	553963..555318	-	451	209694088	-	VSAL_I0493	-	magnesium transporter
455	 44.44	+1	555630..555908	-	92	209694089	ptsO	VSAL_I0494	-	phosphocarrier protein NPr
456	 39.18	0	555911..556765	-	284	209694090	-	VSAL_I0495	-	ATP/GTP-binding protein
457	 40.49	0	556789..557235	-	148	209694091	ptsN	VSAL_I0496	-	nitrogen regulatory IIA protein, PTS system
458	 35.76	-1	557237..557524	-	95	209694092	-	VSAL_I0497	-	sigma-54 modulation protein
459	 41.63	0	557544..559013	-	489	209694093	rpoN	VSAL_I0498	-	RNA polymerase sigma-54 factor (sigma-N)
460	 40.63	0	559040..559765	-	241	209694094	-	VSAL_I0499	-	ABC transport protein, ATP-binding component
461	 37.13	0	559768..560268	-	166	209694095	-	VSAL_I0500	-	hypothetical protein
462	 36.70	0	560249..560812	-	187	209694096	-	VSAL_I0501	-	hypothetical protein
463	 40.50	0	560809..561366	-	185	209694097	kdsC	VSAL_I0502	-	3-deoxy-d-manno-octulosonate 8-phosphate phosphatase
464	 41.54	0	561366..562340	-	324	209694098	kdsD	VSAL_I0503	-	arabinose 5-phosphate isomerase
465	 40.76	0	562544..563512	-	322	209694099	-	VSAL_I0504	-	sodium/calcium exchanger protein
466	 41.39	0	563711..564517	+	268	209694100	-	VSAL_I0505	-	toluene tolerance protein Ttg2A
467	 43.40	+1	564510..565304	+	264	209694101	-	VSAL_I0506	-	toluene tolerance protein Ttg2B
468	 40.20	0	565307..565801	+	164	209694102	-	VSAL_I0507	-	toluene tolerance protein Ttg2C
469	 37.85	0	565801..566442	+	213	209694103	-	VSAL_I0508	-	toluene tolerance protein Ttg2
470	 35.83	-1	566442..566762	+	106	209694104	-	VSAL_I0509	-	conserved hypothetical protein containing
471	 37.21	0	566762..567019	+	85	209694105	-	VSAL_I0510	-	hypothetical protein
472	 43.03	+1	567032..568300	+	422	209694106	murA	VSAL_I0511	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
473	 40.50	0	568435..569160	+	241	209694107	plsC	VSAL_I0512	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
474	 36.21	-1	571115..571462	-	115	209694108	-	VSAL_I0515	-	transposase
475	 38.15	0	571459..571728	-	89	209694109	-	VSAL_I0516	-	transposase
476	 41.03	0	572099..572488	-	129	209694110	-	VSAL_I0517	-	Endoribonuclease L-PSP
477	 38.28	0	572628..573092	-	154	209694111	pyrI	VSAL_I0518	-	aspartate carbamoyltransferase regulatory chain
478	 40.00	0	573106..574035	-	309	209694112	pyrB	VSAL_I0519	-	aspartate carbamoyltransferase catalytic subunit
479	 40.50	0	574311..575315	-	334	209694113	argI	VSAL_I0520	-	ornithine carbamoyltransferase chain I
480	 40.62	0	575411..576631	-	406	209694114	arcA	VSAL_I0521	-	arginine deiminase
481	 39.09	0	576784..577200	+	138	209694115	-	VSAL_I0522	-	hypothetical protein
482	 38.59	0	577288..578124	+	278	209694116	-	VSAL_I0523	-	hypothetical protein
483	 43.71	+1	578281..581142	-	953	209694117	valS	VSAL_I0524	-	valyl-tRNA synthetase
484	 41.67	0	581253..581696	-	147	209694118	holC	VSAL_I0525	-	DNA polymerase III, chi subunit
485	 43.61	+1	581790..583298	-	502	209694119	pepA	VSAL_I0526	-	cytosol aminopeptidase
486	 39.71	0	583488..584600	+	370	209694120	-	VSAL_I0527	-	putative permease
487	 39.28	0	584593..585669	+	358	209694121	-	VSAL_I0528	-	putative permease
488	 39.41	0	585746..586222	-	158	209694122	-	VSAL_I0529	-	membrane protein
489	 34.11	-1	586622..586879	-	85	209694123	-	VSAL_I0530	-	hypothetical protein
490	 41.86	0	586955..587341	-	128	209694124	dgkA	VSAL_I0531	-	diacylglycerol kinase
491	 39.84	0	588313..589449	-	378	209694125	mltC	VSAL_I0532	-	membrane-bound lytic murein transglycosylase C precursor
492	 39.93	0	589560..589832	-	90	209694126	yggX	VSAL_I0533	-	probable Fe(2+) trafficking protein
493	 42.17	0	589835..590887	-	350	209694127	mutY	VSAL_I0534	-	A/G-specific adenine glycosylase
494	 45.89	+2	591105..591821	+	238	209694128	trmB	VSAL_I0535	-	tRNA (guanine-n(7)-)-methyltransferase
495	 41.69	0	591928..592848	+	306	209694129	glsA	VSAL_I0536	-	thermolabile glutaminase
496	 41.43	0	592953..594113	-	386	209694130	yggW	VSAL_I0537	-	oxygen-independent coproporphyrinogen III oxidase-like protein
497	 44.05	+1	594117..594713	-	198	209694131	-	VSAL_I0538	-	putative hydrolase
498	 35.88	-1	594724..595155	-	143	209694132	-	VSAL_I0539	-	hypothetical protein
499	 39.29	0	595227..595478	-	83	209694133	-	VSAL_I0540	-	hypothetical protein
500	 38.92	0	595507..596061	-	184	209694134	-	VSAL_I0541	-	membrane protein, related to K+ transport
501	 43.83	+1	596137..596955	-	272	209694135	proC	VSAL_I0542	-	pyrroline-5-carboxylate reductase
502	 38.80	0	596942..597709	-	255	209694136	-	VSAL_I0543	-	membrane protein, related to K+ transport
503	 40.85	0	597733..598770	+	345	209694137	pilT	VSAL_I0544	-	twitching mobility protein PilT, type II/IV secretion system protein
504	 41.10	0	598773..599879	+	368	209694138	pilU	VSAL_I0545	-	twitching motility protein PilU, type II/IV secretion system protein
505	 41.78	0	599983..600408	-	141	209694139	yqgF	VSAL_I0546	-	hypothetical protein
506	 40.43	0	600405..600968	-	187	209694140	-	VSAL_I0547	-	hypothetical protein
507	 41.34	0	601042..602028	-	328	209694141	gshB	VSAL_I0548	-	glutathione synthetase
508	 39.21	0	602012..602743	-	243	209694142	-	VSAL_I0549	-	hypothetical protein
509	 40.06	0	602822..603535	-	237	209694143	-	VSAL_I0550	-	endonuclease I precursor
510	 41.77	0	603626..604111	-	161	209694144	-	VSAL_I0551	-	putative metallopeptidase, SprT family
511	 42.60	+1	604227..605381	-	384	209694145	metK	VSAL_I0552	-	S-adenosylmethionine synthetase
512	 33.33	-1	605512..605667	-	51	209694146	-	VSAL_I0553	-	hypothetical protein
513	 46.05	+2	605768..607765	+	665	209694147	tktA	VSAL_I0554	-	transketolase 1
514	 39.02	0	607905..608924	+	339	209694148	epd	VSAL_I0555	-	erythrose-4-phosphate dehydrogenase
515	 42.87	+1	609091..610254	+	387	209694149	pgk	VSAL_I0556	-	phosphoglycerate kinase
516	 43.73	+1	610409..611485	+	358	209694150	fbaA	VSAL_I0557	-	fructose-bisphosphate aldolase class II
517	 42.29	0	611726..612976	-	416	209694151	srmB	VSAL_I0558	-	ATP-dependent RNA helicase SrmB
518	 34.75	-1	613065..613769	-	234	209694152	-	VSAL_I0559	-	hypothetical protein
519	 40.33	0	614058..615371	+	437	209694153	-	VSAL_I0560	-	branched chain amino acid transport system II carrier protein
520	 40.08	0	615500..616018	-	172	209694154	fldB	VSAL_I0561	-	flavodoxin 2
521	 39.42	0	616155..617057	+	300	209694155	xerD	VSAL_I0562	-	tyrosine recombinase XerD
522	 39.51	0	617137..617913	+	258	209694156	dsbC	VSAL_I0563	-	thiol/disulfide interchange protein DsbC precursor
523	 41.15	0	617993..619732	+	579	209694157	recJ	VSAL_I0564	-	single-stranded-DNA-specific exonuclease RecJ
524	 41.97	0	621111..622616	+	501	209694158	lysU	VSAL_I0566	-	lysyl-tRNA synthetase, heat inducible
525	 39.31	0	623013..624350	+	445	209694159	-	VSAL_I0567	-	sigma-54 interacting regulatory protein
526	 41.26	0	624417..625085	-	222	209694160	mutH	VSAL_I0568	-	DNA mismatch repair protein MutH
527	 41.33	0	625679..626191	+	170	209694161	nudH	VSAL_I0569	-	(di)nucleoside polyphosphate hydrolase
528	 39.61	0	626228..628489	+	753	209694162	ptsP	VSAL_I0570	-	phosphoenolpyruvate-protein phosphotransferase PtsP
529	 40.05	0	628490..629293	+	267	209694163	-	VSAL_I0571	-	integral membrane protein
530	 40.14	0	629304..630155	+	283	209694164	lgt	VSAL_I0572	-	prolipoprotein diacylglyceryl transferase
531	 39.51	0	630234..631091	+	285	209694165	thyA	VSAL_I0573	-	thymidylate synthase
532	 41.01	0	631160..632305	-	381	209694166	nptA	VSAL_I0574	-	sodium-dependent phosphate pump
533	 37.26	0	632642..633583	+	313	209694167	nhaR	VSAL_I0575	-	transcriptional activator protein NhaR (sodium/proton antiporter regulator protein)
534	 33.97	-1	633619..633930	+	103	209694168	hlyU	VSAL_I0576	-	transcriptional activator HlyU
535	 44.83	+1	634052..634312	-	86	209694169	rpsT	VSAL_I0577	-	30S ribosomal protein S20
536	 39.29	0	634534..636093	+	519	209694170	mviN	VSAL_I0578	-	virulence factor MviN homolog
39.44	MEAN

3.11	STD DEV
