IslandPath Analysis: Aliivibrio salmonicida LFI1238

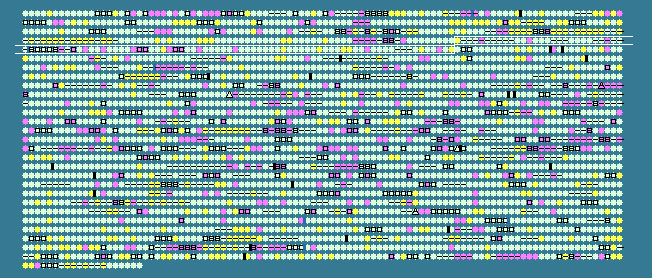

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
373	 46.22	+2	444332..444952	-	206	209694007	fklB	VSAL_I0406	-	FKBP-type peptidyl-prolyl cis-trans isomerase
374	 37.71	0	445092..445754	+	220	209694008	-	VSAL_I0407	-	opacity-associated protein A
375	 40.11	0	445766..446635	-	289	209694009	-	VSAL_I0408	-	integral membrane protein
376	 39.51	0	446635..447087	-	150	209694010	-	VSAL_I0409	-	putative acetyltransferase
377	 34.03	-1	447153..447725	-	190	209694011	-	VSAL_I0410	-	putative DNA-binding protein
378	 39.09	0	447735..449507	-	590	209694012	-	VSAL_I0411	-	hemolysin
379	 38.78	0	449511..449969	-	152	209694013	-	VSAL_I0412	-	membrane protein
380	 38.03	0	450040..450465	-	141	209694014	-	VSAL_I0413	-	hypothetical protein
381	 39.63	0	450478..451224	-	248	209694015	-	VSAL_I0414	-	hypothetical protein
382	 39.08	0	451224..451832	-	202	209694016	-	VSAL_I0415	-	hypothetical protein
383	 38.55	0	451784..452914	-	376	209694017	-	VSAL_I0416	-	hypothetical protein
384	 39.09	0	452914..453504	-	196	209694018	-	VSAL_I0417	-	membrane protein
385	 33.33	-1	453631..454044	+	137	209694019	-	VSAL_I0418	-	membrane protein
386	 40.54	0	454084..456066	-	660	209694020	cpdB	VSAL_I0419	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
387	 40.37	0	456434..457342	+	302	209694021	cysD	VSAL_I0420	-	sulfate adenylyltransferase subunit 2
388	 40.50	0	457371..458807	+	478	209694022	cysN	VSAL_I0421	-	sulfate adenylyltransferase subunit 1
389	 39.76	0	458830..460557	+	575	209694023	-	VSAL_I0422	-	ion transporter superfamily protein
390	 39.02	0	460572..461204	+	210	209694024	cysC	VSAL_I0423	-	adenylylsulfate kinase
391	 37.79	0	461248..462144	-	298	209694025	-	VSAL_I0424	-	hypothetical protein
392	 36.21	-1	462468..462953	-	161	209694026	-	VSAL_I0425	-	hypothetical protein
393	 39.92	0	462963..464222	-	419	209694027	-	VSAL_I0426	-	predicted permease
394	 38.26	0	464216..464905	-	229	209694028	-	VSAL_I0427	-	ABC transporter, ATP-binding protein
395	 41.12	0	464942..465583	-	213	209694029	-	VSAL_I0428	-	hypothetical protein
396	 37.46	0	465635..465925	-	96	209694030	-	VSAL_I0429	-	membrane protein
397	 37.86	0	465991..466542	-	183	209694031	-	VSAL_I0430	-	hypothetical protein
398	 35.71	-1	466791..467000	+	69	209694032	-	VSAL_I0431	-	hypothetical protein
399	 38.86	0	467069..467719	-	216	209694033	msrA	VSAL_I0432	-	peptide methionine sulfoxide reductase MSRA
400	 40.48	0	467761..469482	+	573	209694034	-	VSAL_I0433	-	surface antigen protein
401	 36.78	0	469479..473276	+	1265	209694035	-	VSAL_I0434	-	hypothetical protein
402	 38.14	0	484735..485046	+	103	209694036	-	VSAL_I0435	-	transposase
403	 36.21	-1	485043..485390	+	115	209694037	-	VSAL_I0436	-	transposase
404	 39.72	0	485462..486949	+	495	209694038	-	VSAL_I0437	-	transposase
405	 36.54	0	488216..488527	+	103	209694039	-	VSAL_I0439	-	transposase
406	 38.85	0	488524..489393	+	289	209694040	-	VSAL_I0440	-	transposase
407	 34.74	-1	489668..490945	-	425	209694041	-	VSAL_I0441	-	sodium/proton antiporter
408	 38.93	0	491126..494806	+	1226	209694042	metH	VSAL_I0442	-	methionine synthase
409	 35.94	-1	495249..496130	-	293	209694043	-	VSAL_I0444	-	transposase
410	 38.92	0	497687..498796	+	369	209694044	-	VSAL_I0445	-	aminotransferase class-V
411	 35.95	-1	498845..500602	-	585	209694045	-	VSAL_I0446	-	O-antigen polymerase
412	 40.16	0	500682..503510	-	942	209694046	uvrA	VSAL_I0447	-	UvrABC system protein A
413	 38.62	0	503682..504551	-	289	209694047	galU	VSAL_I0448	-	UTP-glucose-1-phosphate uridylyltransferase
414	 33.09	-2	504688..505092	-	134	209694048	-	VSAL_I0449	-	hypothetical protein
415	 39.17	0	505085..506215	-	376	209694049	-	VSAL_I0450	-	putative glycosyl transferase
416	 37.89	0	506219..507424	-	401	209694050	-	VSAL_I0451	-	putative glycosyl transferase
417	 38.54	0	507421..508419	-	332	209694051	-	VSAL_I0452	-	putative glycosyl transferase
418	 36.23	-1	508412..509794	-	460	209694052	-	VSAL_I0453	-	membrane protein
419	 34.49	-1	509794..510999	-	401	209694053	-	VSAL_I0454	-	membrane protein
420	 34.04	-1	512441..513007	-	188	209694054	-	VSAL_I0456	-	transposase
421	 35.70	-1	513025..513447	-	140	209694055	-	VSAL_I0457	-	transposase
422	 40.21	0	514317..514898	-	193	209694056	-	VSAL_I0458	-	polysaccharide biosynthesis/export protein
423	 36.52	0	514899..516215	-	438	209694057	-	VSAL_I0459	-	hypothetical protein
424	 45.47	+1	517928..518479	+	183	209694058	ssb	VSAL_I0461	-	single-stranded DNA-binding protein
425	 35.24	-1	518552..519181	-	209	209694059	-	VSAL_I0462	-	membrane protein
426	 34.04	-1	519233..519799	-	188	209694060	-	VSAL_I0463	-	transposase
427	 35.70	-1	519817..520239	-	140	209694061	-	VSAL_I0464	-	transposase
428	 36.86	0	520546..522531	+	661	209694062	-	VSAL_I0465	-	putative membrane associated signaling protein
429	 36.54	0	522657..524120	+	487	209694063	mshI	VSAL_I0466	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHI)
430	 34.43	-1	524113..524751	+	212	209694064	mshJ	VSAL_I0467	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHJ)
431	 36.84	0	524753..525094	+	113	209694065	mshK	VSAL_I0468	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHK)
432	 41.19	0	525107..526747	+	546	209694066	mshD	VSAL_I0469	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHD)
433	 38.52	0	526758..527606	+	282	209694067	mshM	VSAL_I0470	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHM)
434	 39.94	0	527603..528676	+	357	209694068	mshN	VSAL_I0471	-	type IV pilus, mannose-sensitive hemagglutinin D (MSHN)
435	 41.16	0	530410..531636	+	408	209694069	mshG	VSAL_I0473	-	type IV pilus, mannose-sensitive hemagglutinin protein
436	 35.10	-1	531636..532088	+	150	209694070	mshF	VSAL_I0474	-	type IV pilus, mannose-sensitive hemagglutinin protein MshF
437	 41.23	0	532170..532739	+	189	209694071	mshB	VSAL_I0475	-	type IV pilus, prepilin-like protein (MSHB)
438	 40.30	0	532892..533365	+	157	209694072	mshA	VSAL_I0476	-	type IV pilus, mannose-sensitive hemagglutinin A
439	 39.07	0	533617..534087	+	156	209694073	mshA	VSAL_I0477	-	type IV pilus, mannose-sensitive hemagglutinin A
440	 37.07	0	534214..534828	+	204	209694074	mshC	VSAL_I0478	-	type IV pilus, prepilin-like protein (MSHC)
441	 38.05	0	534825..535418	+	197	209694075	mshD	VSAL_I0479	-	type IV pilus, prepilin-like protein (MSHD)
442	 40.61	0	535418..536173	+	251	209694076	mshO	VSAL_I0480	-	exported protein MshO
443	 40.00	0	536163..536597	+	144	209694077	mshP	VSAL_I0481	-	exported protein MshP
444	 45.88	+2	541014..542057	+	347	209694078	mreB	VSAL_I0483	-	rod shape-determining protein MreB
445	 37.53	0	542080..542937	+	285	209694079	mreC	VSAL_I0484	-	rod shape-determining protein MreC
446	 40.24	0	542927..543418	+	163	209694080	mreD	VSAL_I0485	-	rod shape-determining protein MreD
447	 39.76	0	543428..544003	+	191	209694081	-	VSAL_I0486	-	Maf-like protein
448	 39.73	0	544023..545492	+	489	209694082	cafA	VSAL_I0487	-	ribonuclease G
449	 38.74	0	545504..549367	+	1287	209694083	-	VSAL_I0488	-	hypothetical protein
450	 43.40	+1	549469..550233	+	254	209694084	-	VSAL_I0489	-	putative carbon-nitrogen hydrolase
451	 42.32	0	550344..551789	+	481	209694085	tldD	VSAL_I0490	-	protein TldD
452	 39.07	0	551887..552426	-	179	209694086	-	VSAL_I0491	-	hypothetical protein
453	 42.49	0	552536..553879	+	447	209694087	pmbA	VSAL_I0492	-	protein PmbA (protein TldE)
454	 44.84	+1	553963..555318	-	451	209694088	-	VSAL_I0493	-	magnesium transporter
455	 44.44	+1	555630..555908	-	92	209694089	ptsO	VSAL_I0494	-	phosphocarrier protein NPr
456	 39.18	0	555911..556765	-	284	209694090	-	VSAL_I0495	-	ATP/GTP-binding protein
457	 40.49	0	556789..557235	-	148	209694091	ptsN	VSAL_I0496	-	nitrogen regulatory IIA protein, PTS system
458	 35.76	-1	557237..557524	-	95	209694092	-	VSAL_I0497	-	sigma-54 modulation protein
459	 41.63	0	557544..559013	-	489	209694093	rpoN	VSAL_I0498	-	RNA polymerase sigma-54 factor (sigma-N)
460	 40.63	0	559040..559765	-	241	209694094	-	VSAL_I0499	-	ABC transport protein, ATP-binding component
461	 37.13	0	559768..560268	-	166	209694095	-	VSAL_I0500	-	hypothetical protein
462	 36.70	0	560249..560812	-	187	209694096	-	VSAL_I0501	-	hypothetical protein
463	 40.50	0	560809..561366	-	185	209694097	kdsC	VSAL_I0502	-	3-deoxy-d-manno-octulosonate 8-phosphate phosphatase
464	 41.54	0	561366..562340	-	324	209694098	kdsD	VSAL_I0503	-	arabinose 5-phosphate isomerase
465	 40.76	0	562544..563512	-	322	209694099	-	VSAL_I0504	-	sodium/calcium exchanger protein
466	 41.39	0	563711..564517	+	268	209694100	-	VSAL_I0505	-	toluene tolerance protein Ttg2A
467	 43.40	+1	564510..565304	+	264	209694101	-	VSAL_I0506	-	toluene tolerance protein Ttg2B
468	 40.20	0	565307..565801	+	164	209694102	-	VSAL_I0507	-	toluene tolerance protein Ttg2C
469	 37.85	0	565801..566442	+	213	209694103	-	VSAL_I0508	-	toluene tolerance protein Ttg2
470	 35.83	-1	566442..566762	+	106	209694104	-	VSAL_I0509	-	conserved hypothetical protein containing
471	 37.21	0	566762..567019	+	85	209694105	-	VSAL_I0510	-	hypothetical protein
472	 43.03	+1	567032..568300	+	422	209694106	murA	VSAL_I0511	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
39.44	MEAN

3.11	STD DEV
