IslandPath Analysis: Aliivibrio salmonicida LFI1238

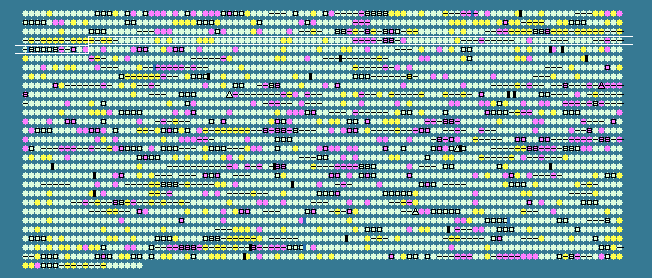

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
312	 47.69	+2	374740..375129	+	129	209693946	rpsK	VSAL_I0342	-	30S ribosomal protein S11
313	 42.67	+1	375161..375781	+	206	209693947	rpsD	VSAL_I0343	-	30S ribosomal protein S4
314	 44.24	+1	375805..376794	+	329	209693948	rpoA	VSAL_I0344	-	RNA polymerase alpha-subunit
315	 46.19	+2	376831..377211	+	126	209693949	rplQ	VSAL_I0345	-	50S ribosomal protein L17
316	 38.28	0	377275..378285	-	336	209693950	fbp	VSAL_I0346	-	fructose-1,6-bisphosphatase
317	 41.78	0	378499..379860	+	453	209693951	mpl	VSAL_I0347	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelat ligase
318	 41.75	0	379862..380491	+	209	209693952	-	VSAL_I0348	-	probable aromatic acid decarboxylase
319	 38.94	0	380696..381712	+	338	209693953	tbpA	VSAL_I0349	-	thiamine-binding periplasmic protein precursor
320	 38.82	0	381775..383397	+	540	209693954	thiP	VSAL_I0350	-	thiamine transport system permease protein ThiP
321	 39.85	0	383397..384071	+	224	209693955	thiQ	VSAL_I0351	-	thiamine transport ATP-binding protein ThiQ
322	 41.92	0	384295..387204	+	969	209693956	rapA	VSAL_I0352	-	RNA polymerase-associated protein RapA (ATP-dependent helicase hepA)
323	 43.13	+1	387207..387941	+	244	209693957	rluA	VSAL_I0353	-	ribosomal large subunit pseudouridine synthase A
324	 38.13	0	388002..388439	-	145	209693958	uspF	VSAL_I0354	-	universal stress protein F
325	 43.45	+1	388495..391074	-	859	209693959	-	VSAL_I0355	-	integral membrane transport protein
326	 41.85	0	391308..392282	-	324	209693960	-	VSAL_I0356	-	hypothetical protein
327	 39.49	0	394047..394517	-	156	209693961	argR	VSAL_I0358	-	arginine repressor
328	 42.84	+1	394789..395724	+	311	209693962	mdh	VSAL_I0359	-	malate dehydrogenase
329	 40.95	0	395817..396788	-	323	209693963	ispB	VSAL_I0360	-	octaprenyl-diphosphate synthase
330	 45.19	+1	397065..397376	+	103	209693964	rplU	VSAL_I0361	-	50S ribosomal protein L21
331	 43.02	+1	397394..397651	+	85	209693965	rpmA	VSAL_I0362	-	50S ribosomal protein L27
332	 43.94	+1	397929..399107	+	392	209693966	-	VSAL_I0363	-	putative GTP-binding protein
333	 41.41	0	399220..399999	+	259	209693967	-	VSAL_I0364	-	membrane protein
334	 39.84	0	399999..400490	+	163	209693968	-	VSAL_I0365	-	membrane protein
335	 38.70	0	400556..401077	+	173	209693969	folA	VSAL_I0366	-	dihydrofolate reductase type 3
336	 40.39	0	401288..402109	-	273	209693970	apaH	VSAL_I0367	-	bis(5'nucleosyl)-tetraphosphatase
337	 42.33	0	402206..403039	-	277	209693971	ksgA	VSAL_I0368	-	dimethyladenosine transferase
338	 40.61	0	403036..404025	-	329	209693972	pdxA	VSAL_I0369	-	4-hydroxythreonine-4-phosphate dehydrogenase
339	 39.59	0	404018..405328	-	436	209693973	surA	VSAL_I0370	-	chaperone SurA precursor
340	 38.39	0	405399..407753	-	784	209693974	imp	VSAL_I0371	-	organic solvent tolerance protein precursor
341	 39.91	0	407960..408811	+	283	209693975	djlA	VSAL_I0372	-	DnaJ-like protein DjlA
342	 38.33	0	408841..409680	-	279	209693976	-	VSAL_I0373	-	exported protein
343	 40.46	0	409804..410406	-	200	209693977	leuD	VSAL_I0374	-	3-isopropylmalate dehydratase small subunit
344	 44.92	+1	410418..411833	-	471	209693978	leuC	VSAL_I0375	-	3-isopropylmalate dehydratase large subunit
345	 43.13	+1	411849..412940	-	363	209693979	leuB	VSAL_I0376	-	3-isopropylmalate dehydrogenase
346	 42.57	+1	413018..414565	-	515	209693980	leuA	VSAL_I0377	-	2-isopropylmalate synthase
347	 38.79	0	415681..417000	+	439	209693981	-	VSAL_I0379	-	hypothetical protein
348	 42.03	0	416997..420101	+	1034	209693982	-	VSAL_I0380	-	integral membrane protein, AcrB/AcrD/AcrF family
349	 39.72	0	420124..421125	-	333	209693983	-	VSAL_I0381	-	hypothetical protein
350	 42.27	0	421307..422704	+	465	209693984	dnaB	VSAL_I0382	-	replicative DNA helicase
351	 43.36	+1	422726..423802	+	358	209693985	alr	VSAL_I0383	-	alanine racemase
352	 41.77	0	423817..425037	+	406	209693986	-	VSAL_I0384	-	hypothetical protein
353	 39.75	0	425233..426885	+	550	209693987	pgi	VSAL_I0385	-	glucose-6-phosphate isomerase
354	 40.00	0	426981..427475	-	164	209693988	-	VSAL_I0386	-	putative chemotaxis protein
355	 36.67	0	427496..427945	-	149	209693989	zur	VSAL_I0387	-	zinc uptake regulation protein
356	 33.33	-1	428519..428800	+	93	209693990	-	VSAL_I0388	-	hypothetical protein, putative phage gene
357	 33.69	-1	428844..429683	-	279	209693991	-	VSAL_I0389	-	hypothetical protein, putative phage gene
358	 27.74	-2	429880..430272	+	130	209693992	-	VSAL_I0390	-	hypothetical protein, putative phage gene
359	 32.85	-2	430429..431454	+	341	209693993	-	VSAL_I0391	-	hypothetical protein, ADP-ribose binding protein
360	 41.20	0	431463..431678	-	71	209693994	-	VSAL_I0392	-	hypothetical protein, putative phage gene
361	 35.70	-1	431804..432226	+	140	209693995	-	VSAL_I0393	-	transposase
362	 33.86	-1	432244..432810	+	188	209693996	-	VSAL_I0394	-	transposase
363	 36.03	-1	433433..434509	-	358	209693997	-	VSAL_I0396	-	hypothetical protein, putative phage gene
364	 33.43	-1	434540..435601	-	353	209693998	-	VSAL_I0397	-	shufflon-specific DNA recombinase
365	 38.10	0	435736..436806	-	356	209693999	-	VSAL_I0398	-	shufflon-specific DNA recombinase
366	 41.59	0	437014..438030	+	338	209694000	dusA	VSAL_I0399	-	tRNA-dihydrouridine synthase A
367	 40.06	0	438149..438847	+	232	209694001	-	VSAL_I0400	-	hypothetical protein
368	 38.46	0	438951..439223	+	90	209694002	-	VSAL_I0401	-	hypothetical protein
369	 40.28	0	439340..441181	+	613	209694003	cysJ	VSAL_I0402	-	sulfite reductase [NADPH] flavoprotein alpha-component
370	 41.54	0	441181..442911	+	576	209694004	cysI	VSAL_I0403	-	sulfite reductase [NADPH] hemoprotein beta-component
371	 40.03	0	442904..443665	+	253	209694005	cysH	VSAL_I0404	-	phosphoadenosine phosphosulfate reductase
372	 41.77	0	443742..444215	-	157	209694006	-	VSAL_I0405	-	hypothetical protein
373	 46.22	+2	444332..444952	-	206	209694007	fklB	VSAL_I0406	-	FKBP-type peptidyl-prolyl cis-trans isomerase
374	 37.71	0	445092..445754	+	220	209694008	-	VSAL_I0407	-	opacity-associated protein A
375	 40.11	0	445766..446635	-	289	209694009	-	VSAL_I0408	-	integral membrane protein
376	 39.51	0	446635..447087	-	150	209694010	-	VSAL_I0409	-	putative acetyltransferase
377	 34.03	-1	447153..447725	-	190	209694011	-	VSAL_I0410	-	putative DNA-binding protein
378	 39.09	0	447735..449507	-	590	209694012	-	VSAL_I0411	-	hemolysin
379	 38.78	0	449511..449969	-	152	209694013	-	VSAL_I0412	-	membrane protein
380	 38.03	0	450040..450465	-	141	209694014	-	VSAL_I0413	-	hypothetical protein
381	 39.63	0	450478..451224	-	248	209694015	-	VSAL_I0414	-	hypothetical protein
382	 39.08	0	451224..451832	-	202	209694016	-	VSAL_I0415	-	hypothetical protein
383	 38.55	0	451784..452914	-	376	209694017	-	VSAL_I0416	-	hypothetical protein
384	 39.09	0	452914..453504	-	196	209694018	-	VSAL_I0417	-	membrane protein
385	 33.33	-1	453631..454044	+	137	209694019	-	VSAL_I0418	-	membrane protein
386	 40.54	0	454084..456066	-	660	209694020	cpdB	VSAL_I0419	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
387	 40.37	0	456434..457342	+	302	209694021	cysD	VSAL_I0420	-	sulfate adenylyltransferase subunit 2
388	 40.50	0	457371..458807	+	478	209694022	cysN	VSAL_I0421	-	sulfate adenylyltransferase subunit 1
389	 39.76	0	458830..460557	+	575	209694023	-	VSAL_I0422	-	ion transporter superfamily protein
390	 39.02	0	460572..461204	+	210	209694024	cysC	VSAL_I0423	-	adenylylsulfate kinase
391	 37.79	0	461248..462144	-	298	209694025	-	VSAL_I0424	-	hypothetical protein
392	 36.21	-1	462468..462953	-	161	209694026	-	VSAL_I0425	-	hypothetical protein
393	 39.92	0	462963..464222	-	419	209694027	-	VSAL_I0426	-	predicted permease
394	 38.26	0	464216..464905	-	229	209694028	-	VSAL_I0427	-	ABC transporter, ATP-binding protein
395	 41.12	0	464942..465583	-	213	209694029	-	VSAL_I0428	-	hypothetical protein
396	 37.46	0	465635..465925	-	96	209694030	-	VSAL_I0429	-	membrane protein
397	 37.86	0	465991..466542	-	183	209694031	-	VSAL_I0430	-	hypothetical protein
398	 35.71	-1	466791..467000	+	69	209694032	-	VSAL_I0431	-	hypothetical protein
399	 38.86	0	467069..467719	-	216	209694033	msrA	VSAL_I0432	-	peptide methionine sulfoxide reductase MSRA
400	 40.48	0	467761..469482	+	573	209694034	-	VSAL_I0433	-	surface antigen protein
401	 36.78	0	469479..473276	+	1265	209694035	-	VSAL_I0434	-	hypothetical protein
402	 38.14	0	484735..485046	+	103	209694036	-	VSAL_I0435	-	transposase
403	 36.21	-1	485043..485390	+	115	209694037	-	VSAL_I0436	-	transposase
404	 39.72	0	485462..486949	+	495	209694038	-	VSAL_I0437	-	transposase
405	 36.54	0	488216..488527	+	103	209694039	-	VSAL_I0439	-	transposase
406	 38.85	0	488524..489393	+	289	209694040	-	VSAL_I0440	-	transposase
407	 34.74	-1	489668..490945	-	425	209694041	-	VSAL_I0441	-	sodium/proton antiporter
408	 38.93	0	491126..494806	+	1226	209694042	metH	VSAL_I0442	-	methionine synthase
409	 35.94	-1	495249..496130	-	293	209694043	-	VSAL_I0444	-	transposase
410	 38.92	0	497687..498796	+	369	209694044	-	VSAL_I0445	-	aminotransferase class-V
411	 35.95	-1	498845..500602	-	585	209694045	-	VSAL_I0446	-	O-antigen polymerase
39.44	MEAN

3.11	STD DEV
