IslandPath Analysis: Aliivibrio salmonicida LFI1238

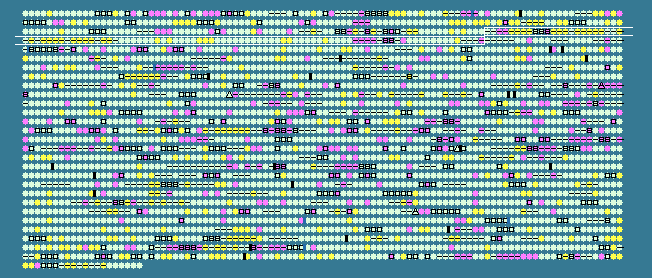

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
278	 37.25	0	351827..352540	+	237	209693912	-	VSAL_I0306	-	putative DNA-binding protein
279	 40.46	0	352537..352929	+	130	209693913	dsrE	VSAL_I0307	-	intracellular sulfur oxidation protein DsrE
280	 35.01	-1	352959..353315	+	118	209693914	dsrF	VSAL_I0308	-	intracellular sulfur oxidation protein DsrF
281	 31.25	-2	353325..353612	+	95	209693915	-	VSAL_I0309	-	hypothetical protein
282	 45.60	+1	353778..354152	+	124	209693916	rpsL	VSAL_I0310	-	30S ribosomal protein S12
283	 43.95	+1	354263..354733	+	156	209693917	rpsG	VSAL_I0311	-	30S ribosomal protein S7
284	 43.58	+1	354867..356954	+	695	209693918	fusA	VSAL_I0312	-	elongation factor G
285	 44.05	+1	357073..358257	+	394	209693919	tuf	VSAL_I0313	-	elongation factor Tu
286	 38.14	0	359387..359698	+	103	209693920	-	VSAL_I0315	-	transposase
287	 36.21	-1	359695..360042	+	115	209693921	-	VSAL_I0316	-	transposase
288	 35.94	-1	360130..361011	-	293	209693922	-	VSAL_I0317	-	transposase
289	 44.23	+1	363557..363868	+	103	209693923	rpsJ	VSAL_I0319	-	30S ribosomal subunit protein S10
290	 44.60	+1	363881..364510	+	209	209693924	rplC	VSAL_I0320	-	50S ribosomal protein L3
291	 44.61	+1	364528..365130	+	200	209693925	rplD	VSAL_I0321	-	50S ribosomal protein L4
292	 41.25	0	365127..365429	+	100	209693926	rplW	VSAL_I0322	-	50S ribosomal protein L23
293	 46.42	+2	365445..366269	+	274	209693927	rplB	VSAL_I0323	-	50S ribosomal protein L2
294	 45.88	+2	366289..366567	+	92	209693928	rpsS	VSAL_I0324	-	30S ribosomal protein S19
295	 42.94	+1	366578..366910	+	110	209693929	rplV	VSAL_I0325	-	50S ribosomal subunit protein L22
296	 47.78	+2	366930..367628	+	232	209693930	rpsC	VSAL_I0326	-	30S ribosomal subunit protein S3
297	 47.93	+2	367640..368050	+	136	209693931	rplP	VSAL_I0327	-	50S ribosomal subunit protein L16
298	 41.67	0	368050..368241	+	63	209693932	rpmC	VSAL_I0328	-	50S ribosomal protein L29
299	 40.78	0	368241..368495	+	84	209693933	rpsQ	VSAL_I0329	-	30S ribosomal protein S17
300	 45.97	+2	368658..369029	+	123	209693934	rplN	VSAL_I0330	-	50S ribosomal protein L14
301	 39.62	0	369040..369357	+	105	209693935	rplX	VSAL_I0331	-	50S ribosomal protein L24
302	 45.37	+1	369385..369924	+	179	209693936	rplE	VSAL_I0332	-	50S ribosomal protein L5
303	 42.81	+1	369942..370247	+	101	209693937	rpsN	VSAL_I0333	-	30S ribosomal protein S14
304	 43.51	+1	370277..370669	+	130	209693938	rpsH	VSAL_I0334	-	30S ribosomal protein S8
305	 43.63	+1	370682..371215	+	177	209693939	rplF	VSAL_I0335	-	50E ribosomal protein L6
306	 48.31	+2	371225..371578	+	117	209693940	rplR	VSAL_I0336	-	50S ribosomal protein L18
307	 44.31	+1	371593..372093	+	166	209693941	rpsE	VSAL_I0337	-	30S ribosomal protein S5
308	 42.78	+1	372099..372278	+	59	209693942	rpmD	VSAL_I0338	-	50S ribosomal protein L30
309	 45.06	+1	372285..372719	+	144	209693943	rplO	VSAL_I0339	-	50S ribosomal protein L15
310	 43.09	+1	372740..374071	+	443	209693944	secY	VSAL_I0340	-	preprotein translocase SecY subunit
311	 46.78	+2	374362..374718	+	118	209693945	rpsM	VSAL_I0341	-	30S ribosomal protein S13
312	 47.69	+2	374740..375129	+	129	209693946	rpsK	VSAL_I0342	-	30S ribosomal protein S11
313	 42.67	+1	375161..375781	+	206	209693947	rpsD	VSAL_I0343	-	30S ribosomal protein S4
314	 44.24	+1	375805..376794	+	329	209693948	rpoA	VSAL_I0344	-	RNA polymerase alpha-subunit
315	 46.19	+2	376831..377211	+	126	209693949	rplQ	VSAL_I0345	-	50S ribosomal protein L17
316	 38.28	0	377275..378285	-	336	209693950	fbp	VSAL_I0346	-	fructose-1,6-bisphosphatase
317	 41.78	0	378499..379860	+	453	209693951	mpl	VSAL_I0347	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelat ligase
318	 41.75	0	379862..380491	+	209	209693952	-	VSAL_I0348	-	probable aromatic acid decarboxylase
319	 38.94	0	380696..381712	+	338	209693953	tbpA	VSAL_I0349	-	thiamine-binding periplasmic protein precursor
320	 38.82	0	381775..383397	+	540	209693954	thiP	VSAL_I0350	-	thiamine transport system permease protein ThiP
321	 39.85	0	383397..384071	+	224	209693955	thiQ	VSAL_I0351	-	thiamine transport ATP-binding protein ThiQ
322	 41.92	0	384295..387204	+	969	209693956	rapA	VSAL_I0352	-	RNA polymerase-associated protein RapA (ATP-dependent helicase hepA)
323	 43.13	+1	387207..387941	+	244	209693957	rluA	VSAL_I0353	-	ribosomal large subunit pseudouridine synthase A
324	 38.13	0	388002..388439	-	145	209693958	uspF	VSAL_I0354	-	universal stress protein F
325	 43.45	+1	388495..391074	-	859	209693959	-	VSAL_I0355	-	integral membrane transport protein
326	 41.85	0	391308..392282	-	324	209693960	-	VSAL_I0356	-	hypothetical protein
327	 39.49	0	394047..394517	-	156	209693961	argR	VSAL_I0358	-	arginine repressor
328	 42.84	+1	394789..395724	+	311	209693962	mdh	VSAL_I0359	-	malate dehydrogenase
329	 40.95	0	395817..396788	-	323	209693963	ispB	VSAL_I0360	-	octaprenyl-diphosphate synthase
330	 45.19	+1	397065..397376	+	103	209693964	rplU	VSAL_I0361	-	50S ribosomal protein L21
331	 43.02	+1	397394..397651	+	85	209693965	rpmA	VSAL_I0362	-	50S ribosomal protein L27
332	 43.94	+1	397929..399107	+	392	209693966	-	VSAL_I0363	-	putative GTP-binding protein
333	 41.41	0	399220..399999	+	259	209693967	-	VSAL_I0364	-	membrane protein
334	 39.84	0	399999..400490	+	163	209693968	-	VSAL_I0365	-	membrane protein
335	 38.70	0	400556..401077	+	173	209693969	folA	VSAL_I0366	-	dihydrofolate reductase type 3
336	 40.39	0	401288..402109	-	273	209693970	apaH	VSAL_I0367	-	bis(5'nucleosyl)-tetraphosphatase
337	 42.33	0	402206..403039	-	277	209693971	ksgA	VSAL_I0368	-	dimethyladenosine transferase
338	 40.61	0	403036..404025	-	329	209693972	pdxA	VSAL_I0369	-	4-hydroxythreonine-4-phosphate dehydrogenase
339	 39.59	0	404018..405328	-	436	209693973	surA	VSAL_I0370	-	chaperone SurA precursor
340	 38.39	0	405399..407753	-	784	209693974	imp	VSAL_I0371	-	organic solvent tolerance protein precursor
341	 39.91	0	407960..408811	+	283	209693975	djlA	VSAL_I0372	-	DnaJ-like protein DjlA
342	 38.33	0	408841..409680	-	279	209693976	-	VSAL_I0373	-	exported protein
343	 40.46	0	409804..410406	-	200	209693977	leuD	VSAL_I0374	-	3-isopropylmalate dehydratase small subunit
344	 44.92	+1	410418..411833	-	471	209693978	leuC	VSAL_I0375	-	3-isopropylmalate dehydratase large subunit
345	 43.13	+1	411849..412940	-	363	209693979	leuB	VSAL_I0376	-	3-isopropylmalate dehydrogenase
346	 42.57	+1	413018..414565	-	515	209693980	leuA	VSAL_I0377	-	2-isopropylmalate synthase
347	 38.79	0	415681..417000	+	439	209693981	-	VSAL_I0379	-	hypothetical protein
348	 42.03	0	416997..420101	+	1034	209693982	-	VSAL_I0380	-	integral membrane protein, AcrB/AcrD/AcrF family
349	 39.72	0	420124..421125	-	333	209693983	-	VSAL_I0381	-	hypothetical protein
350	 42.27	0	421307..422704	+	465	209693984	dnaB	VSAL_I0382	-	replicative DNA helicase
351	 43.36	+1	422726..423802	+	358	209693985	alr	VSAL_I0383	-	alanine racemase
352	 41.77	0	423817..425037	+	406	209693986	-	VSAL_I0384	-	hypothetical protein
353	 39.75	0	425233..426885	+	550	209693987	pgi	VSAL_I0385	-	glucose-6-phosphate isomerase
354	 40.00	0	426981..427475	-	164	209693988	-	VSAL_I0386	-	putative chemotaxis protein
355	 36.67	0	427496..427945	-	149	209693989	zur	VSAL_I0387	-	zinc uptake regulation protein
356	 33.33	-1	428519..428800	+	93	209693990	-	VSAL_I0388	-	hypothetical protein, putative phage gene
357	 33.69	-1	428844..429683	-	279	209693991	-	VSAL_I0389	-	hypothetical protein, putative phage gene
358	 27.74	-2	429880..430272	+	130	209693992	-	VSAL_I0390	-	hypothetical protein, putative phage gene
359	 32.85	-2	430429..431454	+	341	209693993	-	VSAL_I0391	-	hypothetical protein, ADP-ribose binding protein
360	 41.20	0	431463..431678	-	71	209693994	-	VSAL_I0392	-	hypothetical protein, putative phage gene
361	 35.70	-1	431804..432226	+	140	209693995	-	VSAL_I0393	-	transposase
362	 33.86	-1	432244..432810	+	188	209693996	-	VSAL_I0394	-	transposase
363	 36.03	-1	433433..434509	-	358	209693997	-	VSAL_I0396	-	hypothetical protein, putative phage gene
364	 33.43	-1	434540..435601	-	353	209693998	-	VSAL_I0397	-	shufflon-specific DNA recombinase
365	 38.10	0	435736..436806	-	356	209693999	-	VSAL_I0398	-	shufflon-specific DNA recombinase
366	 41.59	0	437014..438030	+	338	209694000	dusA	VSAL_I0399	-	tRNA-dihydrouridine synthase A
367	 40.06	0	438149..438847	+	232	209694001	-	VSAL_I0400	-	hypothetical protein
368	 38.46	0	438951..439223	+	90	209694002	-	VSAL_I0401	-	hypothetical protein
369	 40.28	0	439340..441181	+	613	209694003	cysJ	VSAL_I0402	-	sulfite reductase [NADPH] flavoprotein alpha-component
370	 41.54	0	441181..442911	+	576	209694004	cysI	VSAL_I0403	-	sulfite reductase [NADPH] hemoprotein beta-component
371	 40.03	0	442904..443665	+	253	209694005	cysH	VSAL_I0404	-	phosphoadenosine phosphosulfate reductase
372	 41.77	0	443742..444215	-	157	209694006	-	VSAL_I0405	-	hypothetical protein
373	 46.22	+2	444332..444952	-	206	209694007	fklB	VSAL_I0406	-	FKBP-type peptidyl-prolyl cis-trans isomerase
374	 37.71	0	445092..445754	+	220	209694008	-	VSAL_I0407	-	opacity-associated protein A
375	 40.11	0	445766..446635	-	289	209694009	-	VSAL_I0408	-	integral membrane protein
376	 39.51	0	446635..447087	-	150	209694010	-	VSAL_I0409	-	putative acetyltransferase
377	 34.03	-1	447153..447725	-	190	209694011	-	VSAL_I0410	-	putative DNA-binding protein
39.44	MEAN

3.11	STD DEV
