IslandPath Analysis: Aliivibrio salmonicida LFI1238

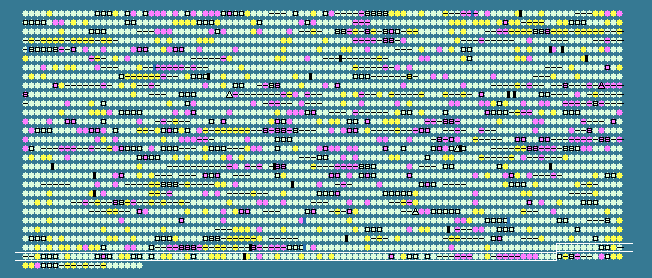

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2690	 42.54	0	3169675..3170076	+	133	209696324	hslR	VSAL_I2926	-	heat shock protein 15
2691	 40.98	0	3170167..3171042	+	291	209696325	hslO	VSAL_I2927	-	33 kda chaperonin (heat shock protein 33)
2692	 41.02	0	3171402..3173027	+	541	209696326	pckA	VSAL_I2928	-	phosphoenolpyruvate carboxykinase
2693	 37.62	0	3173232..3175214	+	660	209696327	-	VSAL_I2929	-	hypothetical protein
2694	 37.18	0	3175273..3176493	-	406	209696328	-	VSAL_I2930	-	putative signaling protein
2695	 39.01	0	3176743..3177711	+	322	209696329	-	VSAL_I2931	-	lysophospholipase L2 LypA
2696	 37.09	0	3177835..3178632	+	265	209696330	-	VSAL_I2932	-	hypothetical protein
2697	 36.21	-1	3180276..3180623	-	115	209696331	-	VSAL_I2934	-	transposase
2698	 37.78	0	3180620..3180934	-	104	209696332	-	VSAL_I2935	-	transposase
2699	 44.67	+1	3181638..3182537	-	299	209696333	-	VSAL_I2936	-	putative acyltransferase
2700	 41.61	0	3182875..3183309	-	144	209696334	dtd	VSAL_I2937	-	D-tyrosyl-tRNA(tyr) deacylase
2701	 39.01	0	3183281..3184213	-	310	209696335	rbn	VSAL_I2938	-	tRNA-processing ribonuclease BN
2702	 42.73	+1	3184346..3186175	-	609	209696336	-	VSAL_I2939	-	putative elongation factor Tu, GTP binding domain
2703	 43.40	+1	3186733..3188142	+	469	209696337	glnA	VSAL_I2940	-	glutamine synthetase
2704	 37.78	0	3188568..3188882	+	104	209696338	-	VSAL_I2941	-	transposase
2705	 36.21	-1	3188879..3189226	+	115	209696339	-	VSAL_I2942	-	transposase
2706	 39.72	0	3189298..3190785	+	495	209696340	-	VSAL_I2943	-	transposase
2707	 41.77	0	3190919..3191380	-	153	209696341	asnC	VSAL_I2944	-	HTH-type transcriptional regulator, AsnC-family
2708	 46.10	+2	3191536..3192318	+	260	209696342	-	VSAL_I2945	-	hypothetical protein
2709	 37.79	0	3192315..3192740	-	141	209696343	uspA	VSAL_I2946	-	universal stress protein A
2710	 38.45	0	3192947..3193474	+	175	209696344	ftnA	VSAL_I2947	-	ferritin-1
2711	 37.76	0	3193585..3193923	+	112	209696345	uspB	VSAL_I2948	-	universal stress protein B
2712	 41.21	0	3193951..3195156	+	401	209696346	-	VSAL_I2949	-	putative FAD dependent oxidoreductase
2713	 37.78	0	3197135..3197449	+	104	209696347	-	VSAL_I2951	-	transposase
2714	 35.92	-1	3197446..3197793	+	115	209696348	-	VSAL_I2952	-	transposase
2715	 39.65	0	3197865..3199352	+	495	209696349	-	VSAL_I2953	-	transposase
2716	 39.63	0	3200094..3200681	-	195	209696350	-	VSAL_I2954	-	hypothetical protein
2717	 43.04	+1	3200681..3201700	-	339	209696351	-	VSAL_I2955	-	putative lipoprotein
2718	 45.75	+2	3201855..3202490	+	211	209696352	eda	VSAL_I2956	-	KHG/KDPG aldolase
2719	 36.21	-1	3204396..3204743	-	115	209696353	-	VSAL_I2959	-	transposase
2720	 37.78	0	3204740..3205054	-	104	209696354	-	VSAL_I2960	-	transposase
2721	 42.07	0	3205351..3205785	+	144	209696355	ibpA	VSAL_I2961	-	small heat shock protein
2722	 39.14	0	3205841..3207166	-	441	209696356	-	VSAL_I2962	-	transposase
2723	 42.87	+1	3207539..3208786	-	415	209696357	avtA	VSAL_I2963	-	valine--pyruvate aminotransferase (alanine--valine transaminase)
2724	 44.91	+1	3209005..3209937	+	310	209696358	glyQ	VSAL_I2964	-	glycine-tRNA synthetase, alpha subunit
2725	 44.22	+1	3209940..3212006	+	688	209696359	glyS	VSAL_I2965	-	glycine-tRNA synthetase, beta subunit
2726	 42.22	0	3212151..3213815	+	554	209696360	malS	VSAL_I2966	-	alpha-amylase precursor
2727	 38.70	0	3213954..3214214	+	86	209696361	-	VSAL_I2967	-	hypothetical protein
2728	 44.05	+1	3214247..3214498	-	83	209696362	-	VSAL_I2968	-	SirA-like protein
2729	 40.70	0	3214660..3215853	+	397	209696363	-	VSAL_I2969	-	transposase
2730	 36.46	0	3216114..3216305	+	63	209696364	-	VSAL_I2970	-	hypothetical protein
2731	 39.60	0	3216466..3217407	+	313	209696365	-	VSAL_I2971	-	HTH-type transcriptional regulator, LysR family
2732	 44.34	+1	3217530..3218510	-	326	209696366	-	VSAL_I2972	-	putative zinc-binding alcohol dehydrogenase
2733	 45.02	+1	3219285..3220448	-	387	209696367	fadA	VSAL_I2973	-	fatty oxidation complex beta subunit, 3-ketoacyl-CoA thiolase
2734	 43.42	+1	3220462..3222642	-	726	209696368	fadB	VSAL_I2974	-	fatty oxidation complex alpha subunit, enoyl-CoA hydratase
2735	 41.79	0	3222885..3223499	+	204	209696369	-	VSAL_I2975	-	hypothetical protein
2736	 41.63	0	3223557..3225014	+	485	209696370	trkH	VSAL_I2976	-	Trk system potassium uptake protein TrkH
2737	 38.67	0	3225042..3225566	+	174	209696371	hemG	VSAL_I2977	-	protoporphyrinogen oxidase
2738	 42.98	+1	3225765..3226106	-	113	209696372	-	VSAL_I2978	-	hypothetical protein
2739	 37.58	0	3226206..3228962	+	918	209696373	-	VSAL_I2979	-	Zn-dependent peptidase
2740	 35.90	-1	3229064..3229258	+	64	209696374	-	VSAL_I2980	-	hypothetical protein
2741	 40.16	0	3229350..3229730	-	126	209696375	-	VSAL_I2981	-	CrcB-like protein
2742	 37.35	0	3229912..3230334	+	140	209696376	-	VSAL_I2982	-	hypothetical protein
2743	 43.04	+1	3230776..3232722	+	648	209696377	thiC	VSAL_I2983	-	thiamine biosynthesis protein ThiC
2744	 40.68	0	3232795..3233475	+	226	209696378	thiE	VSAL_I2984	-	thiamine-phosphate pyrophosphorylase
2745	 42.17	0	3233468..3234316	+	282	209696379	thiF	VSAL_I2985	-	thiamine biosynthesis adenylyltransferase ThiF
2746	 39.44	0	3234309..3234521	+	70	209696380	thiS	VSAL_I2986	-	thiamine biosynthesis protein ThiS
2747	 46.30	+2	3234523..3235293	+	256	209696381	thiG	VSAL_I2987	-	thiamine biosynthesis protein ThiG
2748	 42.50	0	3235316..3236428	+	370	209696382	thiH	VSAL_I2988	-	thiamine biosynthesis protein ThiH
2749	 41.34	0	3236553..3238976	-	807	209696383	-	VSAL_I2989	-	putative beta-N-acetylhexosaminidase
2750	 43.48	+1	3239242..3241035	-	597	209696384	-	VSAL_I2990	-	putative metallopeptidase
2751	 40.89	0	3241116..3242081	-	321	209696385	-	VSAL_I2991	-	HTH-type transcriptional regulator, LysR-family
2752	 43.62	+1	3242186..3243391	+	401	209696386	-	VSAL_I2992	-	MFS transporter
2753	 40.35	0	3243512..3243796	+	94	209696387	-	VSAL_I2993	-	hypothetical protein
2754	 41.12	0	3243867..3244778	-	303	209696388	-	VSAL_I2994	-	integral membrane protein
2755	 42.08	0	3244906..3246426	+	506	209696389	rmuC	VSAL_I2995	-	DNA recombination protein RumC
2756	 41.83	0	3246486..3247250	+	254	209696390	ubiE	VSAL_I2996	-	ubiquinone/menaquinone biosynthesis methyltransferase
2757	 40.87	0	3247263..3247886	+	207	209696391	-	VSAL_I2997	-	hypothetical protein
2758	 42.16	0	3247883..3249514	+	543	209696392	ubiB	VSAL_I2998	-	probable ubiquinone biosynthesis protein UbiB
2759	 37.35	0	3249570..3249818	+	82	209696393	tatA	VSAL_I2999	-	sec-independent protein translocase protein TatA
2760	 41.80	0	3249822..3250199	+	125	209696394	tatB	VSAL_I3000	-	sec-independent protein translocase protein TatB
2761	 40.21	0	3250202..3250957	+	251	209696395	tatC	VSAL_I3001	-	sec-independent protein translocase protein TatC
2762	 35.94	-1	3251158..3252039	+	293	209696396	-	VSAL_I3002	-	transposase
2763	 40.48	0	3253913..3254710	-	265	209696397	-	VSAL_I3003	-	TatD related DNase
2764	 45.43	+1	3254843..3255859	+	338	209696398	hemB	VSAL_I3004	-	delta-aminolevulinic acid dehydratase
2765	 38.15	0	3256157..3256426	+	89	209696399	-	VSAL_I3005	-	transposase
2766	 36.21	-1	3256423..3256770	+	115	209696400	-	VSAL_I3006	-	transposase
2767	 37.86	0	3258780..3259088	+	102	209696401	-	VSAL_I3008	-	hypothetical protein
2768	 42.41	0	3259572..3260684	+	370	209696402	-	VSAL_I3009	-	transposase
2769	 37.02	0	3260889..3261512	+	207	209696403	neuD	VSAL_I3010	-	putative capsular polysaccharide biosynthesis protein NeuD
2770	 38.23	0	3261537..3262577	+	346	209696404	neuB	VSAL_I3011	-	putative sialic acid synthase NeuB
2771	 37.88	0	3262582..3263835	+	417	209696405	neuA	VSAL_I3012	-	N-acylneuraminate cytidylyltransferase
2772	 37.28	0	3263835..3265001	+	388	209696406	neuC	VSAL_I3013	-	polysialic acid biosynthesis protein P7
2773	 35.62	-1	3265006..3266274	+	422	209696407	-	VSAL_I3014	-	putative exopolysaccharide biosynthesis protein
2774	 28.99	-2	3266267..3267163	+	298	209696408	-	VSAL_I3015	-	hypothetical protein
2775	 28.78	-2	3267304..3268269	+	321	209696409	-	VSAL_I3016	-	lipooligosaccharide sialyltransferase
2776	 39.87	0	3269745..3270860	+	371	209696410	rmlB	VSAL_I3018	-	dTDP-glucose 4,6-dehydratase
2777	 40.20	0	3270860..3271747	+	295	209696411	rmlA	VSAL_I3019	-	glucose-1-phosphate thymidyl transferase
2778	 43.65	+1	3271747..3272628	+	293	209696412	rmlD	VSAL_I3020	-	dTDP-6-deoxy-l-mannose-dehydrogenase
2779	 40.00	0	3272633..3273187	+	184	209696413	rmlC	VSAL_I3021	-	dTDP-6-deoxy-D-xylo-4-hexulose-3,5-epimerase
2780	 34.02	-1	3274828..3275706	+	292	209696414	-	VSAL_I3024	-	putative glycosyl transferase
2781	 25.00	-2	3275710..3276993	+	427	209696415	-	VSAL_I3025	-	membrane protein
2782	 29.66	-2	3277004..3277846	+	280	209696416	-	VSAL_I3026	-	putative glycosyltransferase
2783	 29.41	-2	3277843..3278556	+	237	209696417	-	VSAL_I3027	-	putative glycosyltransferase
2784	 30.37	-2	3278556..3279128	+	190	209696418	wbbJ	VSAL_I3028	-	putative lipopolysaccharide biosynthesis O-acetyl transferase
2785	 34.48	-1	3279138..3280274	+	378	209696419	-	VSAL_I3029	-	putative NAD dependent epimerase/dehydratase
2786	 29.54	-2	3280302..3281303	+	333	209696420	-	VSAL_I3030	-	putative lipopolysaccharide biosynthesis protein
2787	 37.38	0	3281316..3282278	+	320	209696421	-	VSAL_I3031	-	O-antigen biosynthetic gene WbjF
2788	 38.98	0	3282275..3282823	+	182	209696422	-	VSAL_I3032	-	galactosyl transferase, capsular polysaccharide synthesis enzyme
2789	 40.93	0	3282949..3284883	+	644	209696423	-	VSAL_I3033	-	polysaccharide biosynthesis protein, putative epimerase/dehydratase
39.44	MEAN

3.11	STD DEV
