IslandPath Analysis: Aliivibrio salmonicida LFI1238

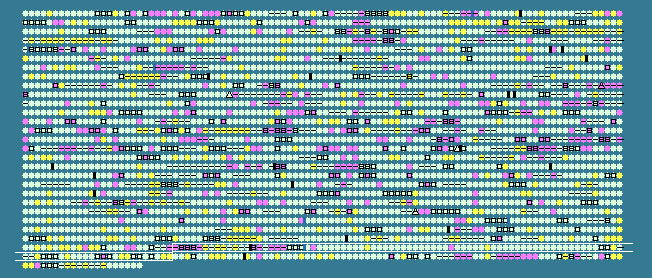

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2626	 28.55	-2	3095102..3095749	-	215	209696260	csgD	VSAL_I2858	-	probable CsgAB operon transcriptional regulatory protein
2627	 34.04	-1	3096149..3096715	-	188	209696261	-	VSAL_I2860	-	transposase
2628	 35.70	-1	3096733..3097155	-	140	209696262	-	VSAL_I2861	-	transposase
2629	 35.94	-1	3097957..3098838	-	293	209696263	-	VSAL_I2863	-	transposase
2630	 35.13	-1	3099392..3100336	+	314	209696264	csgA	VSAL_I2864	-	curlin associated precursor, CsgA like
2631	 43.25	+1	3100411..3104616	-	1401	209696265	rpoC	VSAL_I2865	-	DNA-directed RNA polymerase beta' chain
2632	 42.05	0	3104688..3108716	-	1342	209696266	rpoB	VSAL_I2866	-	DNA-directed RNA polymerase, beta-subunit
2633	 45.08	+1	3108948..3109313	-	121	209696267	rplL	VSAL_I2867	-	50S ribosomal subunit protein L7/L12
2634	 44.44	+1	3109369..3109863	-	164	209696268	rplJ	VSAL_I2868	-	50S ribosomal subunit protein L10
2635	 42.13	0	3110109..3110813	-	234	209696269	rplA	VSAL_I2869	-	50S ribosomal protein L1
2636	 44.52	+1	3110818..3111246	-	142	209696270	rplK	VSAL_I2870	-	50S ribosomal protein L11
2637	 40.66	0	3111366..3111911	-	181	209696271	nusG	VSAL_I2871	-	transcription antitermination protein NusG
2638	 39.15	0	3111924..3112301	-	125	209696272	secE	VSAL_I2872b	-	preprotein translocase sece subunit
2639	 35.94	-1	3114297..3115178	+	293	209696273	-	VSAL_I2874	-	transposase
2640	 31.82	-2	3115312..3116235	+	307	209696274	coaA	VSAL_I2875	-	pantothenate kinase
2641	 38.65	0	3116236..3117195	-	319	209696275	birA	VSAL_I2876	-	bifunctional protein BirA, biotin operon repressor and biotin-[acetyl-CoA carboxylase] synthetase
2642	 33.43	-1	3117192..3118232	-	346	209696276	murB	VSAL_I2877	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2643	 29.60	-2	3118304..3118732	+	142	209696277	-	VSAL_I2878	-	hypothetical protein
2644	 35.33	-1	3118812..3120164	+	450	209696278	pssA	VSAL_I2879	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
2645	 37.78	0	3120327..3120641	+	104	209696279	-	VSAL_I2880	-	transposase
2646	 36.21	-1	3120638..3120985	+	115	209696280	-	VSAL_I2881	-	transposase
2647	 39.78	0	3121057..3122544	+	495	209696281	-	VSAL_I2882	-	transposase
2648	 36.21	-1	3128367..3128852	+	161	209696282	-	VSAL_I2883	-	putative RNA binding protein
2649	 34.46	-1	3128806..3129603	-	265	209696283	murI	VSAL_I2884	-	glutamate racemase
2650	 37.80	0	3129664..3130335	-	223	209696284	-	VSAL_I2885	-	hypothetical protein
2651	 38.02	0	3130386..3132242	-	618	209696285	-	VSAL_I2886	-	putative outer membrane associated TonB dependent receptor
2652	 37.49	0	3132667..3133773	+	368	209696286	trmA	VSAL_I2887	-	tRNA (uracil-5)-methyltransferase
2653	 37.07	0	3133846..3134220	-	124	209696287	-	VSAL_I2888	-	inner membrane protein
2654	 41.06	0	3134265..3134963	-	232	209696288	-	VSAL_I2889	-	HTH-type transcriptional regulator, TetR-family
2655	 40.47	0	3135177..3136592	+	471	209696289	sthA	VSAL_I2890	-	soluble pyridine nucleotide transhydrogenase
2656	 39.26	0	3136681..3138012	-	443	209696290	vcmD	VSAL_I2891	-	multidrug efflux pump
2657	 41.33	0	3138095..3138907	-	270	209696291	-	VSAL_I2892	-	hypothetical protein
2658	 42.95	+1	3138998..3139621	-	207	209696292	lexA	VSAL_I2893	-	LexA repressor
2659	 40.72	0	3139863..3142286	+	807	209696293	plsB	VSAL_I2894	-	glycerol-3-phosphate acyltransferase
2660	 40.91	0	3142377..3143234	-	285	209696294	ubiA	VSAL_I2895	-	4-hydroxybenzoate octaprenyltransferase
2661	 39.97	0	3143231..3143803	-	190	209696295	ubiC	VSAL_I2896	-	chorismate--pyruvate lyase
2662	 37.71	0	3143925..3144335	+	136	209696296	-	VSAL_I2897	-	putative flagellar basal body-associated protein FliL
2663	 39.17	0	3144389..3145228	-	279	209696297	-	VSAL_I2898	-	integral membrane protein
2664	 40.12	0	3145236..3145559	-	107	209696298	glpE	VSAL_I2899	-	thiosulfate sulfurtransferase
2665	 40.19	0	3145988..3146848	-	286	209696299	rpoH	VSAL_I2900	-	RNA polymerase sigma-32 factor
2666	 39.10	0	3147076..3148029	-	317	209696300	ftsX	VSAL_I2901	-	cell division protein FtsX
2667	 39.61	0	3148022..3148690	-	222	209696301	ftsE	VSAL_I2902	-	cell division ATP-binding protein FtsE
2668	 39.98	0	3148694..3149926	-	410	209696302	ftsY	VSAL_I2903	-	cell division protein FtsY
2669	 39.41	0	3149997..3150605	+	202	209696303	-	VSAL_I2904	-	hypothetical protein
2670	 38.10	0	3150606..3150878	+	90	209696304	-	VSAL_I2905	-	hypothetical protein
2671	 36.21	-1	3151679..3151921	-	80	209696305	-	VSAL_I2907	-	hypothetical protein
2672	 33.61	-1	3152793..3153158	-	121	209696306	-	VSAL_I2908	-	hypothetical protein
2673	 36.94	0	3153432..3153764	+	110	209696307	-	VSAL_I2909	-	hypothetical protein
2674	 42.60	+1	3153779..3155860	+	693	209696308	recG	VSAL_I2910	-	ATP-dependent DNA helicase RecG
2675	 41.88	0	3155939..3156523	-	194	209696309	-	VSAL_I2911	-	hypothetical protein
2676	 41.27	0	3156642..3157460	-	272	209696310	cysQ	VSAL_I2912	-	protein CysQ
2677	 41.12	0	3157466..3158017	-	183	209696311	nudE	VSAL_I2913	-	ADP compounds hydrolase NudE
2678	 43.44	+1	3158027..3158788	-	253	209696312	exeN	VSAL_I2914	-	general secretion pathway protein N
2679	 40.65	0	3158785..3159276	-	163	209696313	epsM	VSAL_I2915	-	general secretion pathway protein M
2680	 40.78	0	3159276..3160511	-	411	209696314	epsL	VSAL_I2916	-	general secretion pathway protein L
2681	 40.69	0	3160504..3161523	-	339	209696315	epsK	VSAL_I2917	-	general secretion pathway protein K
2682	 39.97	0	3161538..3162185	-	215	209696316	epsJ	VSAL_I2918	-	general secretion pathway protein J
2683	 39.68	0	3162190..3162567	-	125	209696317	epsI	VSAL_I2919	-	general secretion pathway protein I
2684	 42.55	0	3162557..3163153	-	198	209696318	epsH	VSAL_I2920	-	general secretion pathway protein H precursor
2685	 40.89	0	3163185..3163634	-	149	209696319	epsG	VSAL_I2921	-	general secretion pathway protein G
2686	 41.05	0	3163698..3164915	-	405	209696320	epsF	VSAL_I2922	-	general secretion pathway protein F
2687	 42.53	0	3164916..3166415	-	499	209696321	epsE	VSAL_I2923	-	general secretion pathway protein E
2688	 41.67	0	3166415..3168442	-	675	209696322	epsD	VSAL_I2924	-	general secretion pathway protein D
2689	 39.36	0	3168486..3169397	-	303	209696323	epsC	VSAL_I2925	-	general secretion pathway protein C
2690	 42.54	0	3169675..3170076	+	133	209696324	hslR	VSAL_I2926	-	heat shock protein 15
2691	 40.98	0	3170167..3171042	+	291	209696325	hslO	VSAL_I2927	-	33 kda chaperonin (heat shock protein 33)
2692	 41.02	0	3171402..3173027	+	541	209696326	pckA	VSAL_I2928	-	phosphoenolpyruvate carboxykinase
2693	 37.62	0	3173232..3175214	+	660	209696327	-	VSAL_I2929	-	hypothetical protein
2694	 37.18	0	3175273..3176493	-	406	209696328	-	VSAL_I2930	-	putative signaling protein
2695	 39.01	0	3176743..3177711	+	322	209696329	-	VSAL_I2931	-	lysophospholipase L2 LypA
2696	 37.09	0	3177835..3178632	+	265	209696330	-	VSAL_I2932	-	hypothetical protein
2697	 36.21	-1	3180276..3180623	-	115	209696331	-	VSAL_I2934	-	transposase
2698	 37.78	0	3180620..3180934	-	104	209696332	-	VSAL_I2935	-	transposase
2699	 44.67	+1	3181638..3182537	-	299	209696333	-	VSAL_I2936	-	putative acyltransferase
2700	 41.61	0	3182875..3183309	-	144	209696334	dtd	VSAL_I2937	-	D-tyrosyl-tRNA(tyr) deacylase
2701	 39.01	0	3183281..3184213	-	310	209696335	rbn	VSAL_I2938	-	tRNA-processing ribonuclease BN
2702	 42.73	+1	3184346..3186175	-	609	209696336	-	VSAL_I2939	-	putative elongation factor Tu, GTP binding domain
2703	 43.40	+1	3186733..3188142	+	469	209696337	glnA	VSAL_I2940	-	glutamine synthetase
2704	 37.78	0	3188568..3188882	+	104	209696338	-	VSAL_I2941	-	transposase
2705	 36.21	-1	3188879..3189226	+	115	209696339	-	VSAL_I2942	-	transposase
2706	 39.72	0	3189298..3190785	+	495	209696340	-	VSAL_I2943	-	transposase
2707	 41.77	0	3190919..3191380	-	153	209696341	asnC	VSAL_I2944	-	HTH-type transcriptional regulator, AsnC-family
2708	 46.10	+2	3191536..3192318	+	260	209696342	-	VSAL_I2945	-	hypothetical protein
2709	 37.79	0	3192315..3192740	-	141	209696343	uspA	VSAL_I2946	-	universal stress protein A
2710	 38.45	0	3192947..3193474	+	175	209696344	ftnA	VSAL_I2947	-	ferritin-1
2711	 37.76	0	3193585..3193923	+	112	209696345	uspB	VSAL_I2948	-	universal stress protein B
2712	 41.21	0	3193951..3195156	+	401	209696346	-	VSAL_I2949	-	putative FAD dependent oxidoreductase
2713	 37.78	0	3197135..3197449	+	104	209696347	-	VSAL_I2951	-	transposase
2714	 35.92	-1	3197446..3197793	+	115	209696348	-	VSAL_I2952	-	transposase
2715	 39.65	0	3197865..3199352	+	495	209696349	-	VSAL_I2953	-	transposase
2716	 39.63	0	3200094..3200681	-	195	209696350	-	VSAL_I2954	-	hypothetical protein
2717	 43.04	+1	3200681..3201700	-	339	209696351	-	VSAL_I2955	-	putative lipoprotein
2718	 45.75	+2	3201855..3202490	+	211	209696352	eda	VSAL_I2956	-	KHG/KDPG aldolase
2719	 36.21	-1	3204396..3204743	-	115	209696353	-	VSAL_I2959	-	transposase
2720	 37.78	0	3204740..3205054	-	104	209696354	-	VSAL_I2960	-	transposase
2721	 42.07	0	3205351..3205785	+	144	209696355	ibpA	VSAL_I2961	-	small heat shock protein
2722	 39.14	0	3205841..3207166	-	441	209696356	-	VSAL_I2962	-	transposase
2723	 42.87	+1	3207539..3208786	-	415	209696357	avtA	VSAL_I2963	-	valine--pyruvate aminotransferase (alanine--valine transaminase)
2724	 44.91	+1	3209005..3209937	+	310	209696358	glyQ	VSAL_I2964	-	glycine-tRNA synthetase, alpha subunit
2725	 44.22	+1	3209940..3212006	+	688	209696359	glyS	VSAL_I2965	-	glycine-tRNA synthetase, beta subunit
39.44	MEAN

3.11	STD DEV
