IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

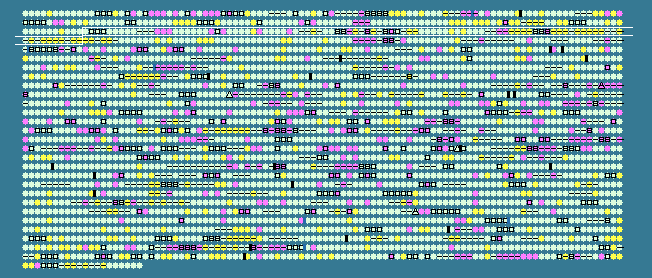

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
211	 40.90	0	279179..280552	+	457	209693845	hemN	VSAL_I0233	-	oxygen-independent coproporphyrinogen III oxidase
212	 37.78	0	280769..281083	+	104	209693846	-	VSAL_I0234	-	transposase
213	 36.21	-1	281080..281427	+	115	209693847	-	VSAL_I0235	-	transposase
214	 39.72	0	281499..282986	+	495	209693848	-	VSAL_I0236	-	transposase
215	 41.76	0	283303..284334	-	343	209693849	-	VSAL_I0238	-	glycosyl tranferase
216	 38.06	0	284334..285116	-	260	209693850	waaE	VSAL_I0239	-	glucosyl transferase
217	 40.20	0	285116..286237	-	373	209693851	-	VSAL_I0240	-	lipopolysaccharide core biosynthesis glycosyl transferase protein
218	 36.74	0	286562..287266	+	234	209693852	wavC	VSAL_I0241	-	lipopolysaccharide core oligosaccharide biosynthesis protein WavC
219	 38.19	0	287299..289152	+	617	209693853	-	VSAL_I0242	-	membrane associated sulfatase
220	 39.93	0	289174..290265	+	363	209693854	rmlB	VSAL_I0243	-	dTDP-D-glucose-4,6-dehydratase
221	 38.42	0	290265..291149	+	294	209693855	rmlA	VSAL_I0244	-	glucose-1-phosphate thymidylyltransferase RmlA
222	 39.43	0	292059..292616	+	185	209693856	rmlC	VSAL_I0246	-	dTDP-4-dehydrorhamnose 3,5-epimerase
223	 35.48	-1	292617..293456	+	279	209693857	wavT	VSAL_I0247	-	putative glycosyl transferase
224	 34.03	-1	294239..295381	+	380	209693858	rffA	VSAL_I0249	-	lipopolysaccharide biosynthesis protein RffA
225	 33.07	-2	295378..296499	+	373	209693859	-	VSAL_I0250	-	hypothetical protein
226	 37.87	0	296617..297807	+	396	209693860	-	VSAL_I0251	-	capsular polysaccharide biosynthesis protein
227	 40.75	0	297831..298976	+	381	209693861	-	VSAL_I0252	-	DegT/DnrJ/EryC1/StrS aminotransferase
228	 39.75	0	299014..300198	+	394	209693862	-	VSAL_I0253	-	UDP-N-acetylglucosamine 2-epimerase
229	 40.13	0	300206..301279	+	357	209693863	-	VSAL_I0254	-	N-acetylneuraminic acid synthase
230	 39.38	0	301272..301916	+	214	209693864	-	VSAL_I0255	-	putative acetyltransferase
231	 37.96	0	301932..302990	+	352	209693865	-	VSAL_I0256	-	nucleotidyl transferase
232	 34.78	-1	303682..304785	+	367	209693866	-	VSAL_I0258	-	putative outer membrane protein
233	 39.60	0	305038..305994	+	318	209693867	-	VSAL_I0259	-	transposase
234	 35.03	-1	306147..307148	-	333	209693868	-	VSAL_I0260	-	hypothetical protein
235	 40.06	0	307195..308457	-	420	209693869	-	VSAL_I0261	-	3-deoxy-D-manno-octulosonic-acid transferase
236	 41.83	0	308451..309521	-	356	209693870	-	VSAL_I0262	-	ADP-heptose-LPS heptosyltransferase II
237	 39.77	0	309518..310744	-	408	209693871	-	VSAL_I0263	-	O-antigen ligase WaaL
238	 42.89	+1	310915..311856	-	313	209693872	hldD	VSAL_I0264	-	ADP-L-glycero-D-manno-heptose-6-epimerase
239	 43.78	+1	312237..313691	+	484	209693873	-	VSAL_I0265	-	putative metallo-beta-lactamase
240	 35.92	-1	313868..314215	+	115	209693874	-	VSAL_I0266	-	hypothetical protein
241	 37.98	0	314332..314976	+	214	209693875	-	VSAL_I0267	-	HTH-type transcriptional regulator, tetR-family
242	 40.89	0	315135..316286	+	383	209693876	-	VSAL_I0268	-	hypothetical protein
243	 42.64	+1	316286..317005	+	239	209693877	-	VSAL_I0269	-	hypothetical protein
244	 36.00	-1	317174..317698	+	174	209693878	-	VSAL_I0270	-	putative lipoprotein
245	 32.91	-2	317676..318617	+	313	209693879	-	VSAL_I0271	-	hypothetical protein
246	 40.22	0	318954..321161	-	735	209693880	-	VSAL_I0272	-	putative outer membrane protein
247	 36.60	0	321164..321928	-	254	209693881	-	VSAL_I0273	-	exported protein
248	 37.24	0	321935..322600	-	221	209693882	-	VSAL_I0274	-	putative lipoprotein
249	 49.22	+2	322685..322942	-	85	209693883	-	VSAL_I0275	-	membrane protein
250	 42.84	+1	323139..324506	+	455	209693884	-	VSAL_I0276	-	hypothetical protein
251	 41.72	0	324575..327184	+	869	209693885	-	VSAL_I0277	-	periplasmic protein involved in polysaccharide export
252	 42.64	+1	327417..328394	+	325	209693886	wzz	VSAL_I0278	-	O-antigen length determinant protein
253	 37.78	0	328784..329098	+	104	209693887	-	VSAL_I0279	-	transposase
254	 36.21	-1	329095..329442	+	115	209693888	-	VSAL_I0280	-	transposase
255	 32.52	-2	331420..331788	-	122	209693889	-	VSAL_I0282	-	hypothetical protein
256	 46.56	+2	332081..332851	-	256	209693890	tpiA	VSAL_I0283	-	triosephosphate isomerase
257	 40.17	0	333134..333484	+	116	209693891	hpcD	VSAL_I0284	-	5-carboxymethyl-2-hydroxymuconate isomerase
258	 35.94	-1	333689..334570	+	293	209693892	-	VSAL_I0286	-	transposase
259	 46.03	+2	335317..336324	-	335	209693893	glpX	VSAL_I0287	-	fructose-1,6-bisphosphatase class II GlpX
260	 38.68	0	336692..336934	+	80	209693894	-	VSAL_I0288	-	hypothetical protein
261	 37.78	0	337220..337534	+	104	209693895	-	VSAL_I0289	-	transposase
262	 35.92	-1	337531..337878	+	115	209693896	-	VSAL_I0290	-	transposase
263	 39.65	0	337950..339437	+	495	209693897	-	VSAL_I0291	-	transposase
264	 41.16	0	339695..340192	-	165	209693898	rraA	VSAL_I0292	-	regulator of ribonuclease activity A
265	 43.78	+1	340286..341194	-	302	209693899	menA	VSAL_I0293	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
266	 42.99	+1	341282..342151	-	289	209693900	cfxP	VSAL_I0294	-	phosphoribulokinase
267	 40.33	0	342253..342495	-	80	209693901	-	VSAL_I0295	-	hypothetical protein
268	 41.90	0	342530..343498	-	322	209693902	-	VSAL_I0296	-	putative hydrolase
269	 37.27	0	343518..344000	-	160	209693903	-	VSAL_I0297	-	hypothetical protein
270	 41.77	0	343984..345915	-	643	209693904	-	VSAL_I0298	-	ABC transporter ATP-binding protein
271	 39.62	0	346064..346636	+	190	209693905	kefG	VSAL_I0299	-	glutathione-regulated potassium-efflux system ancillary protein KefG
272	 42.94	+1	346636..348426	+	596	209693906	kefB	VSAL_I0300	-	glutathione-regulated potassium-efflux system protein KefB (K(+)/H(+) antiporter)
273	 41.54	0	348447..348641	+	64	209693907	-	VSAL_I0301	-	hypothetical protein
274	 45.69	+2	348699..349289	+	196	209693908	slyD	VSAL_I0302	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
275	 36.44	0	349477..349701	-	74	209693909	-	VSAL_I0303	-	hypothetical protein
276	 40.51	0	349698..350714	-	338	209693910	-	VSAL_I0304	-	putative lipoprotein
277	 40.13	0	350844..351638	+	264	209693911	fkpA	VSAL_I0305	-	FKBP-type peptidyl-prolyl cis-trans isomerase FkpA precursor
278	 37.25	0	351827..352540	+	237	209693912	-	VSAL_I0306	-	putative DNA-binding protein
279	 40.46	0	352537..352929	+	130	209693913	dsrE	VSAL_I0307	-	intracellular sulfur oxidation protein DsrE
280	 35.01	-1	352959..353315	+	118	209693914	dsrF	VSAL_I0308	-	intracellular sulfur oxidation protein DsrF
281	 31.25	-2	353325..353612	+	95	209693915	-	VSAL_I0309	-	hypothetical protein
282	 45.60	+1	353778..354152	+	124	209693916	rpsL	VSAL_I0310	-	30S ribosomal protein S12
283	 43.95	+1	354263..354733	+	156	209693917	rpsG	VSAL_I0311	-	30S ribosomal protein S7
284	 43.58	+1	354867..356954	+	695	209693918	fusA	VSAL_I0312	-	elongation factor G
285	 44.05	+1	357073..358257	+	394	209693919	tuf	VSAL_I0313	-	elongation factor Tu
286	 38.14	0	359387..359698	+	103	209693920	-	VSAL_I0315	-	transposase
287	 36.21	-1	359695..360042	+	115	209693921	-	VSAL_I0316	-	transposase
288	 35.94	-1	360130..361011	-	293	209693922	-	VSAL_I0317	-	transposase
289	 44.23	+1	363557..363868	+	103	209693923	rpsJ	VSAL_I0319	-	30S ribosomal subunit protein S10
290	 44.60	+1	363881..364510	+	209	209693924	rplC	VSAL_I0320	-	50S ribosomal protein L3
291	 44.61	+1	364528..365130	+	200	209693925	rplD	VSAL_I0321	-	50S ribosomal protein L4
292	 41.25	0	365127..365429	+	100	209693926	rplW	VSAL_I0322	-	50S ribosomal protein L23
293	 46.42	+2	365445..366269	+	274	209693927	rplB	VSAL_I0323	-	50S ribosomal protein L2
294	 45.88	+2	366289..366567	+	92	209693928	rpsS	VSAL_I0324	-	30S ribosomal protein S19
295	 42.94	+1	366578..366910	+	110	209693929	rplV	VSAL_I0325	-	50S ribosomal subunit protein L22
296	 47.78	+2	366930..367628	+	232	209693930	rpsC	VSAL_I0326	-	30S ribosomal subunit protein S3
297	 47.93	+2	367640..368050	+	136	209693931	rplP	VSAL_I0327	-	50S ribosomal subunit protein L16
298	 41.67	0	368050..368241	+	63	209693932	rpmC	VSAL_I0328	-	50S ribosomal protein L29
299	 40.78	0	368241..368495	+	84	209693933	rpsQ	VSAL_I0329	-	30S ribosomal protein S17
300	 45.97	+2	368658..369029	+	123	209693934	rplN	VSAL_I0330	-	50S ribosomal protein L14
301	 39.62	0	369040..369357	+	105	209693935	rplX	VSAL_I0331	-	50S ribosomal protein L24
302	 45.37	+1	369385..369924	+	179	209693936	rplE	VSAL_I0332	-	50S ribosomal protein L5
303	 42.81	+1	369942..370247	+	101	209693937	rpsN	VSAL_I0333	-	30S ribosomal protein S14
304	 43.51	+1	370277..370669	+	130	209693938	rpsH	VSAL_I0334	-	30S ribosomal protein S8
305	 43.63	+1	370682..371215	+	177	209693939	rplF	VSAL_I0335	-	50E ribosomal protein L6
306	 48.31	+2	371225..371578	+	117	209693940	rplR	VSAL_I0336	-	50S ribosomal protein L18
307	 44.31	+1	371593..372093	+	166	209693941	rpsE	VSAL_I0337	-	30S ribosomal protein S5
308	 42.78	+1	372099..372278	+	59	209693942	rpmD	VSAL_I0338	-	50S ribosomal protein L30
309	 45.06	+1	372285..372719	+	144	209693943	rplO	VSAL_I0339	-	50S ribosomal protein L15
310	 43.09	+1	372740..374071	+	443	209693944	secY	VSAL_I0340	-	preprotein translocase SecY subunit
39.44	MEAN

3.11	STD DEV
