IslandPath Analysis: Aliivibrio salmonicida LFI1238

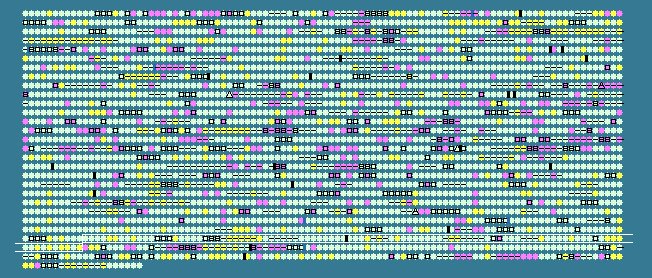

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2511	 42.25	0	2964469..2965803	-	444	209696145	hslU	VSAL_I2739	-	ATP-dependent hsl protease ATP-binding subunit HslU (heat shock protein HslU)
2512	 42.00	0	2965816..2966346	-	176	209696146	hslV	VSAL_I2740	-	ATP-dependent protease HslV (heat shock protein HslV)
2513	 40.53	0	2966525..2967094	-	189	209696147	-	VSAL_I2741	-	putative cell division protein FtsN
2514	 42.86	+1	2967266..2968273	-	335	209696148	cytR	VSAL_I2742	-	HTH-type transcriptional repressor CytR
2515	 43.55	+1	2968477..2970678	-	733	209696149	priA	VSAL_I2743	-	primosomal protein N'
2516	 43.38	+1	2970934..2971152	+	72	209696150	rpmE	VSAL_I2744	-	50S ribosomal protein L31
2517	 42.39	0	2971385..2972632	+	415	209696151	maeB	VSAL_I2745	-	NADP-dependent malic enzyme
2518	 40.50	0	2972973..2973293	-	106	209696152	metJ	VSAL_I2746	-	Met repressor (Met regulon regulatory protein MetJ)
2519	 43.87	+1	2973481..2974647	+	388	209696153	metB	VSAL_I2747	-	cystathionine gamma-synthase (O-succinylhomoserin (thiol)-lyase)
2520	 42.09	0	2974647..2977067	+	806	209696154	metL	VSAL_I2748	-	bifunctional aspartokinase/homoserine dehydrogenase II
2521	 38.87	0	2977409..2978383	+	324	209696155	leuO	VSAL_I2749	-	probable HTH-type transcriptional regulator LeuO
2522	 39.54	0	2978631..2980466	+	611	209696156	-	VSAL_I2750	-	putative AMP-binding enzyme
2523	 37.78	0	2980853..2981167	+	104	209696157	-	VSAL_I2751	-	transposase
2524	 36.21	-1	2981164..2981511	+	115	209696158	-	VSAL_I2752	-	transposase
2525	 39.65	0	2981583..2983070	+	495	209696159	-	VSAL_I2753	-	transposase
2526	 43.25	+1	2983188..2985818	-	876	209696160	ppc	VSAL_I2754	-	phosphoenolpyruvate carboxylase
2527	 40.46	0	2985996..2987132	-	378	209696161	argE	VSAL_I2755	-	acetylornithine deacetylase
2528	 40.60	0	2987339..2988343	+	334	209696162	argC	VSAL_I2756	-	N-acetyl-gamma-glutamyl-phosphate reductase
2529	 42.55	+1	2988347..2989138	+	263	209696163	argB	VSAL_I2757	-	acetylglutamate kinase
2530	 42.24	0	2989206..2990417	+	403	209696164	argG	VSAL_I2758	-	argininosuccinate synthase
2531	 39.78	0	2990544..2992031	-	495	209696165	-	VSAL_I2759	-	transposase
2532	 36.21	-1	2992103..2992450	-	115	209696166	-	VSAL_I2760	-	transposase
2533	 37.78	0	2992447..2992761	-	104	209696167	-	VSAL_I2761	-	transposase
2534	 40.13	0	2992910..2993806	-	298	209696168	metF	VSAL_I2762	-	5,10-methylenetetrahydrofolate reductase
2535	 44.22	+1	2994101..2994550	-	149	209696169	rplI	VSAL_I2763	-	50S ribosomal subunit protein L9
2536	 44.74	+1	2994591..2994818	-	75	209696170	rpsR	VSAL_I2764	-	30S ribosomal subunit protein S18
2537	 44.22	+1	2994834..2995136	-	100	209696171	priB	VSAL_I2765	-	primosomal replication protein N
2538	 45.93	+2	2995145..2995525	-	126	209696172	rpsF	VSAL_I2766	-	30S ribosomal protein S6
2539	 43.28	+1	2995758..2996501	-	247	209696173	rlmB	VSAL_I2767	-	23S rRNA (guanosine-2'-O-)-methyltransferase RlmB
2540	 43.13	+1	2996572..2999073	-	833	209696174	rnr	VSAL_I2768	-	ribonuclease R
2541	 37.09	0	2999153..2999578	-	141	209696175	-	VSAL_I2769	-	putative transcriptional regulator
2542	 39.24	0	2999713..3000897	+	394	209696176	hmp	VSAL_I2770	-	flavohemoprotein
2543	 42.81	+1	3000998..3001630	-	210	209696177	motX	VSAL_I2771	-	sodium-type polar flagellar protein MotX
2544	 42.37	0	3001857..3003173	-	438	209696178	purA	VSAL_I2772	-	adenylosuccinate synthetase
2545	 41.94	0	3003352..3003537	-	61	209696179	-	VSAL_I2773	-	hypothetical protein
2546	 39.55	0	3003625..3004509	-	294	209696180	hflC	VSAL_I2774	-	HflC protein
2547	 40.44	0	3004512..3005735	-	407	209696181	hflK	VSAL_I2775	-	HflK protein
2548	 41.29	0	3005754..3007073	-	439	209696182	hflX	VSAL_I2776	-	HflX protein, putative GTP-binding protein
2549	 39.70	0	3007118..3007384	-	88	209696183	hfq	VSAL_I2777	-	RNA-binding protein Hfq
2550	 41.61	0	3007479..3008420	-	313	209696184	miaA	VSAL_I2778	-	tRNA delta-2-isopentenylpyrophosphate (IPP) transferase
2551	 39.56	0	3008413..3010371	-	652	209696185	mutL	VSAL_I2779	-	DNA mismatch repair protein MutL
2552	 38.51	0	3010386..3012125	-	579	209696186	amiB	VSAL_I2780	-	N-acetylmuramoyl-L-alanine amidase
2553	 39.14	0	3012119..3012583	-	154	209696187	-	VSAL_I2781	-	hypothetical protein
2554	 40.75	0	3012804..3013922	+	372	209696188	-	VSAL_I2782	-	putative ferredoxin, 4Fe-4S binding protein
2555	 38.28	0	3015920..3016465	-	181	209696189	orn	VSAL_I2783	-	oligoribonuclease
2556	 39.58	0	3016564..3017619	+	351	209696190	-	VSAL_I2784	-	probable GTPase
2557	 40.62	0	3017678..3018541	+	287	209696191	psd	VSAL_I2785	-	phosphatidylserine decarboxylase proenzyme
2558	 45.07	+1	3018652..3019614	+	320	209696192	-	VSAL_I2786	-	integral membrane protein
2559	 42.25	0	3019655..3020641	-	328	209696193	-	VSAL_I2787	-	putative lysyl-tRNA synthetase
2560	 44.07	+1	3020995..3022848	+	617	209696194	-	VSAL_I2788	-	fumarate reductase complex, flavoprotein subunit
2561	 42.47	0	3022848..3023591	+	247	209696195	frdB	VSAL_I2789	-	fumarate reductase complex, iron-sulfur protein
2562	 41.67	0	3023594..3023977	+	127	209696196	frdC	VSAL_I2790	-	fumarate reductase complex, membrane anchor subunit C
2563	 43.25	+1	3023989..3024351	+	120	209696197	frdD	VSAL_I2791	-	fumarate reductase complex, membrane anchor subunit D
2564	 40.92	0	3024543..3025109	-	188	209696198	efp	VSAL_I2792	-	elongation factor P (EF-P)
2565	 40.18	0	3025142..3026164	+	340	209696199	-	VSAL_I2793	-	hypothetical protein
2566	 41.85	0	3026252..3027214	-	320	209696200	pfkA	VSAL_I2794	-	6-phosphofructokinase isozyme 1
2567	 41.94	0	3027433..3028338	-	301	209696201	fieF	VSAL_I2795	-	ferrous-iron efflux pump FieF
2568	 38.46	0	3028498..3029004	-	168	209696202	-	VSAL_I2796	-	putative periplasmic protein CpxP
2569	 39.47	0	3029199..3029882	+	227	209696203	cpxR	VSAL_I2797	-	transcriptional regulator, CpxR
2570	 41.68	0	3029888..3031276	+	462	209696204	cpxA	VSAL_I2798	-	sensor protein CpxA
2571	 42.29	0	3031372..3031851	+	159	209696205	yibK	VSAL_I2799	-	hypothetical tRNA/rRNA methyltransferase
2572	 45.99	+2	3031953..3032774	-	273	209696206	cysE	VSAL_I2800	-	serine acetyltransferase
2573	 43.51	+1	3032793..3033824	-	343	209696207	gpsA	VSAL_I2801	-	glycerol-3-phosphate dehydrogenase [NAD(P)+]
2574	 42.03	0	3033990..3034472	-	160	209696208	secB	VSAL_I2802	-	protein-export protein SecB
2575	 38.81	0	3034600..3035037	-	145	209696209	-	VSAL_I2803	-	hypothetical protein
2576	 40.05	0	3035259..3036404	+	381	209696210	-	VSAL_I2804	-	putative exported peptidase
2577	 42.06	0	3036485..3036988	-	167	209696211	fxsA	VSAL_I2805	-	protein FxsA
2578	 40.92	0	3037403..3038851	+	482	209696212	aspA	VSAL_I2806	-	aspartate ammonia-lyase(aspartase)
2579	 37.78	0	3039055..3039369	+	104	209696213	-	VSAL_I2807	-	transposase
2580	 35.92	-1	3039366..3039713	+	115	209696214	-	VSAL_I2808	-	transposase
2581	 41.81	0	3042841..3044715	+	624	209696215	dsbD	VSAL_I2811	-	thiol:disulfide interchange protein DsbD precursor
2582	 39.08	0	3044823..3045623	+	266	209696216	nagB	VSAL_I2812	-	glucosamine-6-phosphate deaminase
2583	 41.37	0	3046322..3048274	+	650	209696217	mtlA	VSAL_I2813	-	PTS system, mannitol-specific EIICBA component
2584	 39.77	0	3048353..3049501	+	382	209696218	mtlD	VSAL_I2814	-	mannitol-1-phosphate 5-dehydrogenase
2585	 36.91	0	3049551..3050081	+	176	209696219	mtlR	VSAL_I2815	-	mannitol operon repressor (mannitol repressor protein)
2586	 39.89	0	3050102..3051352	-	416	209696220	-	VSAL_I2816	-	MFS transporter
2587	 42.97	+1	3051377..3051874	-	165	209696221	-	VSAL_I2817	-	hypothetical protein
2588	 40.72	0	3051892..3052893	-	333	209696222	gap	VSAL_I2818	-	glyceraldehyde 3-phosphate dehydrogenase
2589	 37.88	0	3052910..3053239	-	109	209696223	arsR	VSAL_I2819	-	transcriptional regulator, ArsR family
2590	 37.34	0	3053485..3054483	+	332	209696224	-	VSAL_I2820	-	hypothetical protein
2591	 41.30	0	3054683..3055912	+	409	209696225	ndh	VSAL_I2821	-	NADH dehydrogenase
2592	 44.46	+1	3055981..3057813	-	610	209696226	glmS	VSAL_I2822	-	glucosamine--fructose-6-phosphate aminotransferase
2593	 39.48	0	3057933..3058697	-	254	209696227	-	VSAL_I2823	-	putative glucitol operon repressor
2594	 42.38	0	3058924..3059553	+	209	209696228	-	VSAL_I2824	-	transcriptional regulator, LuxR response regulator receiver
2595	 39.74	0	3059641..3060264	+	207	209696229	-	VSAL_I2825	-	integral membrane protein, MarC family
2596	 39.14	0	3060371..3061696	-	441	209696230	-	VSAL_I2826	-	transposase
2597	 39.47	0	3061810..3062151	+	113	209696231	-	VSAL_I2827	-	hypothetical protein
2598	 44.66	+1	3062162..3063865	+	567	209696232	-	VSAL_I2828	-	putative sodium/solute symporter
2599	 43.72	+1	3063960..3067406	-	1148	209696233	-	VSAL_I2829	-	membrane associated response regulator, histidine kinase
2600	 43.49	+1	3067539..3068720	-	393	209696234	-	VSAL_I2830	-	MFS transporter
2601	 38.46	0	3068890..3070722	+	610	209696235	-	VSAL_I2831	-	putative nucleotidyltransferases
2602	 40.92	0	3070724..3071356	+	210	209696236	-	VSAL_I2832	-	putative exonuclease
2603	 45.49	+1	3071562..3073511	+	649	209696237	acs	VSAL_I2833	-	acetyl-coenzyme A synthetase
2604	 40.67	0	3073970..3074419	+	149	209696238	aroQ	VSAL_I2834	-	3-dehydroquinate dehydratase
2605	 45.83	+2	3074450..3074905	+	151	209696239	accB	VSAL_I2835	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2606	 42.56	+1	3074918..3076261	+	447	209696240	accC	VSAL_I2836	-	biotin carboxylase (acetyl-CoA carboxylase subunit A)
2607	 44.07	+1	3076378..3077262	+	294	209696241	prmA	VSAL_I2837	-	ribosomal protein L11 methyltransferase
2608	 44.99	+1	3077458..3078426	+	322	209696242	dusB	VSAL_I2838	-	tRNA-dihydrouridine synthase B
2609	 39.39	0	3078449..3078745	+	98	209696243	fis	VSAL_I2839	-	DNA-binding protein Fis
2610	 44.06	+1	3078885..3079229	-	114	209696244	-	VSAL_I2840	-	hypothetical protein
39.44	MEAN

3.11	STD DEV
