IslandPath Analysis: Aliivibrio salmonicida LFI1238

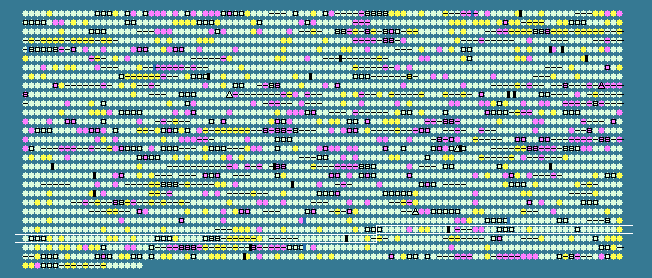

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2460	 38.14	0	2908590..2908901	-	103	209696094	-	VSAL_I2686	-	transposase
2461	 38.89	0	2909078..2909779	-	233	209696095	-	VSAL_I2687	-	hypothetical protein
2462	 38.59	0	2909780..2911339	-	519	209696096	exeA	VSAL_I2688	-	general secretion pathway protein A
2463	 40.60	0	2911481..2912704	+	407	209696097	cca	VSAL_I2689	-	tRNA nucleotidyltransferase (multifunctional CCA protein)
2464	 37.56	0	2912770..2913573	-	267	209696098	-	VSAL_I2690	-	putative undecaprenyl-diphosphatase (bacitracin resistance protein)
2465	 34.97	-1	2913582..2914070	-	162	209696099	-	VSAL_I2691	-	putative 2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2466	 40.11	0	2914067..2914420	-	117	209696100	folB	VSAL_I2692	-	dihydroneopterin aldolase
2467	 43.47	+1	2914566..2915147	+	193	209696101	-	VSAL_I2693	-	membrane protein
2468	 43.17	+1	2915221..2916237	-	338	209696102	gcp	VSAL_I2694	-	O-sialoglycoprotein endopeptidase (glycoprotease)
2469	 41.67	0	2916710..2917153	+	147	209696103	-	VSAL_I2695	-	hypothetical protein
2470	 41.17	0	2917267..2919027	+	586	209696104	dnaG	VSAL_I2696	-	DNA primase
2471	 40.43	0	2919125..2920957	+	610	209696105	rpoD	VSAL_I2697	-	RNA polymerase sigma factor RpoD (sigma-70)
2472	 39.94	0	2922389..2923933	+	514	209696106	-	VSAL_I2699	-	AMP-binding enzyme, putative long chain fatty acid Co-A ligase, acetyl-CoA synthetase
2473	 35.32	-1	2924023..2924424	+	133	209696107	-	VSAL_I2700	-	membrane protein
2474	 41.90	0	2924806..2926218	+	470	209696108	pykF	VSAL_I2701	-	pyruvate kinase I
2475	 37.42	0	2926447..2927106	+	219	209696109	-	VSAL_I2702	-	putative transcriptional regulator, GntR family
2476	 34.57	-1	2927161..2927322	-	53	209696110	-	VSAL_I2703	-	hypothetical protein
2477	 34.13	-1	2927417..2929306	-	629	209696111	-	VSAL_I2704	-	membrane associated GGDEF protein
2478	 39.60	0	2929412..2929906	-	164	209696112	ilvH	VSAL_I2705	-	acetolactate synthase isozyme III small subunit
2479	 40.42	0	2929906..2931627	-	573	209696113	ilvI	VSAL_I2706	-	acetolactate synthase isozyme III large subunit
2480	 39.72	0	2931788..2933275	-	495	209696114	-	VSAL_I2707	-	transposase
2481	 36.21	-1	2933347..2933694	-	115	209696115	-	VSAL_I2708	-	transposase
2482	 37.78	0	2933691..2934005	-	104	209696116	-	VSAL_I2709	-	transposase
2483	 41.60	0	2934250..2936124	+	624	209696117	argHA	VSAL_I2710	-	bifunctional protein ArgHA (argininosuccinate lyase)
2484	 35.98	-1	2936277..2936540	-	87	209696118	-	VSAL_I2711	-	hypothetical protein
2485	 43.56	+1	2936668..2938134	-	488	209696119	-	VSAL_I2712	-	dihydrolipoyl dehydrogenase (dihydrolipoamide dehydrogenase)
2486	 41.29	0	2938224..2938952	-	242	209696120	-	VSAL_I2713	-	hybrid peroxiredoxin (thioredoxin reductase)
2487	 42.02	0	2939132..2940040	+	302	209696121	oxyR	VSAL_I2714	-	transcriptional regulator OxyR, LysR family (hydrogen peroxide-inducible genes activator)
2488	 41.66	0	2940107..2942605	-	832	209696122	mrcA	VSAL_I2715	-	penicillin-binding protein 1A
2489	 38.54	0	2942744..2943742	+	332	209696123	pilM	VSAL_I2716	-	fimbrial assembly protein PilM
2490	 38.95	0	2943727..2944296	+	189	209696124	pilN	VSAL_I2717	-	fimbrial assembly protein PilN
2491	 37.11	0	2944289..2944870	+	193	209696125	pilO	VSAL_I2718	-	fimbrial assembly protein PilO
2492	 37.96	0	2944863..2945381	+	172	209696126	pilP	VSAL_I2719	-	fimbrial assembly protein PilP
2493	 36.05	-1	2946774..2947655	-	293	209696127	-	VSAL_I2721	-	transposase
2494	 42.77	+1	2948361..2948879	+	172	209696128	aroK	VSAL_I2722	-	shikimate kinase 1
2495	 41.60	0	2948918..2950006	+	362	209696129	aroB	VSAL_I2723	-	3-dehydroquinate synthase
2496	 37.22	0	2950010..2951527	+	505	209696130	-	VSAL_I2724	-	putative cell division protein
2497	 38.51	0	2951599..2952429	+	276	209696131	dam	VSAL_I2725	-	DNA adenine methylase
2498	 41.45	0	2952552..2953229	+	225	209696132	rpe	VSAL_I2726	-	ribulose-phosphate 3-epimerase
2499	 41.52	0	2953235..2953918	+	227	209696133	gph	VSAL_I2727	-	phosphoglycolate phosphatase
2500	 43.36	+1	2954038..2955054	+	338	209696134	trpS	VSAL_I2728	-	tryptophanyl-tRNA synthetase
2501	 36.79	0	2955151..2955729	+	192	209696135	trpG	VSAL_I2729	-	anthranilate synthase component II (glutamine amido transferase)
2502	 37.78	0	2955955..2956269	+	104	209696136	-	VSAL_I2730	-	transposase
2503	 36.49	0	2956266..2956613	+	115	209696137	-	VSAL_I2731	-	transposase
2504	 39.78	0	2956685..2958172	+	495	209696138	-	VSAL_I2732	-	transposase
2505	 44.12	+1	2958360..2959574	+	404	209696139	aruC	VSAL_I2733	-	acetylornithine aminotransferase/succinylornithine transaminase
2506	 41.08	0	2959736..2960755	+	339	209696140	astA	VSAL_I2734	-	arginine N-succinyltransferase
2507	 46.23	+2	2960768..2962225	+	485	209696141	astD	VSAL_I2735	-	succinylglutamic semialdehyde dehydrogenase
2508	 38.74	0	2962238..2963032	+	264	209696142	-	VSAL_I2736	-	hypothetical protein
2509	 40.44	0	2963117..2963749	-	210	209696143	crp	VSAL_I2737	-	cyclic AMP receptor protein
2510	 42.29	0	2963995..2964396	+	133	209696144	-	VSAL_I2738	-	OsmC-like protein
2511	 42.25	0	2964469..2965803	-	444	209696145	hslU	VSAL_I2739	-	ATP-dependent hsl protease ATP-binding subunit HslU (heat shock protein HslU)
2512	 42.00	0	2965816..2966346	-	176	209696146	hslV	VSAL_I2740	-	ATP-dependent protease HslV (heat shock protein HslV)
2513	 40.53	0	2966525..2967094	-	189	209696147	-	VSAL_I2741	-	putative cell division protein FtsN
2514	 42.86	+1	2967266..2968273	-	335	209696148	cytR	VSAL_I2742	-	HTH-type transcriptional repressor CytR
2515	 43.55	+1	2968477..2970678	-	733	209696149	priA	VSAL_I2743	-	primosomal protein N'
2516	 43.38	+1	2970934..2971152	+	72	209696150	rpmE	VSAL_I2744	-	50S ribosomal protein L31
2517	 42.39	0	2971385..2972632	+	415	209696151	maeB	VSAL_I2745	-	NADP-dependent malic enzyme
2518	 40.50	0	2972973..2973293	-	106	209696152	metJ	VSAL_I2746	-	Met repressor (Met regulon regulatory protein MetJ)
2519	 43.87	+1	2973481..2974647	+	388	209696153	metB	VSAL_I2747	-	cystathionine gamma-synthase (O-succinylhomoserin (thiol)-lyase)
2520	 42.09	0	2974647..2977067	+	806	209696154	metL	VSAL_I2748	-	bifunctional aspartokinase/homoserine dehydrogenase II
2521	 38.87	0	2977409..2978383	+	324	209696155	leuO	VSAL_I2749	-	probable HTH-type transcriptional regulator LeuO
2522	 39.54	0	2978631..2980466	+	611	209696156	-	VSAL_I2750	-	putative AMP-binding enzyme
2523	 37.78	0	2980853..2981167	+	104	209696157	-	VSAL_I2751	-	transposase
2524	 36.21	-1	2981164..2981511	+	115	209696158	-	VSAL_I2752	-	transposase
2525	 39.65	0	2981583..2983070	+	495	209696159	-	VSAL_I2753	-	transposase
2526	 43.25	+1	2983188..2985818	-	876	209696160	ppc	VSAL_I2754	-	phosphoenolpyruvate carboxylase
2527	 40.46	0	2985996..2987132	-	378	209696161	argE	VSAL_I2755	-	acetylornithine deacetylase
2528	 40.60	0	2987339..2988343	+	334	209696162	argC	VSAL_I2756	-	N-acetyl-gamma-glutamyl-phosphate reductase
2529	 42.55	+1	2988347..2989138	+	263	209696163	argB	VSAL_I2757	-	acetylglutamate kinase
2530	 42.24	0	2989206..2990417	+	403	209696164	argG	VSAL_I2758	-	argininosuccinate synthase
2531	 39.78	0	2990544..2992031	-	495	209696165	-	VSAL_I2759	-	transposase
2532	 36.21	-1	2992103..2992450	-	115	209696166	-	VSAL_I2760	-	transposase
2533	 37.78	0	2992447..2992761	-	104	209696167	-	VSAL_I2761	-	transposase
2534	 40.13	0	2992910..2993806	-	298	209696168	metF	VSAL_I2762	-	5,10-methylenetetrahydrofolate reductase
2535	 44.22	+1	2994101..2994550	-	149	209696169	rplI	VSAL_I2763	-	50S ribosomal subunit protein L9
2536	 44.74	+1	2994591..2994818	-	75	209696170	rpsR	VSAL_I2764	-	30S ribosomal subunit protein S18
2537	 44.22	+1	2994834..2995136	-	100	209696171	priB	VSAL_I2765	-	primosomal replication protein N
2538	 45.93	+2	2995145..2995525	-	126	209696172	rpsF	VSAL_I2766	-	30S ribosomal protein S6
2539	 43.28	+1	2995758..2996501	-	247	209696173	rlmB	VSAL_I2767	-	23S rRNA (guanosine-2'-O-)-methyltransferase RlmB
2540	 43.13	+1	2996572..2999073	-	833	209696174	rnr	VSAL_I2768	-	ribonuclease R
2541	 37.09	0	2999153..2999578	-	141	209696175	-	VSAL_I2769	-	putative transcriptional regulator
2542	 39.24	0	2999713..3000897	+	394	209696176	hmp	VSAL_I2770	-	flavohemoprotein
2543	 42.81	+1	3000998..3001630	-	210	209696177	motX	VSAL_I2771	-	sodium-type polar flagellar protein MotX
2544	 42.37	0	3001857..3003173	-	438	209696178	purA	VSAL_I2772	-	adenylosuccinate synthetase
2545	 41.94	0	3003352..3003537	-	61	209696179	-	VSAL_I2773	-	hypothetical protein
2546	 39.55	0	3003625..3004509	-	294	209696180	hflC	VSAL_I2774	-	HflC protein
2547	 40.44	0	3004512..3005735	-	407	209696181	hflK	VSAL_I2775	-	HflK protein
2548	 41.29	0	3005754..3007073	-	439	209696182	hflX	VSAL_I2776	-	HflX protein, putative GTP-binding protein
2549	 39.70	0	3007118..3007384	-	88	209696183	hfq	VSAL_I2777	-	RNA-binding protein Hfq
2550	 41.61	0	3007479..3008420	-	313	209696184	miaA	VSAL_I2778	-	tRNA delta-2-isopentenylpyrophosphate (IPP) transferase
2551	 39.56	0	3008413..3010371	-	652	209696185	mutL	VSAL_I2779	-	DNA mismatch repair protein MutL
2552	 38.51	0	3010386..3012125	-	579	209696186	amiB	VSAL_I2780	-	N-acetylmuramoyl-L-alanine amidase
2553	 39.14	0	3012119..3012583	-	154	209696187	-	VSAL_I2781	-	hypothetical protein
2554	 40.75	0	3012804..3013922	+	372	209696188	-	VSAL_I2782	-	putative ferredoxin, 4Fe-4S binding protein
2555	 38.28	0	3015920..3016465	-	181	209696189	orn	VSAL_I2783	-	oligoribonuclease
2556	 39.58	0	3016564..3017619	+	351	209696190	-	VSAL_I2784	-	probable GTPase
2557	 40.62	0	3017678..3018541	+	287	209696191	psd	VSAL_I2785	-	phosphatidylserine decarboxylase proenzyme
2558	 45.07	+1	3018652..3019614	+	320	209696192	-	VSAL_I2786	-	integral membrane protein
2559	 42.25	0	3019655..3020641	-	328	209696193	-	VSAL_I2787	-	putative lysyl-tRNA synthetase
39.44	MEAN

3.11	STD DEV
