IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

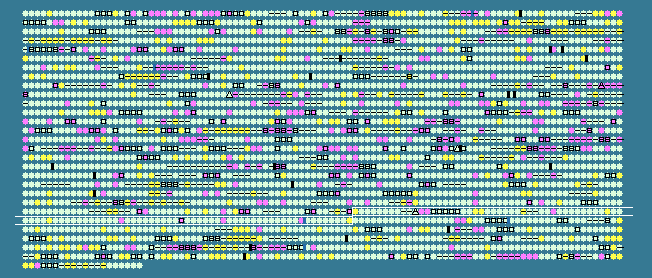

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2256	 43.74	+1	2643549..2644691	-	380	209695890	dnaJ	VSAL_I2470	-	chaperone protein DnaJ
2257	 42.48	0	2645010..2646911	-	633	209695891	dnaK	VSAL_I2471	-	chaperone protein DnaK (heat shock protein 70)
2258	 39.66	0	2647163..2648110	-	315	209695892	-	VSAL_I2472	-	hypothetical protein
2259	 40.17	0	2648330..2648914	-	194	209695893	grpE	VSAL_I2473	-	protein GrpE (heat shock protein)
2260	 39.60	0	2649080..2649973	+	297	209695894	-	VSAL_I2474	-	probable inorganic polyphosphate/ATP-NAD kinase
2261	 38.99	0	2650071..2651768	+	565	209695895	recN	VSAL_I2475	-	DNA repair protein RecN
2262	 39.78	0	2652019..2652375	+	118	209695896	-	VSAL_I2476	-	lipoprotein, small protein A
2263	 37.41	0	2652463..2652756	-	97	209695897	-	VSAL_I2477	-	hypothetical protein
2264	 37.67	0	2652761..2653198	-	145	209695898	-	VSAL_I2478	-	hypothetical protein
2265	 40.74	0	2653300..2653785	+	161	209695899	smpB	VSAL_I2479	-	SsrA (tmRNA)-binding protein (small protein B)
2266	 37.92	0	2654415..2655656	+	413	209695900	int	VSAL_I2480	-	integrase, phage family
2267	 34.40	-1	2655827..2656576	-	249	209695901	-	VSAL_I2481	-	hypothetical protein, putative phage gene
2268	 31.08	-2	2656578..2659508	-	976	209695902	-	VSAL_I2482	-	putative ABC transporter, ATP-binding domain
2269	 37.78	0	2660814..2661128	+	104	209695903	-	VSAL_I2484	-	transposase
2270	 36.21	-1	2661125..2661472	+	115	209695904	-	VSAL_I2485	-	transposase
2271	 39.65	0	2661544..2663031	+	495	209695905	-	VSAL_I2486	-	transposase
2272	 36.21	-1	2665710..2666057	-	115	209695906	-	VSAL_I2488	-	transposase
2273	 38.14	0	2666054..2666365	-	103	209695907	-	VSAL_I2489	-	transposase
2274	 41.03	0	2666559..2667428	-	289	209695908	pdxY	VSAL_I2490	-	pyridoxamine kinase
2275	 39.74	0	2667505..2669643	-	712	209695909	cadA	VSAL_I2491	-	lysine decarboxylase
2276	 43.60	+1	2669762..2671096	-	444	209695910	cadB	VSAL_I2492	-	probable cadaverine/lysine antiporter
2277	 44.08	+1	2671757..2673226	+	489	209695911	-	VSAL_I2493	-	putative sodium/alanine symporter
2278	 38.55	0	2673304..2674932	-	542	209695912	-	VSAL_I2494	-	putative transcriptional regulator
2279	 41.25	0	2675480..2675896	+	138	209695913	-	VSAL_I2495	-	hypothetical protein
2280	 38.36	0	2675962..2676399	-	145	209695914	-	VSAL_I2496	-	integral membrane protein
2281	 42.62	+1	2676409..2676828	-	139	209695915	-	VSAL_I2497	-	integral membrane protein
2282	 39.52	0	2677139..2678059	+	306	209695916	-	VSAL_I2498	-	integral membrane protein
2283	 39.51	0	2678218..2679156	+	312	209695917	metA	VSAL_I2499	-	homoserine O-succinyltransferase
2284	 42.93	+1	2679390..2680733	+	447	209695918	dcuB	VSAL_I2500	-	anaerobic C4-dicarboxylate transporter DcuB
2285	 40.91	0	2680823..2682037	-	404	209695919	-	VSAL_I2501	-	nucleoside transport protein (nucleoside permease NupC)
2286	 38.32	0	2682466..2683026	+	186	209695920	-	VSAL_I2502	-	membrane protein
2287	 40.86	0	2683155..2684855	+	566	209695921	-	VSAL_I2503	-	putative transport system, permease protein
2288	 39.23	0	2684869..2685462	+	197	209695922	-	VSAL_I2504	-	putative ABC transporter, ATP-binding protein
2289	 35.89	-1	2685455..2686081	+	208	209695923	-	VSAL_I2505	-	putative phosphatidyltransferase
2290	 39.75	0	2686176..2687141	-	321	209695924	rpoS	VSAL_I2506	-	RNA polymerase sigma subunit RpoS (sigma-38)
2291	 41.39	0	2687197..2688189	-	330	209695925	-	VSAL_I2507	-	lipoprotein
2292	 42.58	+1	2688196..2688822	-	208	209695926	pcm	VSAL_I2508	-	protein-L-isoaspartate O-methyltransferase
2293	 40.52	0	2688822..2689586	-	254	209695927	surE	VSAL_I2509	-	multifunctional protein SurE (stationary-phase survival protein SurE)
2294	 39.92	0	2689617..2690663	-	348	209695928	truD	VSAL_I2510	-	tRNA pseudouridine synthase D
2295	 42.92	+1	2690678..2691157	-	159	209695929	ispF	VSAL_I2511	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2296	 41.53	0	2691154..2691873	-	239	209695930	ispD	VSAL_I2512	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2297	 38.60	0	2691877..2692161	-	94	209695931	ftsB	VSAL_I2513	-	cell division protein FtsB homolog
2298	 44.42	+1	2692343..2693641	-	432	209695932	eno	VSAL_I2514	-	enolase
2299	 42.54	0	2693718..2695358	-	546	209695933	pyrG	VSAL_I2515	-	CTP synthase
2300	 36.48	0	2695489..2696313	-	274	209695934	-	VSAL_I2516	-	hypothetical protein
2301	 39.64	0	2696413..2697570	-	385	209695935	flaF	VSAL_I2517	-	flagellin subunit F
2302	 41.78	0	2697759..2699996	-	745	209695936	relA	VSAL_I2518	-	GTP pyrophosphokinase
2303	 38.42	0	2700070..2701386	-	438	209695937	rumA	VSAL_I2519	-	23S rRNA (uracil-5-)-methyltransferase RumA
2304	 38.92	0	2701550..2704339	+	929	209695938	varS	VSAL_I2520	-	response regulator, histidine kinase VarS
2305	 43.57	+1	2704391..2704771	-	126	209695939	acpS	VSAL_I2521	-	holo-[acyl-carrier protein] synthase
2306	 42.49	0	2704771..2705502	-	243	209695940	pdxJ	VSAL_I2522	-	pyridoxal phosphate biosynthetic protein PdxJ
2307	 41.70	0	2705499..2706215	-	238	209695941	recO	VSAL_I2523	-	DNA repair protein RecO (recombination protein O)
2308	 39.34	0	2706343..2707308	-	321	209695942	era	VSAL_I2524	-	GTP-binding protein era
2309	 41.52	0	2707308..2707979	-	223	209695943	rnc	VSAL_I2525	-	ribonuclease III (RNase III)
2310	 41.42	0	2707990..2708892	-	300	209695944	lepB	VSAL_I2526	-	signal peptidase I (leader peptidase I)
2311	 40.41	0	2709013..2710806	-	597	209695945	lepA	VSAL_I2527	-	GTP-binding protein LepA
2312	 37.65	0	2710896..2711381	-	161	209695946	-	VSAL_I2528	-	sigma-E factor regulatory protein RseC
2313	 39.88	0	2711386..2712363	-	325	209695947	-	VSAL_I2529	-	sigma-E factor regulatory protein RseB precursor
2314	 40.29	0	2712364..2712981	-	205	209695948	-	VSAL_I2530	-	sigma-E factor negative regulatory protein
2315	 41.28	0	2713011..2713589	-	192	209695949	rpoE	VSAL_I2531	-	RNA polymerase sigma-E factor
2316	 42.30	0	2713911..2715527	+	538	209695950	nadB	VSAL_I2532	-	L-aspartate oxidase (quinolinate synthetase B)
2317	 34.41	-1	2715627..2715998	-	123	209695951	-	VSAL_I2533	-	hypothetical protein
2318	 39.85	0	2715994..2716254	-	86	209695952	-	VSAL_I2534	-	hypothetical protein
2319	 39.29	0	2716433..2717389	+	318	209695953	-	VSAL_I2535	-	hypothetical protein
2320	 38.24	0	2717851..2718054	+	67	209695954	-	VSAL_I2536	-	hypothetical protein
2321	 40.05	0	2718141..2719346	-	401	209695955	-	VSAL_I2537	-	putative monooxygenase
2322	 40.25	0	2719349..2720548	-	399	209695956	ubiH	VSAL_I2538	-	2-octaprenyl-6-methoxyphenol hydroxylase
2323	 40.00	0	2720548..2721117	-	189	209695957	-	VSAL_I2539	-	hypothetical protein
2324	 38.60	0	2721355..2721696	+	113	209695958	-	VSAL_I2540	-	putative cell division protein ZapA
2325	 39.86	0	2721911..2722492	+	193	209695959	-	VSAL_I2541	-	putative 5-formyltetrahydrofolate cyclo-ligase
2326	 41.25	0	2722637..2723293	+	218	209695960	rpiA	VSAL_I2542	-	ribose-5-phosphate isomerase A (phosphoriboisomerase A)
2327	 35.94	-1	2723481..2724362	+	293	209695961	-	VSAL_I2543	-	transposase
2328	 40.89	0	2724503..2725732	+	409	209695962	serA	VSAL_I2544	-	D-3-phosphoglycerate dehydrogenase
2329	 37.07	0	2725835..2726530	-	231	209695963	-	VSAL_I2545	-	hypothetical protein
2330	 38.91	0	2726695..2727555	-	286	209695964	mscS	VSAL_I2546	-	small-conductance mechanosensitive channel
2331	 36.03	-1	2727812..2728591	-	259	209695965	-	VSAL_I2547	-	hypothetical protein
2332	 41.07	0	2728705..2730138	-	477	209695966	-	VSAL_I2548	-	putative amino-acid transporter
2333	 38.62	0	2730866..2731054	+	62	209695967	-	VSAL_I2549	-	hypothetical protein
2334	 34.84	-1	2731097..2731627	-	176	209695968	-	VSAL_I2550	-	putative hemerythrin
2335	 37.93	0	2731716..2732390	-	224	209695969	ung	VSAL_I2551	-	uracil-DNA glycosylase (UDG)
2336	 40.28	0	2732391..2733239	-	282	209695970	nfo	VSAL_I2552	-	endonuclease IV
2337	 40.74	0	2733601..2733978	+	125	209695971	grcA	VSAL_I2553	-	autonomous glycyl radical cofactor
2338	 39.02	0	2734134..2735417	-	427	209695972	thrC	VSAL_I2554	-	threonine synthase
2339	 40.54	0	2735414..2736370	-	318	209695973	thrB	VSAL_I2555	-	homoserine kinase
2340	 40.20	0	2736372..2738831	-	819	209695974	thrA	VSAL_I2556	-	bifunctional aspartokinase/homoserine dehydrogenase I
2341	 40.25	0	2739226..2739702	-	158	209695975	-	VSAL_I2557	-	demethylmenaquinone methyltransferase
2342	 40.69	0	2740146..2740865	+	239	209695976	arcA	VSAL_I2558	-	response regulator, aerobic respiration control protein ArcA
2343	 37.81	0	2740940..2741386	-	148	209695977	-	VSAL_I2559	-	putative lipoprotein
2344	 36.71	0	2741396..2743762	-	788	209695978	arcB	VSAL_I2560	-	response regulator, aerobic respiration control sensor protein ArcB
2345	 41.42	0	2745319..2749866	+	1515	209695979	gltB	VSAL_I2562	-	glutamate synthase, large subunit
2346	 41.28	0	2749866..2751338	+	490	209695980	-	VSAL_I2563	-	glutamate synthase, small subunit
2347	 31.94	-2	2751503..2751934	+	143	209695981	-	VSAL_I2564	-	putative lipoprotein
2348	 39.51	0	2757664..2758359	+	231	209695982	mtnN	VSAL_I2565	-	MTA/SAH nucleosidase (5'-methylthioadenosin nucleosidase) (S-adenosylhomocysteine nucleosidase)
2349	 36.90	0	2758425..2759378	+	317	209695983	-	VSAL_I2566	-	putative cobalamin biosynthesis protein
2350	 41.99	0	2759421..2760032	+	203	209695984	-	VSAL_I2567	-	inner membrane protein
2351	 38.60	0	2760222..2761532	+	436	209695985	-	VSAL_I2568	-	putative membrane associated peptidase
2352	 38.45	0	2761549..2764677	-	1042	209695986	-	VSAL_I2569	-	integral membrane protein, putative multidrug resistance protein
2353	 38.81	0	2764687..2765799	-	370	209695987	-	VSAL_I2570	-	membrane protein, putative periplasmic component of a bacterial drug efflux pump
2354	 36.55	0	2765930..2766271	-	113	209695988	-	VSAL_I2571	-	putative iron-sulphur cluster biosynthesis protein
2355	 42.98	+1	2766507..2767802	+	431	209695989	hemL	VSAL_I2572	-	glutamate-1-semialdehyde 2,1-aminomutase
39.44	MEAN

3.11	STD DEV
