IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

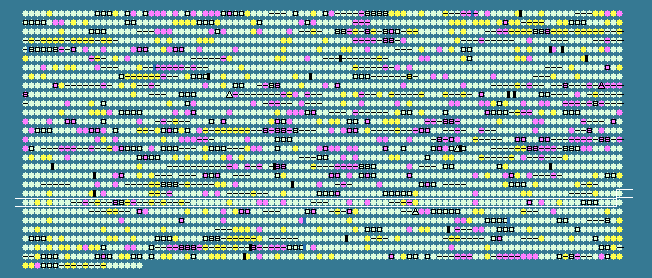

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2100	 40.74	0	2474430..2474915	-	161	209695734	fliL	VSAL_I2302	-	polar flagellar protein FliL
2101	 41.75	0	2474973..2476196	-	407	209695735	fliK	VSAL_I2303	-	polar flagellar hook-length control protein FliK
2102	 37.21	0	2476388..2476825	-	145	209695736	fliJ	VSAL_I2304	-	polar flagellar assembly protein FliJ
2103	 45.53	+1	2476882..2478201	-	439	209695737	fliI	VSAL_I2305	-	polar flagellum-specific ATP synthase FliI
2104	 40.85	0	2478202..2478999	-	265	209695738	fliH	VSAL_I2306	-	polar flagellar assembly protein FliH
2105	 43.40	+1	2479133..2480185	-	350	209695739	fliG	VSAL_I2307	-	polar flagellar motor switch protein FliG
2106	 41.03	0	2481932..2482243	-	103	209695740	fliE	VSAL_I2309	-	flagellar hook-basal body complex protein FliE
2107	 42.03	0	2482344..2483780	-	478	209695741	flaM	VSAL_I2310	-	sigma-54 dependent response regulator
2108	 42.43	0	2483783..2484826	-	347	209695742	flaL	VSAL_I2311	-	histidine kinase
2109	 40.82	0	2484953..2486434	-	493	209695743	flaK	VSAL_I2312	-	sigma 54 dependent transcription regulator
2110	 40.63	0	2486631..2487041	-	136	209695744	flaJ	VSAL_I2313	-	polar flagellar protein FliS (polar flagellar protein FlaJ)
2111	 32.99	-2	2487057..2487347	-	96	209695745	flaI	VSAL_I2314	-	polar flagellar protein FlaI
2112	 42.61	+1	2487381..2489321	-	646	209695746	fliDP	VSAL_I2315	-	polar flagellar hook-associated protein 2 (HAP2) (flagellar cap protein)
2113	 43.80	+1	2489892..2491028	-	378	209695747	flaE	VSAL_I2317	-	flagellin subunit E
2114	 42.55	+1	2491276..2492403	-	375	209695748	flaD	VSAL_I2318	-	flagellin subunit D
2115	 42.10	0	2492863..2494071	-	402	209695749	flaC	VSAL_I2319	-	flagellin subunit C
2116	 35.94	-1	2496656..2497537	+	293	209695750	-	VSAL_I2323	-	transposase
2117	 37.78	0	2498240..2498554	-	104	209695751	-	VSAL_I2324	-	transposase
2118	 43.47	+1	2498727..2499860	-	377	209695752	flaB	VSAL_I2325	-	flagellin subunit B
2119	 35.19	-1	2499918..2500295	-	125	209695753	-	VSAL_I2326	-	hypothetical protein
2120	 42.19	0	2500546..2501685	-	379	209695754	flaA	VSAL_I2327	-	flagellin subunit A
2121	 38.27	0	2502247..2503440	-	397	209695755	flgL	VSAL_I2328	-	flagellar hook-associated protein type 3 FlgL
2122	 43.70	+1	2503457..2505337	-	626	209695756	flgM	VSAL_I2329	-	flagellar hook-associated protein type 3 FlgM
2123	 41.34	0	2505589..2506587	-	332	209695757	flgJ	VSAL_I2330	-	peptidoglycan hydrolase FlgJ
2124	 43.23	+1	2506739..2507860	-	373	209695758	flgI	VSAL_I2331	-	flagellar P-ring protein 2 precursor (basal body P-ring protein 2)
2125	 42.49	0	2507863..2508648	-	261	209695759	flgH	VSAL_I2332	-	flagellar L-ring protein 1 precursor (basal body L-ring protein 1)
2126	 41.95	0	2508661..2509449	-	262	209695760	flgG	VSAL_I2333	-	flagellar basal-body rod protein FlgG (distal rod protein)
2127	 43.11	+1	2509504..2510229	-	241	209695761	flgF	VSAL_I2334	-	flagellar basal-body rod protein FlgF
2128	 41.80	0	2510467..2511765	-	432	209695762	flgE	VSAL_I2335	-	flagellar hook protein FlgE
2129	 42.48	0	2511930..2512640	-	236	209695763	flgD	VSAL_I2336	-	flagellar basal-body rod protein FlgD
2130	 41.01	0	2512656..2513072	-	138	209695764	flgC	VSAL_I2337	-	flagellar basal-body rod protein FlgC
2131	 41.67	0	2513075..2513470	-	131	209695765	flgB	VSAL_I2338	-	flagellar basal-body rod protein FlgB
2132	 39.49	0	2513665..2514492	-	275	209695766	cheR	VSAL_I2339	-	chemotaxis protein methyltransferase CheR
2133	 38.65	0	2514564..2515484	-	306	209695767	cheV	VSAL_I2340	-	chemotaxis protein methyltransferase CheV
2134	 39.09	0	2515559..2516305	+	248	209695768	flgA	VSAL_I2341	-	polar flagellar basal-body P-ring formation protein FlgA
2135	 44.23	+1	2516525..2516836	+	103	209695769	flgM	VSAL_I2342	-	negative regulator of flagellin synthesis FlgM, anti-sigma28 factor
2136	 36.60	0	2516889..2517317	+	142	209695770	flgN	VSAL_I2343	-	polar flagellar FlgN, putative chaperone
2137	 40.46	0	2517869..2518303	-	144	209695771	-	VSAL_I2344	-	putative lipoprotein
2138	 37.42	0	2518312..2518947	-	211	209695772	-	VSAL_I2345	-	hypothetical protein
2139	 37.55	0	2519120..2520256	+	378	209695773	-	VSAL_I2346	-	hypothetical protein
2140	 33.59	-1	2520393..2521541	+	382	209695774	-	VSAL_I2347	-	hypothetical protein
2141	 31.80	-2	2521547..2522329	+	260	209695775	-	VSAL_I2348	-	putative membrane associated GGDEF protein
2142	 37.29	0	2522480..2522656	+	58	209695776	-	VSAL_I2349	-	hypothetical protein
2143	 40.42	0	2522708..2524132	-	474	209695777	gltX	VSAL_I2350	-	glutamyl-tRNA synthetase
2144	 34.72	-1	2524318..2525109	-	263	209695778	-	VSAL_I2351	-	putative lipoprotein
2145	 41.54	0	2526803..2528812	-	669	209695779	-	VSAL_I2353	-	NAD-dependent DNA ligase
2146	 39.37	0	2528903..2529829	-	308	209695780	-	VSAL_I2354	-	cell division protein ZipA
2147	 37.98	0	2530101..2530853	+	250	209695781	cysZ	VSAL_I2355	-	sulfate transport protein CysZ
2148	 42.52	0	2531018..2531986	+	322	209695782	cysK	VSAL_I2356	-	cysteine synthase A
2149	 41.86	0	2532306..2532563	+	85	209695783	ptsH	VSAL_I2357	-	phosphocarrier protein Hpr, histidine-containing protein (PTS system)
2150	 40.46	0	2532621..2534345	+	574	209695784	ptsI	VSAL_I2358	-	phosphoenolpyruvate-protein phosphotransferase enzyme I (PTS system)
2151	 40.59	0	2534422..2534931	+	169	209695785	crr	VSAL_I2359	-	glucose-specific phosphotransferase enzyme IIA component (PTS system)
2152	 39.74	0	2535025..2535930	-	301	209695786	-	VSAL_I2360	-	putative Dyp-type peroxidase
2153	 39.23	0	2536014..2536403	-	129	209695787	-	VSAL_I2361	-	hypothetical protein
2154	 37.28	0	2536415..2536870	-	151	209695788	-	VSAL_I2362	-	inner membrane protein
2155	 32.49	-2	2537072..2537428	+	118	209695789	-	VSAL_I2363	-	membrane protein
2156	 40.28	0	2537639..2538214	-	191	209695790	napC	VSAL_I2364	-	cytochrome c-type protein NapC
2157	 41.35	0	2538247..2538720	-	157	209695791	napB	VSAL_I2365	-	cytochrome C-type protein NapB precursor
2158	 35.44	-1	2541276..2541560	-	94	209695792	-	VSAL_I2367	-	NapD protein
2159	 40.85	0	2541560..2542078	-	172	209695793	-	VSAL_I2368	-	ferredoxin-type protein NapF
2160	 37.06	0	2542267..2543958	+	563	209695794	narQ	VSAL_I2369	-	nitrate/nitrite sensor protein NarQ
2161	 38.40	0	2543982..2544593	+	203	209695795	narP	VSAL_I2370	-	nitrate/nitrite response regulator protein NarP
2162	 36.31	-1	2544595..2544930	+	111	209695796	-	VSAL_I2371	-	putative lipoprotein
2163	 40.43	0	2545014..2545295	-	93	209695797	-	VSAL_I2372	-	hypothetical protein
2164	 50.18	+2	2545461..2545745	-	94	209695798	-	VSAL_I2373	-	hypothetical protein
2165	 34.65	-1	2545924..2546226	+	100	209695799	-	VSAL_I2374	-	putative arsenate reductase
2166	 43.21	+1	2546317..2547450	+	377	209695800	dapE	VSAL_I2375	-	succinyl-diaminopimelate desuccinylase
2167	 39.16	0	2547510..2548178	+	222	209695801	-	VSAL_I2376	-	D-alanyl-D-alanine carboxypeptidase
2168	 38.01	0	2548181..2548351	+	56	209695802	-	VSAL_I2377	-	hypothetical protein
2169	 39.98	0	2548424..2549476	-	350	209695803	-	VSAL_I2378	-	NlpB/DapX lipoprotein
2170	 40.70	0	2549488..2550369	-	293	209695804	dapA	VSAL_I2379	-	dihydrodipicolinate synthase
2171	 36.93	0	2550645..2551172	+	175	209695805	gcvR	VSAL_I2380	-	glycine cleavage system transcriptional repressor (Gcv operon repressor)
2172	 39.28	0	2551200..2551670	+	156	209695806	bcp	VSAL_I2381	-	putative peroxiredoxin bcp (thioredoxin reductase (bacterioferritin comigratory protein)
2173	 39.42	0	2551746..2552813	-	355	209695807	-	VSAL_I2382	-	membrane protein
2174	 37.72	0	2552815..2553042	-	75	209695808	-	VSAL_I2383	-	hypothetical protein
2175	 42.89	+1	2553230..2554684	+	484	209695809	-	VSAL_I2384	-	peptidase
2176	 35.61	-1	2554711..2555061	+	116	209695810	-	VSAL_I2385	-	putative arsenate reductase
2177	 37.41	0	2555082..2555522	+	146	209695811	-	VSAL_I2386	-	hypothetical protein
2178	 39.01	0	2555609..2556805	-	398	209695812	-	VSAL_I2387	-	hypothetical protein
2179	 42.45	0	2557012..2558262	+	416	209695813	pyrP	VSAL_I2388	-	uracil permease
2180	 40.67	0	2558416..2559042	-	208	209695814	upp	VSAL_I2389	-	uracil phosphoribosyltransferase
2181	 42.17	0	2559268..2560308	+	346	209695815	purM	VSAL_I2390	-	phosphoribosylformylglycinamidine cyclo-ligase (phosphoribosyl-aminoimidazole synthetase)
2182	 40.16	0	2560436..2561080	+	214	209695816	purN	VSAL_I2391	-	phosphoribosylglycinamide formyltransferase
2183	 40.82	0	2561138..2561965	-	275	209695817	-	VSAL_I2392	-	putative amidotransferase
2184	 40.38	0	2562000..2562581	-	193	209695818	gmhA	VSAL_I2393	-	phosphoheptose isomerase
2185	 35.94	-1	2562847..2563728	+	293	209695819	-	VSAL_I2394	-	transposase
2186	 42.20	0	2563944..2566391	+	815	209695820	fadE	VSAL_I2395	-	acyl-coenzyme A dehydrogenase
2187	 31.07	-2	2566470..2566646	-	58	209695821	-	VSAL_I2396	-	hypothetical protein
2188	 37.93	0	2566806..2568068	-	420	209695822	-	VSAL_I2397	-	hypothetical protein
2189	 39.62	0	2568079..2568810	-	243	209695823	dnaQ	VSAL_I2398	-	DNA polymerase III, epsilon chain
2190	 44.30	+1	2568848..2569321	+	157	209695824	rnhA	VSAL_I2399	-	Ribonuclease H
2191	 39.65	0	2569318..2570061	-	247	209695825	-	VSAL_I2400	-	hypothetical protein
2192	 39.79	0	2570113..2570871	+	252	209695826	-	VSAL_I2401	-	putative metallo-beta-lactamase
2193	 40.15	0	2570958..2572511	+	517	209695827	mltD	VSAL_I2402	-	membrane-bound lytic murein transglycosylase D precursor
2194	 39.65	0	2572870..2574357	-	495	209695828	-	VSAL_I2404	-	transposase
2195	 36.21	-1	2574429..2574776	-	115	209695829	-	VSAL_I2405	-	transposase
2196	 37.78	0	2574773..2575087	-	104	209695830	-	VSAL_I2406	-	transposase
2197	 37.31	0	2575504..2576358	-	284	209695831	-	VSAL_I2407	-	putative nuclease
2198	 40.12	0	2576424..2576762	-	112	209695832	glnB	VSAL_I2408	-	nitrogen regulatory protein P-II
2199	 42.63	+1	2576855..2577166	-	103	209695833	-	VSAL_I2409	-	cytochrome c-552
39.44	MEAN

3.11	STD DEV
