IslandPath Analysis: Aliivibrio salmonicida LFI1238

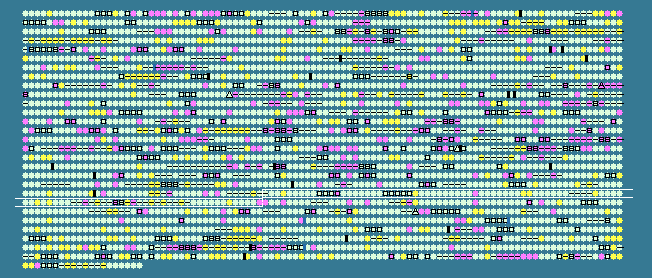

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2041	 42.35	0	2409256..2410209	+	317	209695675	fabH	VSAL_I2239	-	3-oxoacyl-[acyl-carrier-protein] synthase III
2042	 41.67	0	2410270..2411193	+	307	209695676	fabD	VSAL_I2240	-	malonyl CoA-acyl carrier protein transacylase
2043	 42.55	+1	2411210..2411947	+	245	209695677	fabG	VSAL_I2241	-	3-oxoacyl-[acyl-carrier protein] reductase
2044	 44.36	+1	2412442..2413683	+	413	209695678	fabF	VSAL_I2242	-	3-oxoacyl-[acyl-carrier-protein] synthase II
2045	 38.29	0	2413782..2414588	+	268	209695679	-	VSAL_I2243	-	aminodeoxychorismate lyase
2046	 36.20	-1	2414582..2415592	+	336	209695680	-	VSAL_I2244	-	aminodeoxychorismate lyase
2047	 42.65	+1	2415595..2416227	+	210	209695681	tmk	VSAL_I2245	-	thymidylate kinase
2048	 38.07	0	2416217..2417188	+	323	209695682	-	VSAL_I2246	-	putative DNA polymerase III, delta' subunit
2049	 37.74	0	2417190..2417960	+	256	209695683	-	VSAL_I2247	-	putative TatD-related deoxyribonuclease
2050	 37.78	0	2418149..2418463	+	104	209695684	-	VSAL_I2248	-	transposase
2051	 36.21	-1	2418460..2418807	+	115	209695685	-	VSAL_I2249	-	transposase
2052	 39.52	0	2418879..2420366	+	495	209695686	-	VSAL_I2250	-	transposase
2053	 35.94	-1	2420806..2421687	+	293	209695687	-	VSAL_I2251	-	transposase
2054	 42.28	0	2421738..2423168	+	476	209695688	ptsG	VSAL_I2252	-	PTS system, glucose-specific EIIBC component [includes: glucose permease IIC component; glucose-specific phosphotransferase enzyme II component]
2055	 36.76	0	2423227..2423868	-	213	209695689	-	VSAL_I2253	-	hypothetical protein
2056	 38.65	0	2424041..2425507	-	488	209695690	-	VSAL_I2254	-	putative sodium-dependent transporter
2057	 37.11	0	2425889..2426470	-	193	209695691	-	VSAL_I2255	-	hypothetical protein
2058	 36.84	0	2430852..2431079	+	75	209695692	-	VSAL_I2257	-	ferrous iron transport protein FeoA
2059	 39.31	0	2431081..2433357	+	758	209695693	feoB	VSAL_I2258	-	ferrous iron transport protein FeoB
2060	 39.92	0	2433354..2433596	+	80	209695694	-	VSAL_I2259	-	hypothetical protein
2061	 37.78	0	2433749..2434063	+	104	209695695	-	VSAL_I2260	-	transposase
2062	 36.49	0	2434060..2434407	+	115	209695696	-	VSAL_I2261	-	transposase
2063	 39.78	0	2434479..2435966	+	495	209695697	-	VSAL_I2262	-	transposase
2064	 39.65	0	2436860..2438347	-	495	209695698	-	VSAL_I2264	-	transposase
2065	 38.10	0	2438762..2439076	-	104	209695699	-	VSAL_I2266b	-	transposase
2066	 43.15	+1	2441416..2442759	-	447	209695700	fadI	VSAL_I2268	-	3-ketoacyl-CoA thiolase (fatty acid oxidation complex subunit beta) (beta-ketothiolase) (acetyl-CoA acyltransferase)
2067	 41.51	0	2443564..2444811	+	415	209695701	-	VSAL_I2269	-	outer membrane protein transport protein
2068	 42.44	0	2445467..2446783	+	438	209695702	-	VSAL_I2270	-	outer membrane protein transport protein
2069	 37.93	0	2446974..2447582	+	202	209695703	-	VSAL_I2271	-	inner membrane protein
2070	 38.93	0	2447622..2448407	-	261	209695704	vacJ	VSAL_I2272	-	lipoprotein VacJ precursor
2071	 39.59	0	2448561..2449775	-	404	209695705	-	VSAL_I2273	-	putative cytochrome c-type biogenesis protein precursor
2072	 38.46	0	2449772..2450278	-	168	209695706	ccmH	VSAL_I2274	-	cytochrome c-type biogenesis protein CcmH precursor
2073	 39.16	0	2450284..2450832	-	182	209695707	dsbE	VSAL_I2275	-	thiol:disulfide interchange protein DsbE (cytochrome c biogenesis protein CcmG)
2074	 42.47	0	2450835..2452793	-	652	209695708	ccmF	VSAL_I2276	-	cytochrome c-type biogenesis protein CcmF
2075	 42.86	+1	2452835..2453275	-	146	209695709	ccmE	VSAL_I2277	-	cytochrome c-type biogenesis protein CcmE (cytochrome c maturation protein E) (heme chaperone CcmE)
2076	 34.30	-1	2453272..2453478	-	68	209695710	ccmD	VSAL_I2278	-	cytochrome c-type biogenesis protein CcmD
2077	 41.57	0	2453502..2454254	-	250	209695711	ccmC	VSAL_I2279	-	cytochrome c-type biogenesis protein CcmC
2078	 41.55	0	2454304..2454972	-	222	209695712	ccmB	VSAL_I2280	-	cytochrome c-type biogenesis protein CcmB
2079	 40.00	0	2454976..2455590	-	204	209695713	ccmA	VSAL_I2281	-	cytochrome c biogenesis ATP-binding export protein CcmA
2080	 38.74	0	2455861..2456322	-	153	209695714	-	VSAL_I2282	-	hypothetical protein
2081	 38.38	0	2456322..2456816	-	164	209695715	cheW	VSAL_I2283	-	chemotaxis protein CheW
2082	 39.19	0	2456845..2457936	-	363	209695716	-	VSAL_I2284	-	cheW-like protein
2083	 39.45	0	2457936..2458703	-	255	209695717	-	VSAL_I2285	-	putative chromosome segregation protein
2084	 43.74	+1	2458713..2459855	-	380	209695718	cheB	VSAL_I2286	-	chemotaxis response regulator protein-glutamate methylesterase
2085	 42.96	+1	2459871..2462042	-	723	209695719	cheA	VSAL_I2287	-	chemotaxis protein CheA
2086	 40.69	0	2462052..2462771	-	239	209695720	cheZ	VSAL_I2288	-	chemotaxis protein CheZ
2087	 37.94	0	2462804..2463172	-	122	209695721	cheY	VSAL_I2289	-	chemotaxis protein CheY
2088	 38.80	0	2463223..2463954	-	243	209695722	fliA	VSAL_I2290	-	RNA polymerase sigma factor for flagellar regulon FliA
2089	 42.42	0	2463947..2464837	-	296	209695723	flhG	VSAL_I2291	-	flagellar biosynthesis protein FlhG (flagellar number regulator)
2090	 41.24	0	2464834..2466288	-	484	209695724	flhF	VSAL_I2292	-	flagellar biosynthesis protein FlhF
2091	 42.22	0	2466352..2468445	-	697	209695725	flhA	VSAL_I2293	-	polar flagellar assembly protein FlhA
2092	 40.74	0	2468734..2469408	+	224	209695726	-	VSAL_I2294	-	putative type IV pilus assembly (PilZ) protein
2093	 40.67	0	2469423..2470553	-	376	209695727	flhB	VSAL_I2295	-	polar flagellar assembly protein FlhB
2094	 41.38	0	2470584..2471366	-	260	209695728	fliR	VSAL_I2296	-	polar flagellar assembly protein FliR
2095	 41.48	0	2471429..2471698	-	89	209695729	fliQ	VSAL_I2297	-	polar flagellar assembly protein FliR
2096	 43.10	+1	2471708..2472577	-	289	209695730	fliP	VSAL_I2298	-	polar flagellar assembly protein FliP
2097	 38.46	0	2472564..2472953	-	129	209695731	fliO	VSAL_I2299	-	polar flagellar assembly protein FliO
2098	 42.71	+1	2472985..2473368	-	127	209695732	fliN	VSAL_I2300	-	polar flagellar switch protein FliN
2099	 41.57	0	2473391..2474422	-	343	209695733	fliM	VSAL_I2301	-	polar flagellar switch protein FliM (flagellar motor switch protein FliM)
2100	 40.74	0	2474430..2474915	-	161	209695734	fliL	VSAL_I2302	-	polar flagellar protein FliL
2101	 41.75	0	2474973..2476196	-	407	209695735	fliK	VSAL_I2303	-	polar flagellar hook-length control protein FliK
2102	 37.21	0	2476388..2476825	-	145	209695736	fliJ	VSAL_I2304	-	polar flagellar assembly protein FliJ
2103	 45.53	+1	2476882..2478201	-	439	209695737	fliI	VSAL_I2305	-	polar flagellum-specific ATP synthase FliI
2104	 40.85	0	2478202..2478999	-	265	209695738	fliH	VSAL_I2306	-	polar flagellar assembly protein FliH
2105	 43.40	+1	2479133..2480185	-	350	209695739	fliG	VSAL_I2307	-	polar flagellar motor switch protein FliG
2106	 41.03	0	2481932..2482243	-	103	209695740	fliE	VSAL_I2309	-	flagellar hook-basal body complex protein FliE
2107	 42.03	0	2482344..2483780	-	478	209695741	flaM	VSAL_I2310	-	sigma-54 dependent response regulator
2108	 42.43	0	2483783..2484826	-	347	209695742	flaL	VSAL_I2311	-	histidine kinase
2109	 40.82	0	2484953..2486434	-	493	209695743	flaK	VSAL_I2312	-	sigma 54 dependent transcription regulator
2110	 40.63	0	2486631..2487041	-	136	209695744	flaJ	VSAL_I2313	-	polar flagellar protein FliS (polar flagellar protein FlaJ)
2111	 32.99	-2	2487057..2487347	-	96	209695745	flaI	VSAL_I2314	-	polar flagellar protein FlaI
2112	 42.61	+1	2487381..2489321	-	646	209695746	fliDP	VSAL_I2315	-	polar flagellar hook-associated protein 2 (HAP2) (flagellar cap protein)
2113	 43.80	+1	2489892..2491028	-	378	209695747	flaE	VSAL_I2317	-	flagellin subunit E
2114	 42.55	+1	2491276..2492403	-	375	209695748	flaD	VSAL_I2318	-	flagellin subunit D
2115	 42.10	0	2492863..2494071	-	402	209695749	flaC	VSAL_I2319	-	flagellin subunit C
2116	 35.94	-1	2496656..2497537	+	293	209695750	-	VSAL_I2323	-	transposase
2117	 37.78	0	2498240..2498554	-	104	209695751	-	VSAL_I2324	-	transposase
2118	 43.47	+1	2498727..2499860	-	377	209695752	flaB	VSAL_I2325	-	flagellin subunit B
2119	 35.19	-1	2499918..2500295	-	125	209695753	-	VSAL_I2326	-	hypothetical protein
2120	 42.19	0	2500546..2501685	-	379	209695754	flaA	VSAL_I2327	-	flagellin subunit A
2121	 38.27	0	2502247..2503440	-	397	209695755	flgL	VSAL_I2328	-	flagellar hook-associated protein type 3 FlgL
2122	 43.70	+1	2503457..2505337	-	626	209695756	flgM	VSAL_I2329	-	flagellar hook-associated protein type 3 FlgM
2123	 41.34	0	2505589..2506587	-	332	209695757	flgJ	VSAL_I2330	-	peptidoglycan hydrolase FlgJ
2124	 43.23	+1	2506739..2507860	-	373	209695758	flgI	VSAL_I2331	-	flagellar P-ring protein 2 precursor (basal body P-ring protein 2)
2125	 42.49	0	2507863..2508648	-	261	209695759	flgH	VSAL_I2332	-	flagellar L-ring protein 1 precursor (basal body L-ring protein 1)
2126	 41.95	0	2508661..2509449	-	262	209695760	flgG	VSAL_I2333	-	flagellar basal-body rod protein FlgG (distal rod protein)
2127	 43.11	+1	2509504..2510229	-	241	209695761	flgF	VSAL_I2334	-	flagellar basal-body rod protein FlgF
2128	 41.80	0	2510467..2511765	-	432	209695762	flgE	VSAL_I2335	-	flagellar hook protein FlgE
2129	 42.48	0	2511930..2512640	-	236	209695763	flgD	VSAL_I2336	-	flagellar basal-body rod protein FlgD
2130	 41.01	0	2512656..2513072	-	138	209695764	flgC	VSAL_I2337	-	flagellar basal-body rod protein FlgC
2131	 41.67	0	2513075..2513470	-	131	209695765	flgB	VSAL_I2338	-	flagellar basal-body rod protein FlgB
2132	 39.49	0	2513665..2514492	-	275	209695766	cheR	VSAL_I2339	-	chemotaxis protein methyltransferase CheR
2133	 38.65	0	2514564..2515484	-	306	209695767	cheV	VSAL_I2340	-	chemotaxis protein methyltransferase CheV
2134	 39.09	0	2515559..2516305	+	248	209695768	flgA	VSAL_I2341	-	polar flagellar basal-body P-ring formation protein FlgA
2135	 44.23	+1	2516525..2516836	+	103	209695769	flgM	VSAL_I2342	-	negative regulator of flagellin synthesis FlgM, anti-sigma28 factor
2136	 36.60	0	2516889..2517317	+	142	209695770	flgN	VSAL_I2343	-	polar flagellar FlgN, putative chaperone
2137	 40.46	0	2517869..2518303	-	144	209695771	-	VSAL_I2344	-	putative lipoprotein
2138	 37.42	0	2518312..2518947	-	211	209695772	-	VSAL_I2345	-	hypothetical protein
2139	 37.55	0	2519120..2520256	+	378	209695773	-	VSAL_I2346	-	hypothetical protein
2140	 33.59	-1	2520393..2521541	+	382	209695774	-	VSAL_I2347	-	hypothetical protein
39.44	MEAN

3.11	STD DEV
